VAG DSG & S-Tronic Mechatronics — Complete Guide to Versions, Symptoms & Faults

VAG DSG & S-Tronic Mechatronics — Complete Guide to Versions, Symptoms & Faults

Introduction

The mechatronic unit is the heart of every DSG and S-Tronic gearbox. Acting as both the electronic control unit (ECU) and hydraulic valve body, it manages clutch operation, gear selection, and hydraulic pressure.

Across the VAG Group (Volkswagen, Audi, SEAT, Škoda), multiple versions of mechatronics are used — each with their own strengths, weaknesses, and common failure points.

This guide provides an overview of every major VAG mechatronic, with quick-fitment examples and common failure symptoms. For in-depth detail, fault codes, and repair guides, follow the links to our dedicated posts for each gearbox.


0AM — DQ200 (7-speed, dry clutch)

  • Applications: VW Polo, Golf, Passat; Audi A1, A3; SEAT Leon; Škoda Octavia (small-engine cars).
  • Typical Symptoms: Judder, PRNDS flashing, loss of drive.
  • Known Issues: Hydraulic accumulator and pressure build-up faults.

👉 [Read the full guide on DQ200 mechatronics →]

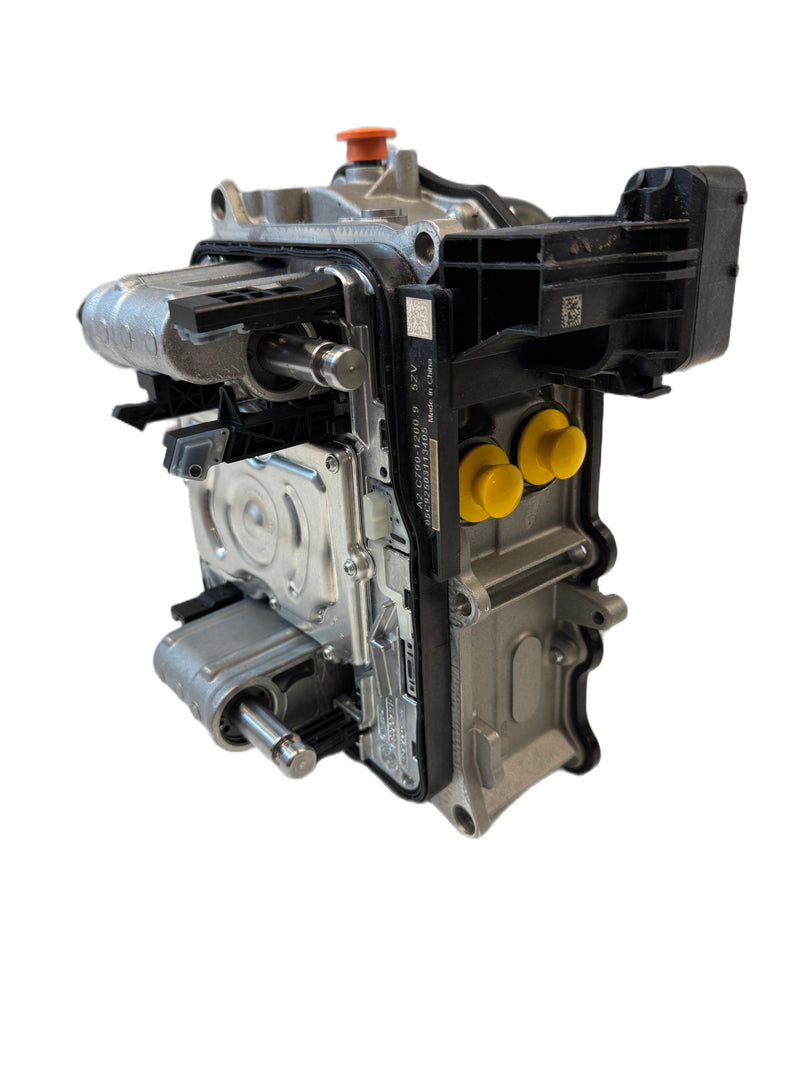

0AM DSG DQ200 7 Speed Mechatronic Eco Torque


02E — DQ250 (6-speed, wet clutch)

  • Applications: VW Golf GTI/R, Passat, Tiguan; Audi A3, TT; SEAT Leon; Škoda Superb.
  • Typical Symptoms: Harsh 2–3 shifts, limp mode, delayed D/R engagement.
  • Known Issues: Solenoid faults, pressure regulation errors.

👉 [Read the full guide on DQ250 mechatronics →]

02E DQ250 DSG Mechatronic VW Eco Torque

0BH / 0BT — DQ500 (7-speed, wet clutch, high torque)

  • Applications: VW Transporter/Caravelle T5/T6/T6.1, Tiguan; Audi Q3, TT RS; some Q5 models.
  • Typical Symptoms: Limp with restricted gears, harsh shifts, sensor-related codes.
  • Known Issues: Input shaft speed sensor faults, valve body wear.

👉 [Read the full guide on DQ500 mechatronics →]

0BH DSG DQ500 Mechatronic Rpeair Genuine parts at Eco Torque

0GC — DQ381 (7-speed, wet clutch)

  • Applications: VW Golf Mk7.5 GTI/R, other MQB-based performance models.
  • Typical Symptoms: Low-speed 2→1 shuffle/clunk, hesitation from standstill.
  • Known Issues: Clutch pressure sensor and circuit board failure..

👉 [Read the full guide on DQ381 mechatronics →]

0gc dq381 Mechatronic from DSG gearbox Eco Torque

0B5 — DL501 (7-speed, longitudinal S-Tronic)

  • Applications: Audi A4, A5, A6, A7, Q5, S4, RS5.
  • Typical Symptoms: Gearbox malfunction warning, limp mode, harsh engagement.
  • Known Issues: Circuit board faults, solenoid and TCU failure.

👉 [Read the full guide on DL501 mechatronics →]

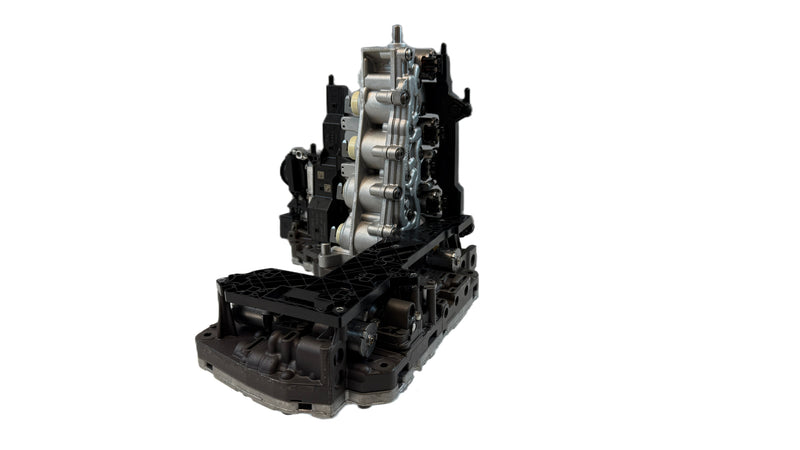

0B5 DL501 S-Tronic DSG gearbox mechatronic Eco Torque

0CK / 0CL / 0CJ — DL382 (7-speed, longitudinal S-Tronic)

  • Applications: Audi A4, A5, A6, A7, Q5 (newer platforms, incl. shift-by-wire versions).
  • Typical Symptoms: Delayed D/R, limp mode, harsh shifts.
  • Known Issues: Selector logic problems (SBW), valve body pressure regulation.

👉 [Read the full guide on DL382 mechatronics →]

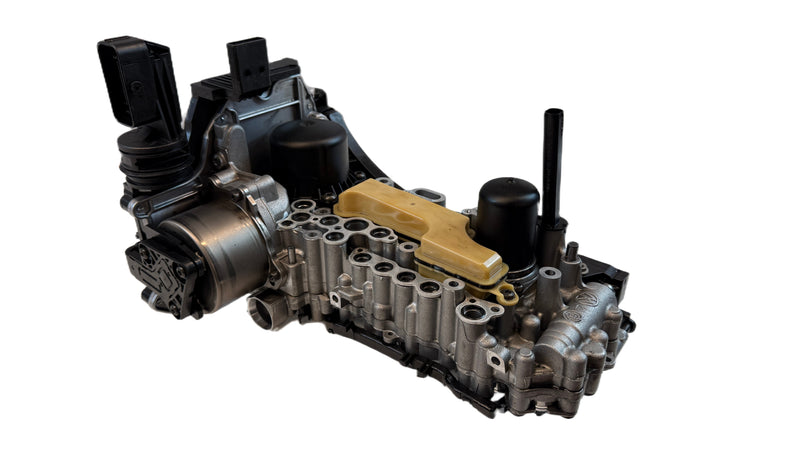

0CK DL382 Mechatronic Audi S-Tronic Eco Torque

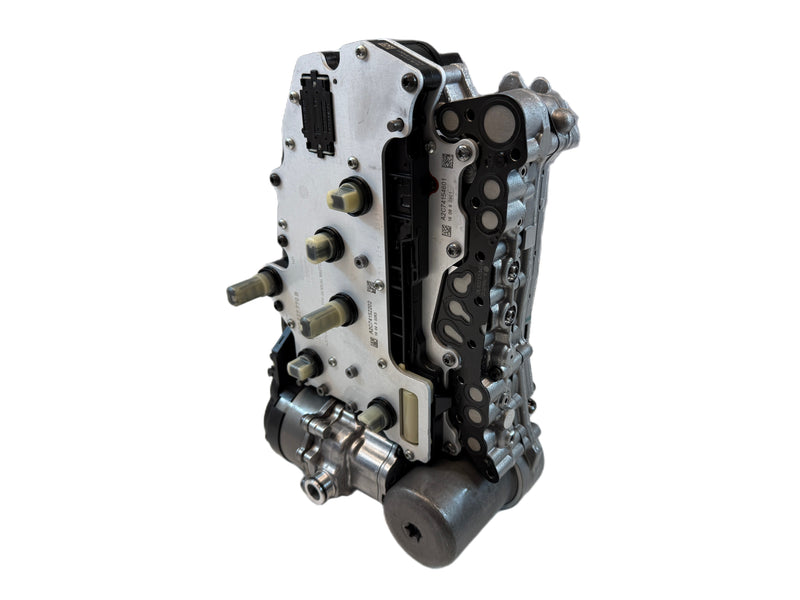

0DD — DQ400 (6-speed hybrid DSG)

  • Applications: VW Golf,Passat GTE, Audi A3 e-tron.
  • Typical Symptoms: Hybrid handover jolts, gearbox/electrical warnings, no engage after charging events.
  • Known Issues: Hybrid disconnector clutch faults, solenoid errors.

👉 [Read the full guide on DQ400 mechatronics →] -COMING SOON!


❓ Frequently Asked Questions (FAQ)

Q: What does a DSG/S-Tronic mechatronic unit do?
A: It controls clutch engagement, hydraulic pressure, and gear shifts, acting as the “brain and muscles” of the gearbox.

Q: Which mechatronic is most failure-prone?
A: The DQ200 (0AM) dry clutch unit has the highest failure rate due to accumulator and pressure faults.

Q: Can a mechatronic be repaired or must it be replaced?
A: Many failures can be repaired (solenoids, sensors, circuit boards). Full replacement is only required in severe cases.

Q: What are the most common symptoms?
A: Harsh shifting, PRNDS flashing, limp mode, delayed D/R, or refusal to engage drive/reverse.

Q: Can Eco Torque repair all mechatronics?
A: Yes — Eco Torque specialises in all VAG DSG/S-Tronic units including DQ200, DQ250, DQ500, DQ381, DL501, DL382, and DQ400.
