VW / Audi DQ381 DSG Mechatronic Failure (0GC) — Fault Codes & Fixes – Eco Torque

Q: What vehicles use the DQ381 gearbox?

The 0GC DQ381 is used in VW Golf Mk7.5 GTI/R, Tiguan, Arteon, Audi A3, TT, Q3, and other MQB-based models.

Q: What are the most common DQ381 mechatronic fault codes?

Common codes include P0607 (control module malfunction), P173500/P173600 (clutch position sensors), and P176A–D (gear selector errors).

Q: Why does my DQ381 gearbox go into limp mode?

Limp mode is typically triggered by clutch pressure sensor faults, gear selector regulation issues, or overheating of the mechatronic.

Q: Can Eco Torque repair my DQ381 mechatronic?

Yes. Eco Torque provides repair and replacement of DQ381 mechatronic units, including oil service, coding, and adaptations.

Introduction

The DQ381 DSG gearbox (code 0GC) is a 7-speed wet-clutch transmission introduced by the Volkswagen Group to replace the earlier DQ250. It’s fitted across a wide range of modern MQB-platform models, including the VW Golf Mk7.5 GTI/R, Tiguan, Arteon, and Audi A3, TT, and Q3.

While praised for smoothness and efficiency, the DQ381 has become well-known in owner forums and blogs for mechatronic-related failures. Drivers report issues such as:

Sudden limp mode activation
Loss of gear selection or refusal to engage drive
Jerky or delayed shifts when hot
Dashboard warnings such as “Gearbox Malfunction”
Repeated fault codes for sensors, valves, and the TCU

At Eco Torque, we see these failures frequently, including the most common clutch pressure issue that we’ve previously discussed in our blog on DQ381/DQ500 P1735 fault.

Quick Symptoms of DQ381 Mechatronic Failure

Limp mode activation with restricted gear availability
PRNDS flashing or gearbox warning light on the dashboard
No drive engagement or delayed D/R selection when warm
Jerky gear changes in stop/start traffic
Persistent mechatronic fault codes despite clearing

Q: What are the first signs my DQ381 mechatronic is failing?
A: Common early signs include harsh shifts when hot, random limp mode, and stored TCU fault codes related to solenoids, sensors, or clutch regulation.

Why the DQ381 Mechatronic Fails

Although designed as a refinement of the older DQ250, the DQ381 mechatronic unit has inherited many of the same weak points, including:

Control module malfunctions (hardware/software failures inside the TCU)
Position sensor faults for clutch 1 and clutch 2
Selector regulation errors (gear 1–4 cannot be regulated)
Speed sensor electrical faults (input shaft sensors 1 and 2)
Valve malfunctions within the hydraulic system
Overheating of clutch pack K1, leading to fluid degradation and burnt smell

Owners regularly come in describing intermittent loss of gears, harsh shifting, and repeated error codes that return even after software resets.

Confirmed Fault Codes for the 0GC DQ381 Mechatronic

Below are the commonly logged fault codes we see in the workshop and that owners report online. These codes point directly to the mechatronic, not external clutch or DMF issues:

P060700 (P0607) – Control module malfunction (DFCC 10925, 10926, 10931, 31974, 31975)
High maximum temperature recorded for Clutch K1 – fluid discolouration, burnt smell
P173500 (P1735) – Position sender for clutch 1, electric fault (DFCC 10666)
P173600 (P1736) – Position sender for clutch 2, electric fault (DFCC 10668)
P179C00 (P179C) – Main pressure valve, electric fault (DFCC 10907)
P271600 (P2716) – Pressure control valve 4, electric fault (DFCC 10908)
P175D00 (P175D) – Clutch 1 opens unintentionally (DFCC 10693)
P176E00 (P176E) – Clutch 2 opens unintentionally (DFCC 10694)
P175E00 (P175E) – Clutch 1 closes unintentionally (DFCC 10747)
P176F00 (P176F) – Clutch 2 closes unintentionally (DFCC 10748)
P060700 (P0607) – Control module implausible (DFCC 10658, 10660, 10662, 10664)
P176A00 / P176B00 / P176C00 / P176D00 – Gear selector 1–4 cannot be regulated (DFCC 10912–10915, 10725–10728)
P071500 (P0715) – Transmission input speed sensor 1, electrical fault (DFCC 10753)
P276500 (P2765) – Transmission input speed sensor 2, electrical fault (DFCC 10754)
P174A00 (P174A) – Valve 3 electrical malfunction in partial transmission 1 (DFCC 10739)
P174E00 (P174E) – Valve 3 electrical malfunction in partial transmission 2 (DFCC 10740)
P173E00 (P173E) – Valve 1 electrical malfunction in partial transmission 1 (DFCC 10741)
P174C00 (P174C) – Valve 1 electrical malfunction in partial transmission 2 (DFCC 10742)
P173F00 (P173F) – Valve 2 electrical malfunction in partial transmission 1 (DFCC 10743)
P174D00 (P174D) – Valve 2 electrical malfunction in partial transmission 2 (DFCC 10744)

These codes are key indicators of mechatronic faults.

Eco Torque’s Repair Approach

At Eco Torque, we specialise in both repairing and replacing DQ381 mechatronic units. Our process includes:

Full diagnostic scan to confirm codes and symptoms

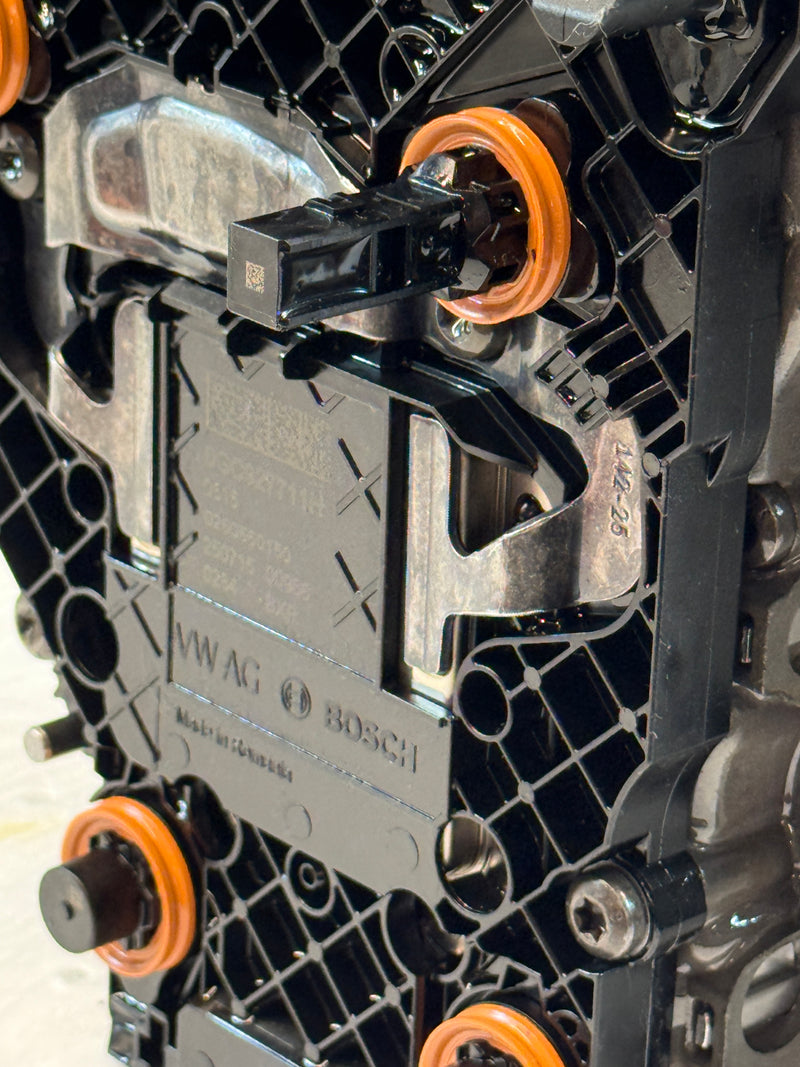

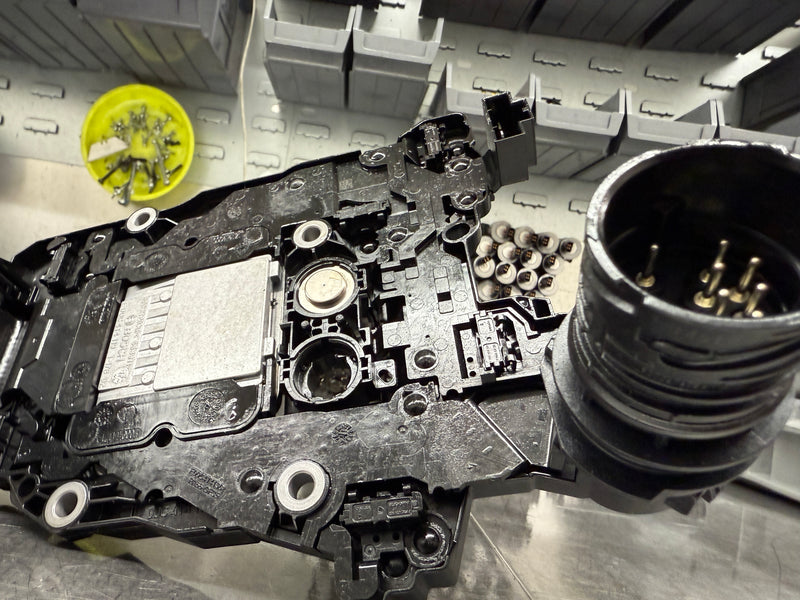

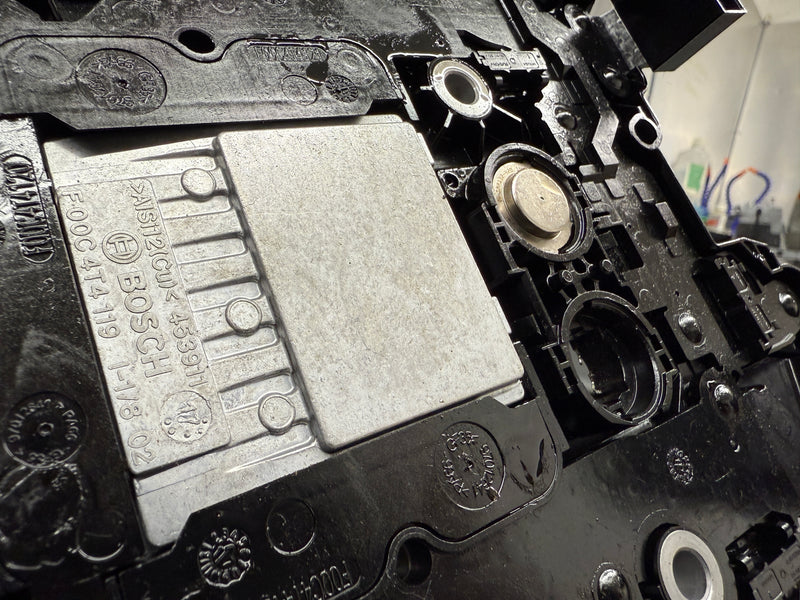

Inspection of the mechatronic TCU, solenoids, and sensors

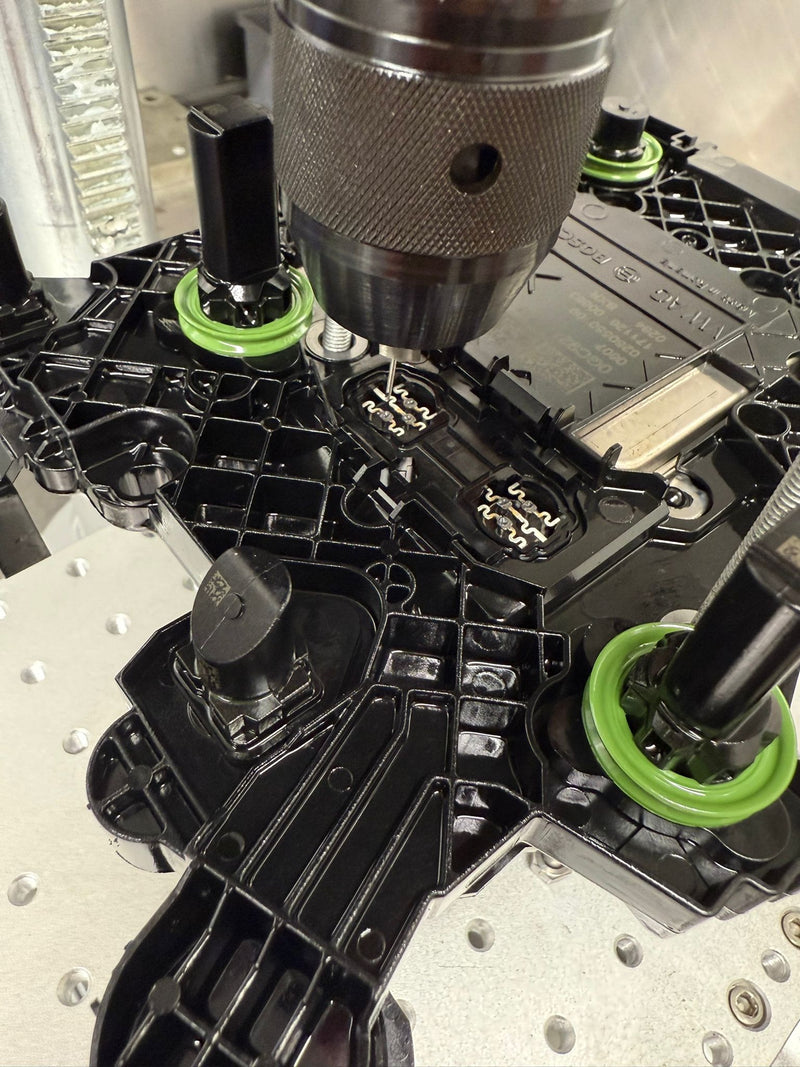

Repair or replacement of pressure/position sensors where possible
Full mechatronic replacement if control module faults persist
Replacement of transmission oil and filters during the repair
Performing basic settings and adaptations to ensure the gearbox relearns clutch pressures and gear selection points

By addressing both electronic and hydraulic faults, we restore smooth operation and extend gearbox life.

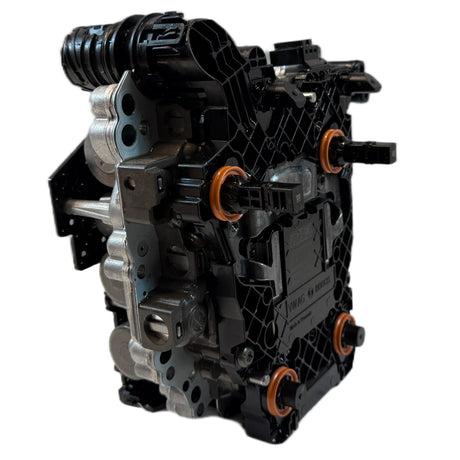

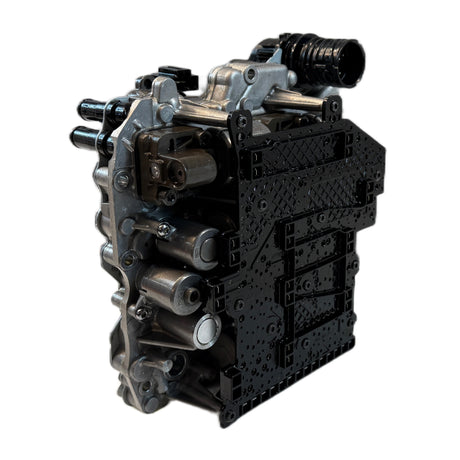

0GC Mechatronic 0GC927711G Eco Torque

❓ Frequently Asked Questions (FAQ)

Q: What vehicles use the DQ381 gearbox?
A: The DQ381 (0GC) is fitted to VW Golf Mk7.5 GTI/R, Tiguan, Arteon, Audi A3, TT, Q3, and other MQB-platform vehicles.

Q: What are the most common fault codes?
A: The most frequently logged codes include P0607 (control module malfunction), P173500/P173600 (clutch position sensors), and P176A–D (gear selector regulation errors).

Q: Why does my DQ381 go into limp mode?
A: Limp mode is often caused by clutch pressure sensor faults, selector regulation errors, or mechatronic overheating.

Q: Can Eco Torque repair my DQ381 mechatronic?
A: Yes. We offer repair and replacement services, including coding, oil service, and adaptations.
