Introduction
The 0AM DQ200 7-speed DSG gearbox is one of the most common transmissions fitted to smaller VW, Audi, SEAT and Škoda models. While efficient, its dry-clutch design and compact hydraulic system make it sensitive to internal mechatronic faults.
A particularly common failure pattern we see at Eco Torque relates to hydraulic pressure loss and accumulator failure, which trigger fault codes P084100, P17BF00, and P189500.
This issue typically leads to harsh shifting, warning lights, or total loss of drive — and in many cases, physical damage to the mechatronic casing itself.
Below we outline the customer symptoms, diagnostic findings, and repair options for this specific fault.
Customer Statement / Workshop Findings
Customers typically report one or more of the following symptoms:
- The vehicle has no drive.
- The transmission warning light is on.
- The gear display flashes in the instrument cluster.
- A message appears on the dash reading “Gearbox Problem.”
- The gearbox enters emergency operation mode, allowing only either 1-3-5-7 or 2-4-6 gears to function.
- During automatic shifting, the gearbox changes gears with a hard jolt or sudden movement.
- Transmission fluid or oil is visibly leaking beneath the front end or engine compartment.
In the workshop, these symptoms are often reproducible under test. A diagnostic scan typically records one or more of the following static fault codes in the gearbox control unit (address 0002):
- P084100 – Sender 1 for hydraulic pressure, implausible signal.
- P17BF00 – Cycle protection of hydraulic pump.
- P189500 – Restricted function because of pressure loss.
- In many cases, damage or leakage is visible on the mechatronic cover.
Fault Cause

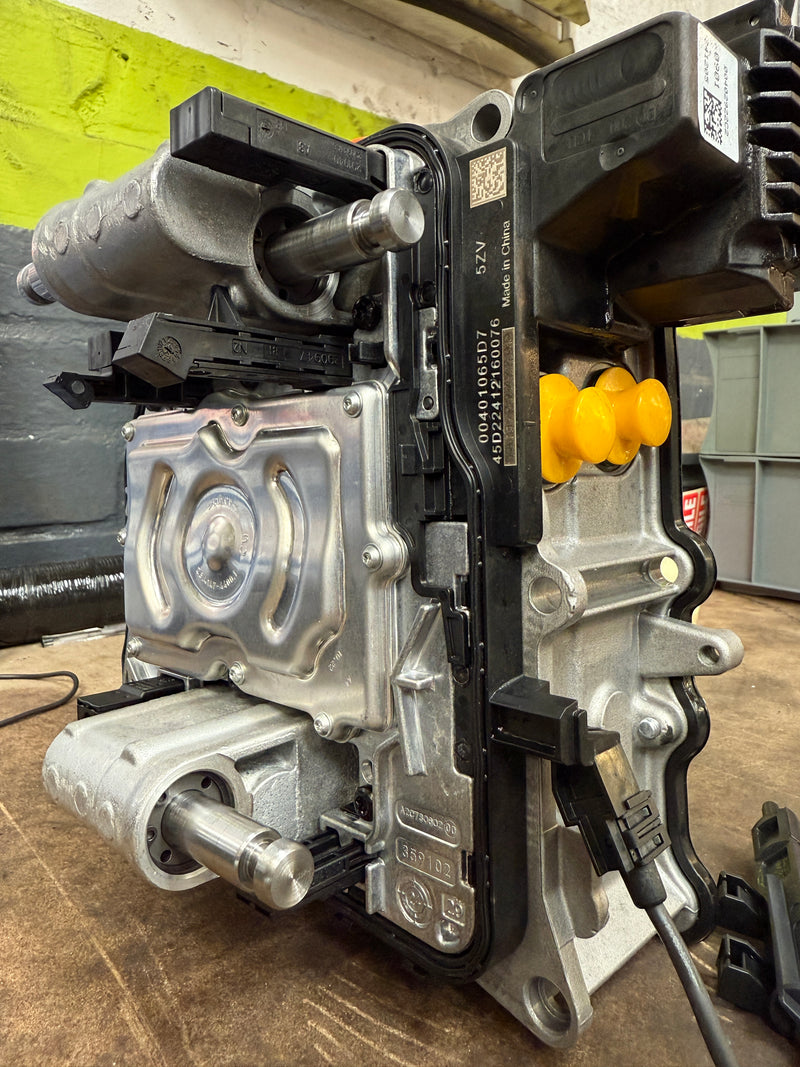

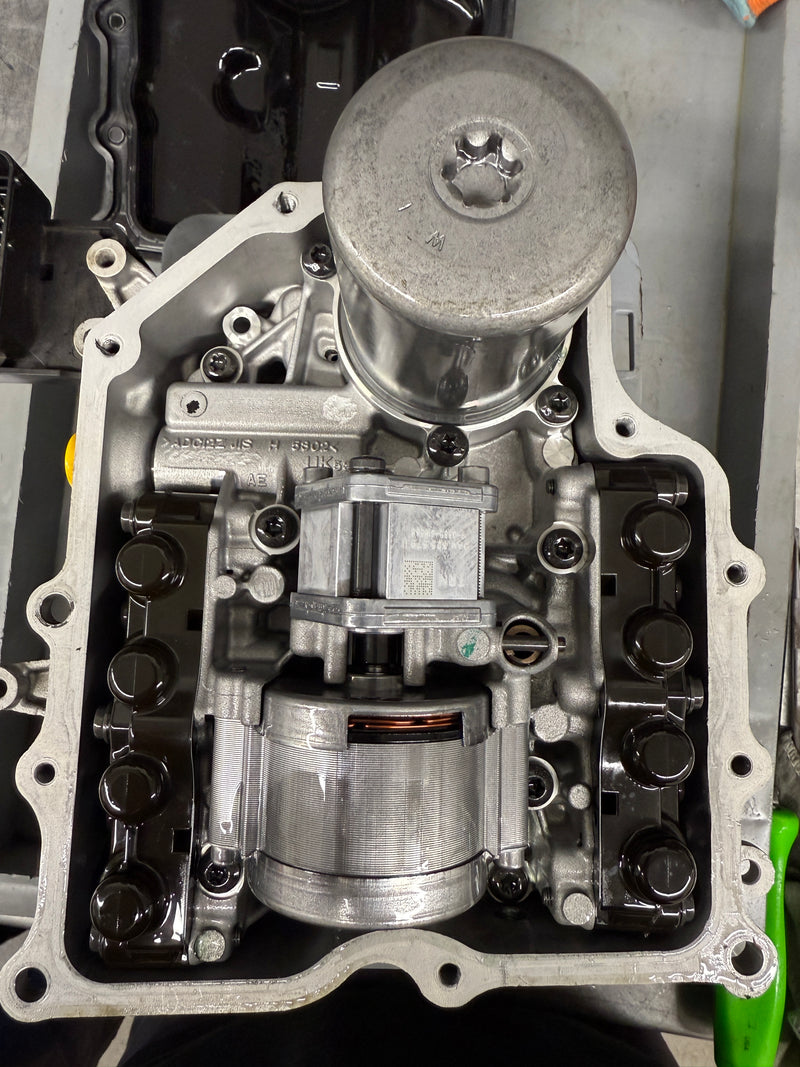

The underlying fault is caused by structural failure of the valve body, specifically where the pressure accumulator is mounted within the mechatronic assembly.
Over time, the casting around the accumulator can split or deform, allowing hydraulic pressure to escape.
As pressure drops, the high-pressure pump is forced to run continuously in an attempt to maintain system pressure — eventually burning out the pump motor.
In more severe cases, the internal accumulator dislodges, deforming the mechatronic casing and causing transmission fluid to leak externally.
Once the fluid level drops too low, the mechatronic can no longer operate the clutch and gear selectors, leading to complete loss of drive.
Repair Options
Because this failure affects the integrity of the valve body housing, repairs require a full rebuild of the mechatronic unit.
While a full mechatronic rebuild is technically possible, it is rarely recommended due to the the risk of repeat failure.
At Eco Torque, for long-term reliability and warranty, we currently only offer replacement new mechatronic units for this specific issue.
Workshop Insight
When inspecting a DQ200 with these fault codes, always:
- Check the mechatronic cover for visible cracks, warping, or leaks.Verify that the pump motor does not continue running with ignition on.
- Confirm that system pressure values in live data are dropping rapidly after pump cut-off — a clear sign of internal leakage.
- Avoid attempting further adaptation or clutch setup until the hydraulic pressure fault is resolved, as this can lead to further TCU damage.
Frequently Asked Questions (FAQ)
Q: Can this fault be repaired without replacing the mechatronic unit?
A: In rare cases, internal repairs can be made, but due to casing deformation and accumulator damage, replacement is the most reliable option.
Q: What causes the accumulator to fail?
A: The internal casting of the valve body can weaken over time or from pressure spikes, leading to cracking around the accumulator chamber.
Q: What are the warning signs before total failure?
A: Extended pump running, occasional hard shifts, and small oil leaks are often early indicators of pressure loss.
Q: Will adaptation fix this problem?
A: No. Software adaptations cannot compensate for physical hydraulic leakage — the mechatronic must be replaced.
