Introduction
Clutch slip and judder are among the most common issues reported on vehicles fitted with the DQ200 7-speed DSG gearbox. These symptoms are particularly noticeable at low speeds and during pull-away, and are often an early warning sign that the clutch system or related components are wearing or no longer operating correctly.
The DQ200 uses a dry clutch system, which makes it more sensitive to wear, driving conditions and adaptation accuracy compared to wet clutch DSG gearboxes.
If left unresolved, clutch slip and judder can quickly progress into more serious faults, including loss of drive or gearbox failure.
Quick Symptoms
- Judder or vibration when pulling away
- Clutch slipping under acceleration
- Engine revs increase without corresponding vehicle speed
- Shuddering in stop-start traffic
- Inconsistent or delayed engagement when selecting drive
- Burning smell in more severe cases
Q: Is slight judder normal on a DQ200 DSG?
A: A very slight amount can be normal, but noticeable vibration or slipping is not and usually indicates wear or a fault.
Q: Will clutch slip get worse?
A: Yes. Once slipping begins, it will typically worsen quickly and can lead to complete clutch failure.
What Drivers Commonly Report
Drivers often describe a “shaking” or “juddering” sensation when moving off from a standstill, particularly in slow-moving traffic.
Another common report is the engine revving higher than expected without the vehicle accelerating properly, especially when pulling away or changing gears under load.
Some drivers also mention that the issue is worse when the vehicle is cold, while others find it becomes more noticeable as the gearbox heats up.
In early stages, the issue may feel intermittent, but it usually becomes more consistent over time.
Common Fault Codes
Where fault codes are present, they are typically related to clutch performance and pressure adaptation limits rather than general gearbox faults. Common examples include:
P1741 – Clutch pressure adaptation limit reached
P177D / P117D – Clutch torque too high
P1895 – Clutch pressure range/performance
These codes indicate that the gearbox is no longer able to correctly control clutch engagement within expected parameters.
Technical Explanation
The DQ200 DSG gearbox uses two dry clutch packs to control gear engagement. Unlike wet clutch systems, these clutches are not lubricated by oil, which means they are more susceptible to wear and heat.
Clutch slip occurs when the clutch can no longer fully engage and transfer engine torque efficiently. Judder occurs when engagement is inconsistent or uneven.
There are several key causes behind these symptoms.

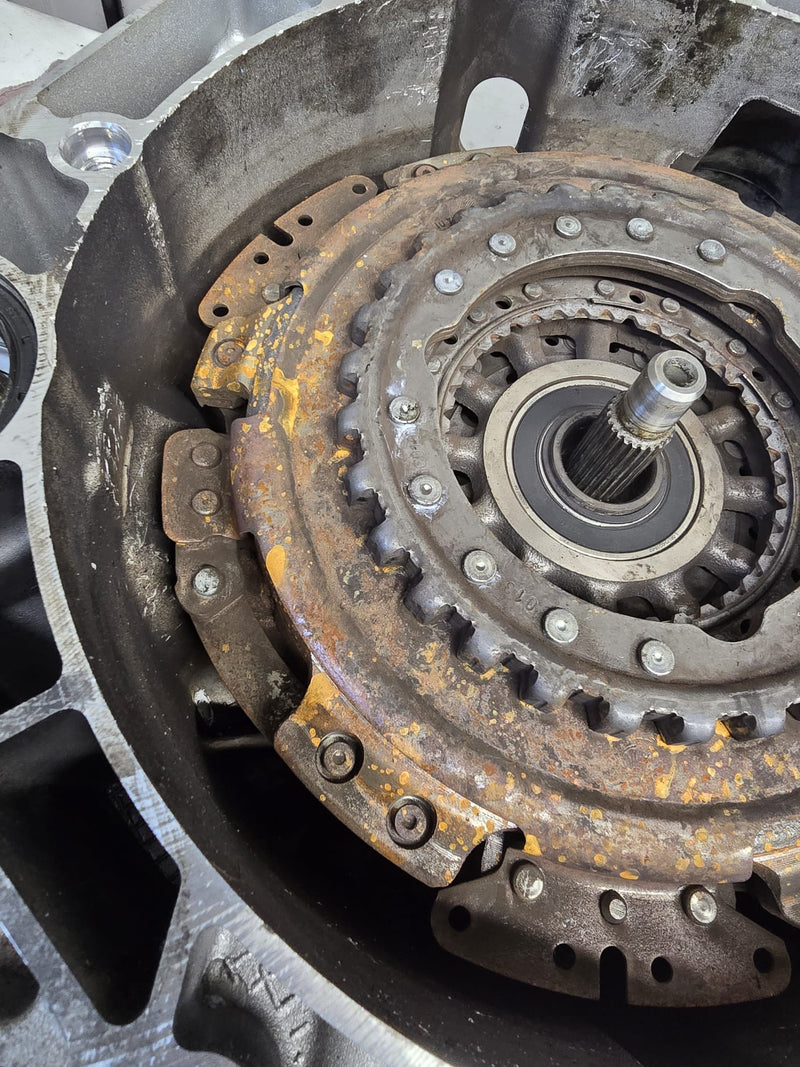

Clutch Wear
Over time, the friction material on the clutch plates wears down. As this happens, the clutch struggles to grip properly, leading to:
- Slipping under load
- Judder during engagement
- Increased heat generation
This is the most common cause of clutch slip on DQ200 gearboxes.
Incorrect Clutch Adaptation
The gearbox relies on precise calibration of clutch bite points.
If adaptation values are incorrect or have drifted over time:
- The clutch may engage too early or too late
- Engagement becomes inconsistent
- Judder and harsh take-off occur
This can happen after repairs, battery disconnection, or simply through gradual wear.
Mechatronic Pressure Issues
The mechatronic unit controls clutch engagement using hydraulic pressure.
If pressure is not regulated correctly due to internal faults:
- Clutch engagement becomes unstable
- Slip or judder can occur
- Gear changes may feel inconsistent
This is often linked to early-stage mechatronic faults.

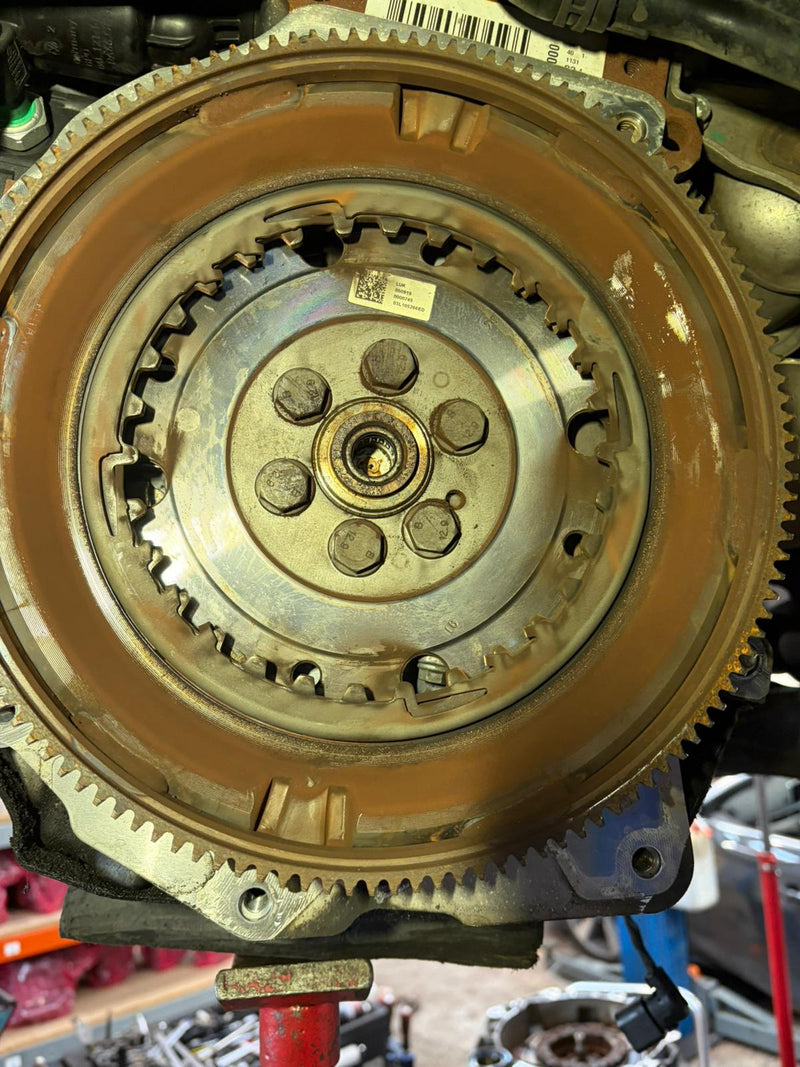

Dual-Mass Flywheel (DMF) Wear
A worn dual-mass flywheel is a very common and often overlooked cause of clutch judder.
The flywheel is designed to absorb engine vibrations before they reach the gearbox. When it wears:
- Vibrations are no longer dampened effectively
- The clutch receives uneven torque input
- This results in judder, especially when pulling away
This applies to all DSG systems, including the DQ200.
Can You Drive With This Fault
In early stages, the vehicle will usually remain drivable.
However, continuing to drive with clutch slip or judder can lead to:
- Complete clutch failure
- Overheating of clutch components
- Damage to the mechatronic unit
- Increased wear on the dual-mass flywheel
If slipping becomes severe, the vehicle may eventually lose drive altogether.
Repair Options
The correct repair depends on the cause of the issue.
Common repair routes include:
- Replacement of the clutch pack
- Replacement of the dual-mass flywheel if worn
- Mechatronic repair or replacement where pressure issues exist
- Clutch adaptation and calibration using diagnostic equipment
At Eco Torque, we carry out full diagnostics to determine whether the issue is caused by clutch wear, flywheel condition, or mechatronic performance before recommending the correct repair.
Clutch Installation and Setup – A Critical Step Often Missed
All DSG clutch packs must be correctly shimmed during installation. This is a critical step that requires specialist tools and precise measurement to ensure the clutch pack operates within the correct tolerances.
Unlike manual clutches, which are generally bolt-on components, DSG clutches rely on exact clearance and positioning. If the clutch is not shimmed correctly:
- Engagement points will be incorrect
- Clutch slip or judder can occur immediately
- Excessive wear can be introduced from the first drive
- Long-term damage to the gearbox can develop
This is one of the most commonly overlooked parts of a DSG clutch replacement, particularly by garages more familiar with manual transmissions.
It is essential that clutch replacement is carried out by a specialist who understands the setup process and has the correct tooling to complete it properly.
This also ties directly into basic settings and clutch adaptation procedures. These are required after installation to allow the gearbox control unit to learn the new clutch characteristics.
Skipping this stage is another common mistake and can result in:
- Poor clutch operation from the outset
- Incorrect pressure control
- Premature wear or damage
- Further faults developing shortly after repair
Basic settings and adaptation are not optional — they are a key part of the repair process. Without them, even a brand new clutch can behave incorrectly and lead to further issues over time.
Final Thoughts
Clutch slip and judder on the DQ200 DSG gearbox are clear signs that the system is no longer operating as it should.
While the vehicle may still be usable in the early stages, these symptoms will not resolve themselves and will continue to worsen over time.
Early diagnosis is key to preventing further damage and ensuring the correct components are replaced.
