Introduction
Difficulty selecting gears or a crunching noise during gear changes is one of the most common faults reported on manual gearboxes. It can affect a wide range of vehicles and is something that often develops gradually before becoming more serious.
This issue is widely discussed across forums and in our workshop, with drivers commonly reporting difficulty engaging certain gears, stiffness in the gear lever, or grinding noises during shifts.
While many assume this always points to gearbox failure, that is not always the case. A manual gearbox that is not selecting gears correctly can be caused by clutch issues, linkage faults, or internal wear depending on the symptoms and when they occur.
Understanding the pattern of the fault is key to diagnosing it correctly.
Symptoms of Manual Gearbox Faults
- Difficulty selecting 1st or reverse gear
- Crunching when changing into one or more gears
- Gear lever feels stiff or obstructed
- Gear only selects when the engine is switched off
- Gear jumps out under load
- One specific gear is consistently hard to engage
- Crunching when shifting between moving gears such as 2nd, 3rd or 4th
Q: Why is my gearbox hard to get into 1st or reverse?
A: This is most commonly caused by the clutch not fully disengaging rather than an internal gearbox fault.
Q: Why does my gearbox crunch when changing between gears while driving?
A: This is usually related to synchromesh wear inside the gearbox.
What Drivers Commonly Report
Drivers often report difficulty selecting 1st or reverse when stationary, sometimes accompanied by a crunch or resistance. In many cases, selecting another gear first or releasing and pressing the clutch again temporarily improves the issue.
Another common report is crunching when shifting between gears while the vehicle is moving, particularly between 2nd, 3rd and 4th. This is often described as a grinding sensation during the gear change rather than when selecting from a standstill.
Some drivers also mention that one gear becomes progressively worse over time, while others remain unaffected.
Understanding the Difference –
Stationary vs Moving Gear Faults
One of the most important parts of diagnosing a manual gearbox issue is understanding when the fault occurs.
Difficulty Selecting 1st and Reverse (Stationary Faults)
If the issue is mainly with 1st and reverse gear, particularly when the vehicle is stationary, this is most commonly caused by a clutch-related problem.
This is because:
- 1st and reverse are typically on separate gear sets or shafts
- Both gears are selected from a standstill
- They rely heavily on the clutch fully disengaging
If both gears are affected at the same time, the common denominator is the clutch.
Typical causes include:
- Clutch not fully disengaging (clutch drag)
- Hydraulic faults (slave cylinder, master cylinder, air in system)
- Worn or distorted clutch components
- Release mechanism issues
In this situation, the gearbox itself is often functioning correctly, but the input shaft is still being driven by the engine due to incomplete clutch disengagement.

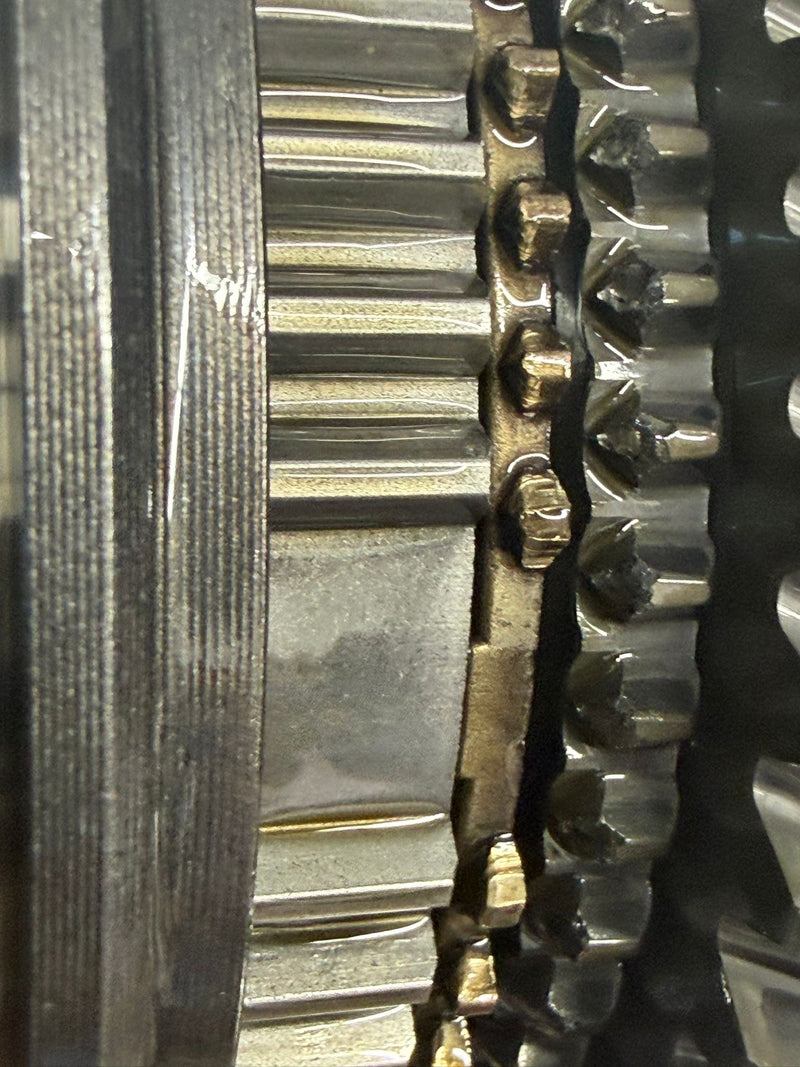

Crunching Between Moving Gears (2nd, 3rd, 4th)
If the issue occurs when changing between gears while driving, such as 2nd, 3rd or 4th, this is much more likely to be related to synchromesh wear inside the gearbox.
These gears are:
- Used most frequently during normal driving
- Engaged while the vehicle is moving
- Dependent on the synchronisers matching gear speeds
When synchronisers wear:
- They can no longer match speeds effectively
- The result is a crunch or resistance during gear engagement
- The issue is usually isolated to one or two specific gears
While a clutch issue can influence shift quality, consistent crunching in specific moving gears is primarily a sign of internal gearbox wear.
Other Common Causes
Selector Linkage or Cable Faults
External linkage or cable issues can also affect gear selection.
Typical signs include:
- Stiff or obstructed gear lever movement
- Difficulty selecting gears in certain directions
- Inconsistent engagement across multiple gears
This is often caused by:
- Worn cables
- Misalignment
- Loose or worn joints

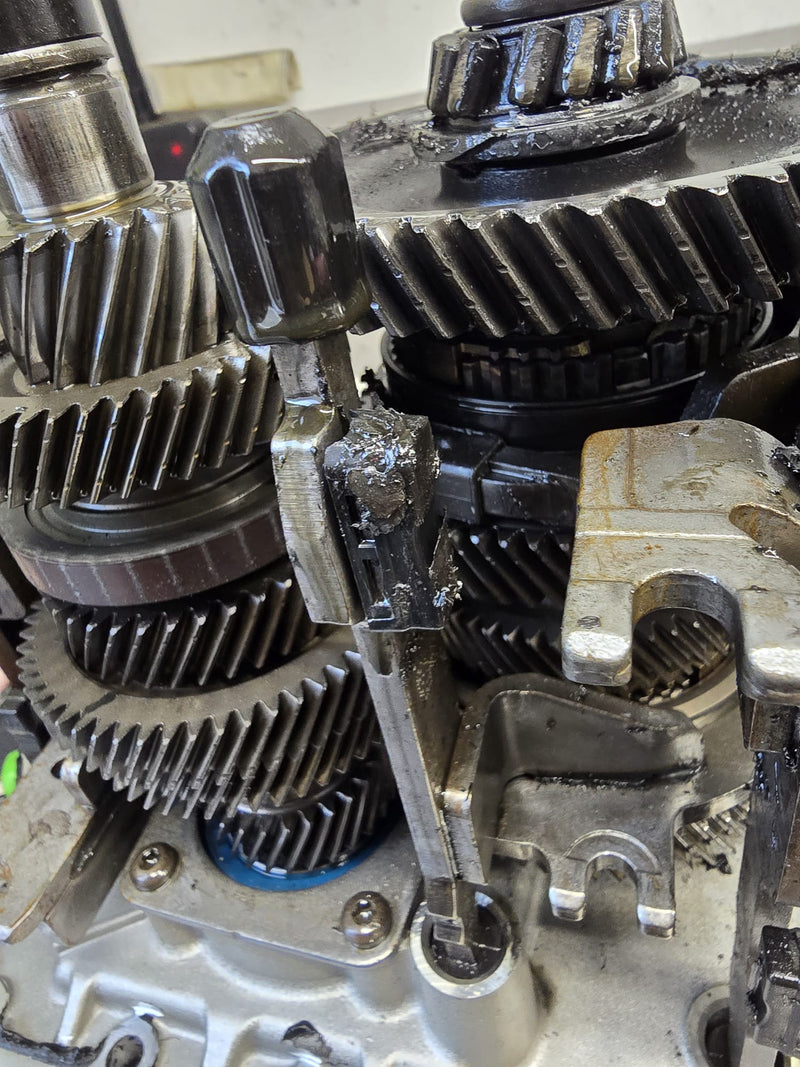

Selector Fork or Internal Damage
If a gear is difficult to engage or jumps out under load, this may indicate internal wear or damage.
Typical causes include:
- Worn selector forks
- Worn engagement hubs
- Gear tooth wear
These faults require gearbox removal and inspection.
Gearbox Oil Condition
Incorrect or degraded oil can affect shift quality.
This can result in:
- Stiff shifting when cold
- Increased wear on synchronisers
- Reduced lubrication of internal components
While oil alone will not fix worn components, it can significantly influence how the gearbox behaves.
Technical Explanation
A manual gearbox relies on three key systems working together:
- The clutch must fully disengage
- The selector mechanism must operate accurately
- The synchronisers must match gear speeds correctly
If a fault occurs in any one of these areas, gear selection will be affected.
This is why correct diagnosis is essential. Replacing a clutch will not fix worn synchronisers, and rebuilding a gearbox will not resolve a clutch drag issue.
Can You Drive With This Fault
This depends on the cause and severity.
If the issue is minor, the vehicle may still be usable. However, continuing to drive with gear selection issues can lead to:
- Increased synchromesh wear
- Further internal gearbox damage
- Complete loss of gear engagement
- Vehicle becoming undriveable
If the gearbox is crunching consistently or refusing to select gears, it should be inspected as soon as possible.
Repair Options
Repair depends entirely on the root cause.
Common repair routes include:
- Clutch replacement and hydraulic system repair
- Linkage or cable adjustment/replacement
- Gearbox rebuild for synchromesh wear
- Internal repair for selector fork or hub damage
- Gearbox oil replacement where required
At Eco Torque, we always diagnose whether the issue is clutch-related or internal before recommending any major work.
Final Thoughts
A manual gearbox that is not selecting gears properly or is crunching during shifts should not be ignored.
Understanding when the fault occurs is key. Issues affecting 1st and reverse from a standstill are usually clutch-related, while problems with gears during driving are more likely internal.
Getting this diagnosis right early can prevent unnecessary repairs and reduce long-term costs.
