Introduction
Loss of drive on the DQ500 DSG gearbox is a serious fault that we see regularly in the workshop, particularly on Volkswagen Transporter models.
Unlike many DSG-related issues that are linked to mechatronic faults or clutch pressure problems, this fault is a purely mechanical failure inside the transmission. It often occurs suddenly and without much warning, leaving the vehicle unable to move despite selecting gears normally.
This is a well-documented issue in real-world use, especially on vehicles that are regularly loaded, used for towing, or driven under higher torque conditions.
Quick Symptoms
- Sudden loss of drive while driving
- Vehicle selects gears but does not move
- Whirring or grinding noise from the gearbox area
- No forward or reverse drive
- No prior warning in some cases
Q: Can the vehicle still select gears when this fault occurs?
A: Yes. The gearbox will often still select gears normally, but no drive is transferred to the wheels.
Q: Does this fault always give warning signs?
A: Not always. In many cases it can happen suddenly, although some vehicles may show noise or vibration beforehand.
This fault will typically leave the vehicle completely undriveable.
What Drivers Commonly Report
From both workshop experience and owner discussions, the most common scenario is:
- The vehicle is driving normally
- A sudden loss of drive occurs, often under acceleration or when turning
- A noticeable whirring or spinning noise is heard
- The engine revs increase, but the vehicle does not move
Some drivers report that the fault occurs when pulling away from a junction or roundabout, while others experience it during normal driving under load.
Technical Background – What Is Actually Failing
This fault is caused by a failure within the differential section of the DQ500 gearbox, specifically relating to the planetary gears and their connection to the passenger side driveshaft.
The issue is centred around the sliding spline connection between:
- The internal planetary gears within the differential
- The passenger side driveshaft

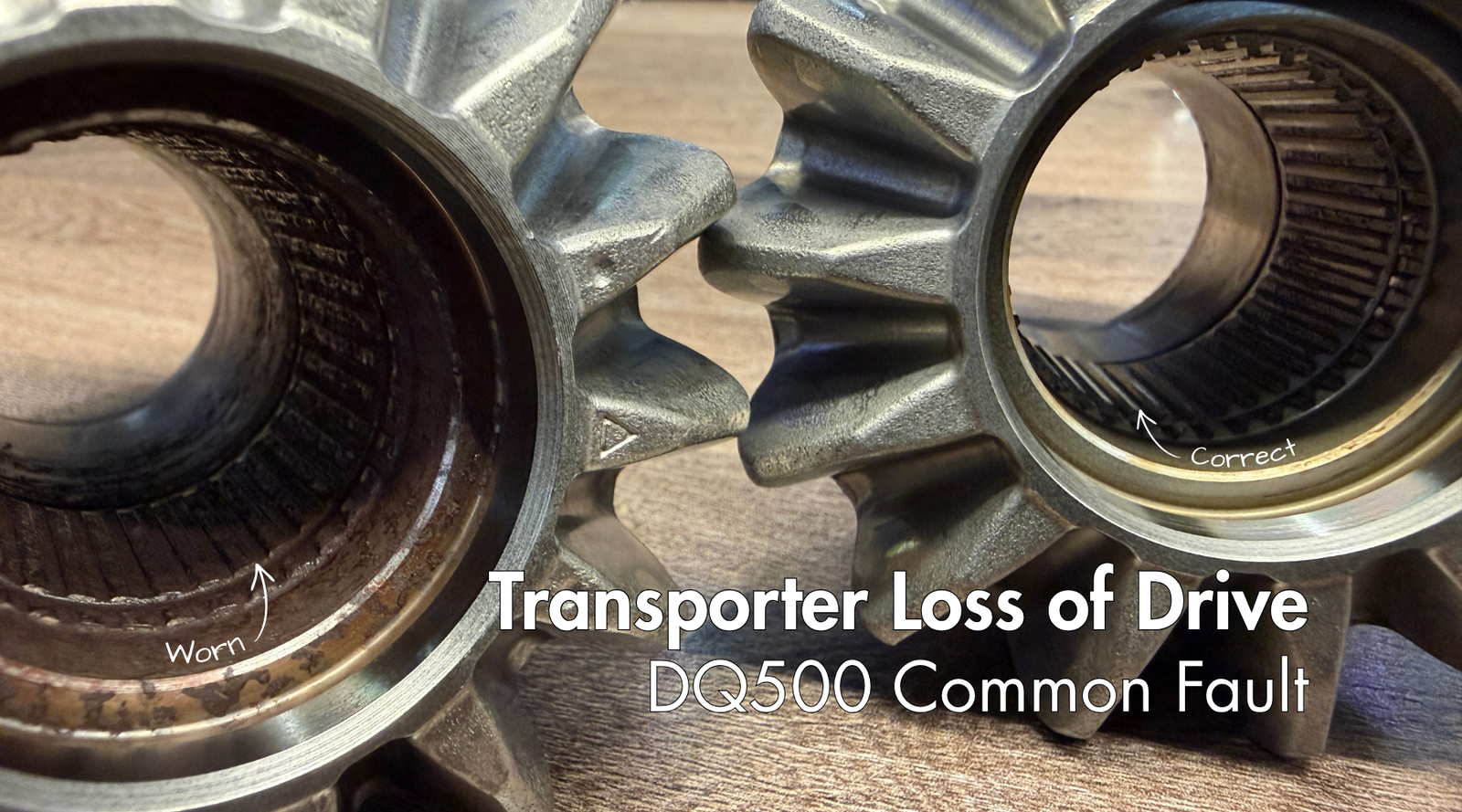

On affected units, the spline engagement between these components is insufficient.
This means:
- The splines do not have enough contact area
- Under load, especially when accelerating while turning, the stress is concentrated on a small section

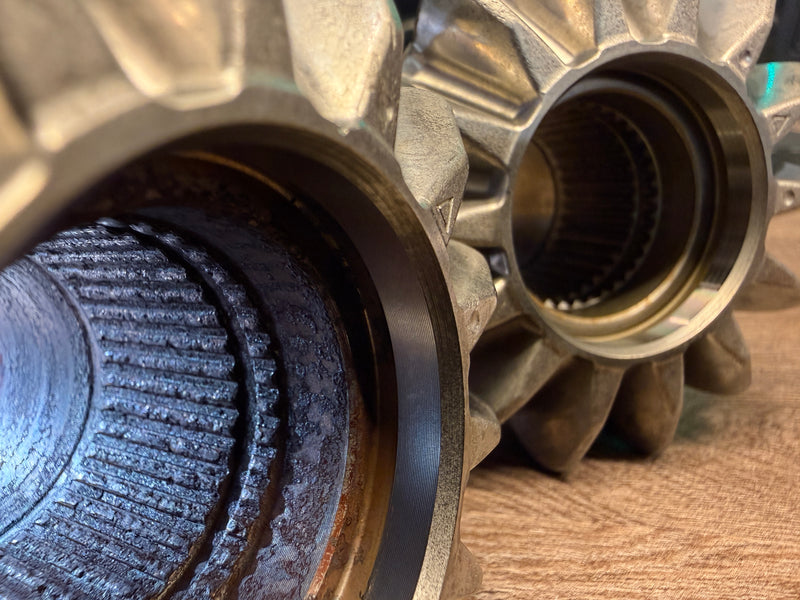

- Over time, the splines wear down
- Eventually, the remaining spline teeth shear off completely
Once this happens, the gearbox can no longer transfer drive to the wheels, even though all internal gear selection functions are still operating.
Why This Happens
This is a design-related issue that becomes more apparent in real-world use.
Key contributing factors include:
- Insufficient spline length between mating components
- High torque loads, especially in commercial use
- Repeated load changes when turning and accelerating
- Natural wear progression of a sliding spline interface
Because the splines are constantly working under load, any lack of engagement depth accelerates wear significantly.
Important Point – This Is Not a Mechatronic Fault
One of the most important aspects of this issue is that it is not related to the mechatronic unit, clutch system, or electronic control.
The gearbox may:
- Select gears normally
- Show no relevant DSG fault codes
- Appear functional from a diagnostic perspective
However, the failure is purely mechanical, meaning it will not be resolved by software updates, adaptations, or mechatronic replacement.
Repair Requirements
This fault requires a full strip down of the transmission.
The repair process involves:

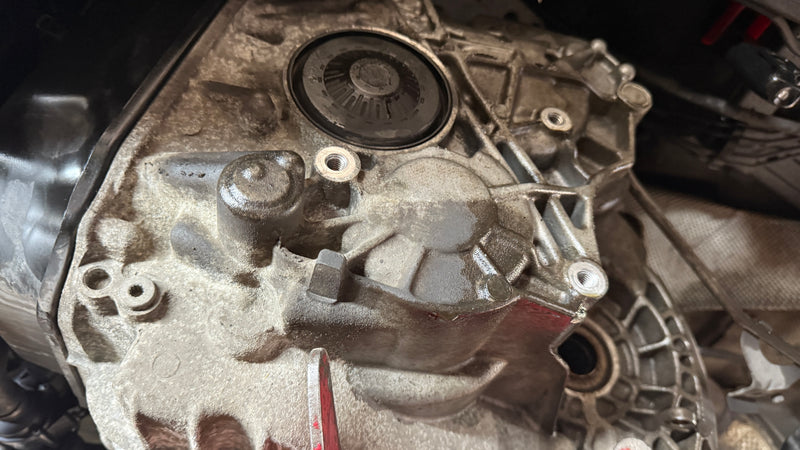

- Removing and dismantling the gearbox
- Inspecting the differential and planetary gear assembly

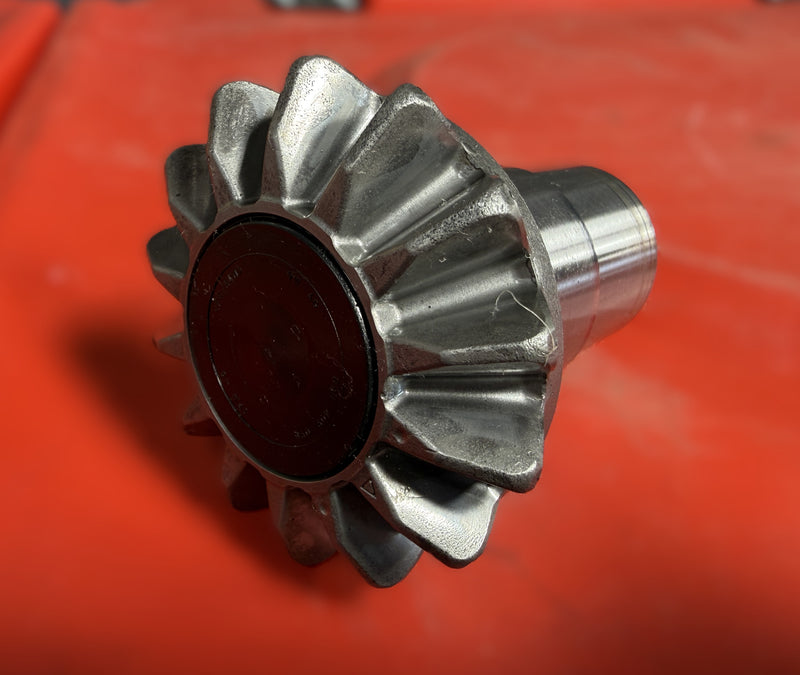

- Replacing the affected planetary gears with an updated version
- Replacing the passenger side driveshaft
It is essential that the driveshaft is replaced at the same time.
This is because:
- The internal spline teeth on the driveshaft will also be worn or damaged
- Reusing the original driveshaft will lead to premature failure
- Correct practice is to replace both mating components together
The updated components feature improved spline engagement, reducing the likelihood of repeat failure.
Can This Fault Be Prevented
Due to the nature of the design and how the components interact, this is not always preventable.
However, factors that may influence lifespan include:
- Vehicle load and usage type
- Driving style
- Frequency of high torque conditions
Once wear begins within the spline interface, failure progression can accelerate quickly.
Final Thoughts
Loss of drive on the DQ500 DSG gearbox, particularly in Volkswagen Transporter models, is a known and repeatable fault caused by internal spline failure within the differential assembly.
It is important to recognise that this is not an electronic or control-related issue, but a mechanical failure that requires proper internal repair.
Correct diagnosis and repair are critical, as replacing only part of the system or reusing worn components will lead to repeat failures.
