Land Rover Freelander Haldex Pump Gen 3 Rear Differential With Filter Kit LR003147

Haldex Generation 3 Pump

With Generation 3 Filter Kit

For Land Rover Freelander

6G9N-4C019-AA / LR003147 / DS118589

The Haldex pump provides the oil pressure to operate the all-wheel-drive system assembly and engages the coupling to send power to the rear wheels. This part is prone to failure on higher mileage cars or if regular maintenance in not performed.

When Haldex pumps fail you may experience loss of power to the rear wheels,
reduced traction and grip. Replacing the hydraulic pump can restore your AWD
system allowing you to fully utilise the vehicles capabilities again.

Common symptoms of pump failure:

P16671
P16670
P16668
Blocked Filter Gauze
Complete Pump Failure

Please note you may experience some, but not all of the listed faults depending on the level of damage internally.

*Important*
The new pump requires programming via the learn procedure.
Please ensure your diagnostic equipment is able to complete this feature in order for the pump to work!

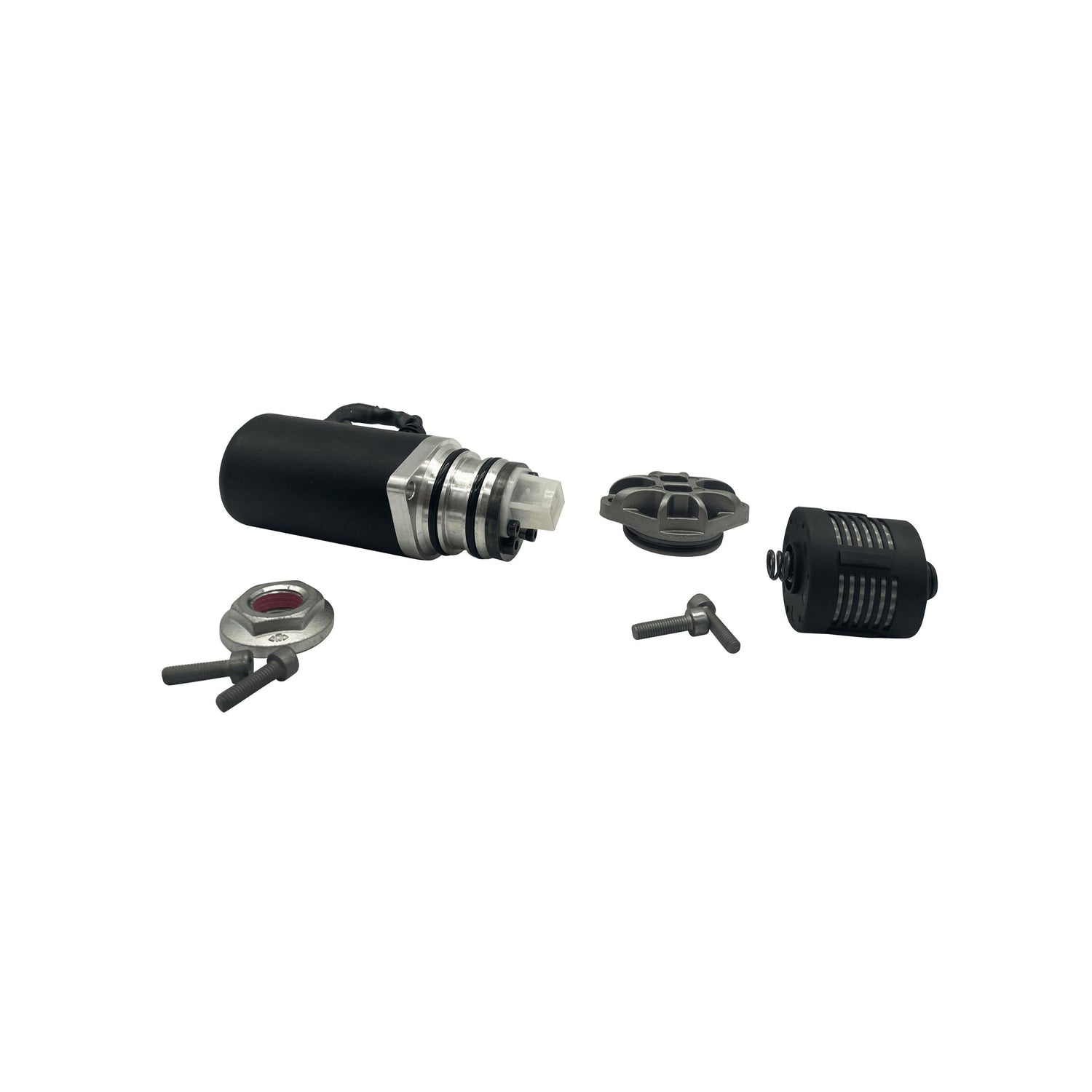

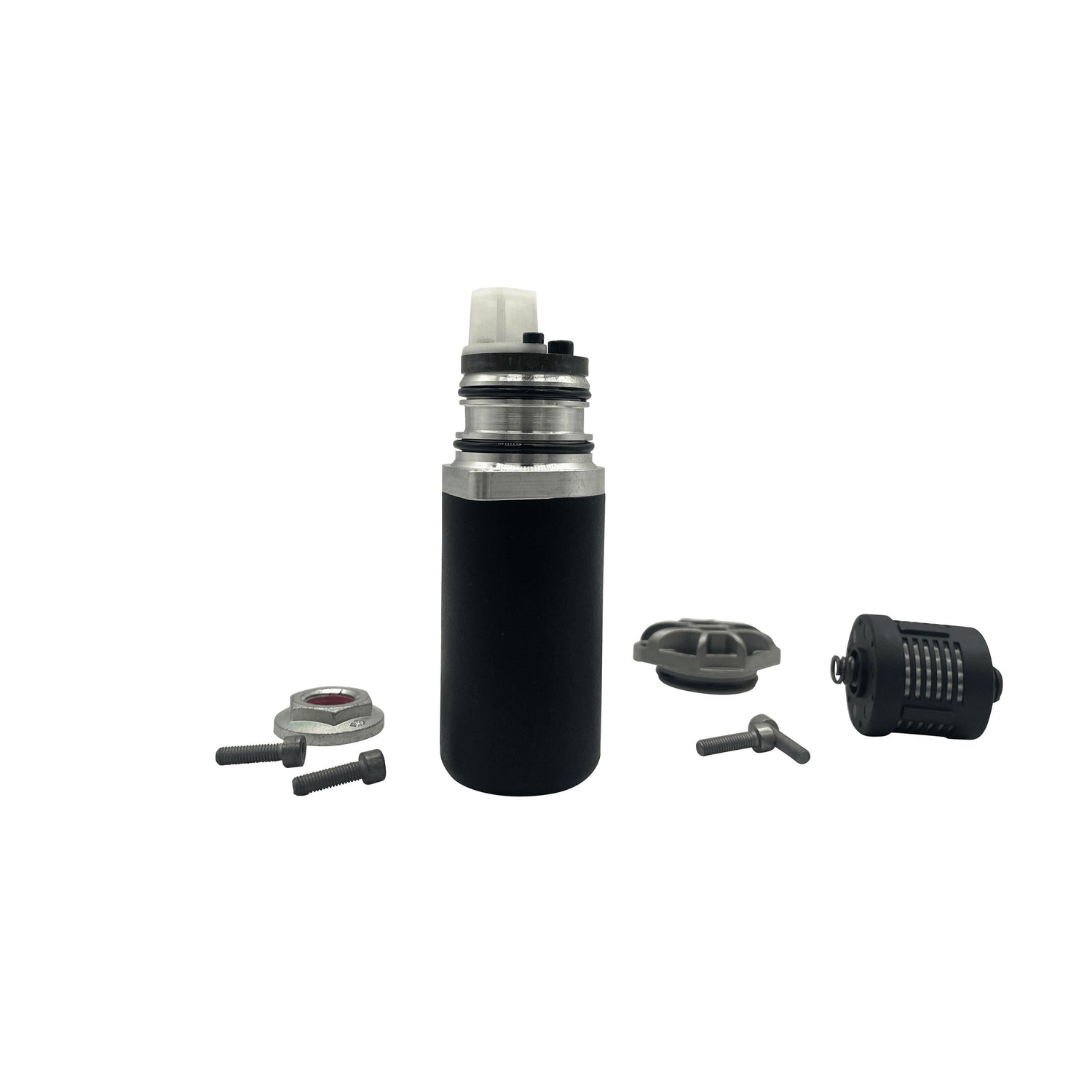

This kit contains the following parts:

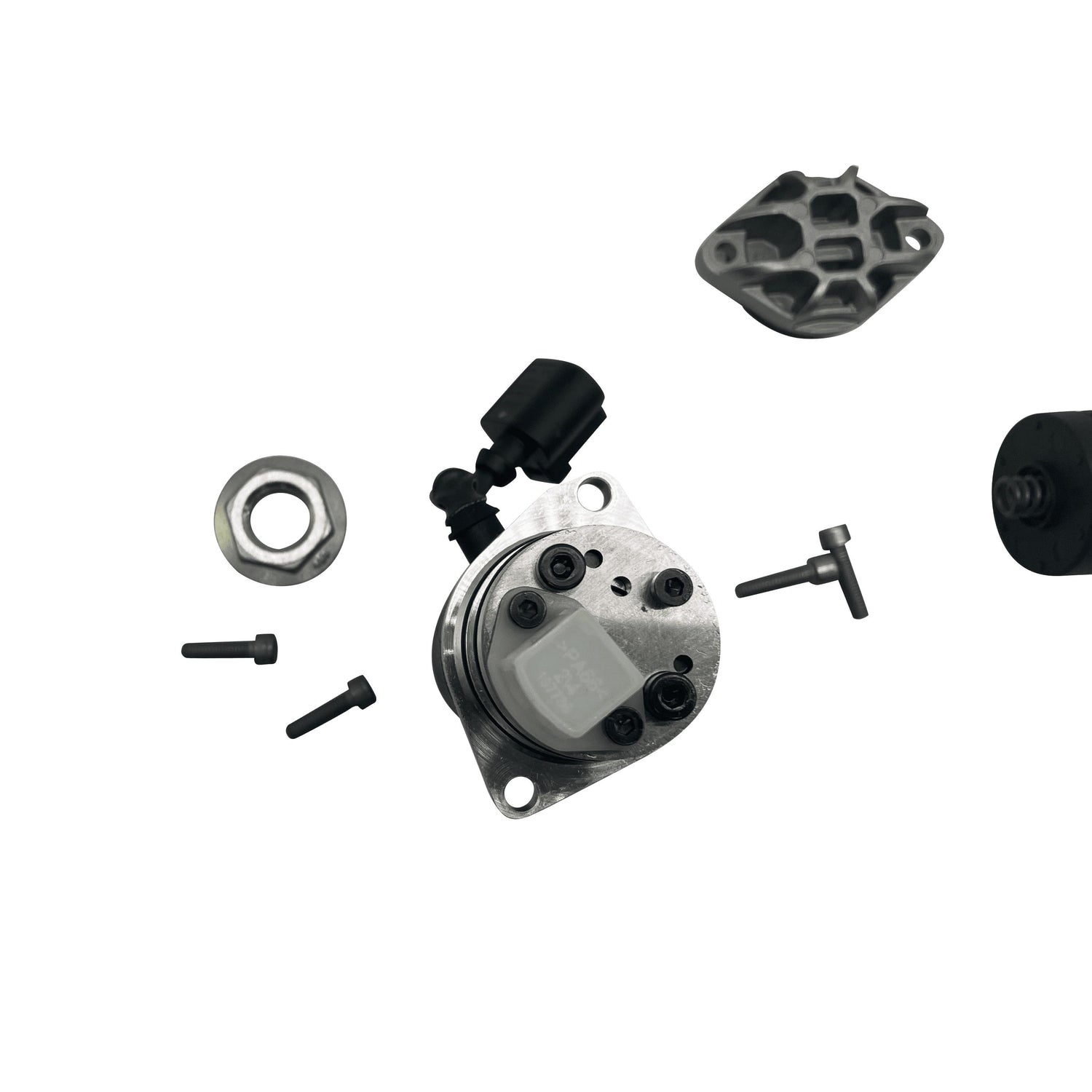

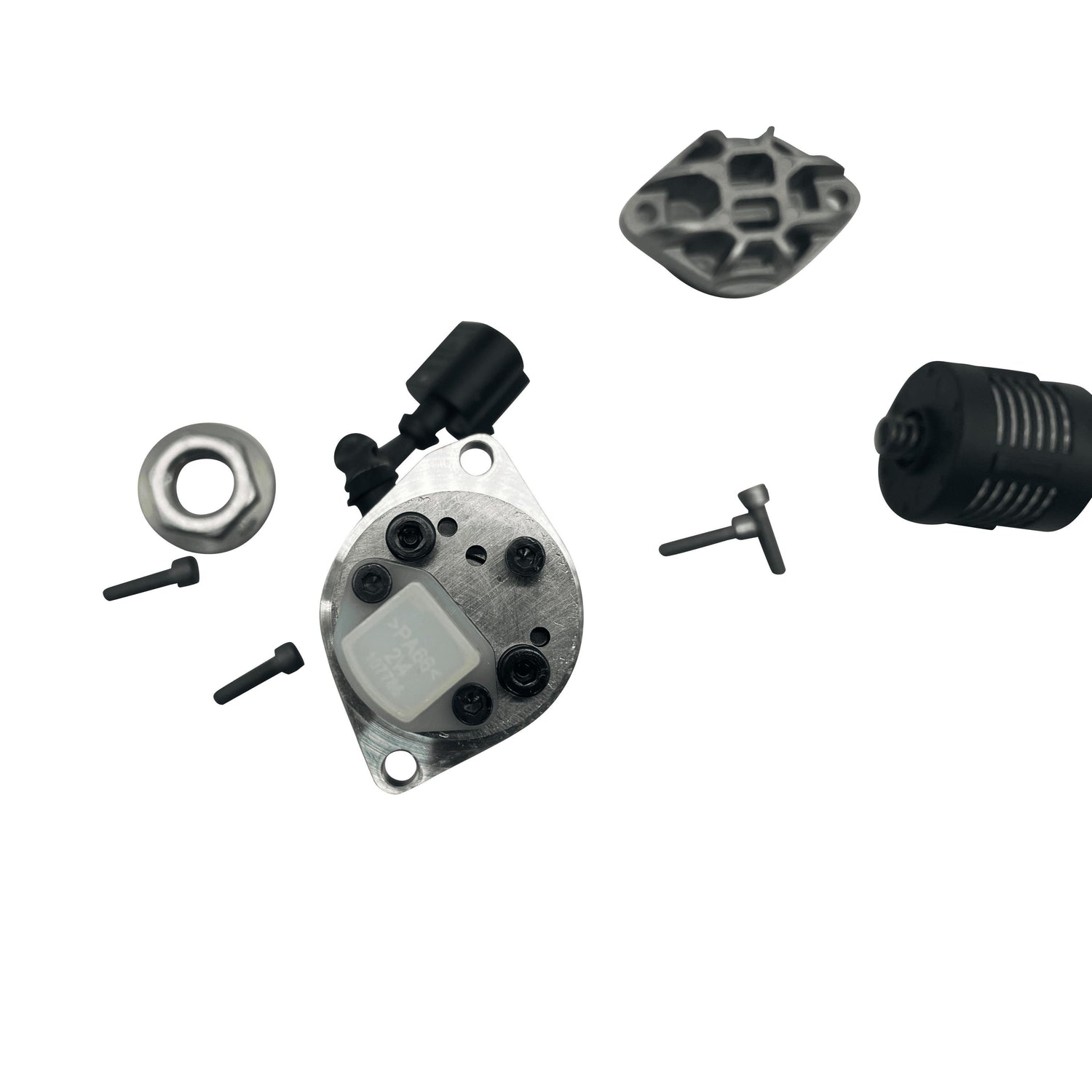

Pump
New OEM Haldex Pump
x 1 Cap

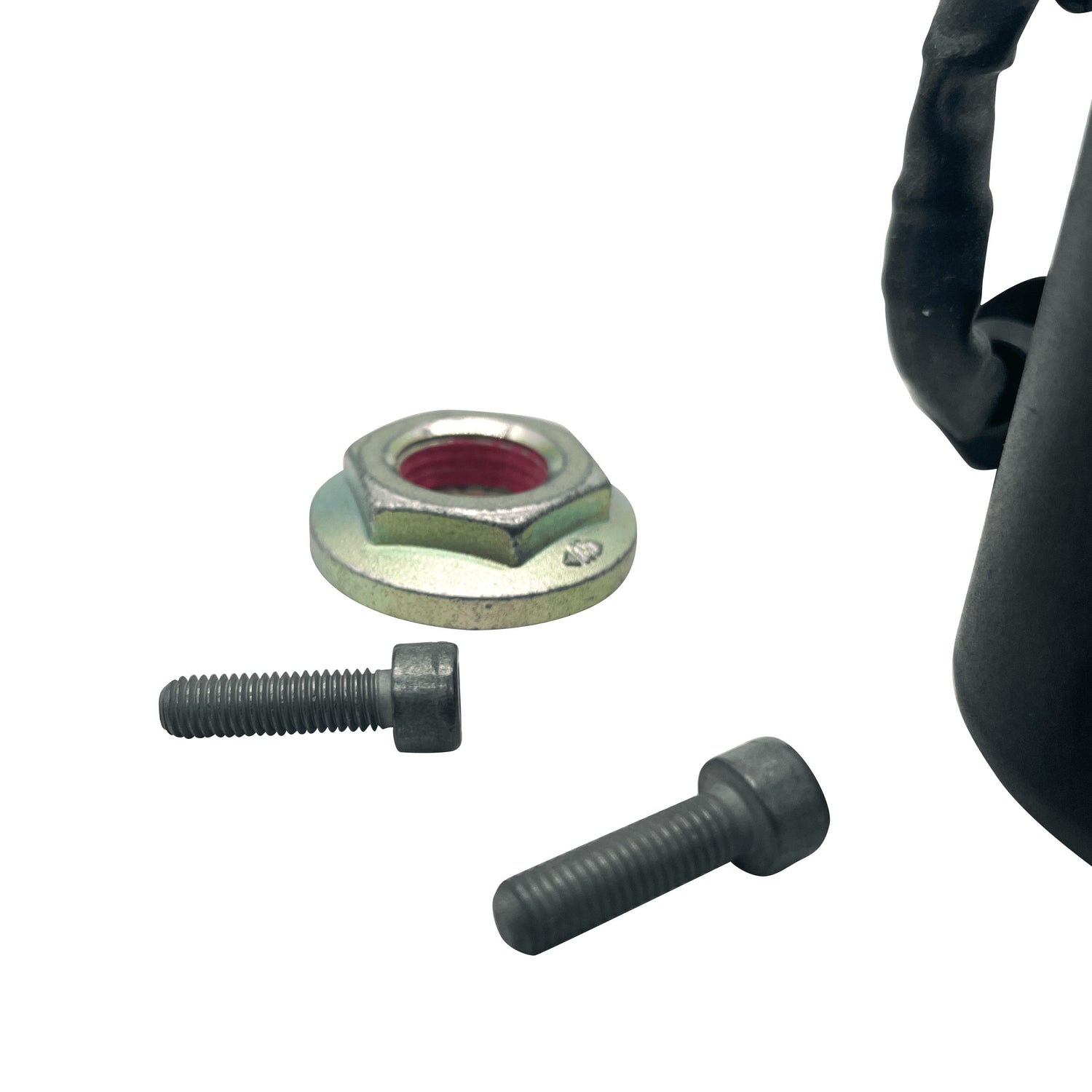

x 2 Screws

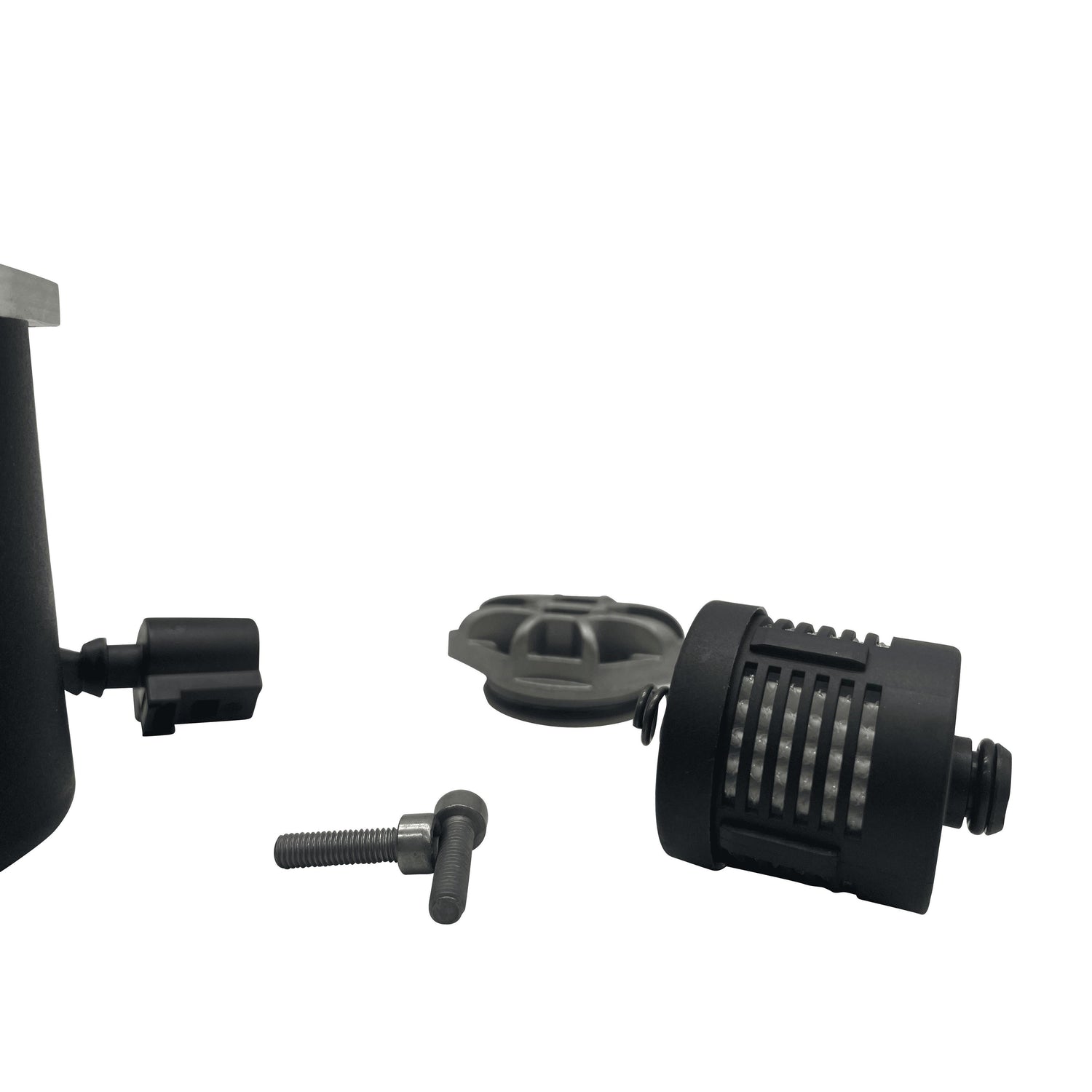

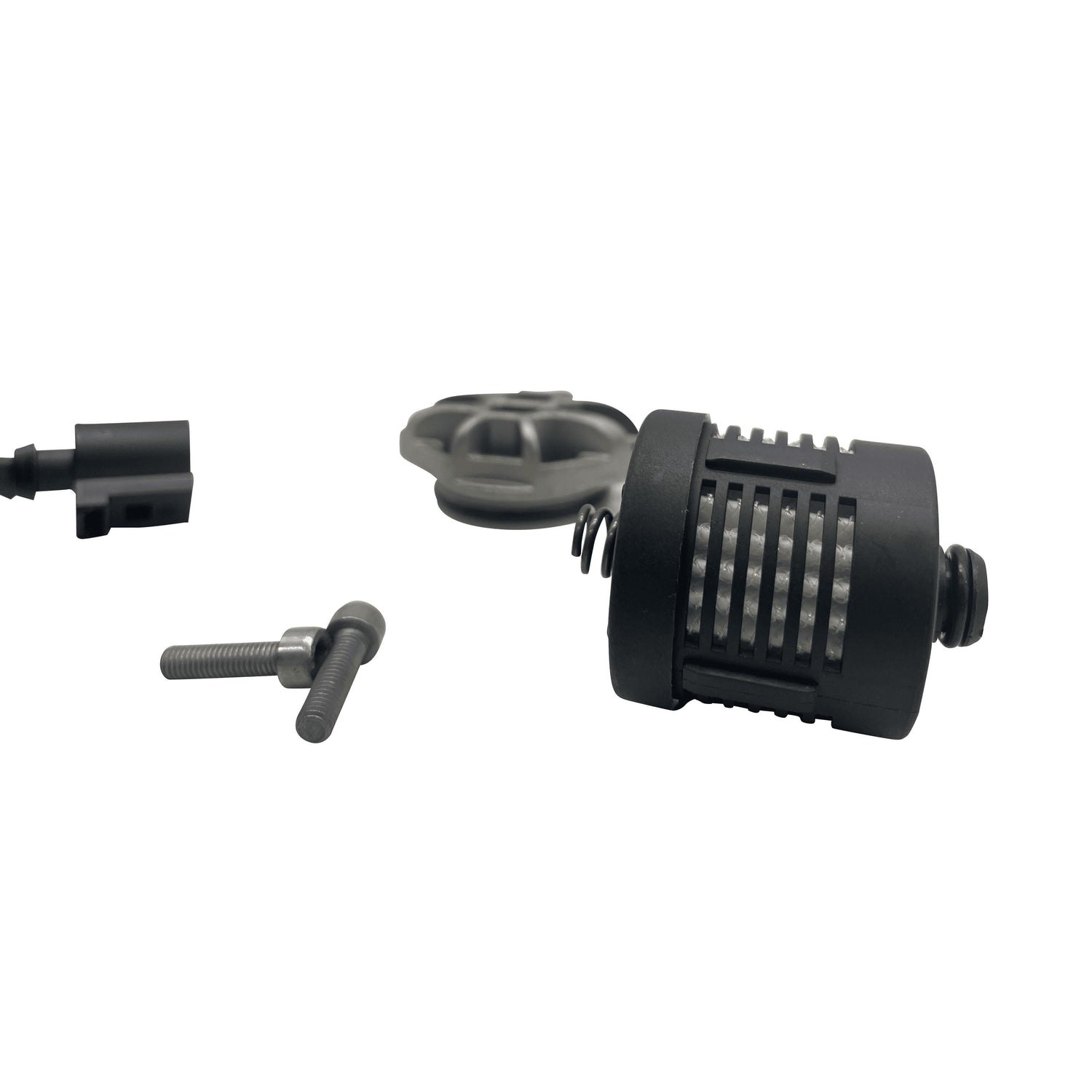

Filter
New OEM Filter
Cap with O-Ring
x 2 Screws

Part Numbers

Pump
DS118589
118589
6G9N-4C019-AA
LR003147
SP01395

Filter
DS120356
120356
SP02025

Fitment Location 4C109 On Diagram

Vehicle Compatibility

LAND ROVER Freelander Petrol 2.0 (L359) 204PT 177KW - 2011 to 2014
LAND ROVER Freelander Petrol 3.2 (L359) 32PDPR 171KW - 2006 to 2014
LAND ROVER Freelander Diesel 2.2 (L359) 224DT 118KW - 2006 to 2014
LAND ROVER Freelander Diesel 2.2 (L359) 224DT 110KW - 2006 to 2014
LAND ROVER Freelander Diesel 2.2 (L359) 224DT 118KW - 2006 to 2014
LAND ROVER Freelander Diesel 2.2 (L359) 224DT 112KW - 2007 to 2014
LAND ROVER Freelander Diesel 2.2 (L359) 224DT 140KW - 2010 to 2014

Please note, due to crossover OE suppliers on Haldex parts, you may receive items in a Borg Warner or S-Tec box. These are both brand new genuine parts.

As gearbox rebuild and repair specialists, Eco Torque is proud to offer genuine gearbox parts as well as high quality aftermarket alternatives throughout its store.

Browse Eco Torque's ever-evolving product range available to purchase online
at competitive prices.

If you cannot find the items you need or are unsure if the part is compatible with
your vehicle make and model, please send us your UK registration number or
VIN Code and we will direct you to the right part.

Reference Number: ETB2265B

What does the Haldex pump do?

The Haldex pump generates hydraulic pressure to engage the rear-axle coupling on AWD vehicles, transferring drive to the rear wheels when front-wheel slip is detected. Without a functioning pump, the AWD system is fully disabled.

How do I know if my Haldex pump has failed?

Common signs include loss of rear-wheel traction, AWD warning lights on the dashboard, and diagnostic fault codes related to Haldex oil pressure (e.g. P16668, P16670, P16671). A blocked filter gauze is also a frequent cause.

How often should the Haldex oil be changed?

Haldex oil should be changed every 20,000 miles. Neglecting the oil service is the leading cause of premature Haldex pump failure.

Is this a genuine part?

Yes. This kit uses a BorgWarner or S-Tec branded pump — both are genuine OE Haldex suppliers. You may receive either brand depending on stock; quality and specification are identical.

Can I reuse the original screws?

We recommend fitting the new screws supplied with the kit. Original fasteners may have stretched or corroded, and reuse risks oil leaks at the pump mounting face.
