Gen 4 Haldex Pump for Rear Diff Ford Volvo Land Rover - Genuine Haldex (S-TEC)

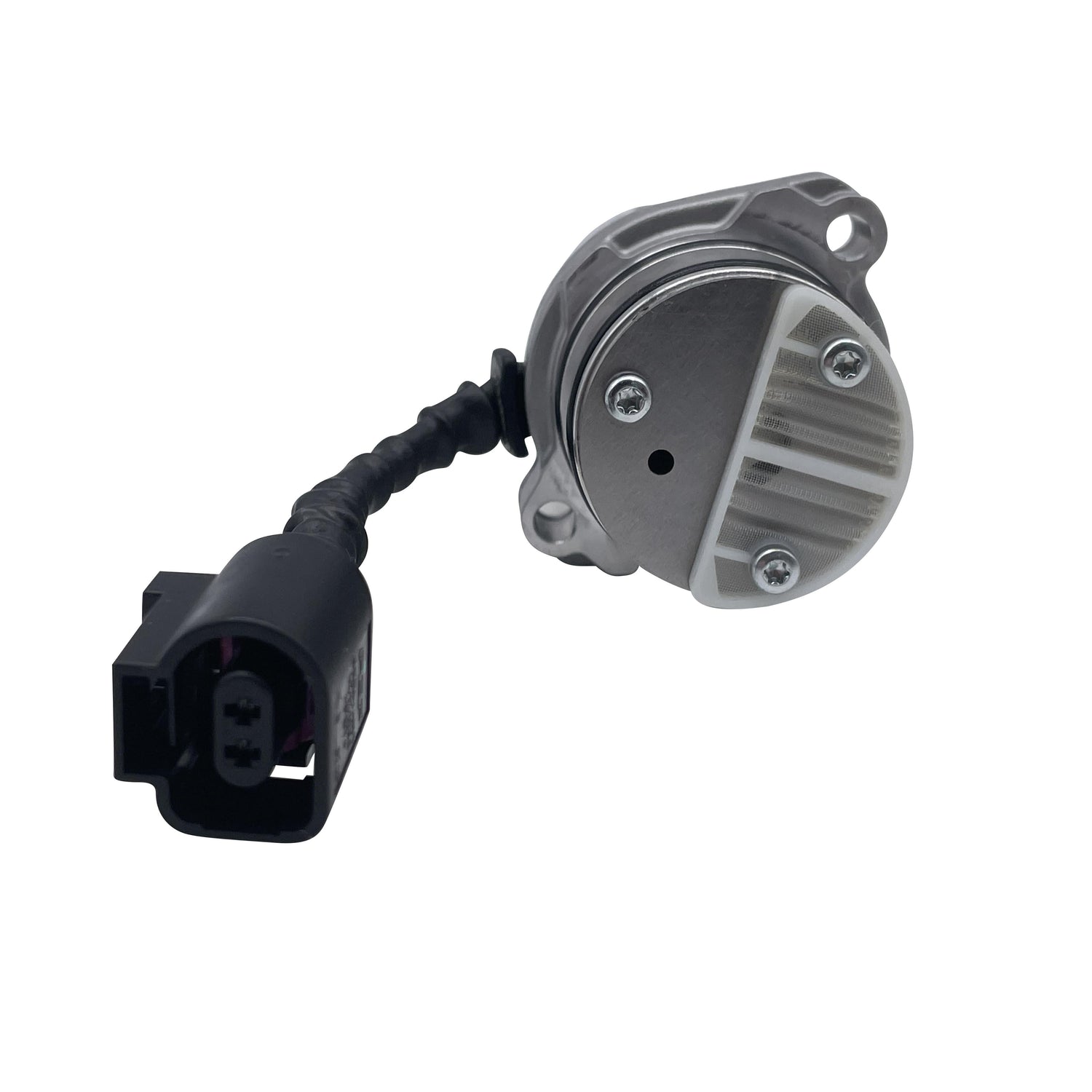

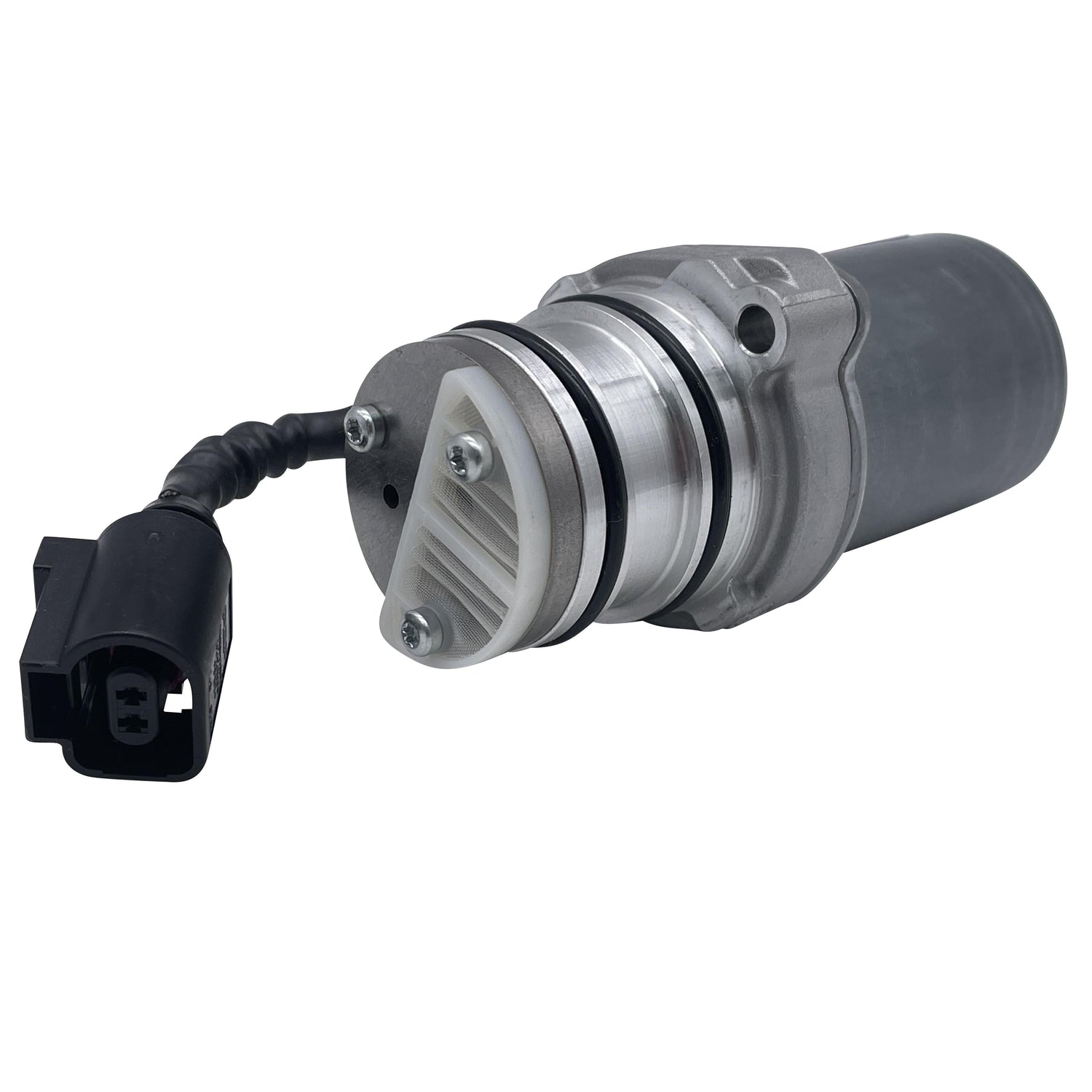

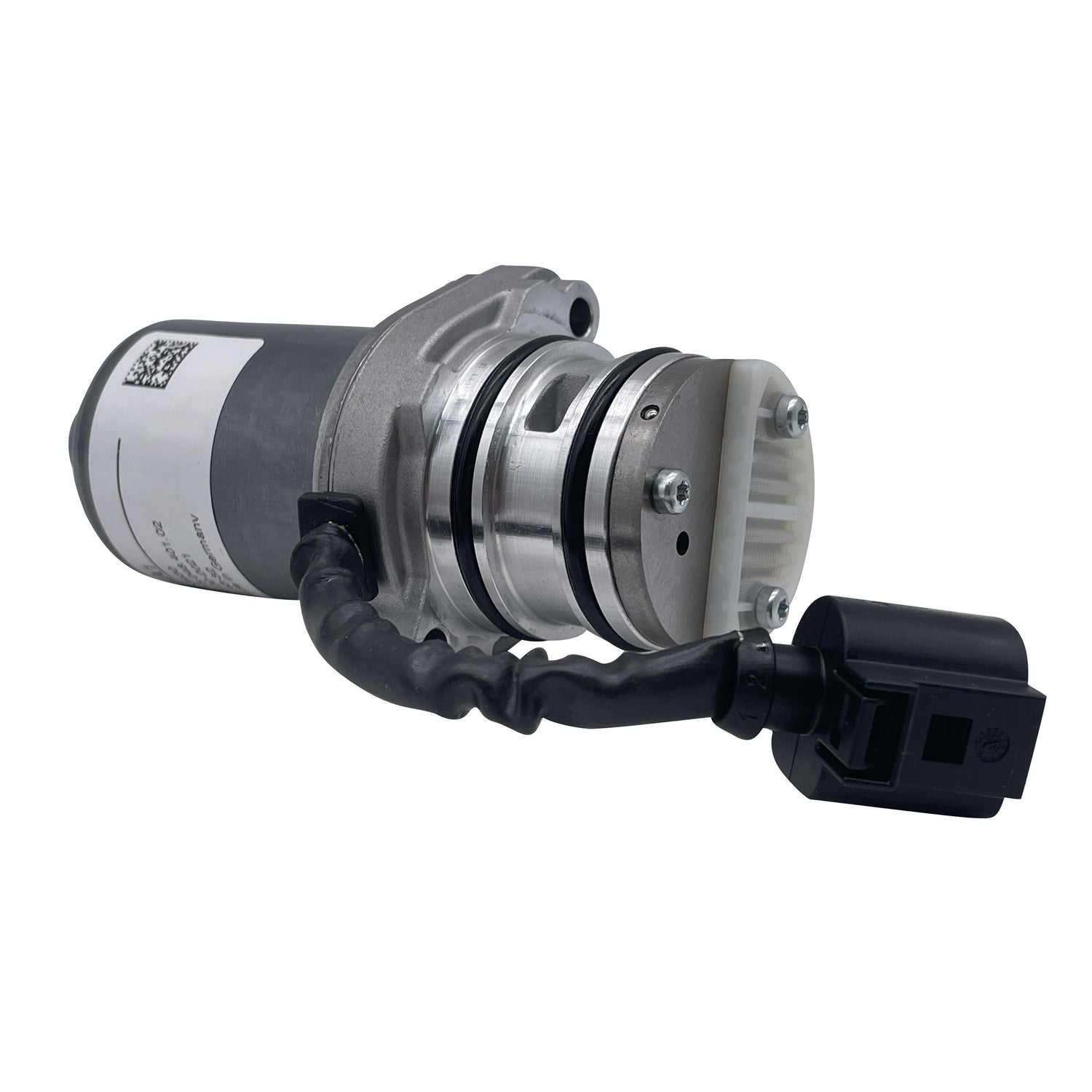

S-TEC Haldex Generation 4 Rear Diff Pump Kit — DS119863 / 9V4N-4C019-AA / LR075763 / 31256757

The Haldex pump generates the oil pressure that operates the rear differential coupling on Generation 4 all-wheel-drive systems, sending drive to the rear axle when it's needed. On higher-mileage vehicles, or where servicing has lapsed, the pump can wear internally and lose the ability to build sufficient pressure.

A failing pump typically shows up as reduced or lost drive to the rear wheels and a noticeable drop in traction. Fitting a fresh pump restores full hydraulic pressure to the coupling and returns the AWD system to normal operation.

Typical fault codes and symptoms linked to pump failure:

P16671
P16670
P16668
Blocked filter gauze
Complete pump failure

Not every vehicle will show all of these faults – the exact symptoms depend on how far the pump has deteriorated.

Programming required after fitting
A learn/adaptation procedure must be carried out with suitable diagnostic equipment once the new pump is installed – without it, the AWD system will not function correctly.

Every pump in this listing is a S-TEC-boxed unit — genuine Haldex original-equipment specification, so fit, tolerances and hydraulic performance match the unit originally fitted at the factory.

This listing is the S-TEC-supplied unit. Also available as ET2406-BW (BorgWarner).

What's Included

Rear differential Haldex pump
x2 mounting screws
x1 M5 x 18mm retaining nut

Part Numbers

DS119863
1589740 - FORD
9V4N-4C019-AA - FORD
9G9N4C019AA - LAND ROVER
9G9N-4C019-AB - LAND ROVER
LR008958 - LAND ROVER
LR075763 - LAND ROVER
31256757 - VOLVO

Vehicle Compatibility

FORD Kuga 2.0 (DM2) G6DG/UKDA/TXDA/UFDA (2008 to 2012)
Range Rover Evoque 2.0 (L538) 204PT/204DTD/224DT (2011 to 2019)
LAND ROVER Freelander 2.0/3.2 (L359) 204PT/32PDPR/224DT (2011 to 2014)
VOLVO S60 3.0 (134) B6304T4 (2010 to 2016)
VOLVO S60 2.4 (134) D5244T10/D5244T15 (2010 to 2016)
VOLVO S80 3.0 (124) B6304T2 (2007 to 2011)
VOLVO S80 3.2 (124) B6324S (2006 to 2010)
VOLVO S80 4.4 (124) B8444S (2006 to 2012)
VOLVO S80 2.4 (124) D5244T4/D5244T10/D5244T15 (2008 to 2015)
VOLVO S80 Bio (ethanol) 3.2 (124) B6324S (2009 to 2010)
VOLVO V60 3.0 (155) B6304T4 (2010 to 2015)
VOLVO V60 2.4 (155) D5244T10/D5244T15 (2010 to 2015)
VOLVO V70 3.0 (135) B6304T2/B6304T4 (2007 to 2016)
VOLVO V70 3.2 (135) B6324S/B6324S5 (2007 to 2015)
VOLVO V70 2.4 (135) D5244T4/D5244T10/D5244T15 (2007 to 2015)
VOLVO XC70 3.0 (136) B6304T2 (2008 to 2012)
VOLVO XC70 3.2 (136) B6324S (2007 to 2010)
VOLVO XC90 2.4 (275) D5244T5 (2007 to 2014)
VOLVO XC60 3.0 (156) B6304T2 (2008 to 2010)
VOLVO XC60 3.2 (156) B6324S/B6324S5 (2009 to 2017)
VOLVO XC60 2.4 (156) D5244T4/D5244T16/D5244T17 (2008 to 2017)
VOLVO XC60 2.4 (156) D5244T10 (2009 to 2017)
VOLVO XC60 2.4 (156) D5244T11/D5244T15 (2011 to 2017)
VOLVO XC70 3.0 (136) B6304T4 (2010 to 2015)
VOLVO XC70 3.2 (136) B6324S5 (2010 to 2014)
VOLVO XC70 2.4 (136) D5244T4/D5244T16/D5244T17 (2007 to 2016)
VOLVO XC70 Diesel 2.4 (136) D5244T10/D5244T11/D5244T15 (2009 to 2015)
VOLVO XC90 2.5 (275) B5254T2 (2002 to 2014)
VOLVO XC90 3.2 (275) B6324S/B6324S5 (2006 to 2014)
VOLVO XC90 4.4 (275) B8444S (2005 to 2010)
VOLVO XC90 2.4 (275) D5244T4 (2005 to 2014)
VOLVO XC90 2.4 (275) D5244T18 (2010 to 2014)

Frequently Asked Questions

Q: Do I need to fit this myself, or should a garage do it?
A: We'd recommend a qualified technician carries out the job – fitting involves draining the Haldex system, swapping the pump, and running the adaptation procedure afterwards.

Q: What kit do I need to run the adaptation procedure?
A: A professional-grade diagnostic tool with Haldex adaptation/learn functionality for the vehicle in question – VIDA on Volvo, IDS on Ford, or SDD on Land Rover, for example.

Q: Why won't the AWD system work properly straight after fitting?
A: The Gen 4 Haldex pump has to learn the system's characteristics through an adaptation procedure carried out on diagnostic equipment – skip this step and the AWD system won't operate as it should.
