Haldex Pump Gen 2 Rear Differential VW 02W598549A / DS118622 - BorgWarner

Haldex Generation 2 Pump Kit — Volkswagen — 02W598549 / 02W598549A — BorgWarner

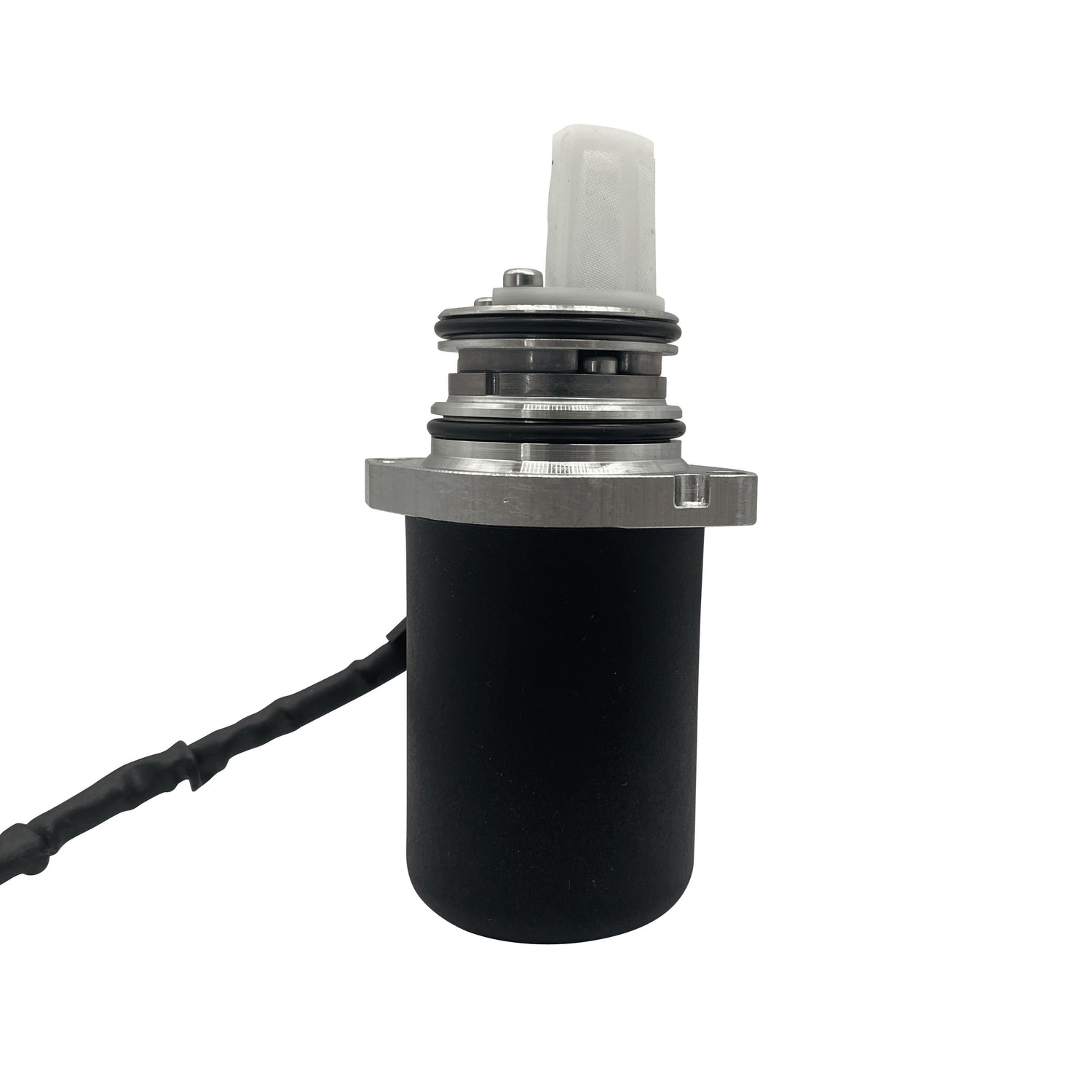

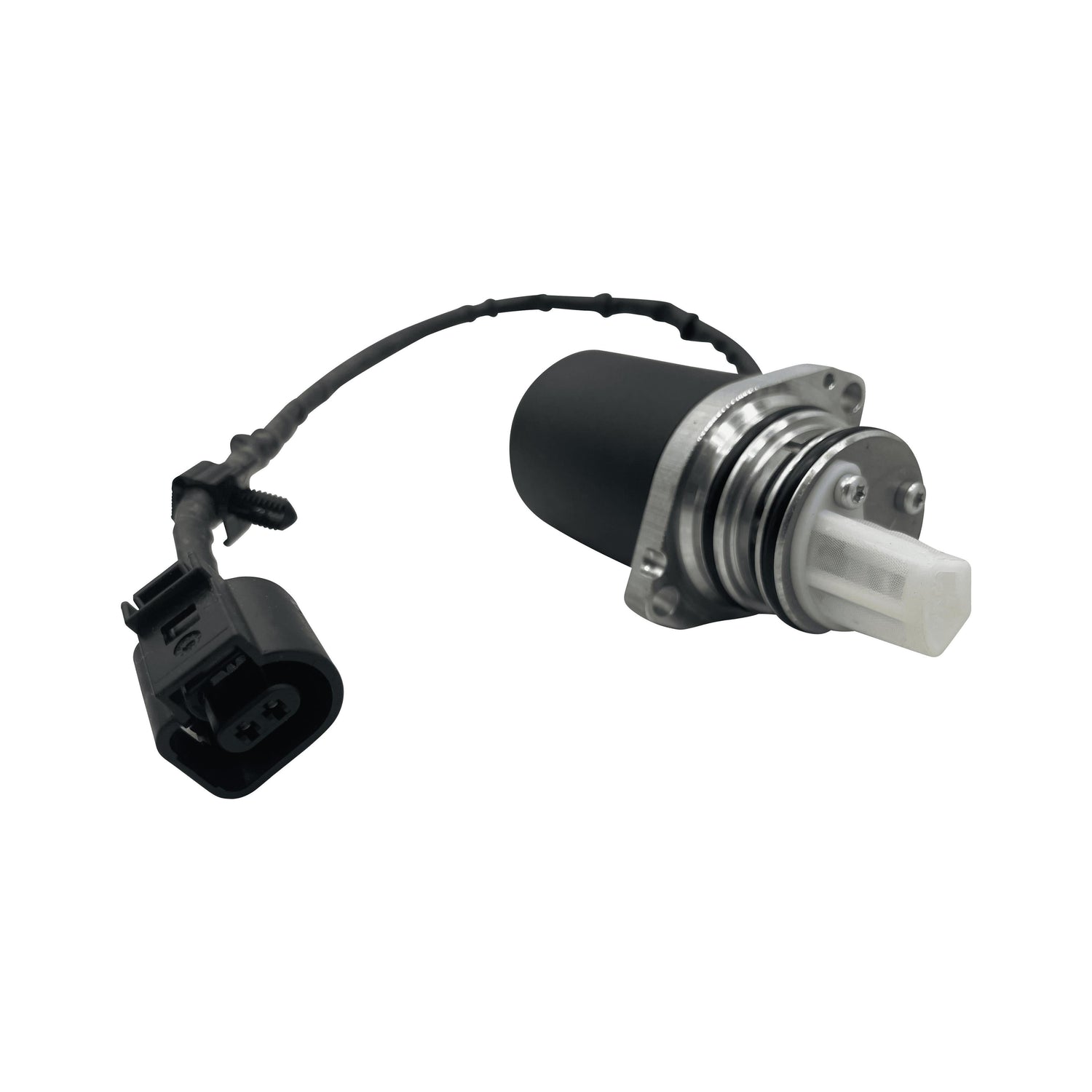

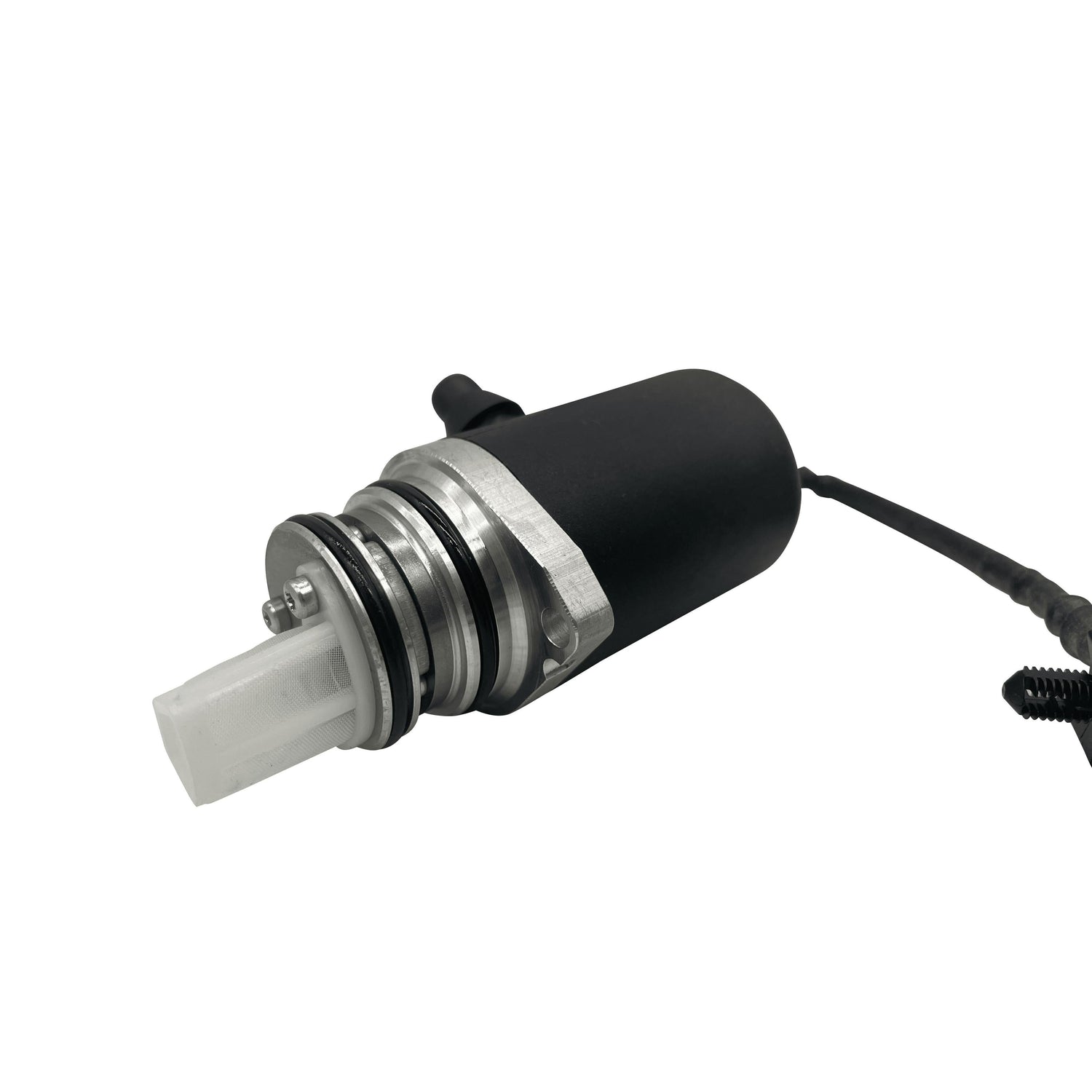

BorgWarner’s DS118622 is the Generation 2 pre-charge pump for the Haldex rear differential coupling fitted to Volkswagen all-wheel-drive models. This kit supplies the complete pump pre-charge assembly together with the fixing hardware needed for a full replacement.

BorgWarner-boxed unit; BorgWarner is the OEM behind the Haldex system.

This listing is the BorgWarner-supplied unit. Also available as ET2266-ST (S-TEC).

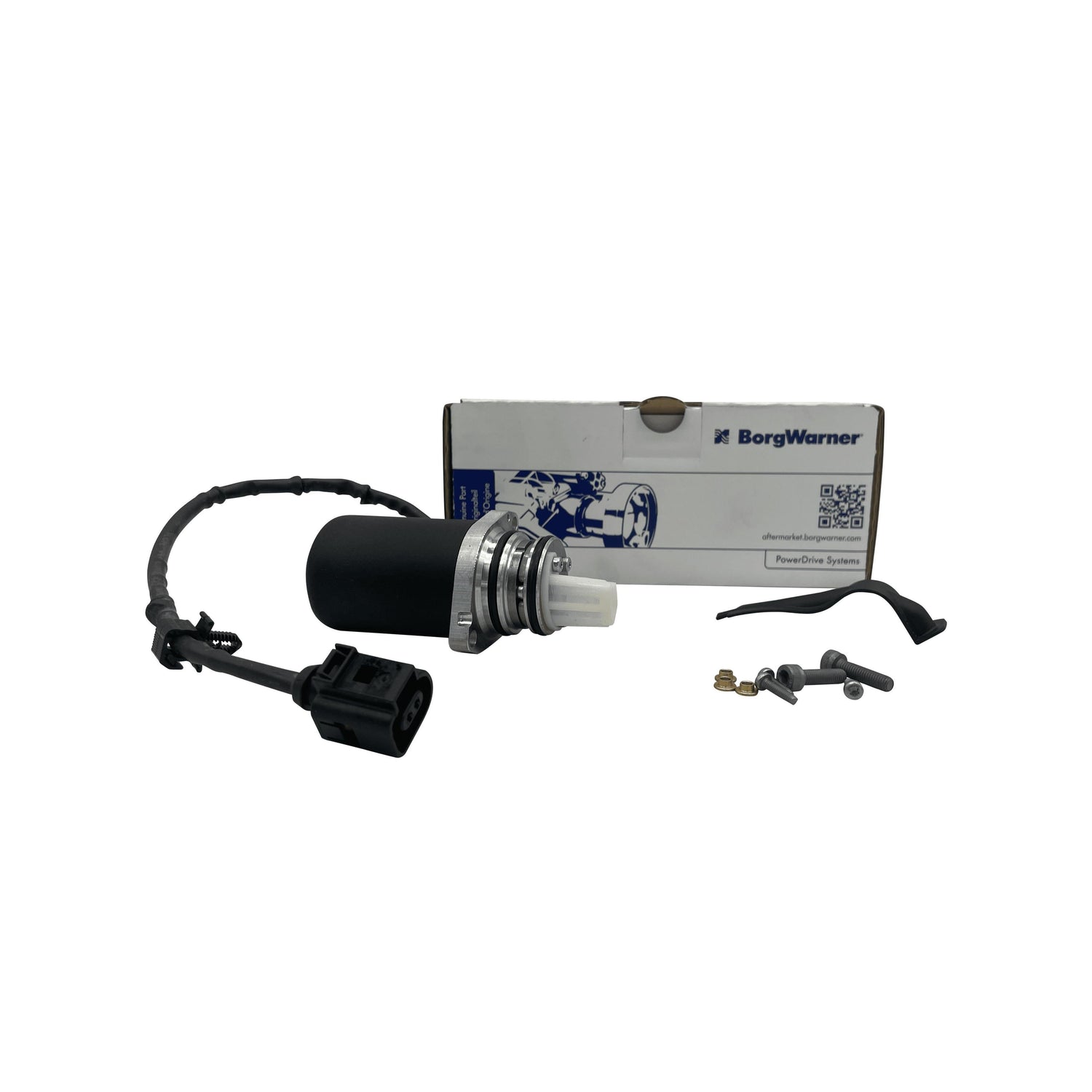

Parts Included

• Haldex Generation 2 pre-charge pump
• x1 holder
• x5 screws and fixings

Part Numbers

BorgWarner: DS118622
VW: 02W598549 / 02W598549A

Vehicle Compatibility

Fits Volkswagen Multivan and Transporter models equipped with the Generation 2 Haldex rear differential.

Frequently Asked Questions

What does the Haldex pre-charge pump actually do?

It builds hydraulic pressure in the Haldex unit to pre-load the clutch pack, enabling faster AWD engagement. A failed pump causes delayed or absent AWD activation and, left unaddressed, eventual Haldex system failure.

How do I know if my van has a Gen 2 or Gen 3 Haldex system?

The generation is determined by the vehicle model year and platform. VW Transporter T5 and Multivan models generally use the Generation 2 system — check your VIN or contact Eco Torque to confirm compatibility.

Can I fit this pump myself?

The Haldex pump is accessible without full transmission removal, but correct torque settings and a Haldex oil flush are required, so we recommend installation by a qualified technician.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2266-BW
