Haldex Pump Gen 2 Rear Differential VW 02W598549A / DS118622

Haldex Generation 2 Pump Kit

For Volkswagen

02W598549 / 02W598549A

The S-TEC-supplied DS118622 is the Generation 2 pre-charge pump kit for Volkswagen AWD vehicles using the Haldex rear differential coupling. This kit provides the pump pre-charge assembly and all required fixing hardware for a complete replacement.

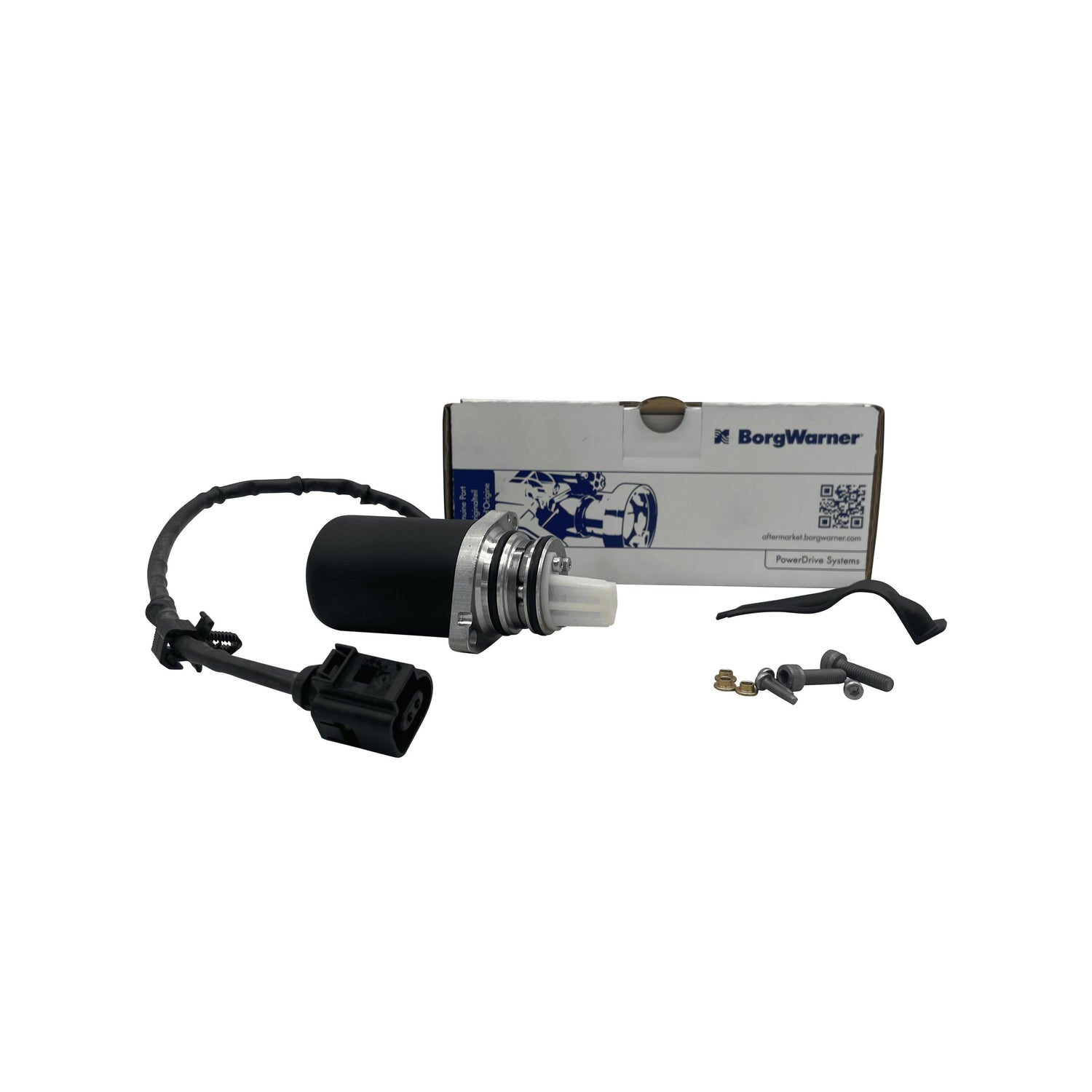

Parts Included

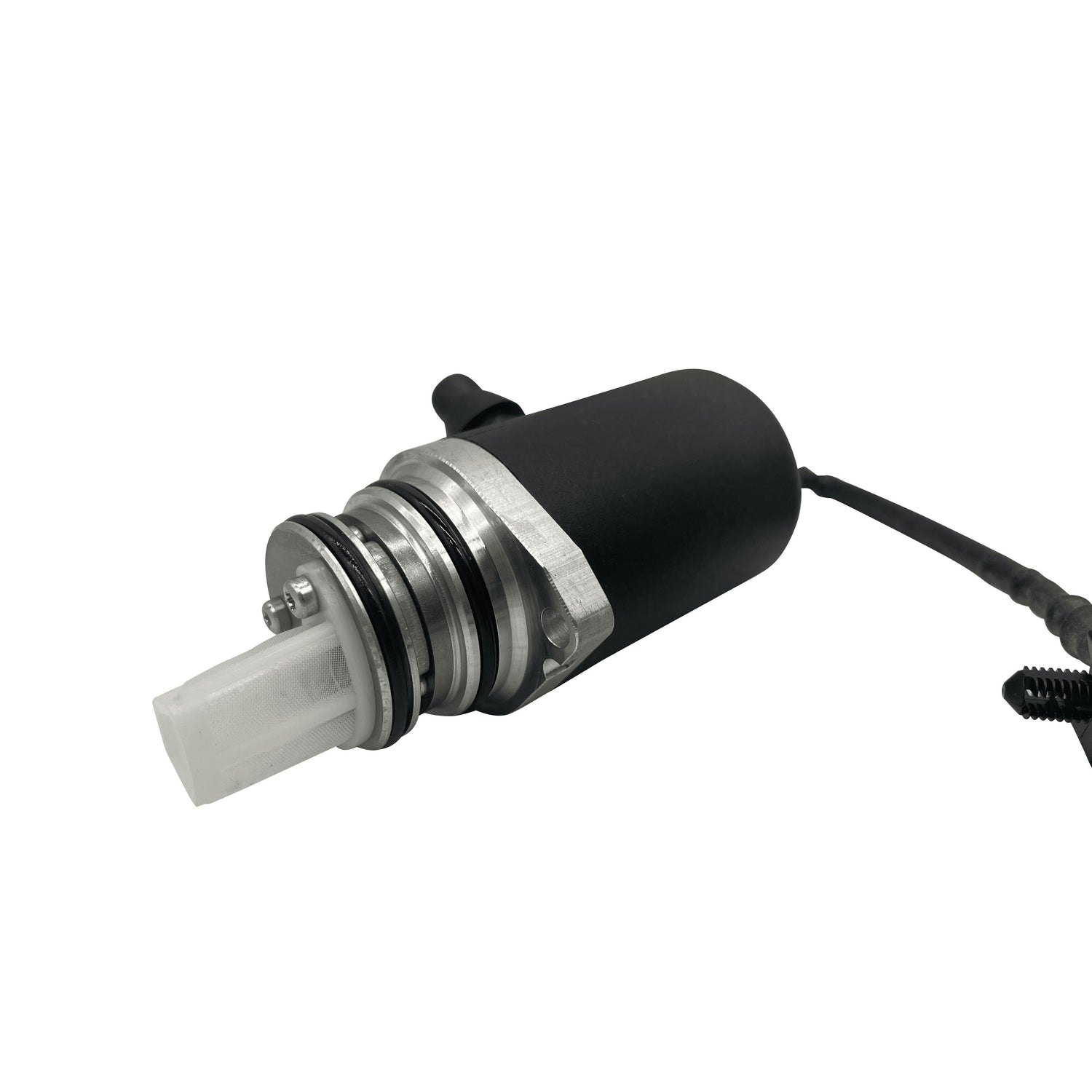

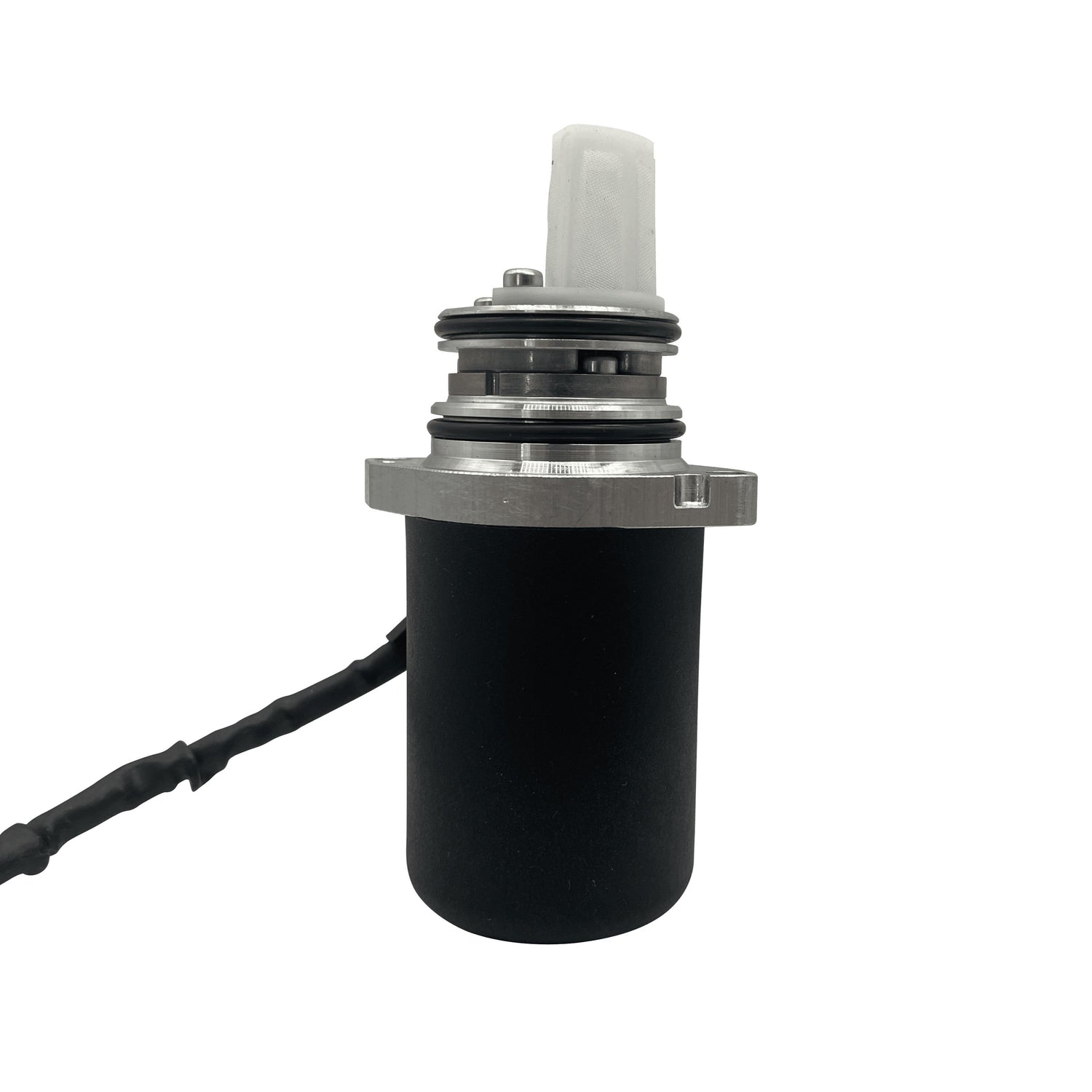

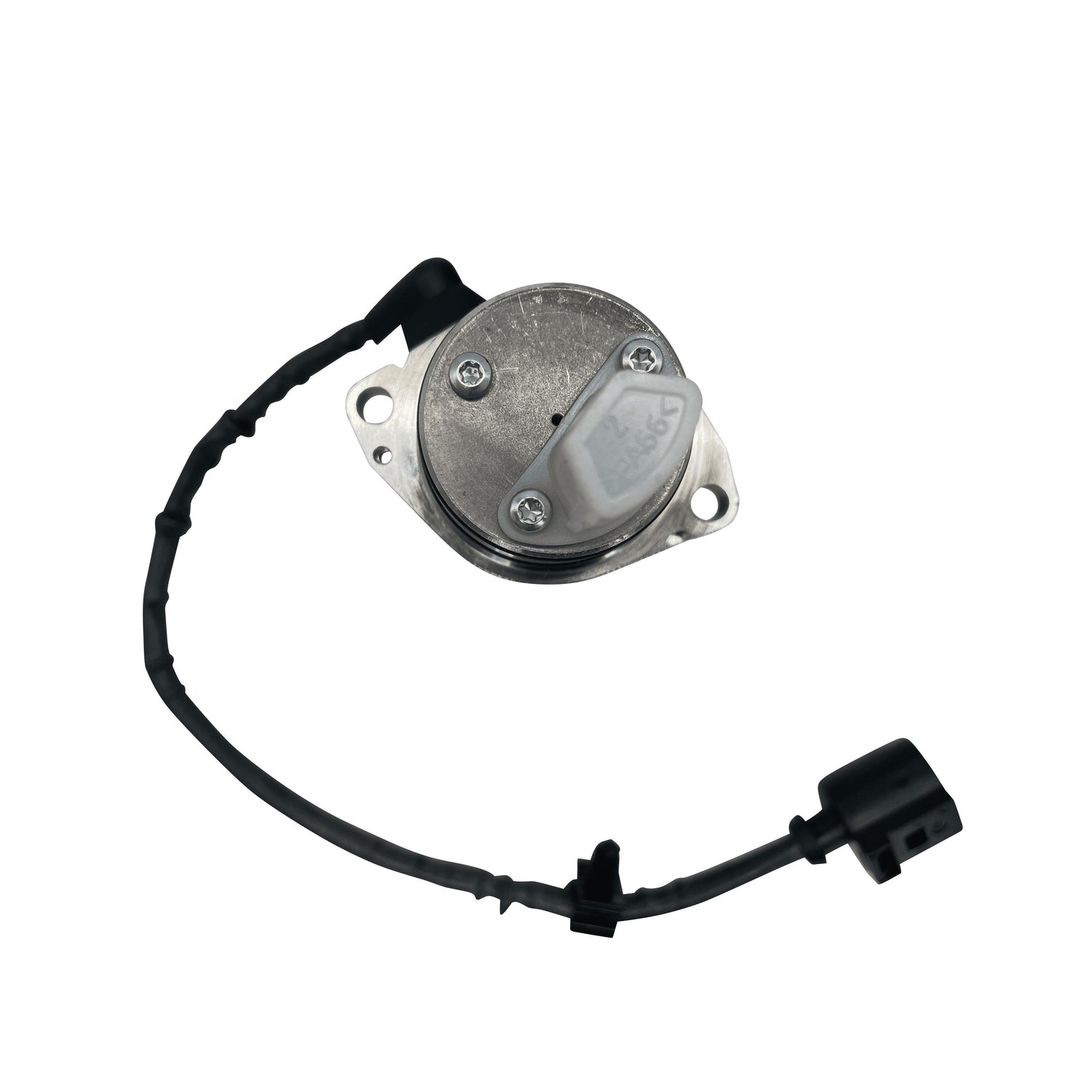

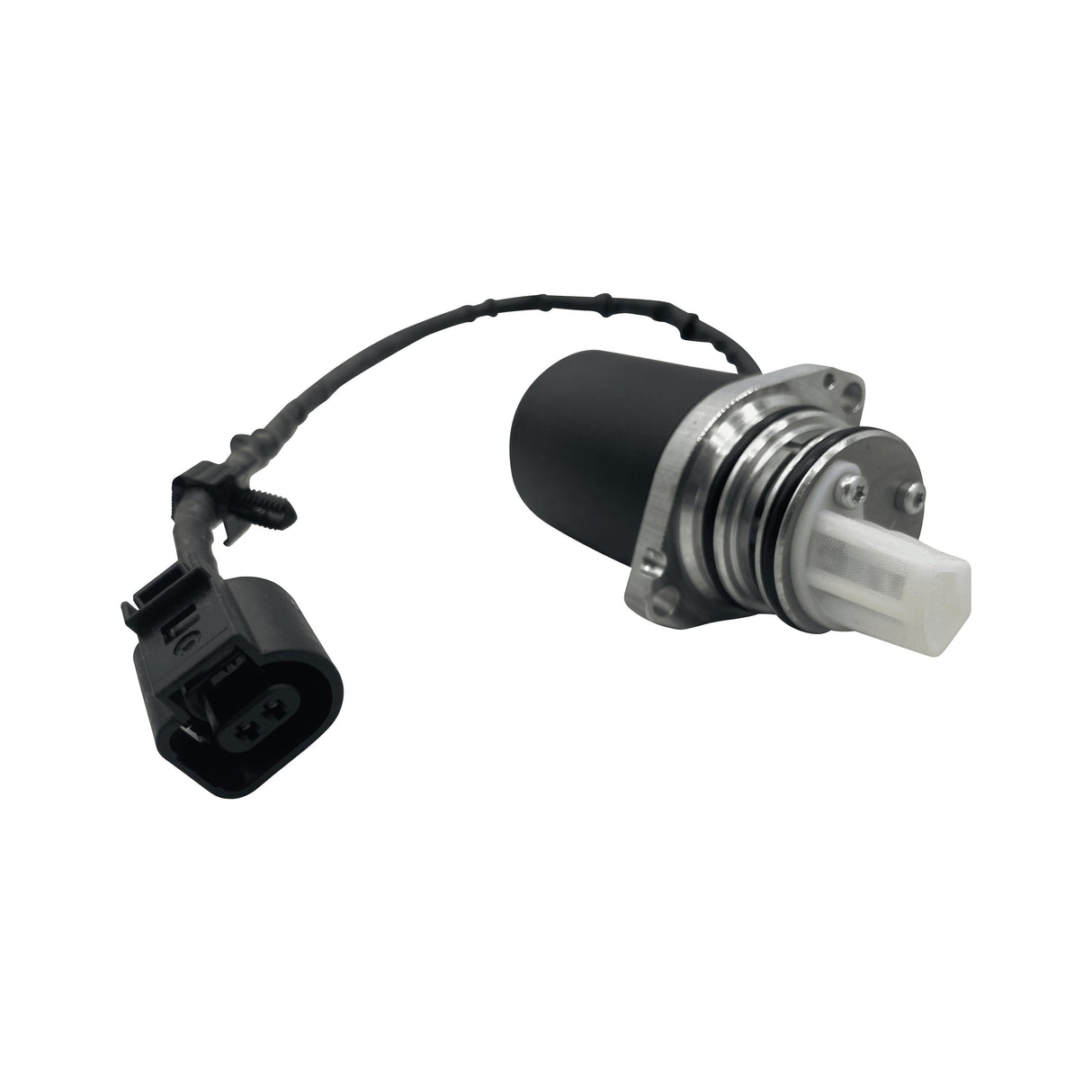

• Haldex Generation 2 pre-charge pump

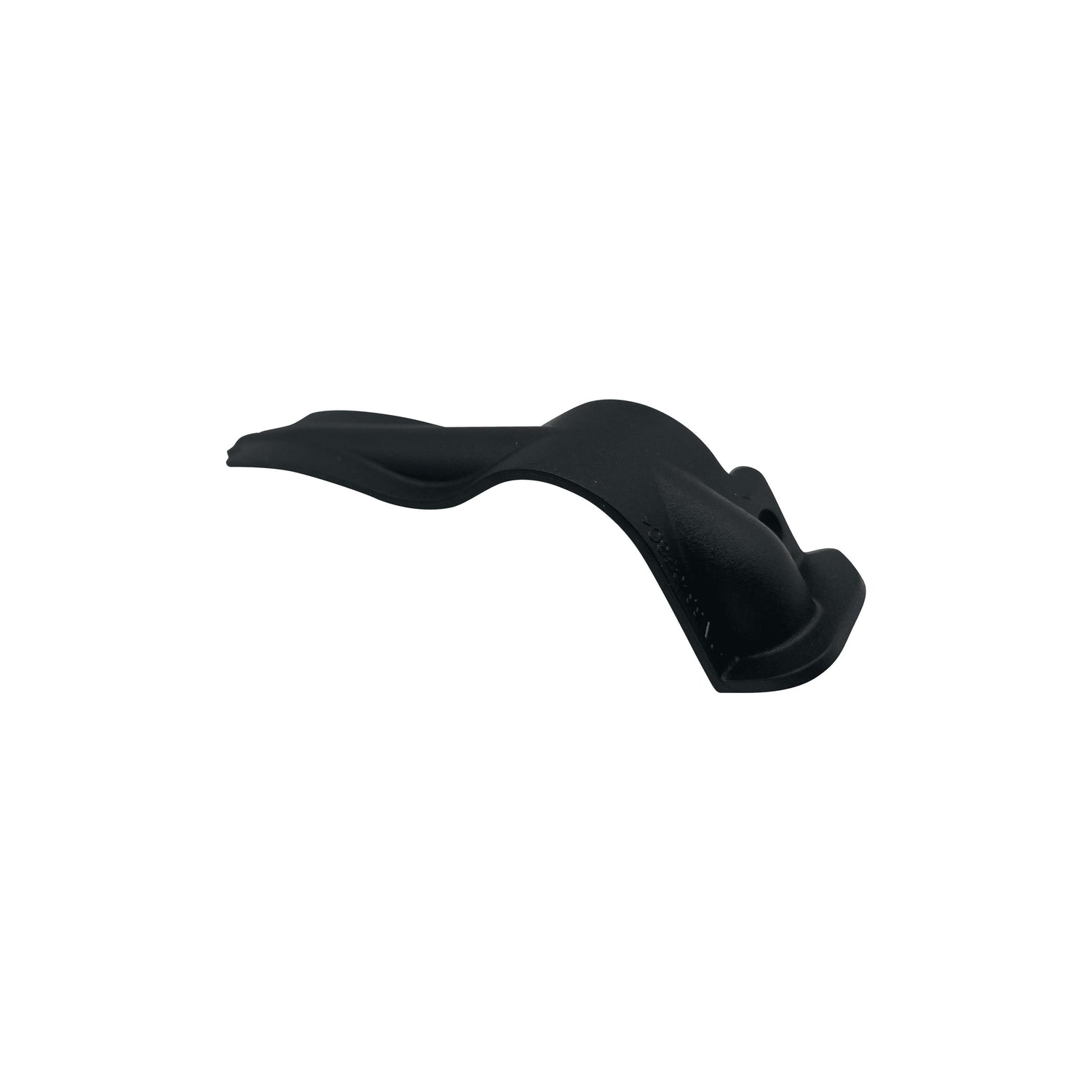

• x1 holder
• x5 screws and fixings

Part Numbers

BorgWarner: DS118622
VW: 02W598549 / 02W598549A

Vehicle Compatibility

Fits Volkswagen Multivan and Transporter models equipped with the Generation 2 Haldex rear differential.

Frequently Asked Questions

What does the Haldex pre-charge pump do?

The pre-charge pump builds hydraulic pressure in the Haldex unit to pre-load the clutch pack, enabling faster AWD engagement. A failed pump causes delayed or absent AWD activation and eventual Haldex system failure.

Is this a genuine part?

Yes. DS118622 is the BorgWarner OEM reference; this listing is the S-TEC-supplied unit — genuine original equipment. We also stock the BorgWarner version under ET2266-BW.

How do I know if I have a Gen 2 or Gen 3 Haldex system?

The generation is determined by the vehicle model year and platform. VW Transporter T5 and Multivan models generally use the Generation 2 system. Use your VIN or contact Eco Torque to confirm compatibility.

Should the Haldex oil and filter be replaced at the same time?

Yes. Always replace the Haldex oil and filter when fitting a new pump to prevent contamination from reaching the new unit and to maximise service life.

Can I fit this pump myself?

The Haldex pump is accessible without full transmission removal, but requires correct torque settings and a Haldex oil flush. We recommend installation by a qualified technician.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2266
