Fiat 500 C510 Gearbox Deep Groove Bearing AB.40019.S07 37x73x17mm

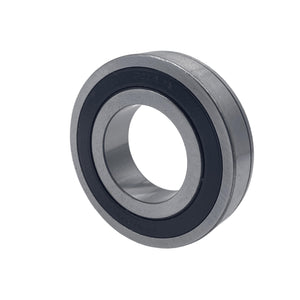

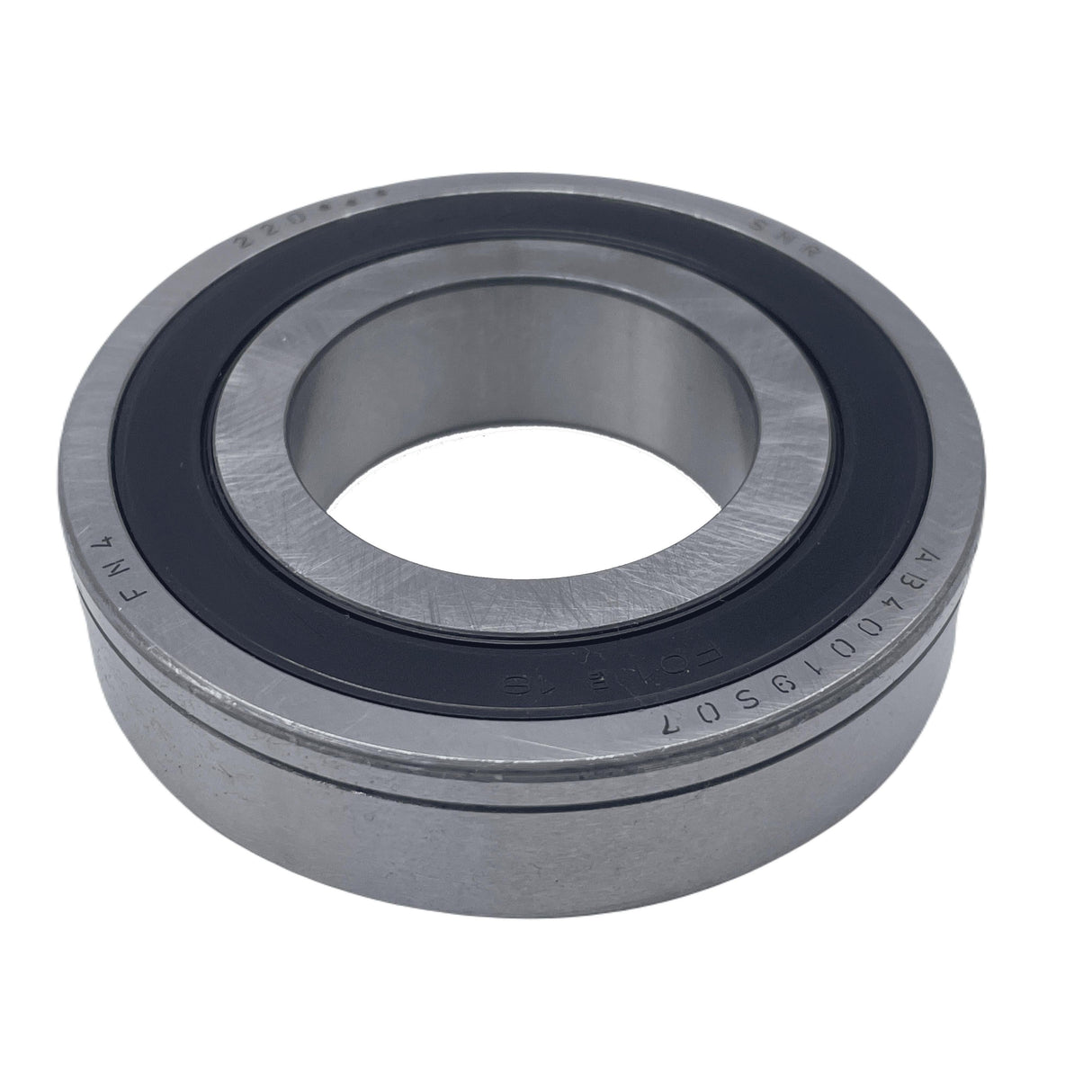

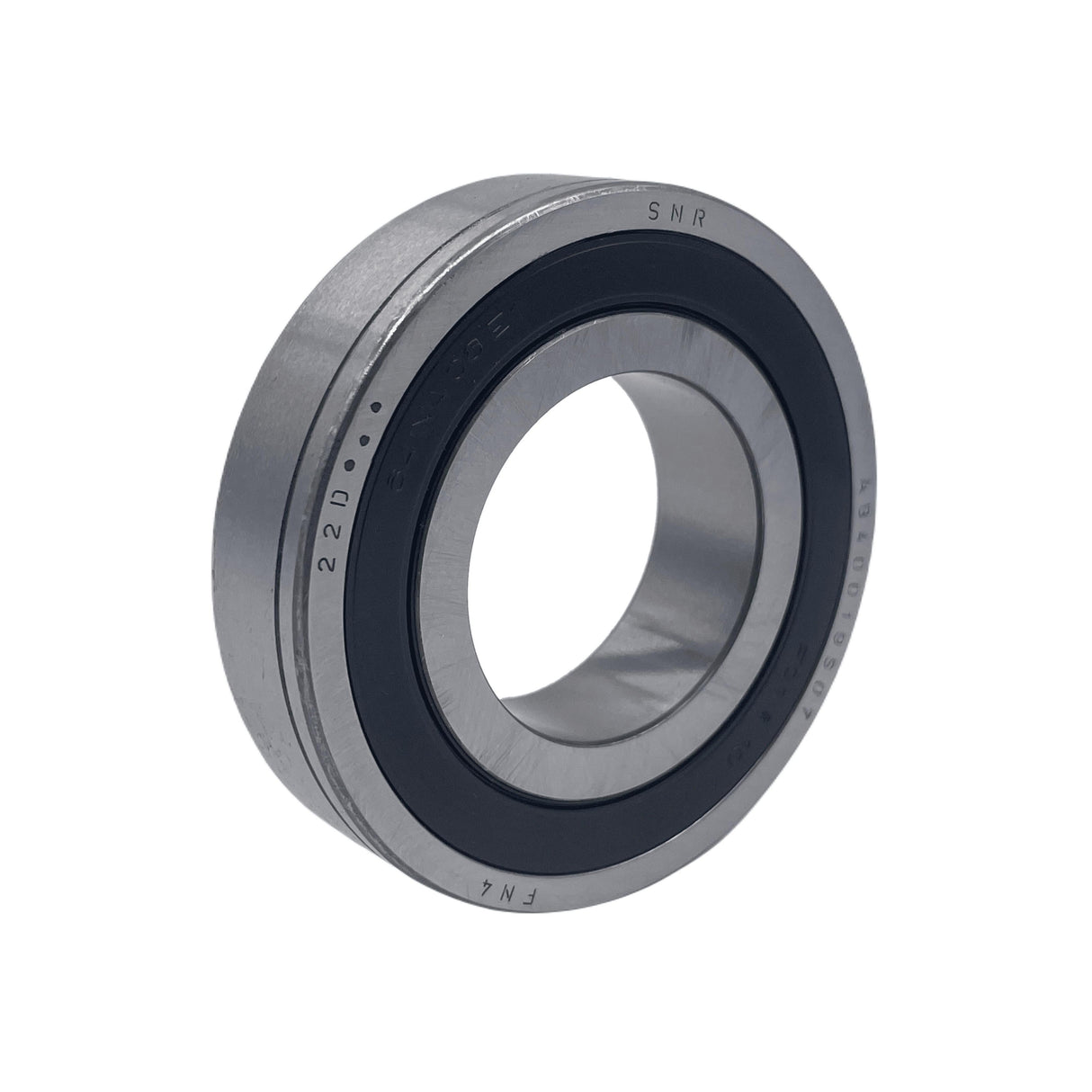

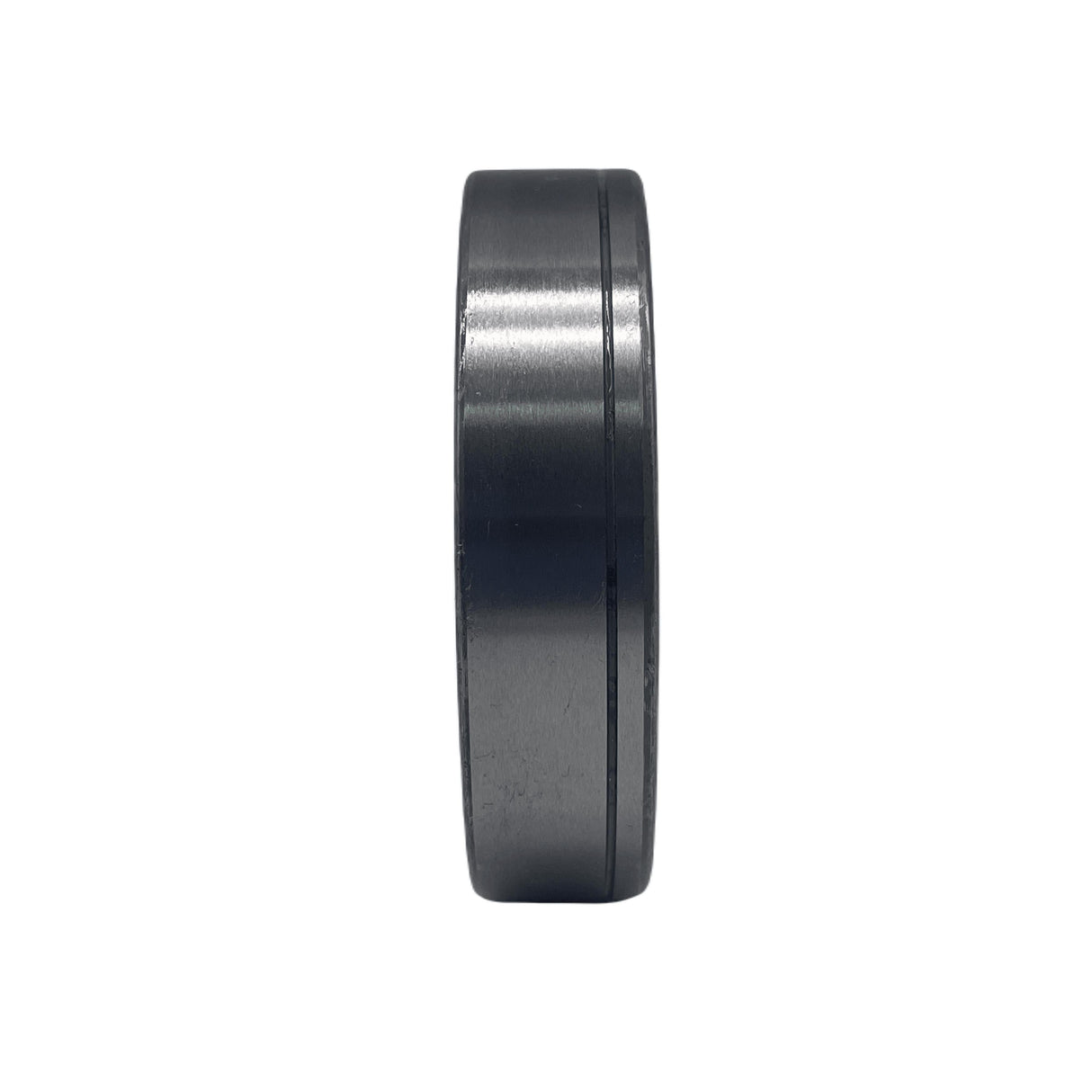

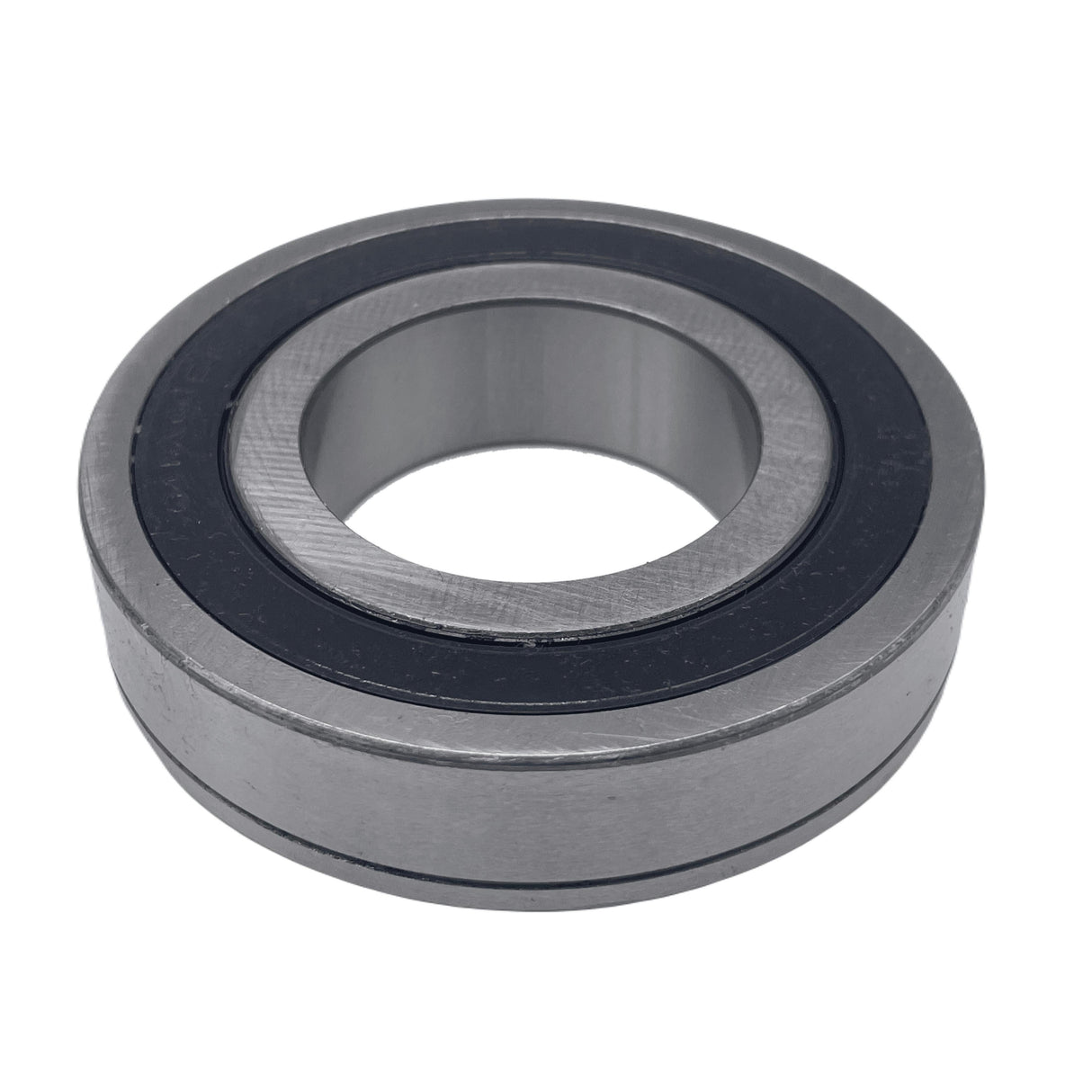

SNR AB.40019.S07 Deep Groove Bearing – Fiat 500 / C510 Gearbox 37x73x17mm

The SNR AB.40019.S07 is a deep groove ball bearing measuring 37 mm bore × 73 mm outer diameter × 17 mm width. It is designed for use in the Fiat C510 5-speed and C514 manual gearboxes, covering the Fiat 500 1.4 Abarth and Turbo models (US market, 2015–2019) and multiple European platforms including the Grande Punto, Panda and Punto. This is an OEM-grade SNR bearing and cross-references to a wide range of OE part numbers from Fiat, Ford, VALEO and others.

Specifications:

• Brand: SNR (NTN-SNR)
• Inner diameter (d): 37 mm
• Outer diameter (D): 73 mm
• Width (B): 17 mm

OE Reference Numbers:

• Fiat: 46444772
• Fiat / SNR: 578164 A, 7635453
• SKF: BB1B 630978 A, BB1B 630978 C
• FAG: 630978 A, 630978 C
• JTEKT: DG 3773 2RKB
• SNR: 624607 A
• Fiat OEM: 55206438
• Ford: 1541127, 2634889
• SNR: AB.40019.S07

Vehicle Compatibility:

• Fiat (USA) 500 1.4 Abarth – 2015 to 2019
• Fiat (USA) 500 1.4 Turbo – 2015 to 2019
• Fiat Grande Punto 199 – 2005 to 2011
• Fiat Panda 169 – 2003 to 2012
• Fiat Punto 199 – 2011 to 2019

Is this bearing compatible with the C514.5 (5 speed) and C514.6 (6 speed)?

Yes — the AB.40019.S07 / 46444772 bearing is used in both the 5-speed and 6-speed variants of the C514 gearbox family.

Why are there so many OE cross-reference numbers?

This is a platform bearing used across multiple manufacturers and gearbox families (C510, C514, IB5). Each brand assigns its own OE part number to the same bearing, hence the long cross-reference list. All reference the same 37×73×17 mm bearing.

What is the difference between SNR and NTN-SNR?

SNR was a French bearing manufacturer acquired by NTN to become NTN-SNR. Bearings marked SNR or NTN-SNR are from the same manufacturing group and interchangeable.

Does this fit the Fiat 500 sold in the UK?

Yes — UK/EU market Fiat 500 models with the C510 or C514 gearbox (e.g. 1.2, 1.4 variants) use this bearing. Contact us with your VIN for confirmation.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2913
