C514 Gearbox 3rd Speed Gear 27T – OE Ref 46767058

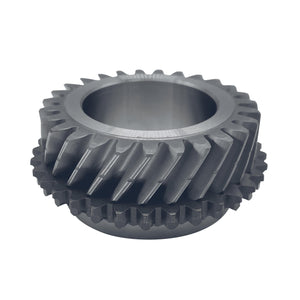

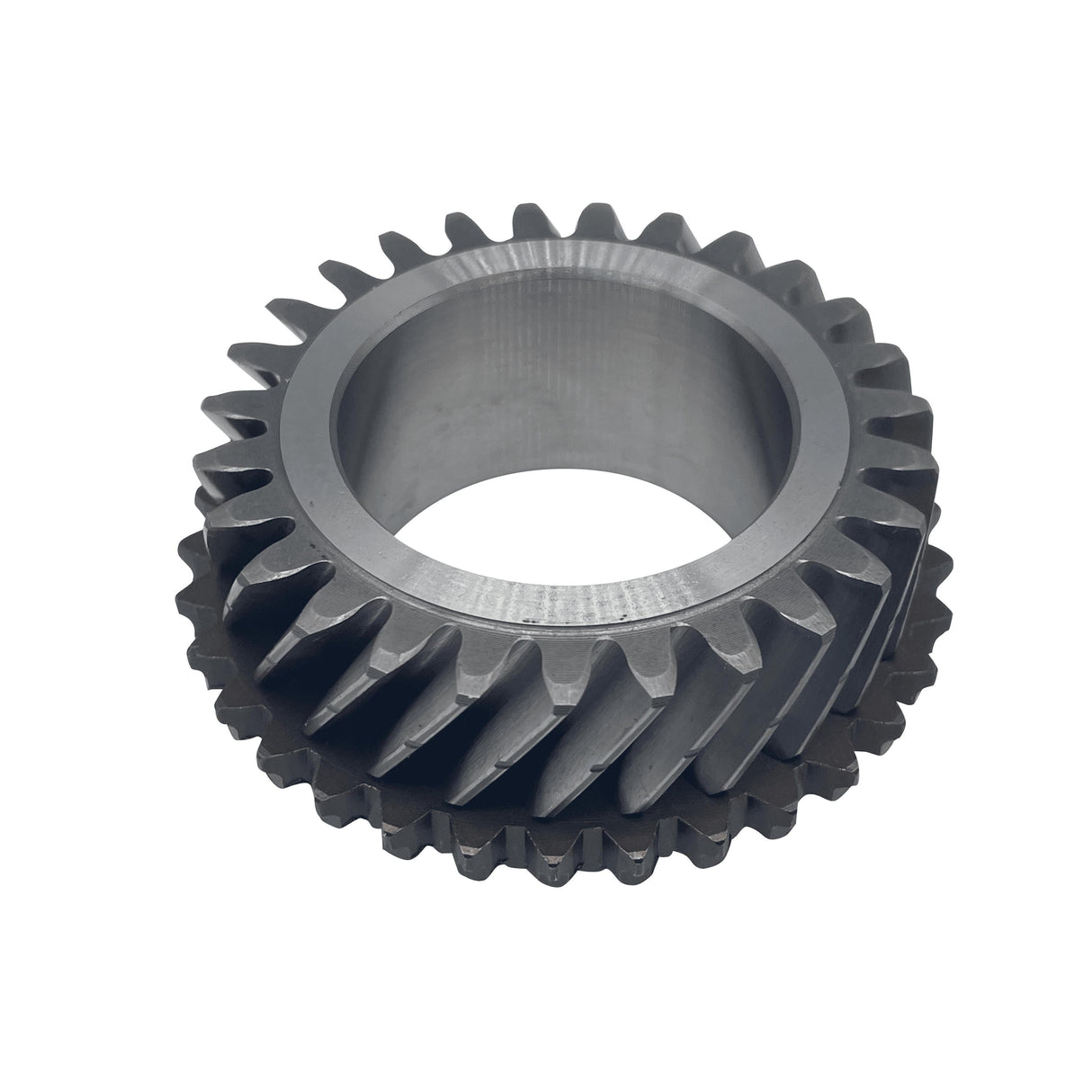

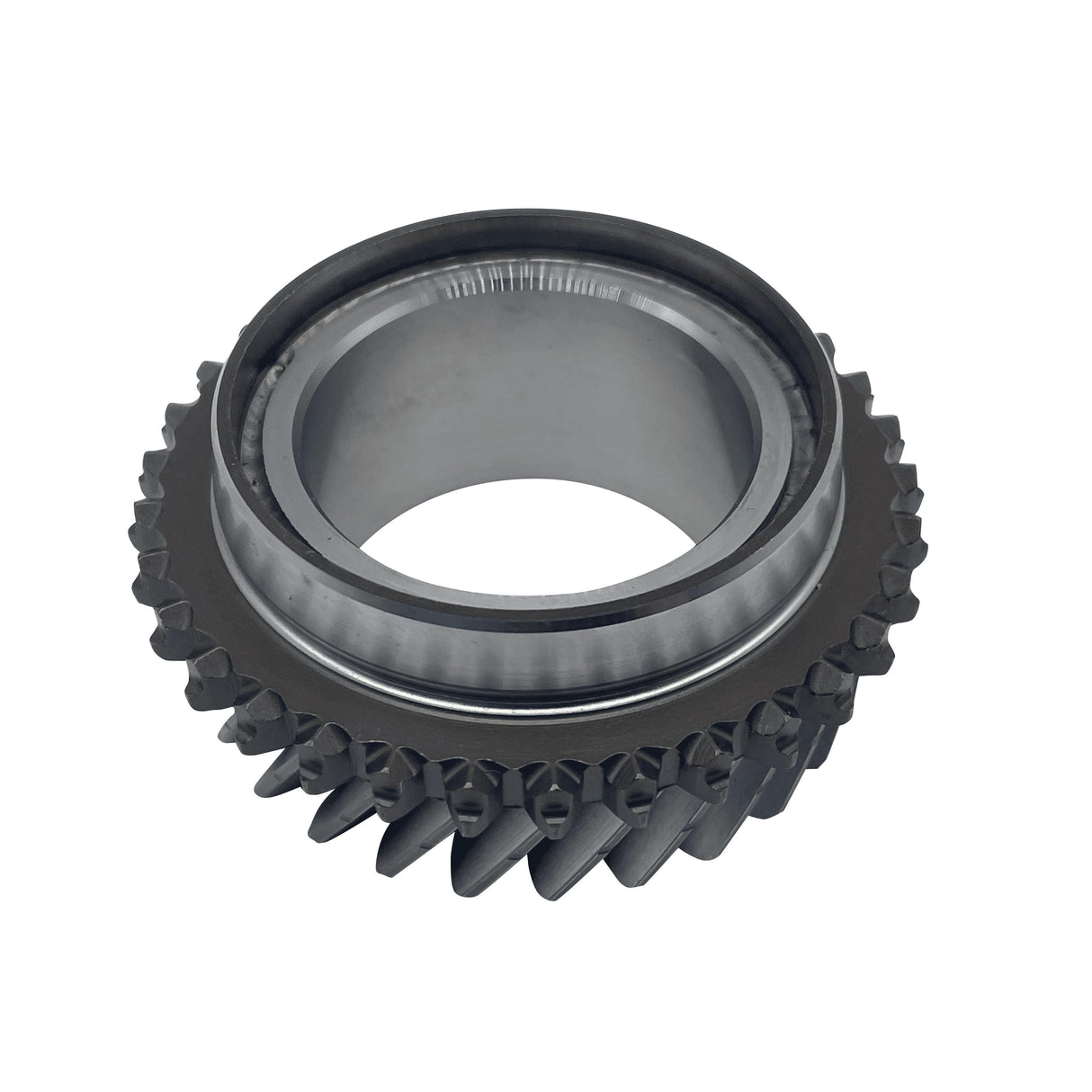

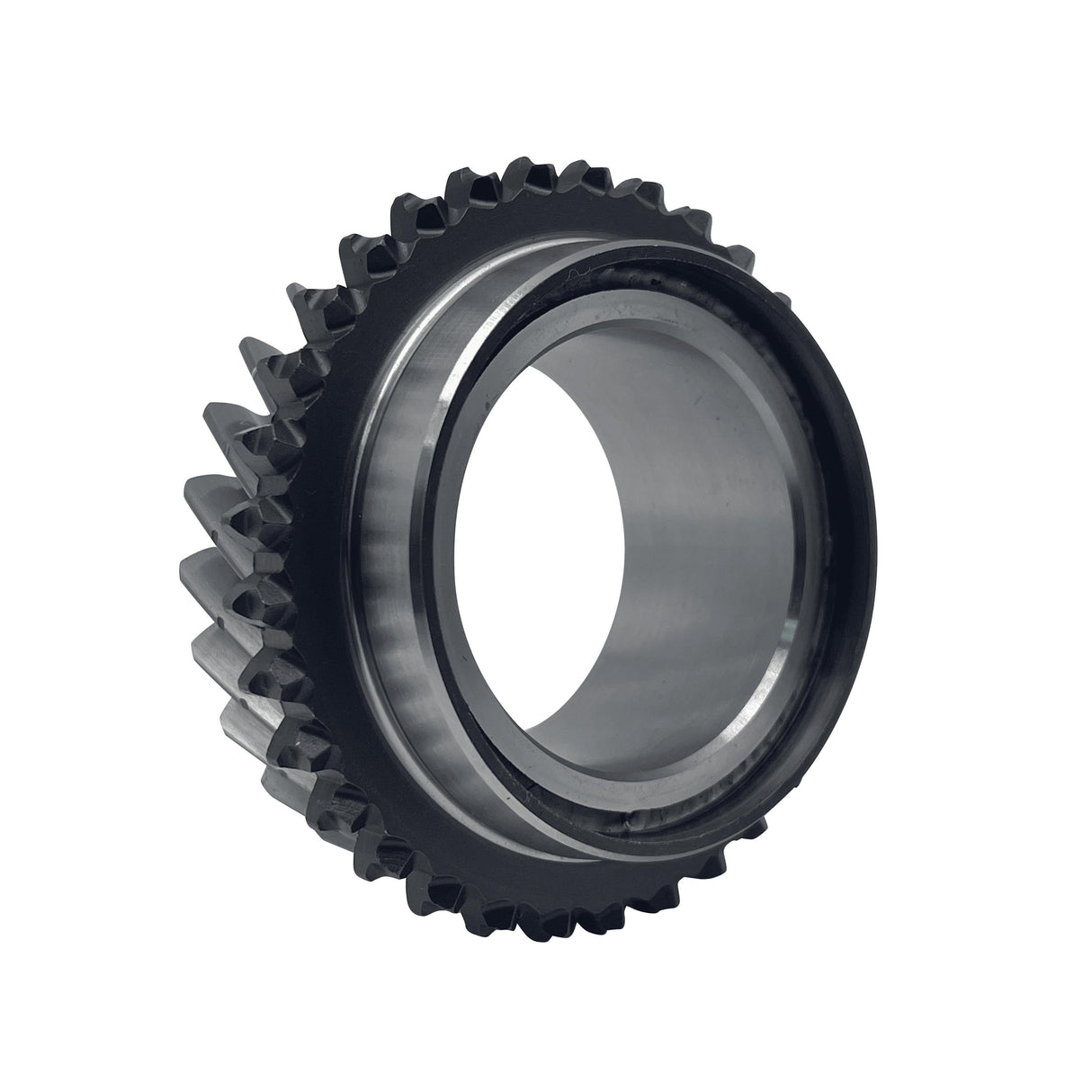

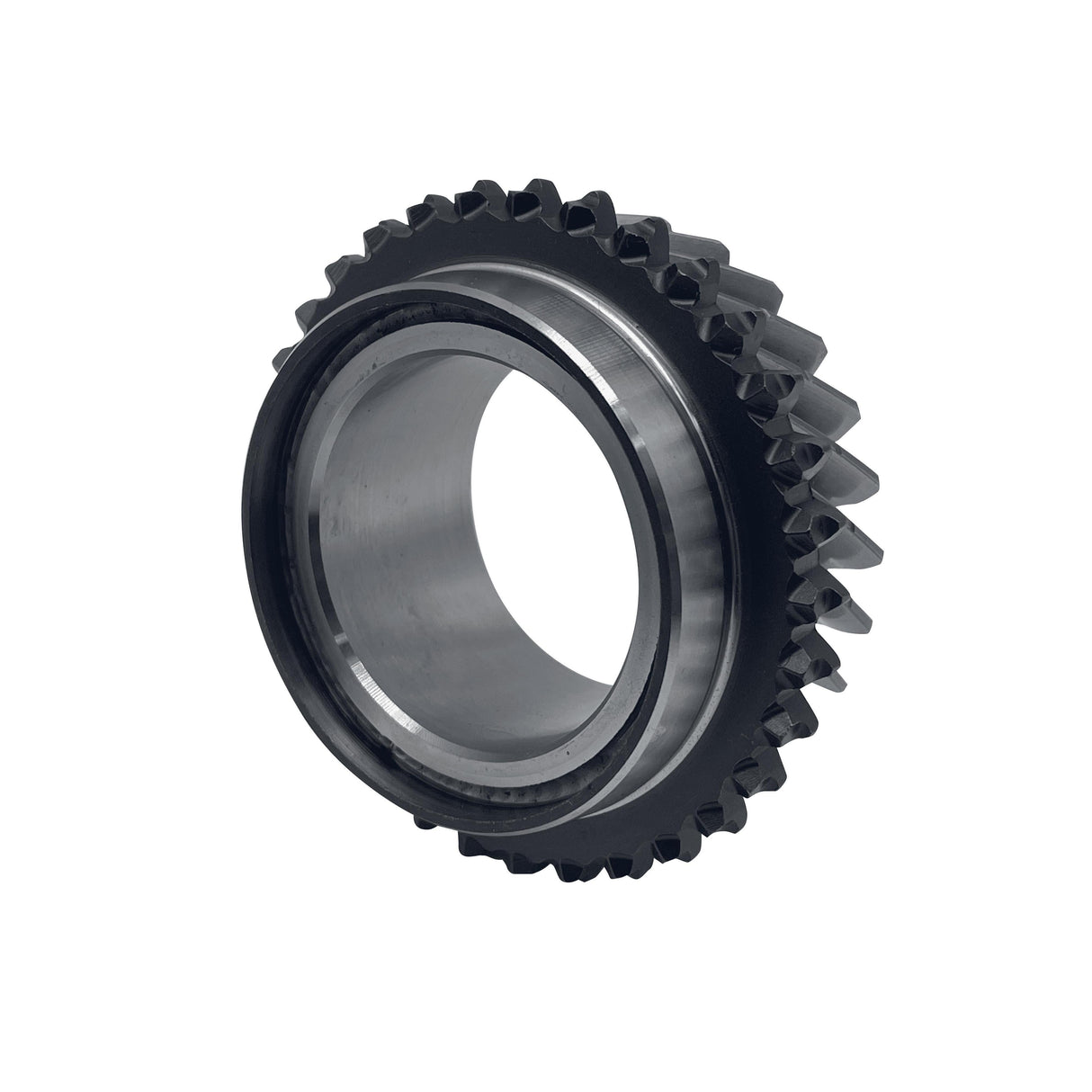

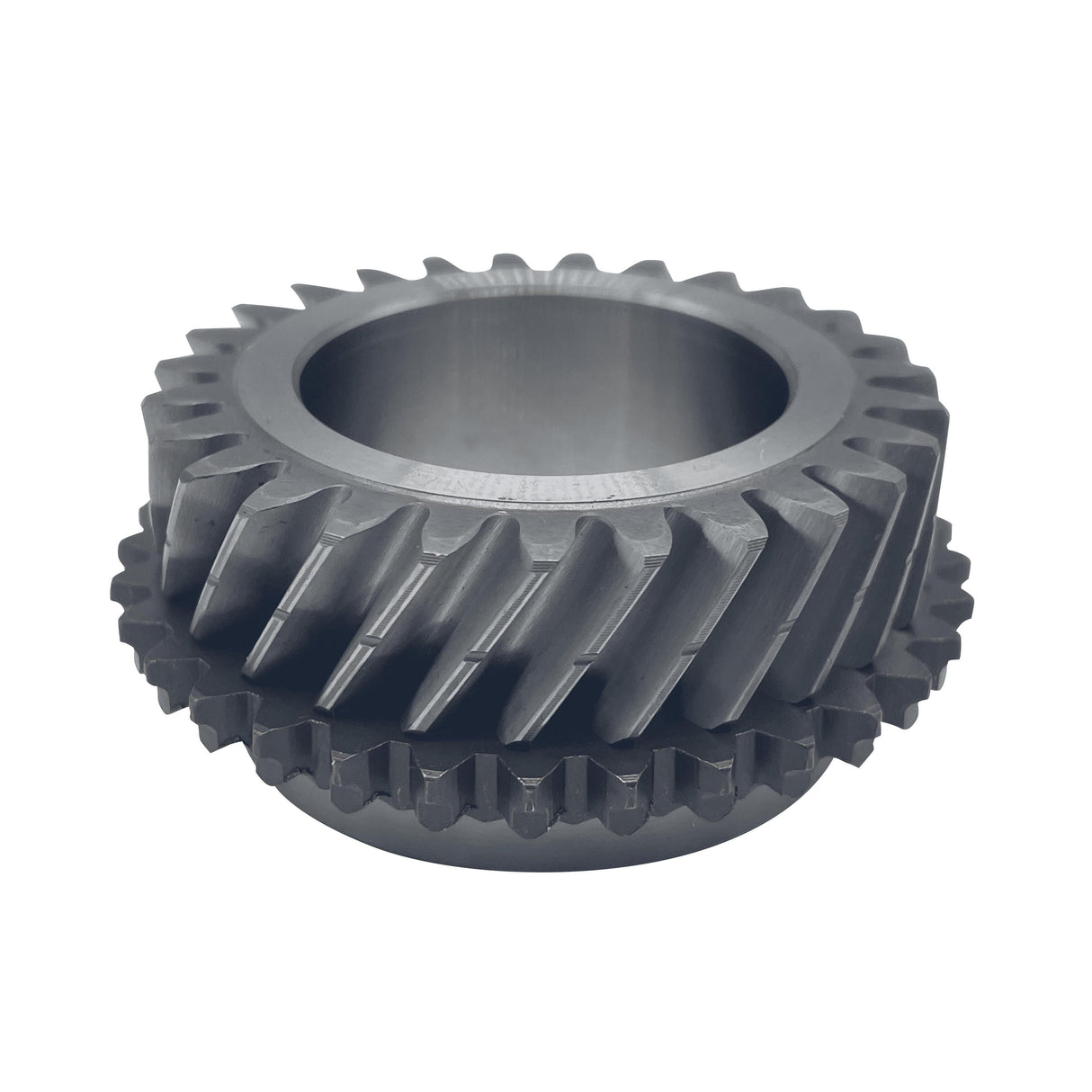

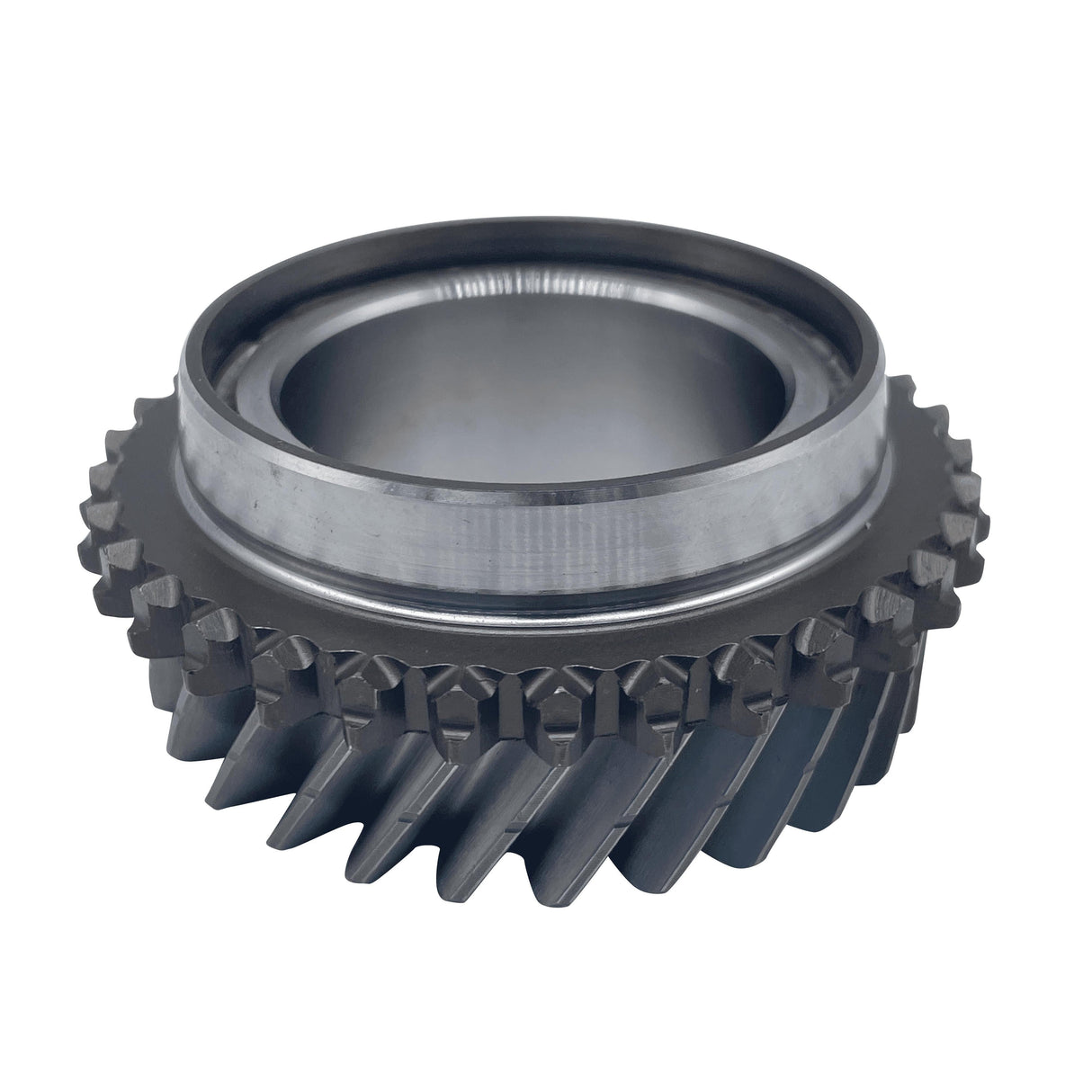

Input shaft 3rd speed gear (27 tooth) for Fiat C514 series gearboxes. OE part number 46767058. A direct-fit replacement for the C514.5 (5 Speed) and C514.6 (6 Speed) variants, used across the Fiat Punto, Grande Punto, Panda, Linea, and related Abarth 500/595/695, Opel/Vauxhall Combo D, and Chrysler Ypsilon platforms.

Part details:

• Tooth count: 27T
• OE part number: 46767058
• Gearbox: C514.5 (5 Speed), C514.6 (6 Speed)

Compatible vehicles include: Fiat Punto, Grande Punto, Panda, Linea · Abarth 500, 595, 695 · Opel Combo D · Vauxhall Combo D · Chrysler Ypsilon · Ford KA (C514 applications)

What is the C514 gearbox?

The C514 is a front-wheel-drive manual transaxle used extensively by Fiat Group across their small car range. It comes in 5-speed (C514.5) and 6-speed (C514.6) variants. The gearbox is known for durability but gear teeth on 3rd gear can wear in high-mileage units.

How do I know if my 3rd gear needs replacing?

Symptoms of 3rd gear tooth wear include crunching or grinding when engaging 3rd, difficulty selecting 3rd gear, or gear jump-out under load in 3rd. A full gearbox strip-down is required to confirm wear.

Is the 3rd gear the same across C514.5 and C514.6?

The 3rd gear (27T, OE ref 46767058) is common across both the 5-speed and 6-speed C514 variants, making this a versatile stock part for rebuilders servicing multiple applications.

Should I replace the synchro ring at the same time?

Yes — when replacing a worn gear, it is best practice to inspect and typically replace the corresponding synchromesh ring. See ET2807 for the matching 3rd/4th gear synchromesh ring (OE ref 46767057).

What is the tooth count on the mating output gear?

Please contact us with your gearbox code or vehicle VIN for confirmation of the full gear set specification. We can advise on matched gear pairs for the C514 gearbox.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2803
