The Fiat 500 semi-automatic gearbox is commonly known as the Dualogic gearbox. Although many owners describe it as an automatic, it is not a conventional automatic transmission. It is a robotised manual gearbox, meaning the vehicle still uses a manual-style gearbox and clutch, but the clutch and gear changes are controlled by an electro-hydraulic system rather than by a clutch pedal and traditional gear linkage.
This is where many Fiat 500 Dualogic problems begin.
The gearbox relies on two main systems working together:
- The mechanical clutch and gearbox
- The electro-hydraulic control unit mounted on the gearbox, often referred to as the actuator, robot, hydraulic unit or Dualogic unit
When either side starts to fail, the vehicle can suffer from poor gear selection, clutch judder, delayed engagement, warning messages, fault codes or complete loss of drive.
Common fault codes linked with Fiat 500 Dualogic gearbox issues include P1771, P1773, P2910 and P2911.
Quick Symptoms of Fiat 500 Dualogic Gearbox Failure
Fiat 500 Dualogic faults can appear in several different ways. Some faults start intermittently and gradually become worse, while others can appear suddenly and leave the vehicle unable to select gears.
Common symptoms include:
-
Transmission warning light or gearbox failure message
The vehicle may display a gearbox warning on the dashboard, sometimes before any major drivability issue appears. -
Vehicle drops into neutral
This is one of the most common and concerning symptoms. The vehicle may unexpectedly select neutral while driving, when coming to a stop, or when trying to pull away. -
Difficulty selecting first or reverse gear
The gearbox may hesitate, refuse to engage, or repeatedly return to neutral. -
No gear selection at all
In more severe cases, the vehicle may start but refuse to select any gear. -
Jerky take-off or clutch judder
The car may shudder, hesitate or feel harsh when pulling away, especially from a standstill. -
Delayed engagement
There may be a noticeable delay between selecting a gear and the vehicle actually responding. -
Hydraulic pump running too often
If the hydraulic system is losing pressure, the pump may run more frequently than expected. -
Low hydraulic fluid or visible leaks
Fluid loss around the actuator, reservoir, pipework or gearbox area can lead to pressure faults and gear selection problems. -
Fault codes relating to hydraulic pressure or clutch position
Codes such as P1771, P1773, P2910 and P2911 are commonly associated with Dualogic clutch and hydraulic control faults.
Q: Does this always mean the clutch has failed?
No. The clutch may be worn, but the same symptoms can also be caused by hydraulic pressure loss, actuator faults, pump issues, accumulator problems, sensor faults, wiring faults or calibration issues.
That is why proper diagnosis is important before replacing parts.
What Is the Fiat 500 Dualogic Gearbox?
The Fiat 500 Dualogic gearbox is a robotised manual transmission. Mechanically, it is closer to a manual gearbox than a conventional automatic. The key difference is that the clutch and gear selection are operated by an electro-hydraulic control system.
Instead of the driver pressing a clutch pedal, the Dualogic system controls the clutch automatically. Instead of the driver moving a gear lever through a normal manual linkage, the actuator controls gear selection.
The system typically uses:
- An electro-hydraulic actuator
- Hydraulic pump
- Accumulator
- Hydraulic fluid reservoir
- Solenoid valves
- Position sensors
- Gearbox control module
- Clutch control system
When everything is working correctly, the system can make the car feel like a small automatic. However, because the system depends heavily on hydraulic pressure, sensor feedback and clutch calibration, faults can quickly affect gear selection and drivability.
Why the Fiat 500 Dualogic System Fails
Fiat 500 Dualogic faults usually fall into two main areas:
- Mechanical clutch wear or clutch control problems
- Electro-hydraulic actuator or pressure system faults
In many cases, both areas need to be checked because the symptoms can overlap.
Clutch Wear and Clutch Control Problems
Because the Fiat 500 Dualogic still uses a clutch, the clutch can wear in a similar way to a normal manual vehicle. The difference is that the driver does not have direct control of the clutch pedal, so early signs of wear may be less obvious.
A worn clutch, poor clutch adjustment or clutch control fault can cause:
- Judder when pulling away
- Harsh take-off
- Delayed gear engagement
- Slipping under load
- Failed clutch calibration
- Poor bite point adaptation
- Gearbox warning messages
- Clutch subsystem fault codes
- Vehicle dropping into neutral
The vehicle dropping into neutral is an important symptom to mention. On a Dualogic system, the gearbox control unit needs to know that the clutch and gear engagement are behaving correctly. If the clutch position, bite point or gear engagement is outside the expected range, the system may disengage drive or return to neutral as a protective response.
This can happen when the clutch is worn, but it can also happen if the actuator cannot control the clutch accurately due to hydraulic pressure loss, sensor issues or calibration problems.
Fault codes such as P2910 and P2911 are often linked with the clutch subsystem. These codes should not automatically be treated as a simple clutch position sensor fault. They should lead to a full investigation of the clutch, clutch position data, actuator movement, hydraulic pressure and calibration values.
Possible causes include:
- Worn clutch assembly
- Incorrect clutch bite point
- Clutch actuator movement issue
- Clutch position sensor fault
- Wiring or connector issue
- Hydraulic pressure instability
- Internal actuator leakage
- Failed or incomplete clutch calibration
Replacing the clutch without checking the hydraulic system can lead to further problems if the actuator is also faulty. Likewise, repairing the actuator without checking clutch wear may not solve the issue if the clutch is already outside its operating range.
Electro-Hydraulic Actuator and Control Unit Faults

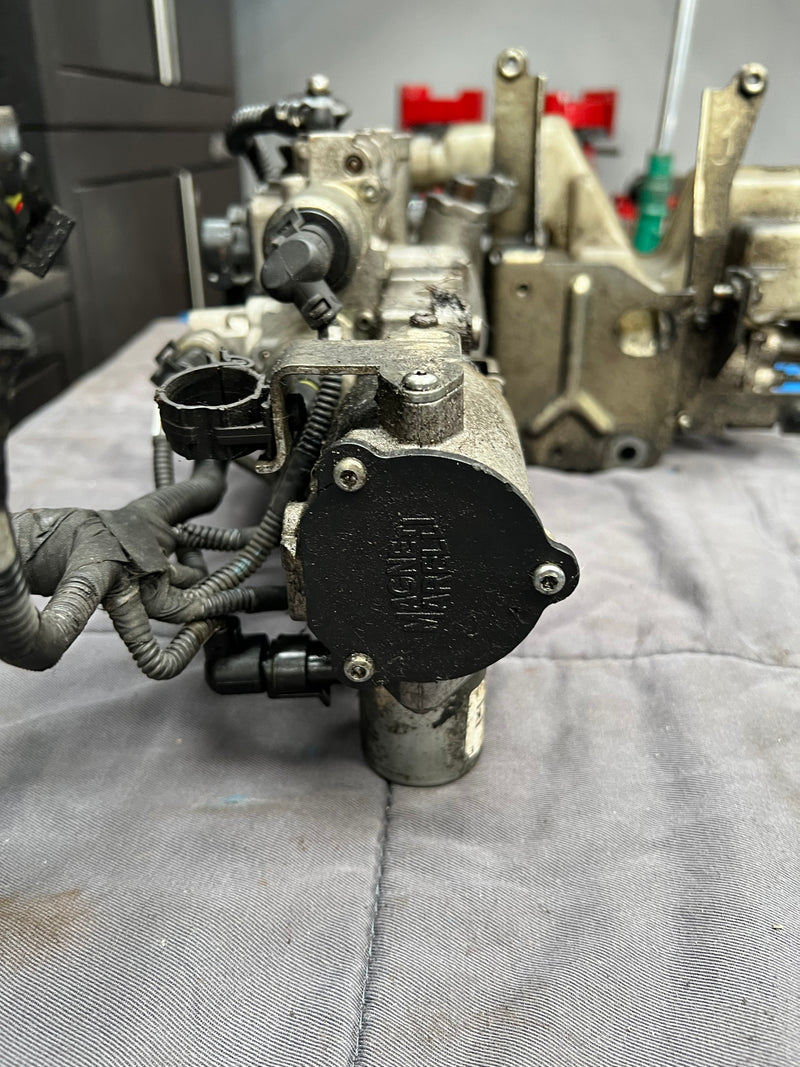

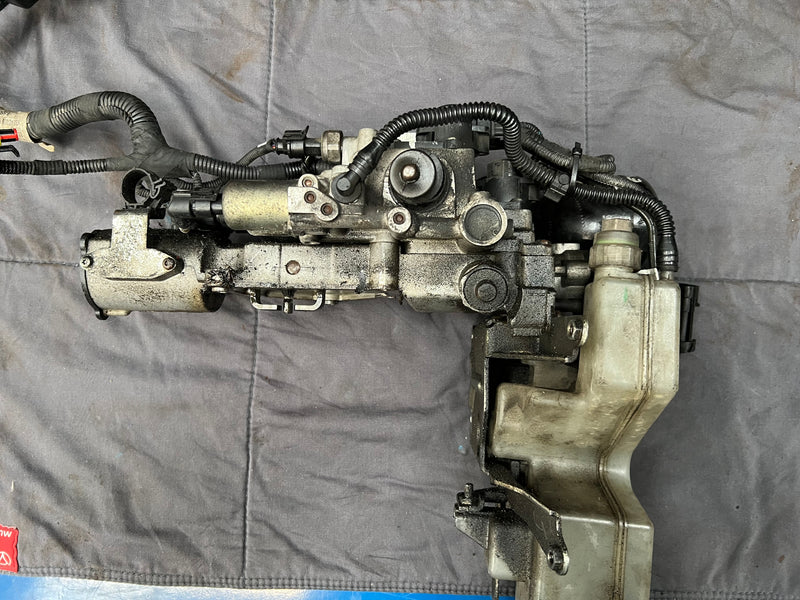

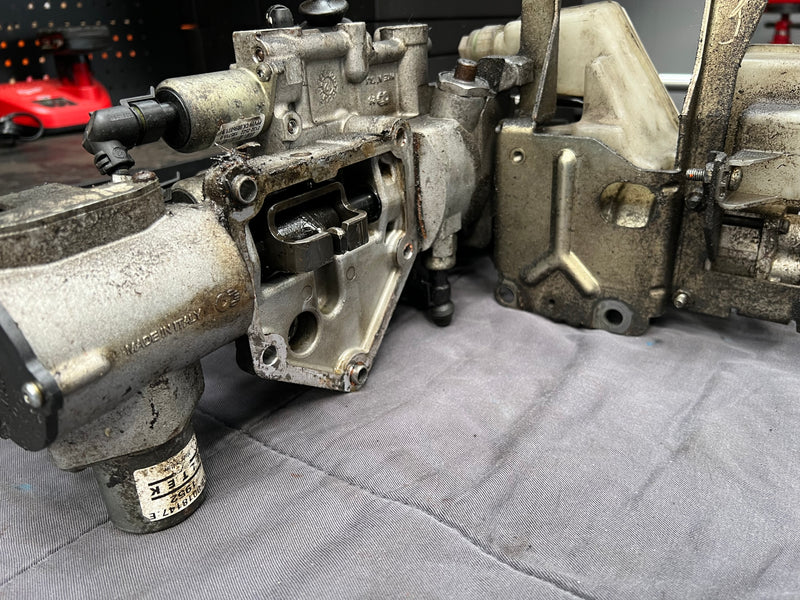

The electro-hydraulic control unit is the part mounted on the gearbox that operates the clutch and gear selection. It is often referred to as the Dualogic robot, actuator, hydraulic unit or gearbox control unit.
This system depends on hydraulic pressure. The pump builds pressure, the accumulator stores pressure, and the actuator uses that pressure to operate the clutch and select gears.
If the system cannot build pressure, cannot hold pressure, or cannot accurately control the clutch and gear selectors, the vehicle may suffer from:
- No gear selection
- Gearbox warning messages
- Intermittent neutral selection
- Failure to engage reverse
- Delayed gear changes
- Harsh gear changes
- Pump running too often
- Complete loss of drive
Common electro-hydraulic faults include:
- Internal hydraulic leakage
- External fluid leaks
- Weak or failed hydraulic pump
- Faulty pressure sensor
- Failed or weak accumulator
- Sticking solenoid valves
- Gear selection sensor faults
- Clutch position sensor faults
- Low or contaminated hydraulic fluid
- Wiring, relay or power supply issues
Hydraulic pressure is critical. Without stable pressure, the gearbox cannot operate the clutch or select gears correctly.
Common Fiat 500 Dualogic Fault Codes
Several fault codes are commonly associated with Fiat 500 Dualogic gearbox issues. The fault code gives a direction for diagnosis, but it should not be used as the only basis for replacing parts.
P1771 – Hydraulic circuit leakage / hydraulic group leakage
P1771 usually points towards a hydraulic leakage issue within the Dualogic system. This may be an external leak, such as fluid loss from pipework, seals, the reservoir or actuator area. It can also be caused by internal leakage within the hydraulic unit itself.
If the system cannot hold pressure, the pump may run more often and the gearbox may struggle to select gears or may drop into neutral.
Possible causes include:
- External hydraulic fluid leak
- Internal actuator leakage
- Reservoir or pipework leak
- Failed seals
- Pressure loss inside the hydraulic unit
- Low hydraulic fluid caused by leakage
P1773 – Hydraulic circuit pressure low
P1773 is commonly linked with low hydraulic pressure. This does not automatically mean the pump is faulty, although the pump is one possible cause.
The Dualogic system needs a stable hydraulic pressure supply to operate correctly. If the pressure is too low, drops too quickly, or cannot be built up properly, the gearbox may refuse to select gears or may select neutral.
Possible causes include:
- Weak hydraulic pump
- Pump relay or fuse issue
- Low hydraulic fluid
- Internal pressure loss
- Failed accumulator
- Faulty pressure sensor
- Wiring or earth issue
- Hydraulic system overheating
- Air in the hydraulic circuit
P2910 – Clutch subsystem / clutch position-related fault
P2910 is generally associated with the clutch control side of the Dualogic system. It may relate to clutch position feedback, clutch movement, calibration or the system’s ability to control the clutch correctly.
This should not be diagnosed as a sensor fault without further testing. The clutch position sensor may be involved, but the underlying cause can also be mechanical clutch wear or hydraulic control issues.
Possible causes include:
- Worn clutch
- Incorrect clutch bite point
- Clutch position sensor issue
- Actuator movement problem
- Hydraulic pressure fault affecting clutch control
- Wiring or connector fault
- Failed calibration
P2911 – Clutch subsystem / clutch control fault
P2911 is also linked with the clutch subsystem. Like P2910, it should be diagnosed by checking clutch position data, hydraulic pressure behaviour, actuator operation and clutch condition.
Possible causes include:
- Clutch wear
- Clutch position sensor fault
- Actuator fault
- Hydraulic pressure loss
- Failed or incomplete clutch calibration
- Wiring issue
- Gearbox control issue
In short, P2910 and P2911 should lead to a proper clutch and actuator diagnostic process, not immediate parts replacement based on the code alone.
Why P1773 Does Not Always Mean the Pump Has Failed
One of the most common mistakes with Fiat 500 Dualogic faults is assuming that a hydraulic pressure fault automatically means the pump needs replacing.
The pump may be faulty, but it is only one part of the pressure system.
A P1773 pressure fault can also be caused by low fluid, a failed accumulator, internal leakage, a faulty pressure sensor, wiring issues or a pump relay problem.
For example, if the accumulator is weak, the pump may still run, but the system may not hold pressure properly. If there is internal leakage inside the actuator, the pump may build pressure but the pressure may drop too quickly. If the pressure sensor is faulty, the control unit may receive incorrect pressure readings.
This is why pressure testing and live data are important. The system needs to be checked for pressure build-up, pressure hold time, pump run time and pressure drop-off.
Why Topping Up the Hydraulic Fluid May Not Fix the Fault
Low Dualogic hydraulic fluid can cause serious gear selection problems. However, if the fluid level is low, the question should always be: where has the fluid gone?
Topping the fluid up may temporarily improve the fault, but if there is a leak, the fault is likely to return.
Possible leak areas include:
- Hydraulic reservoir
- Pipework and unions
- Actuator seals
- Pump area
- Clutch control area
- Internal leakage within the actuator
- Bellhousing area if fluid is escaping internally
A low-fluid condition should always be investigated properly. Simply topping up the system without finding the cause can lead to repeated pressure faults, no gear selection or further damage.
Correct Diagnostic Approach
A proper diagnosis should check the complete Dualogic system, not just the fault code description.
A sensible diagnostic process includes:
-
Read all gearbox control module fault codes
Codes should be recorded before clearing anything. Stored, pending and current codes can all help identify the fault pattern. -
Check battery voltage and power supply
The Dualogic system relies on good battery voltage and stable electrical supply. Low voltage or poor earths can cause misleading gearbox faults. -
Check hydraulic fluid level and condition
The fluid level should be checked correctly, and the correct fluid type must be used. -
Inspect for hydraulic leaks
The reservoir, pipework, actuator, pump area and gearbox casing should be inspected for signs of leakage. -
Check hydraulic pressure behaviour
The system should be checked to see whether it builds pressure correctly and how quickly the pressure drops. -
Monitor pump operation
A pump that runs too often may indicate pressure loss. A pump that does not run may indicate an electrical, relay, fuse, pump or control issue. -
Check accumulator performance
A weak accumulator can cause frequent pump operation and pressure instability. -
Check clutch position data
This is especially important when P2910 or P2911 is stored. -
Carry out clutch and actuator calibration where appropriate
Calibration results can help confirm whether the clutch, actuator or hydraulic system is operating within range. -
Inspect the clutch mechanically if required
If live data and calibration results point towards clutch wear, the clutch may need to be inspected or replaced.
Repair Options for Fiat 500 Dualogic Faults
The correct repair depends on what the diagnostic checks reveal.
If the clutch is worn, the clutch assembly may need replacing. After replacement, the Dualogic system must be correctly calibrated. Without proper calibration, the vehicle may still suffer from poor engagement, warning messages or clutch subsystem fault codes.
If the hydraulic unit is leaking or losing pressure, the actuator may need repair, rebuild or replacement. Depending on the exact fault, this may involve the pump, accumulator, pressure sensor, seals, solenoids or internal hydraulic components.
If both clutch wear and actuator faults are present, both issues need to be addressed. This is common on Dualogic systems because clutch wear and hydraulic control faults can produce similar symptoms and can sometimes influence each other.
Replacing only one part without diagnosing the whole system can lead to repeat faults.
Can You Keep Driving a Fiat 500 With Dualogic Faults?
If the vehicle is dropping into neutral, refusing to select gears or showing hydraulic pressure faults, it should not be ignored.
A car that unexpectedly loses drive can become unsafe, especially at junctions, roundabouts or in moving traffic. Continuing to drive with pressure faults or clutch control issues can also make the final repair more expensive.
If the vehicle is showing gearbox warnings or repeatedly selecting neutral, it is best to have it diagnosed before the fault becomes a complete no-drive issue.
Final Thoughts
The Fiat 500 Dualogic gearbox is often misunderstood because it behaves like an automatic but is built around a manual gearbox and clutch. The system relies heavily on the electro-hydraulic actuator to operate the clutch and select gears correctly.
Common fault codes such as P1771, P1773, P2910 and P2911 can point towards hydraulic pressure loss, actuator leakage, clutch control problems, clutch wear or sensor-related faults.
The key point is that these faults should not be diagnosed by fault code alone. The clutch, actuator, pump, accumulator, hydraulic pressure and sensor feedback all need to be checked together.
At Eco Torque, we always recommend diagnosing the complete system before replacing parts. On the Fiat 500 Dualogic gearbox, guessing can quickly become expensive.
If your Fiat 500 Dualogic is showing gearbox warnings, dropping into neutral, failing to select gears or storing any of the fault codes mentioned above, get in touch with us for advice.
Eco Torque Gearbox & Clutch Centre
Unit 1A Portland Industrial Estate
Hitchin Road
Arlesey, Bedfordshire
SG15 6SG
Phone: 01462 835335
Email: info@eco-torque.co.uk
Have you had a Fiat 500 Dualogic gearbox fault, clutch issue or hydraulic actuator problem? Leave a comment below with your symptoms and fault codes — it may help other Fiat 500 owners understand what is happening before they start replacing parts.
FAQs
Is the Fiat 500 Dualogic gearbox a normal automatic?
No. The Fiat 500 Dualogic is a robotised manual gearbox. It uses a manual-style gearbox and clutch, but the clutch and gear selection are controlled electronically and hydraulically.
What does P1771 mean on a Fiat 500 Dualogic?
P1771 is commonly associated with hydraulic circuit leakage or hydraulic group leakage. This can point towards internal or external pressure loss within the Dualogic hydraulic system.
What does P1773 mean on a Fiat 500 Dualogic?
P1773 is commonly linked with low hydraulic circuit pressure. Possible causes include low fluid, a weak pump, failed accumulator, pressure sensor fault, internal leakage, wiring issues or pump relay problems.
Are P2910 and P2911 clutch position sensor faults?
They can relate to clutch position or clutch control, but they should not automatically be diagnosed as sensor-only faults. They are better treated as clutch-subsystem faults that require live data checks, clutch inspection, hydraulic pressure testing and calibration checks.
Can clutch wear cause a Fiat 500 Dualogic to drop into neutral?
Yes. A worn clutch, incorrect bite point, failed calibration or clutch control issue can cause the vehicle to drop into neutral. However, hydraulic pressure faults and actuator problems can cause similar symptoms, so the full system should be diagnosed.
Can a Fiat 500 Dualogic need both a clutch and actuator repair?
Yes. It is possible for the clutch to be worn and the actuator or hydraulic control unit to have pressure problems at the same time. Both areas should be checked before repair.
Can low Dualogic fluid cause gear selection problems?
Yes. Low hydraulic fluid can prevent the system from building or maintaining pressure. However, if the fluid is low, the leak or cause of fluid loss should be found rather than simply topping it up.
Why does my Fiat 500 Dualogic keep going into neutral?
A Dualogic gearbox may select neutral if it cannot safely control the clutch or gears. This can be caused by clutch wear, clutch position issues, hydraulic pressure loss, actuator faults, sensor problems, wiring faults or failed calibration.
