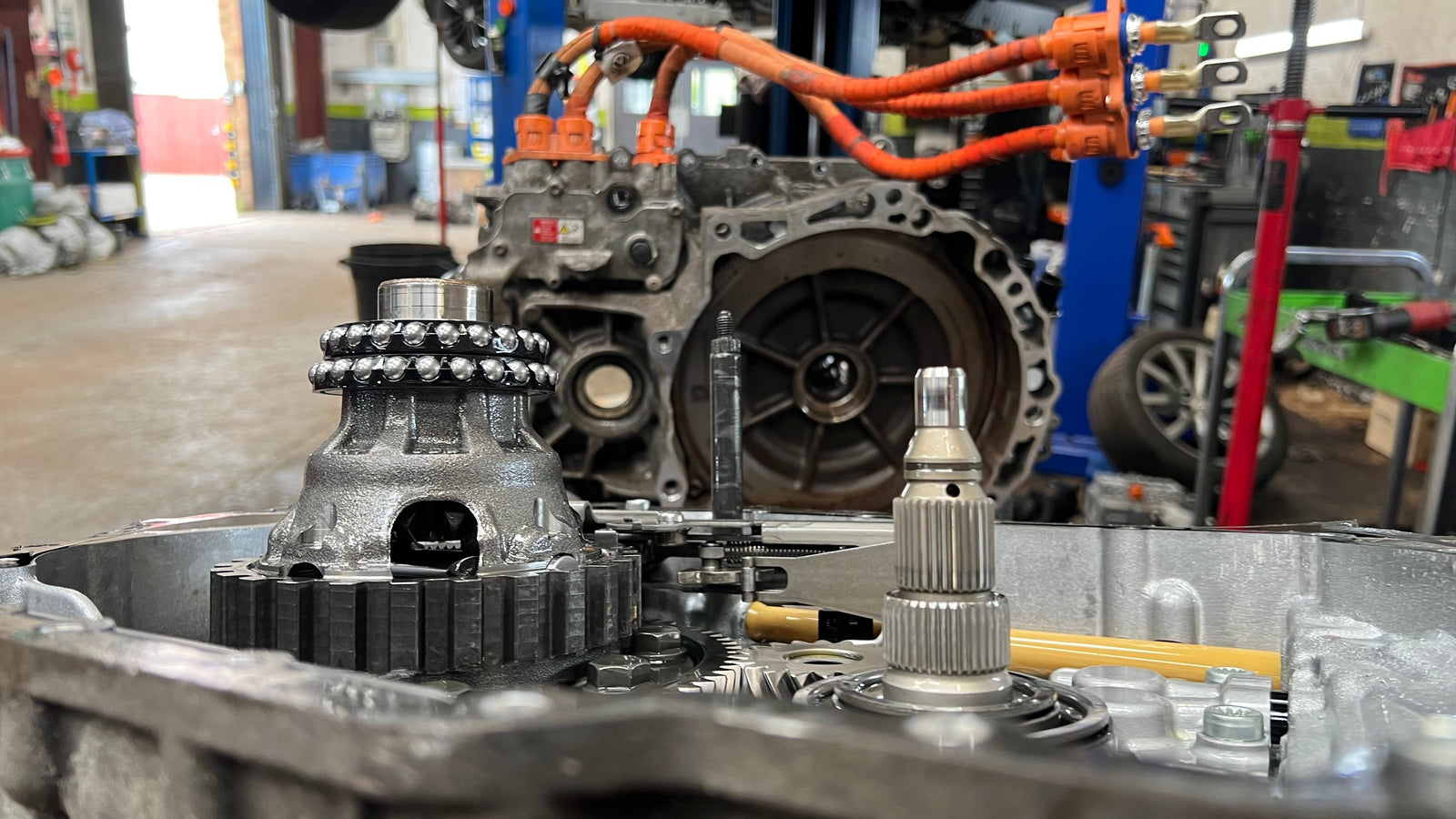

The DQ400E DSG gearbox, also known by the Volkswagen Group gearbox code 0DD, is fitted to a range of plug-in hybrid vehicles including the VW Golf GTE, VW Passat GTE and Audi A3 e-tron. It is also found across selected later Volkswagen Group plug-in hybrid applications, including some SEAT, Cupra and Skoda hybrid models depending on the exact vehicle specification.
At first glance, many owners think of the DQ400E as “just another DSG gearbox”. In reality, it is far more complex than that.
A normal DSG is already an advanced transmission. DSG stands for Direct Shift Gearbox, and in simple English it is usually described as a dual-clutch transmission. In most DSG gearboxes, there are two main clutch circuits: one clutch controls one set of gears, while the other clutch controls the alternate gears. This allows the gearbox to pre-select the next gear and shift quickly and smoothly.
However, the DQ400E used in the GTE and e-tron hybrid models takes this design much further.
Although it is still called a DSG, the DQ400E is realistically closer to a triple-clutch hybrid DSG transmission. Alongside the normal K1 and K2 clutch arrangement, it also has a third clutch known as K0, which is used to connect and disconnect the combustion engine from the hybrid drive system.
This additional clutch, combined with the high-voltage hybrid system, electric motor, mechatronic unit and internal DSG components, is what makes the DQ400E a very different gearbox to diagnose and repair compared with a standard DSG transmission.
Quick Symptoms of DQ400E DSG Gearbox Problems
DQ400E faults can appear in several different ways depending on which part of the gearbox, clutch system, mechatronic unit or hybrid drive system is affected.
Common symptoms include:
-
Gearbox fault warning on the dashboard
The vehicle may display a gearbox or transmission warning, sometimes alongside hybrid system warnings. -
Vehicle only driving in electric mode
In some cases, the combustion engine may not engage correctly, leaving the vehicle driving only on electric power. -
Combustion engine not starting or not connecting to drive
The engine may fail to start through the hybrid system, or it may start but not transfer drive as expected. -
Harsh or delayed gear changes
The gearbox may feel slow, jerky or inconsistent during gear changes. -
Juddering, vibration or clutch-related symptoms
Owners may feel vibration when pulling away, during engine engagement, or during low-speed manoeuvring. -
Flywheel noise or driveline vibration
Because the DQ400E sits between the combustion engine and electric drive system, flywheel and clutch-related issues can create noticeable vibration or noise. -
Mechatronic-related faults
The mechatronic unit controls hydraulic and electronic operation inside the gearbox, so faults here can cause shifting, pressure or clutch control issues. -
Faults returning after being cleared
Some DQ400E faults may clear temporarily but return once the vehicle attempts to switch between electric and combustion drive. -
Loss of drive or restricted drive modes
The vehicle may enter a reduced function mode if the gearbox or hybrid system cannot operate safely. -
Engine disconnect-related fault codes
Faults relating to engine disconnect or release clutch operation can appear when the system cannot correctly connect or separate the combustion engine from the electric drive side.
Q: Does a DQ400E fault always mean the mechatronic unit has failed?
No. A DQ400E fault can be caused by the mechatronic unit, but it can also be caused by clutch wear, K0 operation, flywheel issues, hydraulic pressure problems, internal gearbox faults, wiring issues, software/adaptation problems or faults elsewhere in the hybrid drive system.
That is why proper diagnosis is essential before replacing expensive parts.
What Is the DQ400E / 0DD DSG Gearbox?
The DQ400E is a 6-speed wet-clutch DSG gearbox developed for Volkswagen Group plug-in hybrid vehicles. It is commonly found in models such as:
- VW Golf GTE
- VW Passat GTE
- Audi A3 e-tron
- Selected SEAT Leon e-Hybrid models
- Selected Cupra Formentor e-Hybrid models
- Selected Skoda plug-in hybrid models
As always, fitment should be confirmed by gearbox code, VIN or physical identification because model ranges, engine codes and hybrid layouts can vary.
The DQ400E is designed to work as part of a hybrid drivetrain. This means it is not only responsible for selecting gears like a normal DSG, but also for managing the relationship between the internal combustion engine and the electric motor.
That is the major difference.
In a conventional DSG vehicle, the gearbox only has to deal with engine torque coming from the combustion engine. In a DQ400E hybrid vehicle, the gearbox is part of a system that can drive using electric power, combustion power, or a combination of both.
Why the DQ400E Is More Than a Normal DSG
A standard DSG transmission uses two clutches.
On the DQ400E, the normal drive clutches are usually referred to as K1 and K2.
K1 clutch controls one set of gears. On this transmission, this is typically associated with gears such as 1st, 3rd, 5th and 6th.
K2 clutch controls the alternate gear set, commonly including reverse, 2nd and 4th.
This is the normal DSG principle: one clutch handles one gear set, and the second clutch handles the other. The gearbox can prepare the next gear before it is needed, which helps create the quick, smooth gear changes DSG gearboxes are known for.
However, the DQ400E also has another clutch: K0.
The K0 clutch is the key part that makes this gearbox different. It is used to disconnect or reconnect the internal combustion engine from the electric motor and gearbox drive system.
When the vehicle is driving in pure electric mode, the combustion engine can be disconnected. When the engine is required, the system can reconnect it through the K0 clutch.
This means the DQ400E is not just handling gear changes. It is also managing when the petrol engine is connected, when it is disconnected, and how the vehicle transitions between electric drive and combustion engine drive.
The K0 Engine Disconnect Clutch Explained
The K0 clutch is one of the most important parts of the DQ400E system.
In simple terms, the K0 clutch controls the connection between the internal combustion engine and the hybrid drive system.
When the vehicle is driving in electric mode, the combustion engine is disconnected. This allows the electric motor inside the gearbox to drive the vehicle without the petrol engine being dragged along unnecessarily.
When the vehicle needs the combustion engine, the K0 clutch reconnects the engine into the drivetrain.
This is why “engine disconnect” faults on a DQ400E should not be treated as simple, generic gearbox faults. The fault may relate to the clutch that connects and disconnects the engine, but the cause may not always be the same.
From our experience, engine disconnect faults can be caused by more than one issue. Some cases may relate to solenoid control, which we have covered separately, but other mechanical, hydraulic, clutch or control-related problems can also contribute.
This is why we do not recommend diagnosing a DQ400E solely from one fault code.
How the DQ400E Starts the Engine
One of the most interesting differences with the DQ400E is how the combustion engine is started.
On these hybrid applications, the engine is not started in the traditional way using a conventional starter motor in the same way many owners would expect. The electric motor within the gearbox plays a key role in starting and driving functions.
The electric motor is part of the gearbox/hybrid module assembly. This is what allows the vehicle to drive in pure electric mode, and it is also involved when the system needs to bring the combustion engine back into operation.
This is another reason why the DQ400E is more complex than a normal DSG. The gearbox is not just changing gears; it is part of the hybrid starting, driving and engine connection strategy.
So when a Golf GTE, Passat GTE or Audi A3 e-tron develops a gearbox fault, the issue may not simply be “the gearbox won’t change gear”. It may be that the system cannot correctly manage the electric motor, engine connection, clutch control, hydraulic control or mechatronic operation.
Why DQ400E Faults Can Be Misdiagnosed
DQ400E faults can be difficult to diagnose because several different faults can create similar symptoms.
For example, if the combustion engine does not engage correctly, it may be tempting to assume the K0 clutch itself has failed. However, the actual fault could be related to:
- Mechatronic control
- Solenoid operation
- Hydraulic pressure
- K0 clutch control
- Mechanical clutch wear
- Flywheel or driveline vibration
- Internal gearbox damage
- Wiring or sensor feedback
- Adaptation or calibration issues
- Hybrid system control strategy
This is why replacing one component based only on a fault code can become expensive very quickly.
We have seen cases where the same general symptom can have different root causes. One vehicle may have a control issue, another may have a mechanical problem, and another may have a clutch or flywheel-related fault contributing to the way the gearbox behaves.
With these gearboxes, proper diagnosis means looking at the whole system, not just reading the code and replacing the first part mentioned.
Areas We Commonly Inspect on DQ400E Gearboxes
When dealing with DQ400E gearbox issues, there are several areas that need to be considered.
K1 and K2 Clutch Operation
The main DSG drive clutches still need to be checked. Wear, poor adaptation, hydraulic issues or clutch control faults can affect gear engagement and shift quality.
Because the DQ400E is still a DSG at its core, standard DSG clutch symptoms can still appear, including judder, harsh engagement, delayed drive or poor gear changes.
K0 Engine Disconnect Clutch
The K0 clutch is a major part of the hybrid system. If the vehicle cannot correctly connect or disconnect the combustion engine, this can lead to engine disconnect faults, hybrid warnings, electric-only driving, or issues when the engine attempts to start or re-engage.
This is one of the key areas that separates the DQ400E from a normal DSG gearbox.
Mechatronic Unit
The mechatronic unit controls hydraulic and electronic gearbox functions. On any DSG, this is a critical component, but on the DQ400E it has to work within a much more complex hybrid transmission environment.
Mechatronic faults can cause pressure issues, clutch control problems, shift faults and communication-related symptoms.
Flywheel and Vibration Issues
Flywheel condition is important on these vehicles. Because the transmission is constantly managing the transition between electric drive and combustion engine drive, vibration or wear in the driveline can affect how the system feels and operates.
Flywheel-related symptoms can sometimes be mistaken for clutch or gearbox faults, so physical inspection can be important where symptoms point in that direction.
Internal Gearbox Condition
As with any DSG transmission, internal mechanical wear or damage can cause shift problems, noise, vibration or loss of drive. On a DQ400E, this needs to be assessed alongside the hybrid module and clutch systems.
Oil Condition and Servicing
Oil condition matters. The DQ400E is a wet-clutch DSG with a complex hydraulic and mechatronic system. Contaminated, degraded or incorrect oil can contribute to poor operation, clutch issues or mechatronic problems.
Servicing these units correctly is more involved than a basic oil change, and using the correct procedure is important.
Why DQ400E Repairs Need Specialist Knowledge
The DQ400E is a gearbox that sits at the crossover point between traditional DSG technology and hybrid vehicle technology.
That means diagnosis requires an understanding of:
- DSG clutch operation
- Wet-clutch behaviour
- Mechatronic control
- Hydraulic pressure
- Hybrid drive strategy
- Electric motor operation
- Engine disconnect control
- Flywheel and driveline behaviour
- Adaptation and calibration processes
This is not a gearbox where every warning message should be treated as a simple sensor fault.
It is also not a gearbox where every engine disconnect issue has the same cause.
The reason we are cautious with these units is because the DQ400E can present similar symptoms from different faults. Without stripping, testing, inspecting and understanding how the system works, it is very easy to replace parts that do not fix the vehicle.

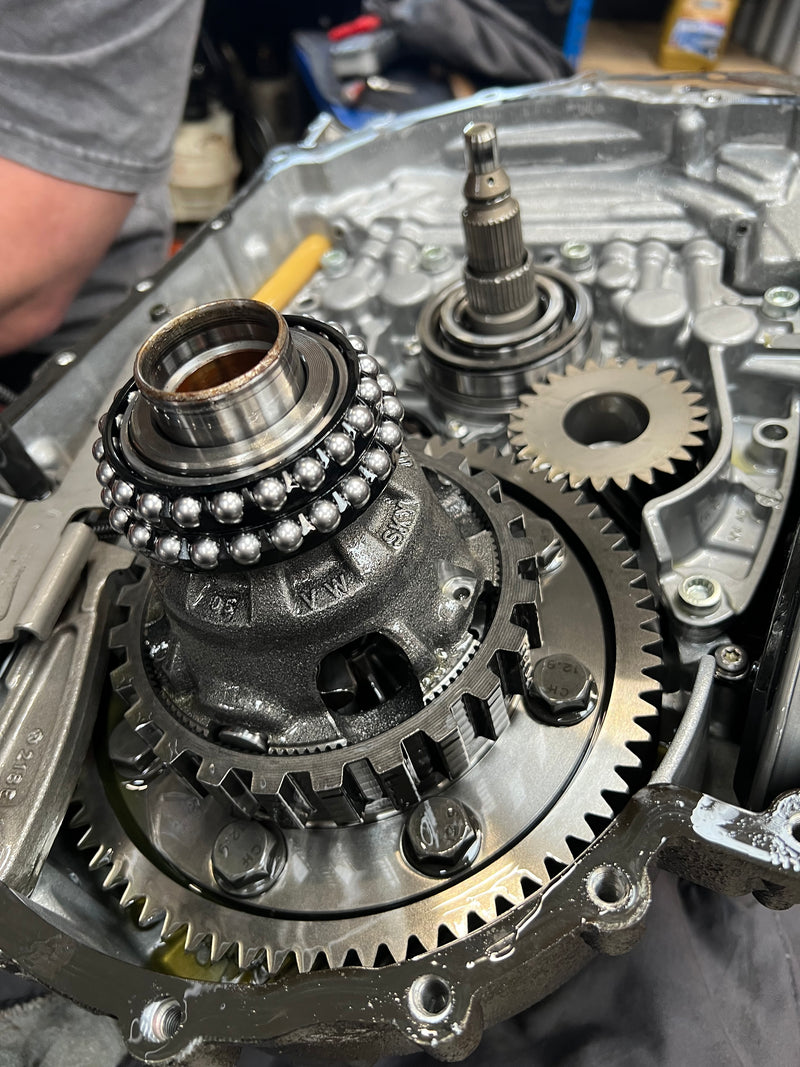

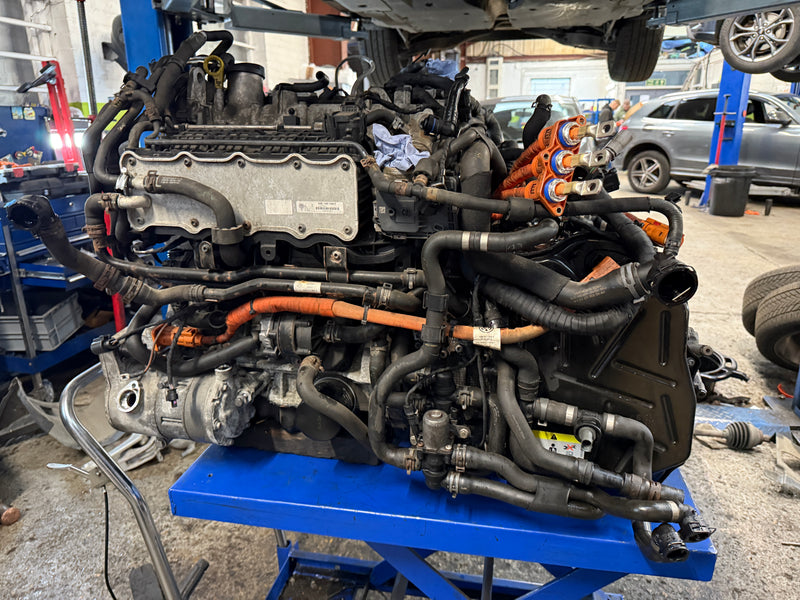

Our Workshop Experience With DQ400E Gearboxes
At Eco Torque, we are seeing more DQ400E gearbox faults as Golf GTE, Passat GTE, Audi A3 e-tron and other Volkswagen Group hybrid models age.
These vehicles are now reaching the stage where clutch wear, flywheel issues, mechatronic faults, hydraulic problems and engine disconnect-related issues are becoming more common.
We are not just looking at these units through diagnostic equipment. We are removing, stripping and inspecting them in the workshop, which gives us a much clearer understanding of how they fail in real-world use.
This is important because fault codes only tell part of the story.
A scan tool may point towards a clutch, pressure or engine disconnect issue, but the real cause may only become clear once the gearbox data, adaptation values, mechanical condition and internal components are assessed together.
That is why hands-on gearbox experience matters with the DQ400E.
Engine Disconnect Faults Are Not Always One Simple Fix
We have already covered DQ400E engine clutch disconnect faults in more detail in a separate article, particularly where the fault relates to solenoid control.
However, it is important to understand that not every engine disconnect fault has the same root cause.
The phrase “engine disconnect” refers to the clutch system disconnecting the internal combustion engine side of the powertrain. In other words, it is the system that allows the vehicle to separate the petrol engine from the electric drive side when required.
Because the K0 clutch sits at the centre of this operation, faults in this area can affect whether the engine starts, connects, disconnects or transfers drive correctly.
But from workshop experience, the underlying issue can vary.
Some faults may be related to control components. Some may be mechanical. Some may involve the mechatronic unit, hydraulic operation, clutch wear, flywheel condition or internal gearbox behaviour.
This is why we always recommend a proper diagnostic process before assuming the fault is one specific part.
Correct Diagnostic Approach for DQ400E Faults
A sensible diagnostic process should include more than just reading and clearing fault codes.
For DQ400E gearbox issues, checks may include:
-
Full gearbox and hybrid system fault-code scan
Codes should be recorded before clearing anything, including stored, intermittent and current faults. -
Freeze-frame and fault frequency review
It is important to understand when the fault occurs, whether it is intermittent, and whether it happens during electric drive, engine start, gear engagement or mode transition. -
Live data checks
Live data can help show what the gearbox and hybrid system are actually doing when the fault occurs. -
Clutch adaptation and engagement checks
K1, K2 and K0 operation should be considered where symptoms point towards clutch control issues. -
Hydraulic pressure and mechatronic checks
Pressure behaviour and mechatronic control are key parts of DSG operation. -
Flywheel and vibration assessment
Noise, vibration or harsh engine engagement may require mechanical inspection. -
Oil condition and service history review
Poor service history, incorrect oil or contamination can affect the behaviour of the wet-clutch and hydraulic systems. -
Mechanical inspection where required
Some faults cannot be confirmed properly without inspecting internal gearbox components.
Can You Keep Driving With a DQ400E Gearbox Fault?
If your vehicle is showing a gearbox warning, hybrid system warning, engine disconnect fault, loss of drive or electric-only behaviour, it should not be ignored.
Some faults may start intermittently, but they can become more serious if the underlying issue gets worse. Continuing to drive with clutch, mechatronic, pressure or internal gearbox faults can lead to further damage and a more expensive repair.
A vehicle that cannot reliably connect the combustion engine, select gears or transfer drive correctly should be diagnosed as soon as possible.
Final Thoughts
The DQ400E DSG gearbox is one of the more complex transmissions used in Volkswagen Group hybrid vehicles.
Although DSG usually means dual-clutch transmission, the DQ400E adds another layer of complexity with its K0 engine disconnect clutch, making it much more advanced than a normal DSG. Alongside K1 and K2, the K0 clutch allows the gearbox to connect and disconnect the combustion engine from the electric motor and hybrid drive system.
This is what allows vehicles such as the Golf GTE, Passat GTE and Audi A3 e-tron to drive in electric mode, bring the combustion engine in when required, and switch between different drive modes.
It is also what makes diagnosis more complicated when things go wrong.
Engine disconnect faults, mechatronic faults, clutch issues, flywheel problems and hydraulic control faults can overlap. The same warning message or symptom does not always mean the same repair.
At Eco Torque, we always recommend diagnosing the complete system before replacing parts. With the DQ400E, guessing can quickly become expensive.
If your Golf GTE, Passat GTE, Audi A3 e-tron or other Volkswagen Group plug-in hybrid is showing gearbox warnings, hybrid drive faults, engine disconnect faults, harsh gear changes, vibration or loss of drive, get in touch with us for advice.
Eco Torque Gearbox & Clutch Centre
Unit 1A Portland Industrial Estate
Hitchin Road
Arlesey, Bedfordshire
SG15 6SG
Phone: 01462 835335
Email: info@eco-torque.co.uk
Have you had a DQ400E gearbox fault, engine disconnect issue or hybrid DSG problem? Leave a comment below with your vehicle, symptoms and fault codes — it may help other GTE, e-tron and hybrid DSG owners understand what is happening before replacing expensive parts.
FAQs
What vehicles use the DQ400E DSG gearbox?
The DQ400E, also known as the 0DD gearbox, is commonly found in Volkswagen Group plug-in hybrid models such as the VW Golf GTE, VW Passat GTE and Audi A3 e-tron. It is also used in selected later SEAT, Cupra and Skoda hybrid models depending on specification.
Is the DQ400E a normal DSG gearbox?
No. The DQ400E is based on DSG principles, but it is designed for hybrid vehicles. It has the normal DSG clutch arrangement plus an additional K0 engine disconnect clutch used to connect and disconnect the combustion engine from the electric drive system.
Is the DQ400E a dual-clutch or triple-clutch gearbox?
Although it is still described as a DSG, the DQ400E has three clutch functions: K1, K2 and K0. K1 and K2 handle the normal DSG gear sets, while K0 controls the connection between the combustion engine and the electric motor side of the hybrid system.
What does the K0 clutch do in a DQ400E gearbox?
The K0 clutch connects and disconnects the internal combustion engine from the electric drive system. This allows the vehicle to drive in pure electric mode and then reconnect the combustion engine when required.
Why does a Golf GTE or Audi A3 e-tron drive only in electric mode?
If the vehicle only drives in electric mode, the combustion engine may not be connecting correctly to the drivetrain. This can be linked to engine disconnect faults, K0 clutch operation, mechatronic control, hydraulic issues, wiring faults or other gearbox and hybrid system problems.
Are all DQ400E engine disconnect faults caused by the same part?
No. Some engine disconnect faults may relate to solenoid control, but other issues can also cause similar symptoms. The cause may be mechanical, hydraulic, electrical, clutch-related or linked to mechatronic operation.
Can a DQ400E mechatronic fault cause clutch or engine disconnect issues?
Yes. The mechatronic unit plays a key role in hydraulic and electronic gearbox control. A mechatronic issue can affect clutch operation, pressure control, gear selection and engine disconnect behaviour.
Can flywheel problems affect a DQ400E gearbox?
Yes. Flywheel wear or vibration can affect how the vehicle feels during engine engagement, take-off and drive transitions. On hybrid DSG vehicles, flywheel and driveline behaviour should be considered during diagnosis.
Should I replace the mechatronic unit if I have a DQ400E fault code?
Not without proper diagnosis. Fault codes are useful, but they do not always identify the root cause. A DQ400E fault may be caused by the mechatronic unit, but it may also relate to clutches, hydraulic pressure, wiring, flywheel condition, adaptation issues or internal gearbox damage.
Can Eco Torque diagnose and repair DQ400E gearbox faults?
Yes. Eco Torque can advise on DQ400E gearbox faults, including issues affecting Golf GTE, Passat GTE, Audi A3 e-tron and other Volkswagen Group plug-in hybrid DSG applications. Diagnosis should always be based on the full system rather than one fault code alone.
