M32 Gearbox Updated End Case With Larger SNR End Bearings Gen 2 Upgrade

M32 Transmission Endcase Upgrade

SNR End Bearings

2nd Generation Upgrade

This retrofit bearing upgrade kit allows the installer to fit the larger bearings to their Gen 1 M32 Gearbox.

Please note the current version available will be slightly modified to fit all Vauxhall M32 models. They will NOT fit Alfa Romeo models, please do not use vehicle fitment reference below for Alfa models.

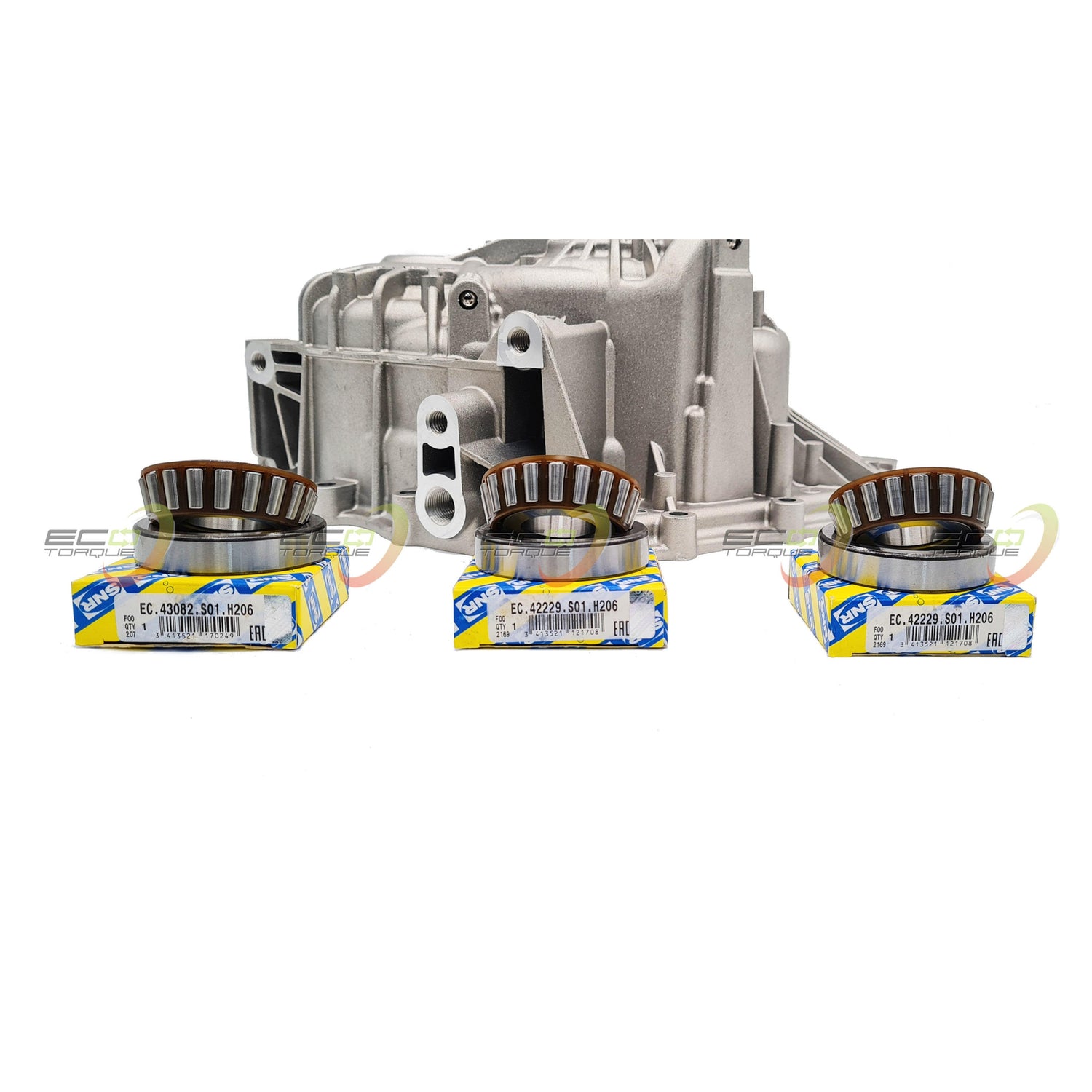

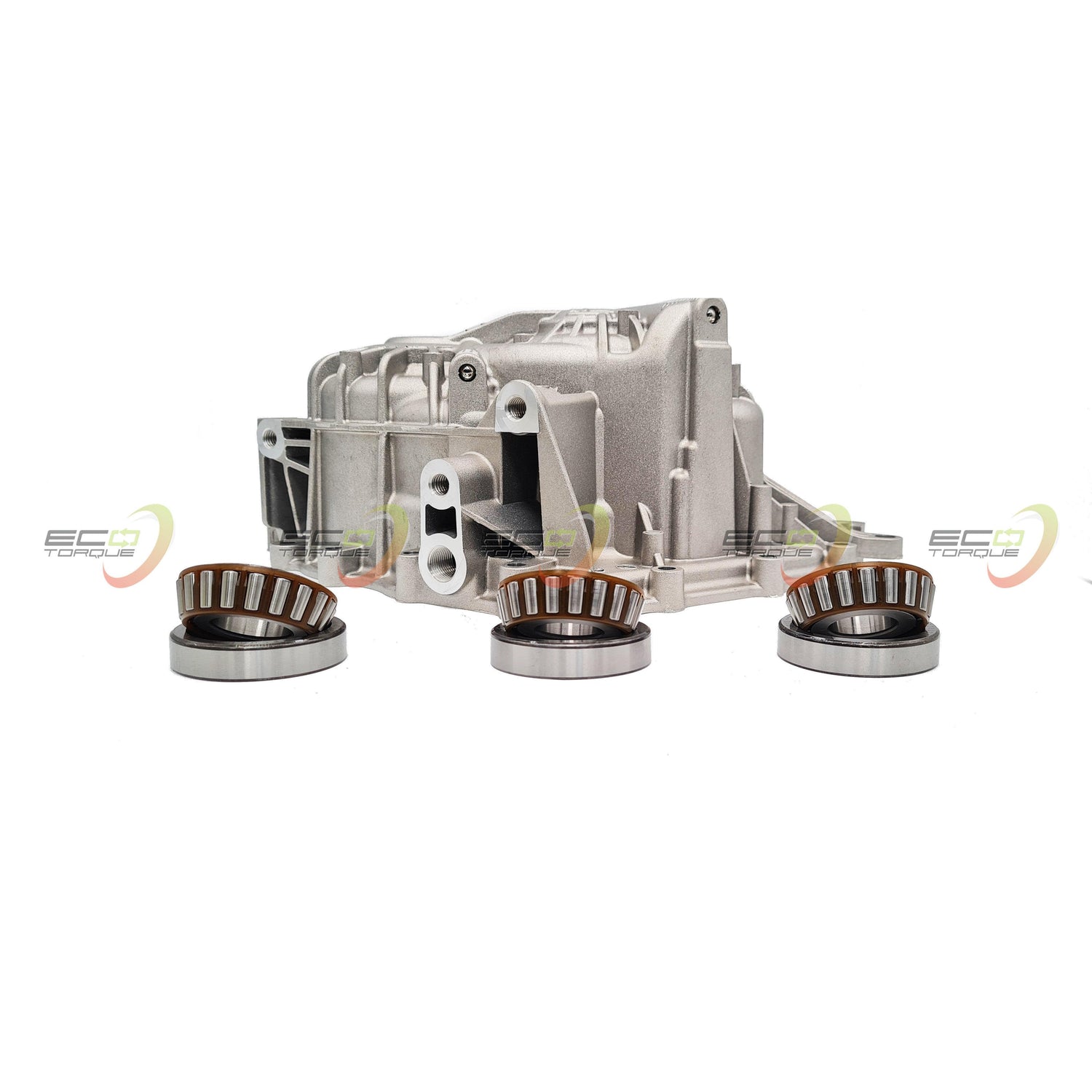

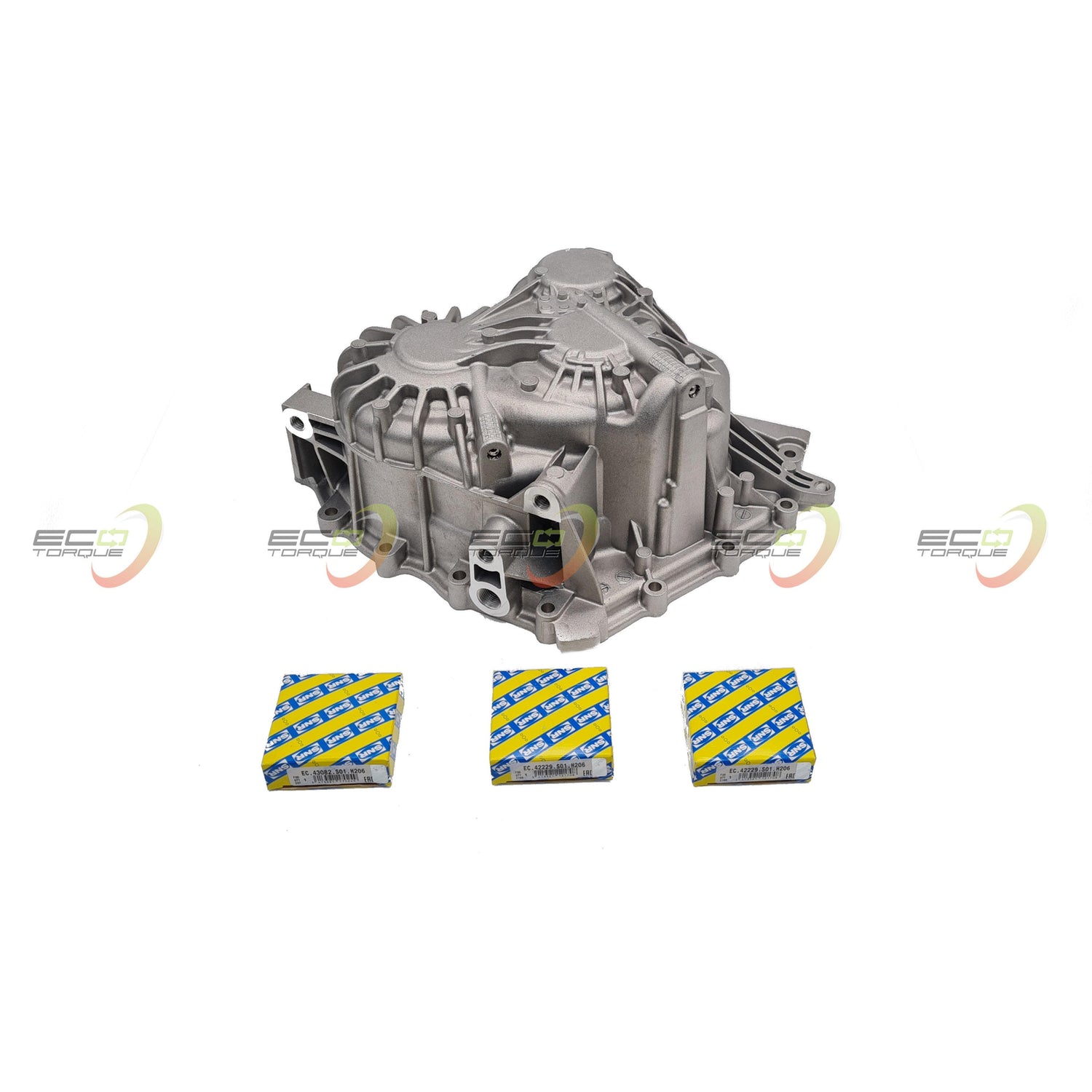

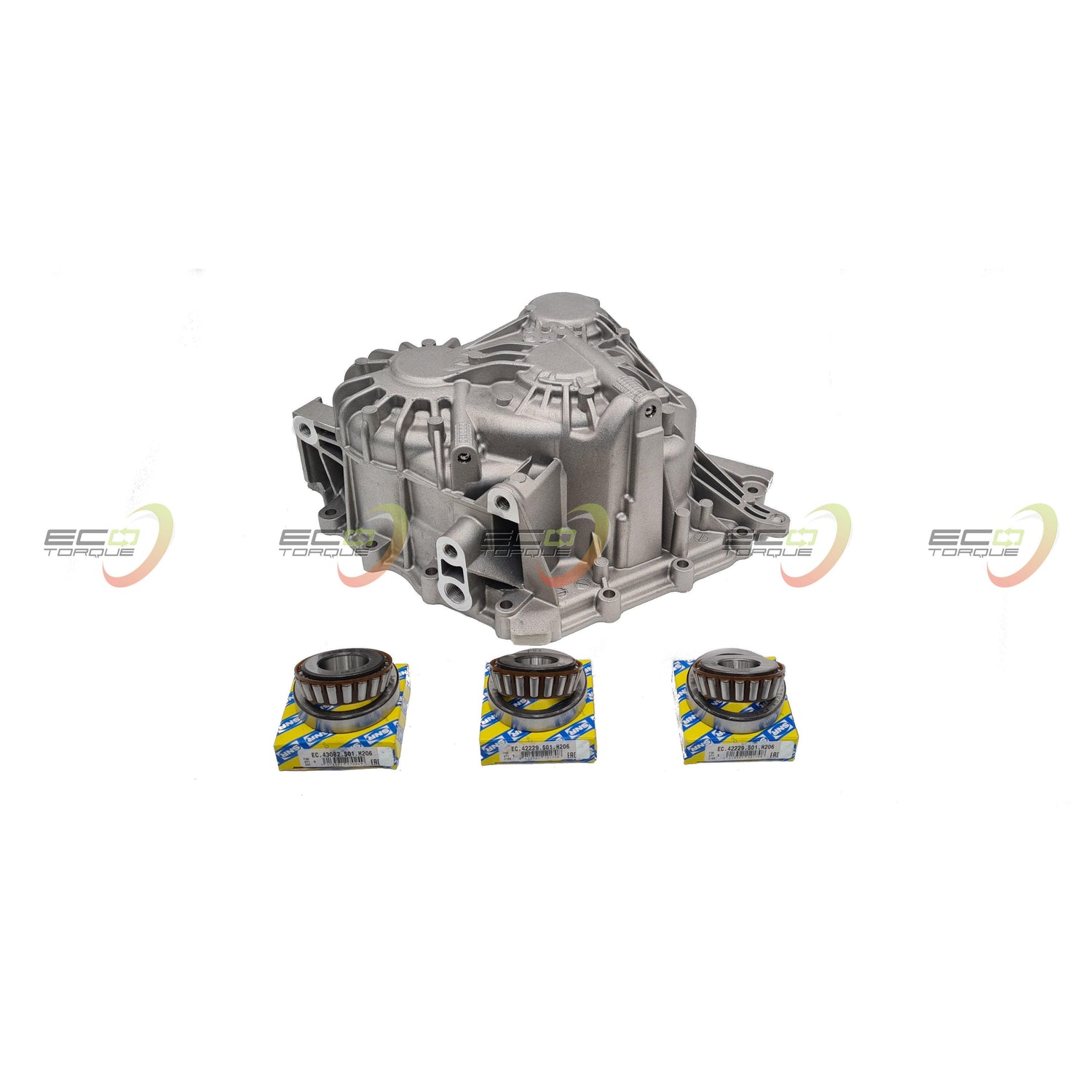

This rebuild kit contains the following parts:

Gen 2 M32 Updated Endcase (84)
Input Shaft End Bearing (8) (28 x 62 x 17.5mm)
Output Shaft 1 End Bearing (29) (25 x 62 x 17.25mm)
Output Shaft 2 End Bearing (55) (25 x 62 x 17.25mm)

Please note that retrofitting this case to Gen 1 models will require shimming in order to operate correctly.

Shimming can only be performed on your transmission and we can not provide these measurements for you. *Shims sold separately. Please search 'M32 shims' on the store page. (9,31,56 On Diagram)

Part Numbers

SNR EC43082 S01 H206 - 55585665 / 55181941
SNR EC42229 S01 H206 - 93198813 / 55585662 / 55585663

Fitment Diagram (see above for location)

Vehicle Compatibility

Abarth
Abarth Grande Punto, 199 (2007-2009)
Abarth Punto, 199 (2012-2014)
Abarth Punto Evo, 199 (2010-2012)

Alfa Romeo
Alfa Romeo (EU) 147, 937 (2000-2010)
Alfa Romeo (EU) 156, 932 (1997-2007)
Alfa Romeo (EU) 159, 939 (2005-2011)
Alfa Romeo (EU) Brera, 939 (2006-2011)
Alfa Romeo (EU) Giulietta, 940 (2010-2021)
Alfa Romeo (EU) GT, 937 (2004-2011)
Alfa Romeo (EU) Mito, 955 (2008-2020)
Alfa Romeo (EU) Spider, 939 (2006-2011)

Chevrolet
Chevrolet (EU) (Daewoo) Cruze, J300 / J305 / J308 (2009-2014)
Chevrolet (EU) (Daewoo) Orlando, J309 (2010-2014)
Chevrolet (EU) (Daewoo) Trax / Tracker (2013-2014)
Chevrolet (EU) (Daewoo) Aveo, T300 (2011-2014)
Chevrolet (EU) (Daewoo) Malibu, V300 (2011-2015)
Chevrolet (USA / CAN) Cruze, J300 (2010-2016)
Chevrolet (USA / CAN) Cruze (2016-2020)
Chevrolet (USA / CAN) Sonic, T300 (2012-2020)

Opel
Opel ADAM, M13 (2013-2019)
Opel Astra H, A04 (2004-2010)
Opel Astra H TwinTop, A04 (2006-2010)
Opel Astra J, P10 (2009-2018)
Opel Astra K, B16 (2015-2022)
Opel Cascada, W13 (2013-2019)
Opel Corsa D, S07 (2006-2015)
Opel Corsa E, X15 (2015-2019)
Opel Insignia A, G09 (2008-2017)
Opel Insignia B, Z18 (2017-2022)
Opel Meriva A, X03 (2003-2010)
Opel Meriva B, S10 (2010-2017)
Opel Mokka, J13 (2012-2016)
Opel Mokka X, J13 (2016-2019)
Opel Zafira B, A05 (2005-2014)
Opel Zafira C, P12 (2012-2019)
Opel Signum, Z03 (2003-2008)
Opel Vectra C, Z02 (2002-2009)

Vauxhall
Vauxhall ADAM, M13 (2013-2019)
Vauxhall Astra H, A04 (2004-2010)
Vauxhall Astra H TwinTop, A04 (2006-2010)
Vauxhall Astra J, P10 (2009-2018)
Vauxhall Astra K, B16 (2015-2022)
Vauxhall Cascada, W13 (2013-2019)
Vauxhall Corsa D, S07 (2006-2015)
Vauxhall Corsa E, X15 (2015-2019)
Vauxhall Insignia A, G09 (2008-2017)
Vauxhall Insignia B, Z18 (2017-2022)
Vauxhall Meriva A, X03 (2003-2010)
Vauxhall Meriva B, S10 (2010-2017)
Vauxhall Mokka, J13 (2012-2016)
Vauxhall Mokka X, J13 (2016-2019)
Vauxhall Zafira B, A05 (2005-2014)
Vauxhall Zafira C, P12 (2012-2019)

Fiat
Fiat (EU) Bravo, 198 (2007-2015)
Fiat (EU) Croma, 194 (2005-2010)
Fiat (EU) Grande Punto, 199 (2005-2011)
Fiat (EU) Linea, 323 (2007-2014)
Fiat (EU) Punto Evo, 199 (2009-2012)

SAAB
Saab 9-5 (2010-2011)

Frequently Asked Questions

Which gearbox does this kit fit?

This kit fits the M32 (6 Speed) gearbox, Gen 2 endcase upgrade. The gearbox code is stamped on the bellhousing — confirm before ordering, and note this version does not fit Alfa Romeo models.

What is included in this kit?

This rebuild kit contains the Gen 2 M32 updated endcase along with the larger SNR input shaft end bearing and both output shaft end bearings, allowing you to retrofit the Gen 2 upgrade to a Gen 1 M32 gearbox.

Is this OEM quality?

This kit uses genuine SNR bearings, matched to Vauxhall, Fiat, Abarth and Alfa Romeo specification.

Do I need to drain the gearbox before fitting?

Yes — drain the gearbox before beginning internal work. Follow the workshop manual for the correct drain and refill procedure.
