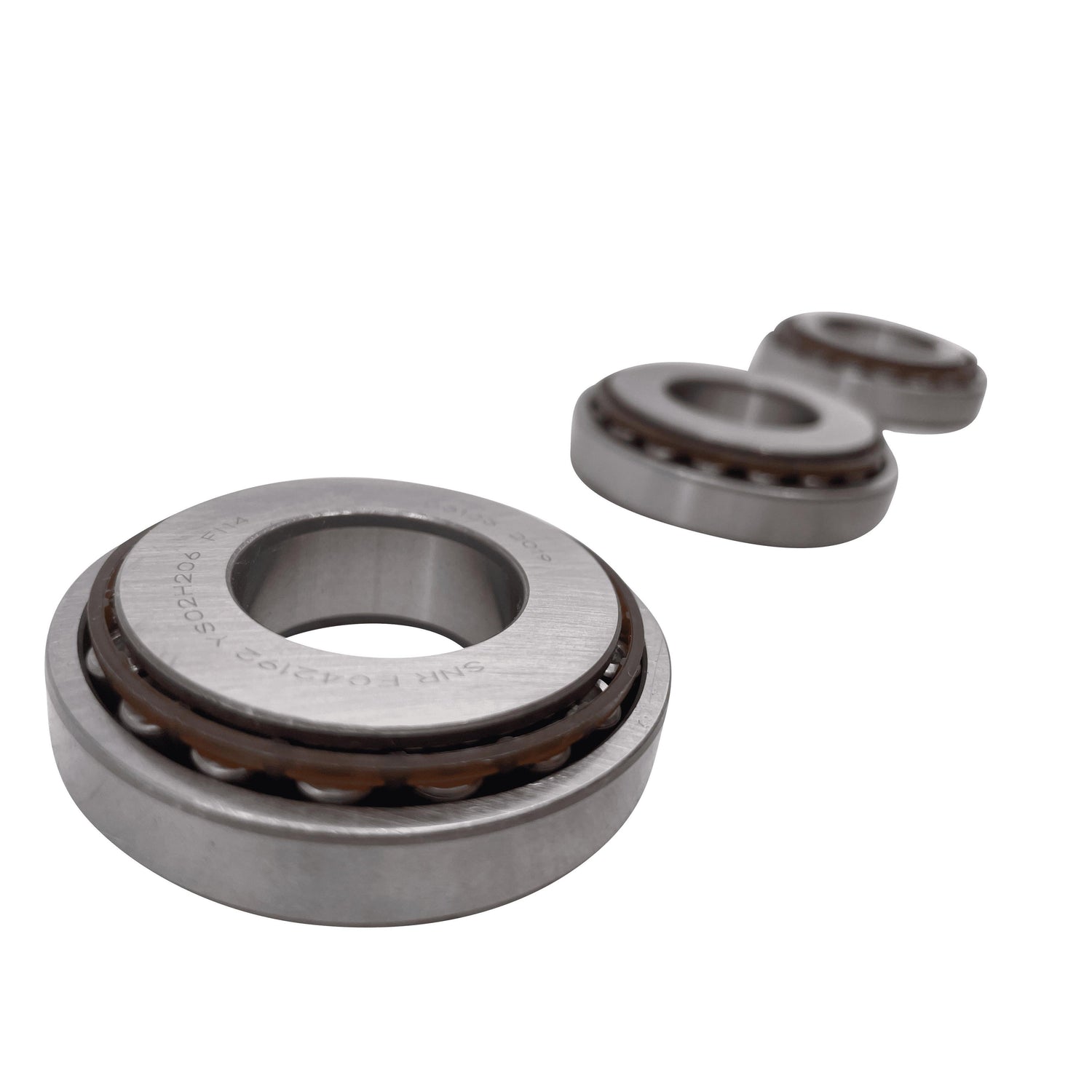

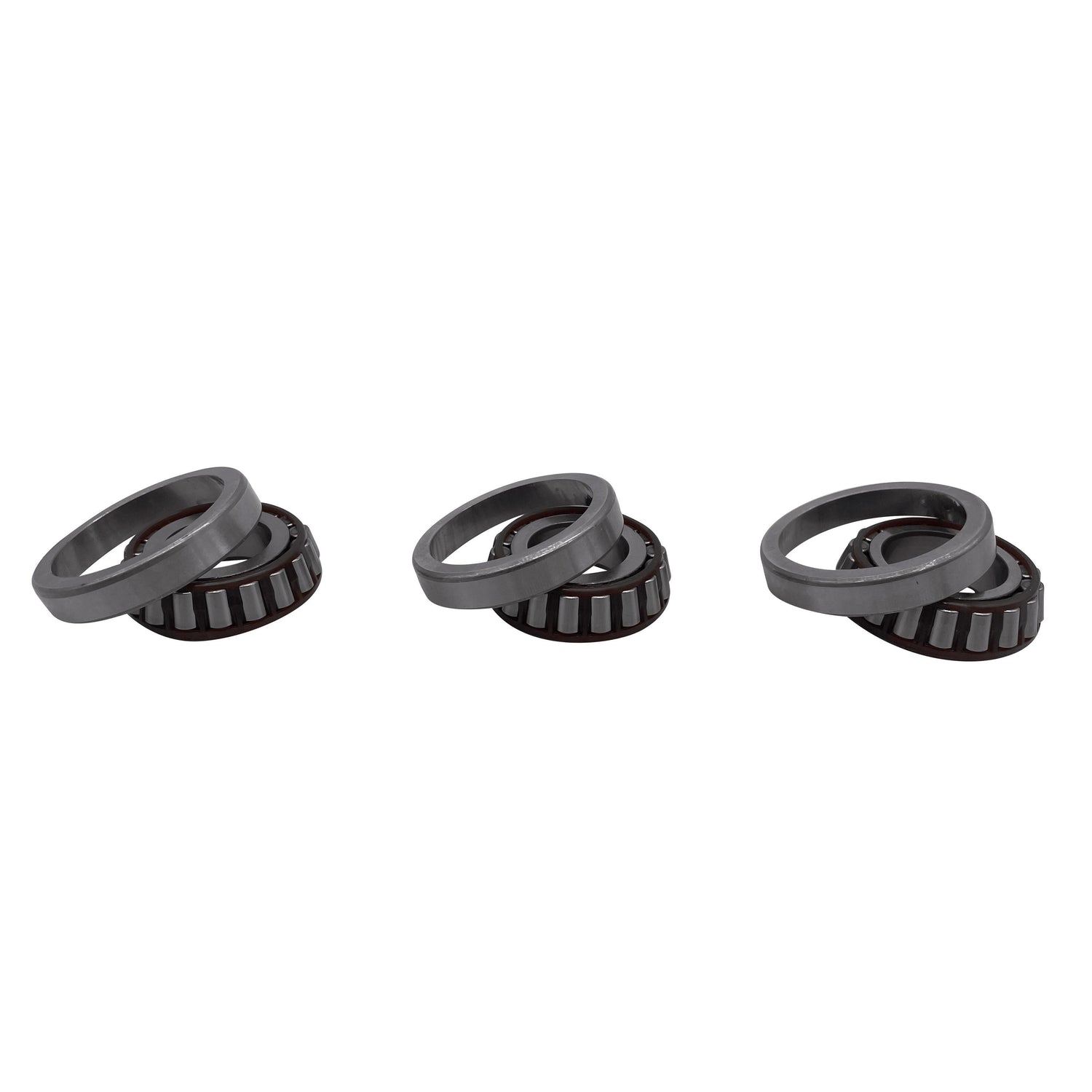

M32 Gearbox End Case Bearing Kit Gen 1 Vauxhall SNR EC42192 / EC42193

M32 Transmission End Case

Bearing Kit Generation 1 Vauxhall

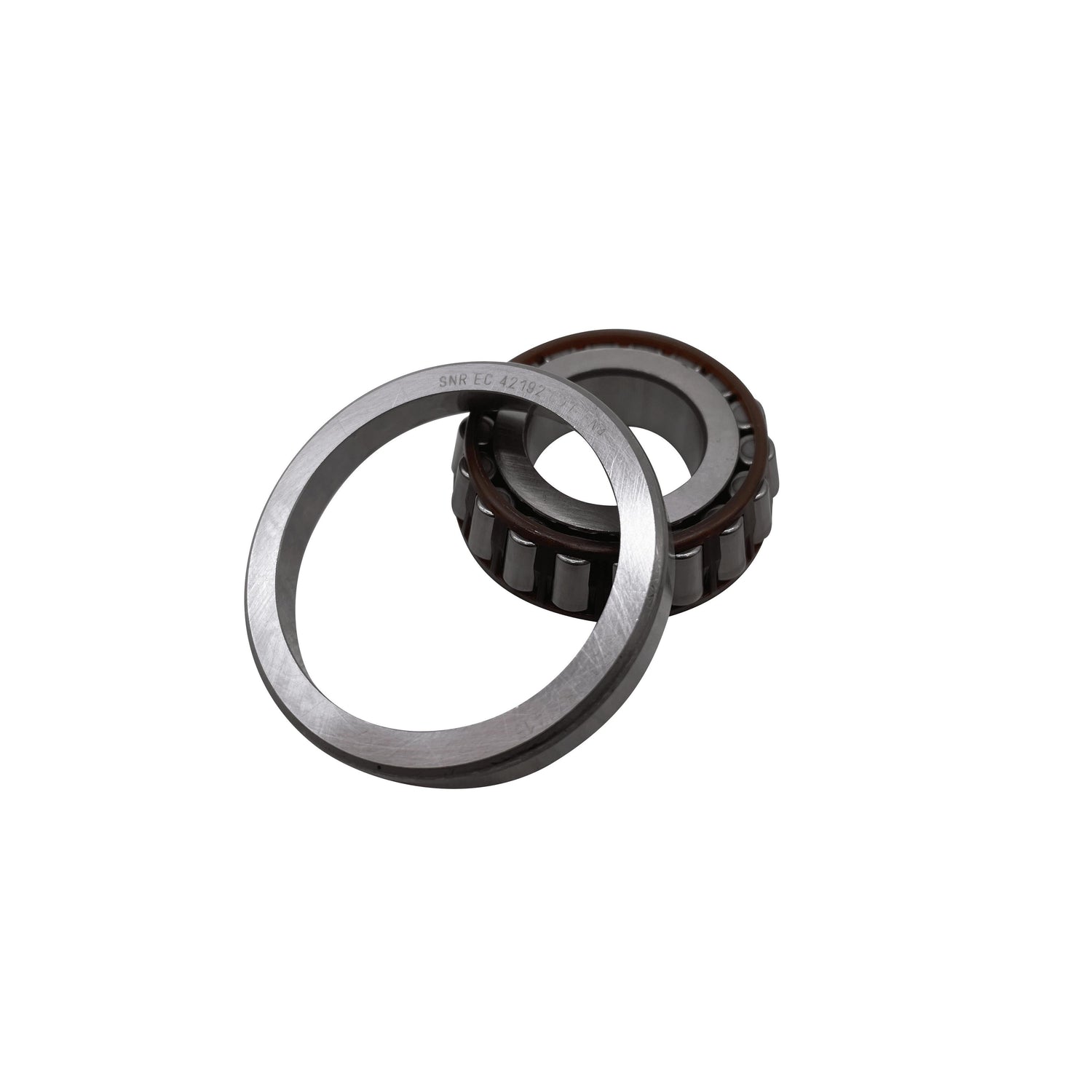

SNR EC42192 / EC42193

Vauxhall M32 end case bearings to repair the M32 gearbox gen 1.

End bearing failure is common on the M32 transmission with play resulting in movement in the gearsttick in 1st & 5th.

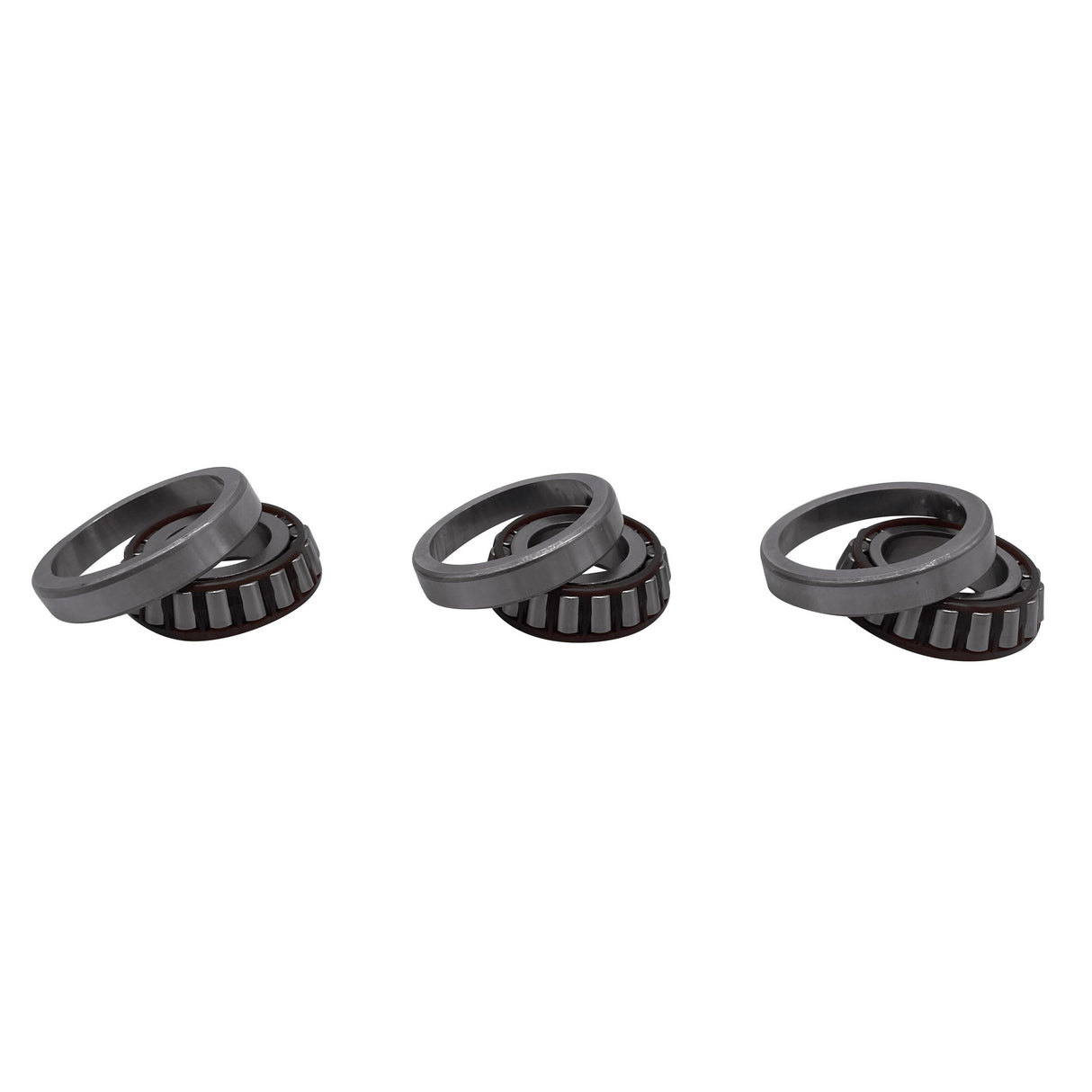

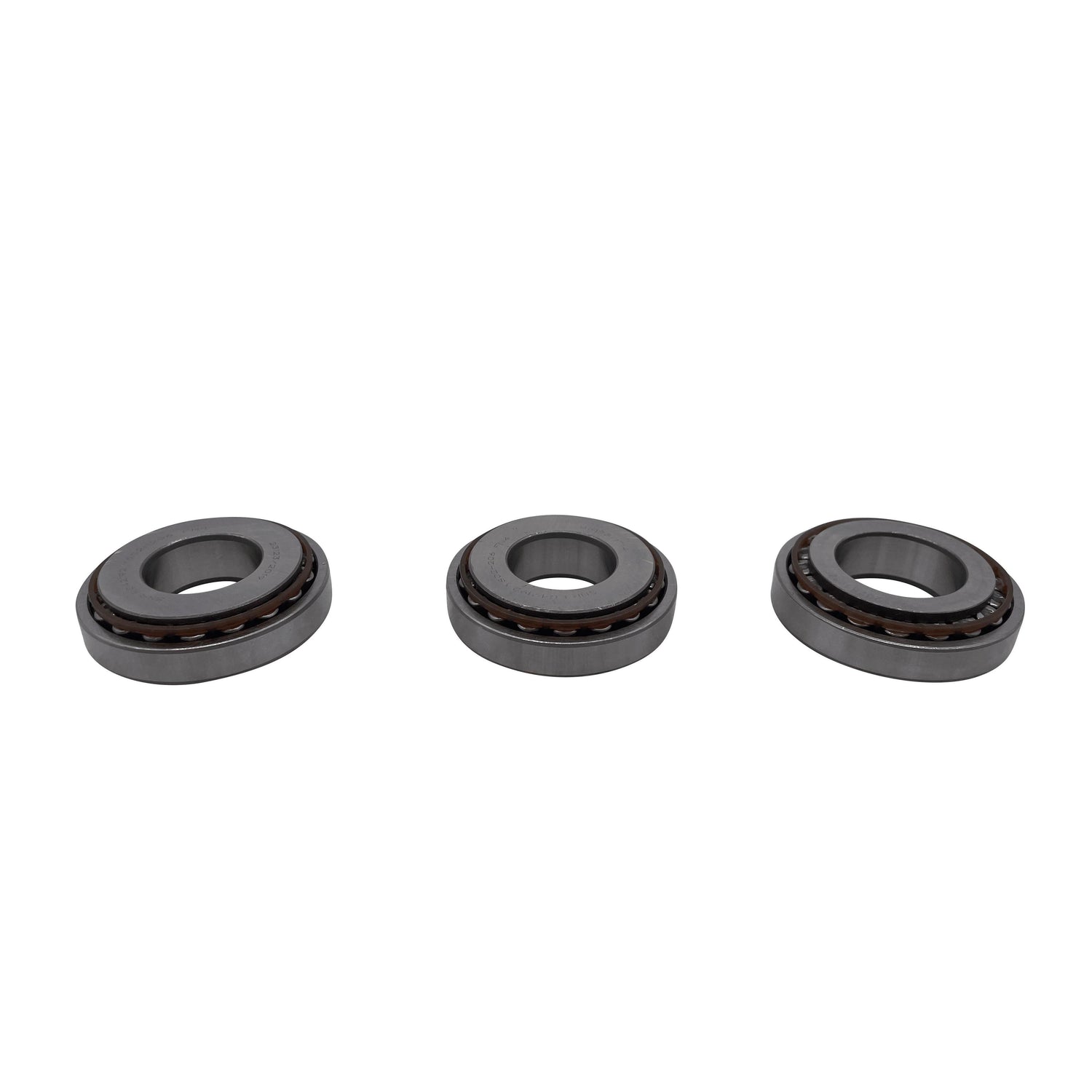

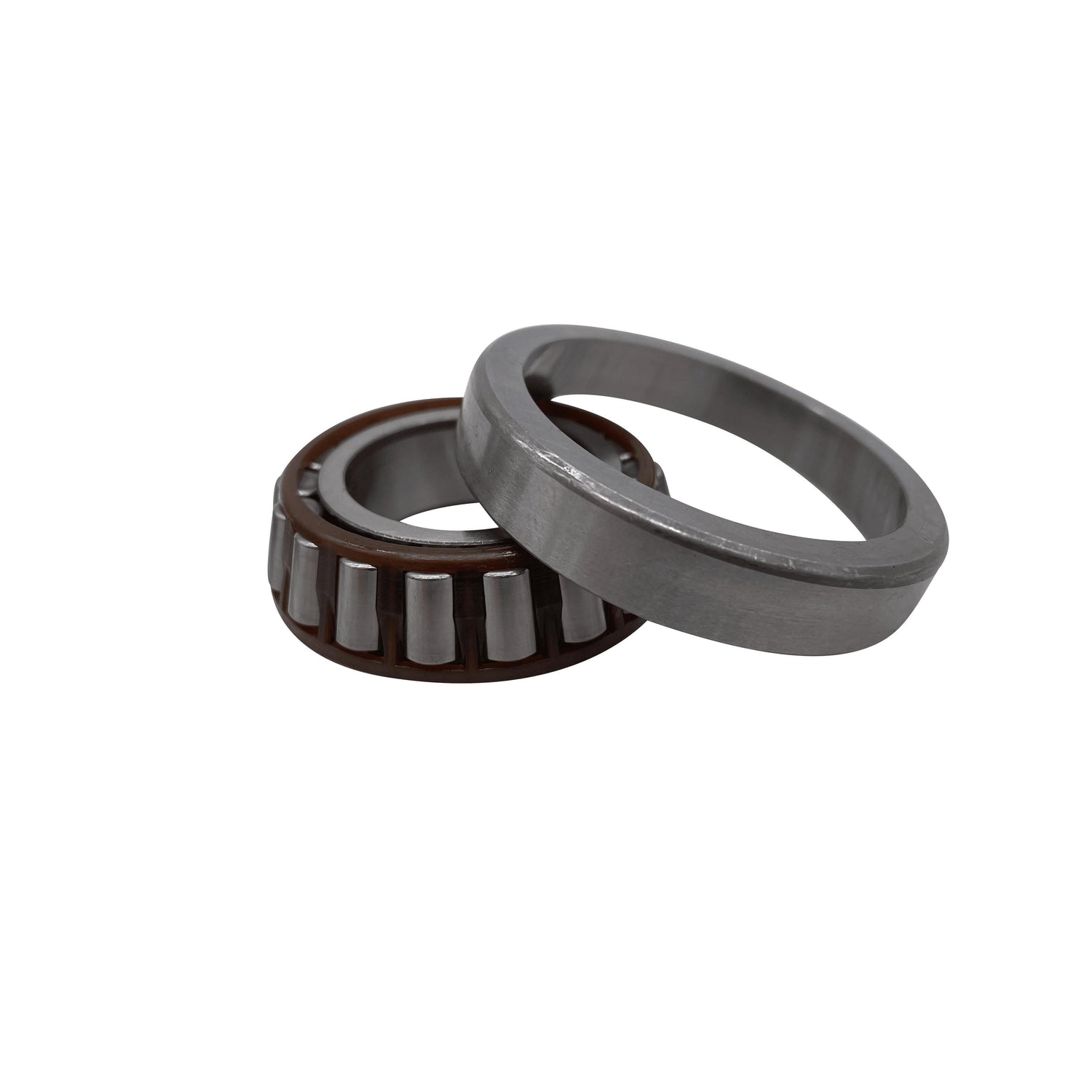

This rebuild kit contains the following:

Input Shaft End Bearing (8) (28 x 55 x 13.6mm)
Output Shaft 1 End Bearing (29) (25 x 55 x 13.6mm)
Output Shaft 2 End Bearing (55) (25 x 55 x 13.6mm)

This kit is only compatible with generation 1 only

Part Numbers

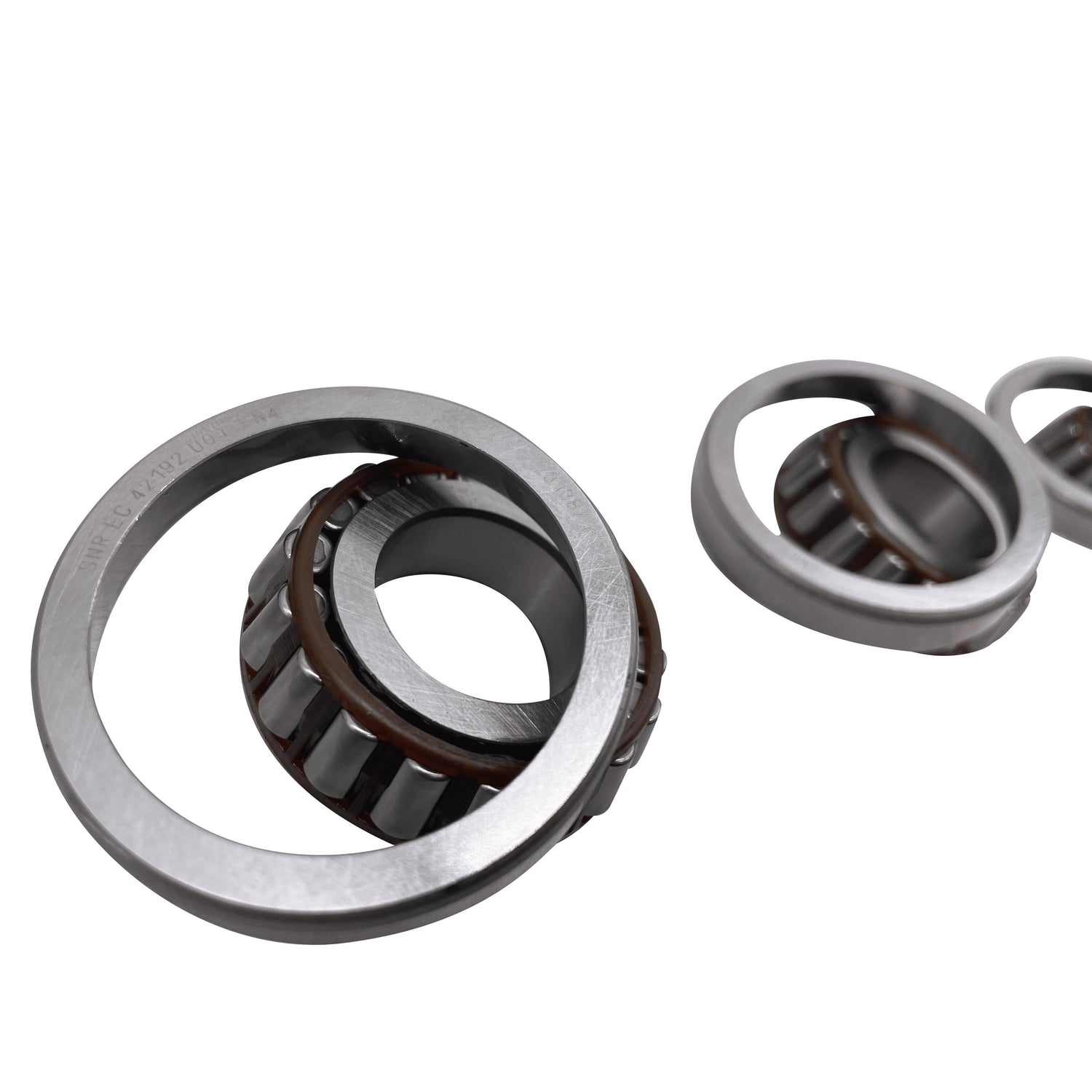

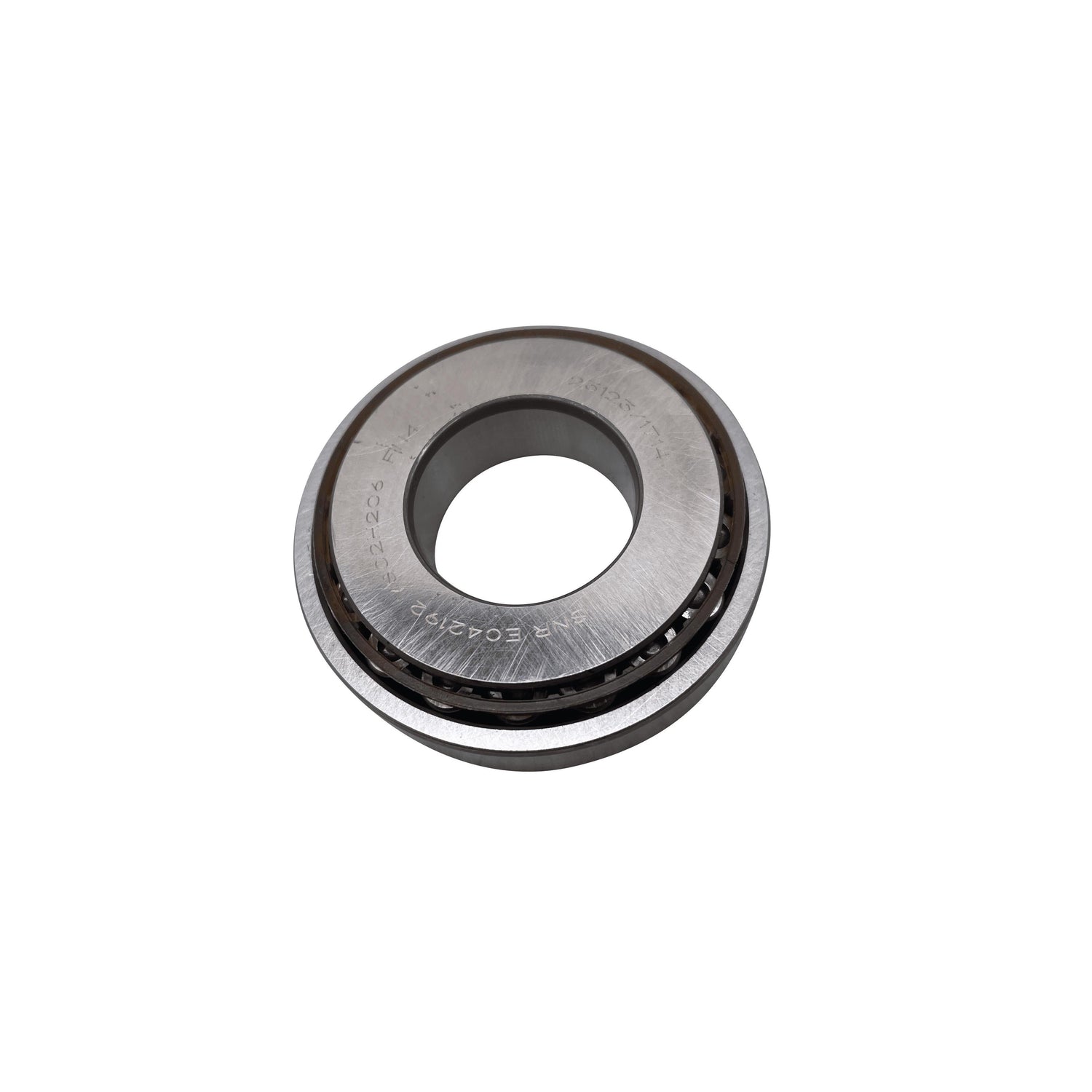

SNR EC42192 Y S02 H206 - 55188083 / 55574107

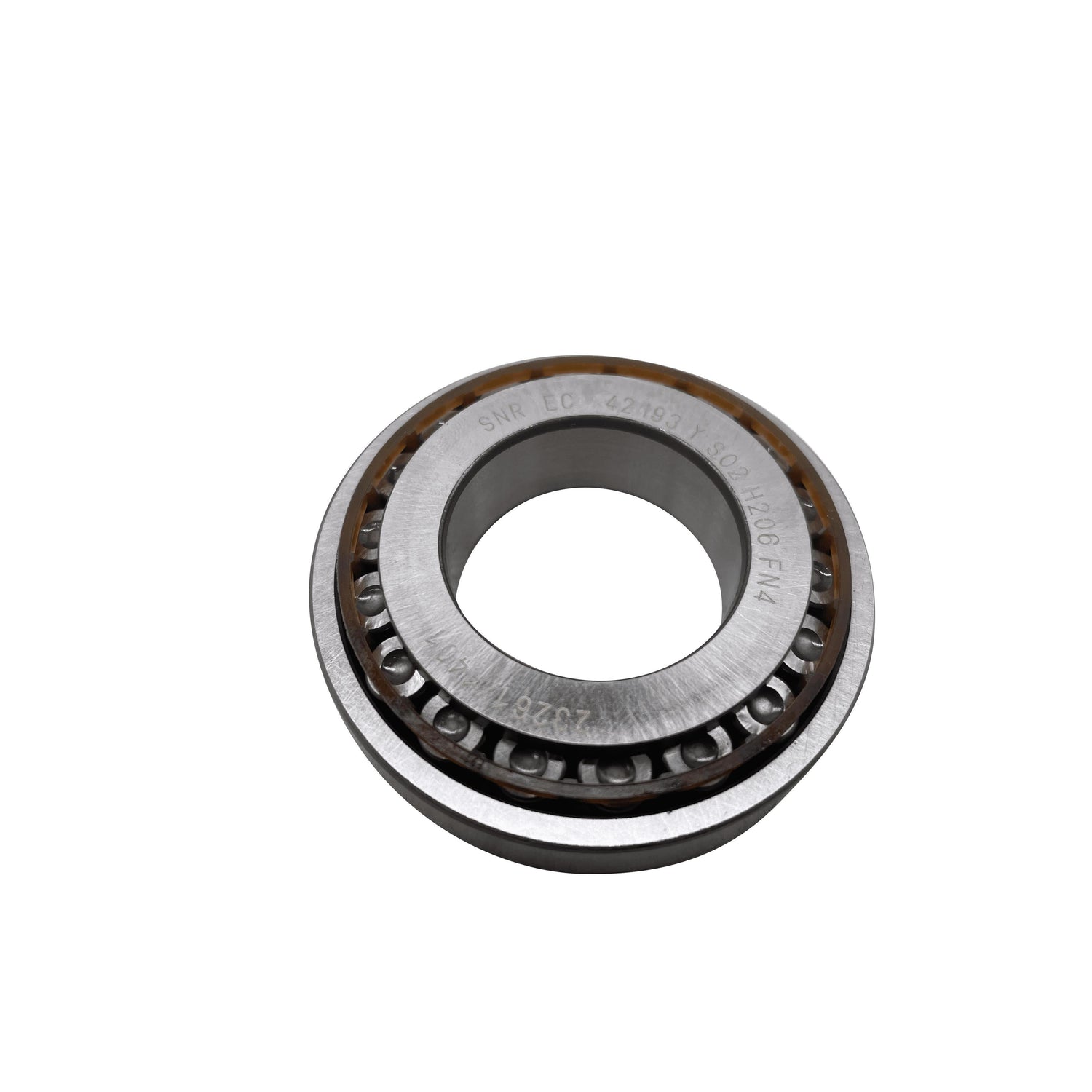

SNR EC42193 Y S02 H206 - 55574104

Fitment Diagram (see above for location)

Vehicle Compatibility

Generation 1 M32 gearbox — Vauxhall / Opel / Abarth / Alfa Romeo / Chevrolet / Fiat / Saab vehicles with M32 Gen 1 gearbox.

Why Choose Eco Torque?

Being one of the first companies in the UK to offer the M32 bearing and end-case upgrade, Eco Torque pride ourselves on mastering the repairs of the gearboxes we work on. We supply only genuine-specification parts throughout our range.

Browse Eco Torque's ever-evolving product range available to purchase online at competitive prices.

Need Help Finding the Right Part?

If you cannot find the items you need or are unsure if the part is compatible with your vehicle make and model, please send us your UK registration number or VIN Code and we will direct you to the right part.

Frequently Asked Questions

Q: What are the symptoms of M32 end case bearing failure?
A: Typical symptoms include excessive play in the gearstick (especially in 1st and 5th), whining or grinding noises at certain speeds, and general sloppiness in gear selection.

Q: Is this kit compatible with Gen 2 or Gen 3 M32?
A: No — this kit is for Generation 1 M32 only. Gen 2 and Gen 3 use different bearing specifications.

Q: Why are there three bearings in the kit?
A: The M32 Gen 1 end case contains three separate shaft end bearings — one for the input shaft and two for the output shafts. All three are replaced as a set to ensure a complete, lasting repair.

Reference Number: ETB2409
