Gen 2 Haldex Pump AWD Coupling Audi SEAT Skoda VW 0AV598549A - Genuine Haldex (S-TEC)

Gen 2 Haldex Pump — AWD Coupling

0AV598549A / 30783079 / SP03157 — S-TEC

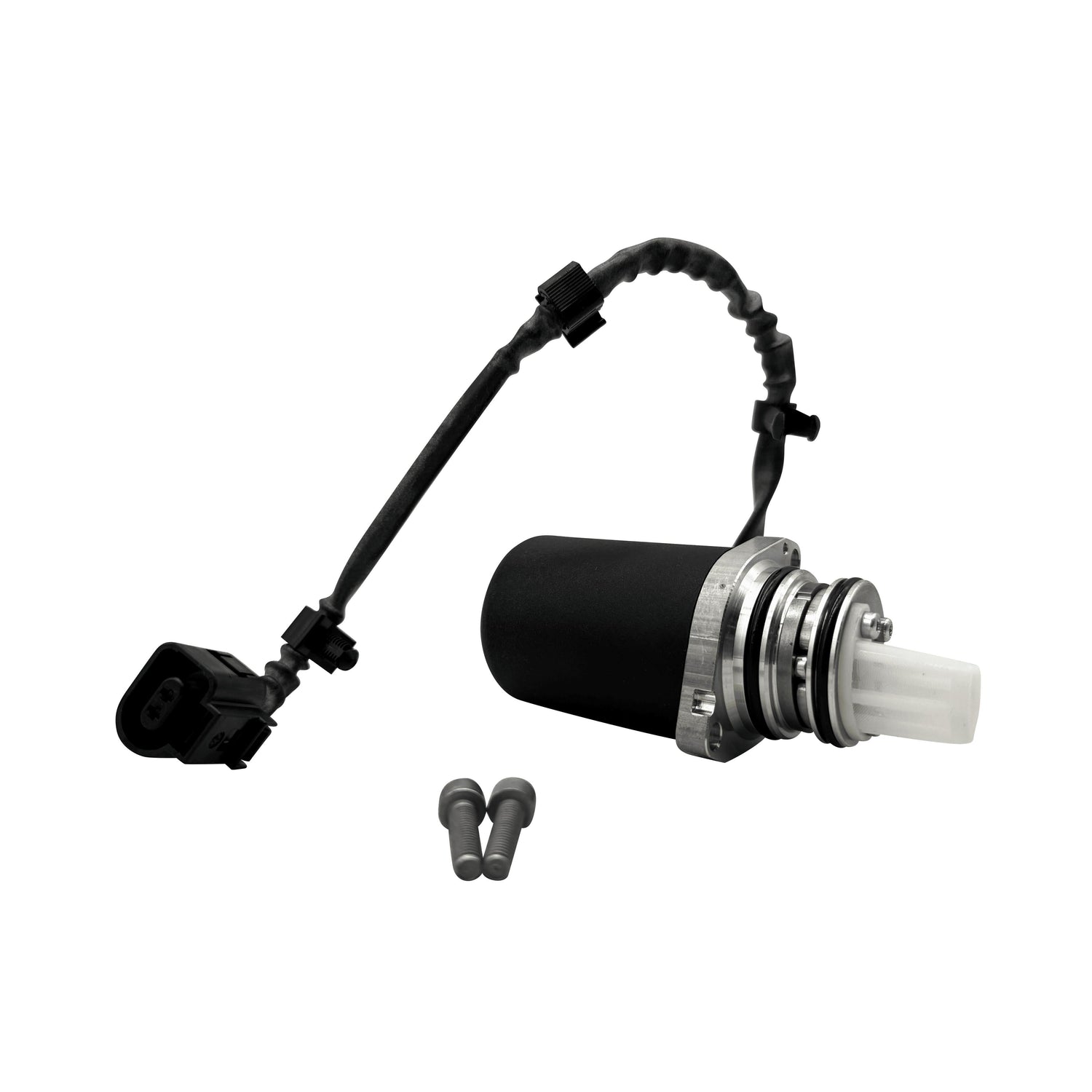

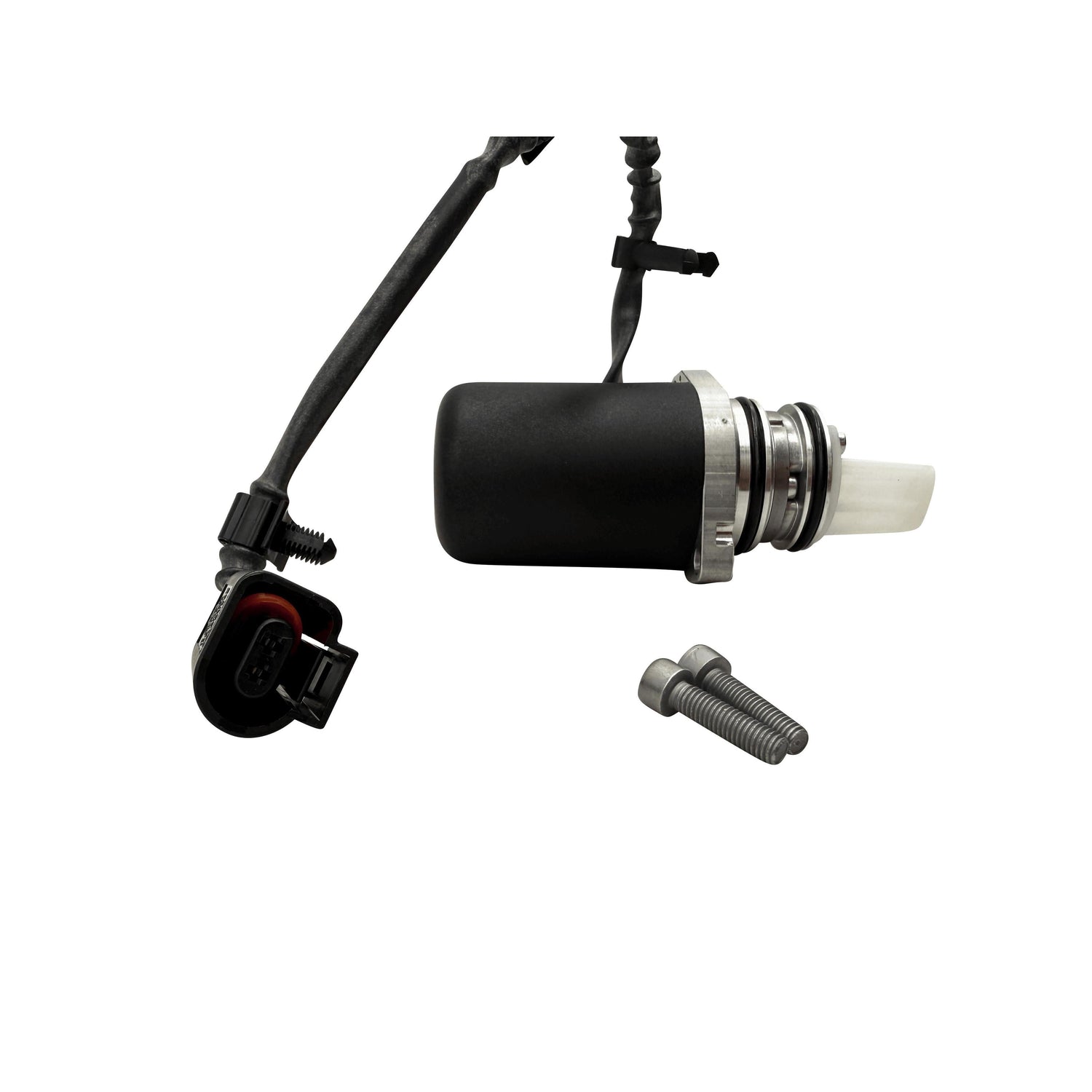

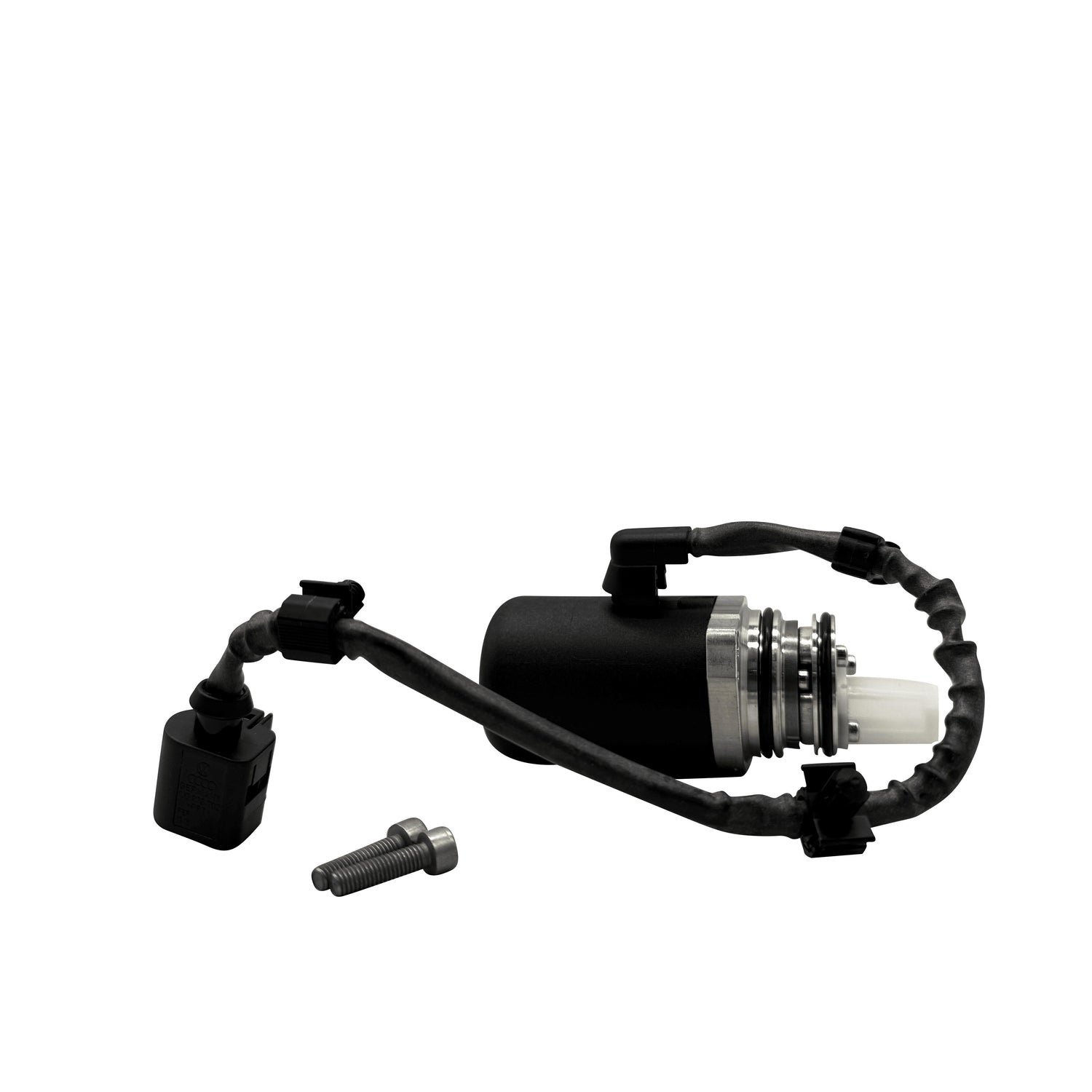

This is a genuine Haldex Generation 2/3 oil pump for the AWD coupling fitted to VW, Audi, Seat and Skoda all-wheel-drive models. The pump pressurises the coupling to control torque split between the front and rear axles; when it wears or fails, expect reduced AWD performance, Haldex-related fault codes, and — left unaddressed — full coupling failure.

This is an S-TEC-boxed unit — genuine Haldex original-equipment specification.

This listing is the S-TEC-supplied unit. Also available as ET3193-BW (BorgWarner).

Part Numbers

0AV598549
0AV598549A
DS118613 / 118613
SP01390
30783079
SP03157
Eco Torque: ET3193

Specifications

• Type: Haldex AWD coupling oil pump
• Generation: Gen 2 / Gen 3
• Manufacturer: Haldex (S-TEC)
• Country of origin: Germany

Frequently Asked Questions

Q: What tells me the Haldex pump has failed?
A: Watch for reduced traction in AWD mode, a Haldex clutch pressure fault code, and the system defaulting to front-wheel drive. A VCDS or OBD scan will confirm a pump-related fault.

Q: How do Gen 1 through Gen 4 Haldex units differ?
A: Gen 1 (1998–2002) uses an external pump bolted to the coupling. Gen 2 (2003–2007) and Gen 3 (2007–2012) share an internal pump design. Gen 4 (2012 onwards) introduced a further revision. Confirm which generation is fitted before ordering.

Q: Should I replace the Haldex oil when I replace the pump?
A: Yes — replacing the oil and filter alongside the pump is strongly recommended to keep the system clean and maximise the new pump's service life.

Why Choose Eco Torque?

Eco Torque supplies genuine Haldex OEM parts for VAG all-wheel-drive systems, backed by drivetrain and transmission expertise, competitive pricing, and worldwide shipping.

Need Help Finding the Right Part?

If you're unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN code and we'll direct you to the correct part.

Reference Number: ET3193-ST
