BorgWarner Haldex Gen 4 Hydraulic Filter Service Kit Audi VW SEAT Skoda

BorgWarner Haldex Gen 4 Hydraulic Filter Service Kit – Audi VW SEAT Skoda

The BorgWarner DS2003085 is a Haldex Generation 4 hydraulic filter service kit including the filter, filter cap and filter bolts. The Haldex AWD oil and filter is an often-overlooked service item — neglect leads to pump wear and, in severe cases, complete Haldex system failure. Regular filter replacement captures metal particles from the hydraulic circuit, protecting the delicate Haldex pump and clutch pack.

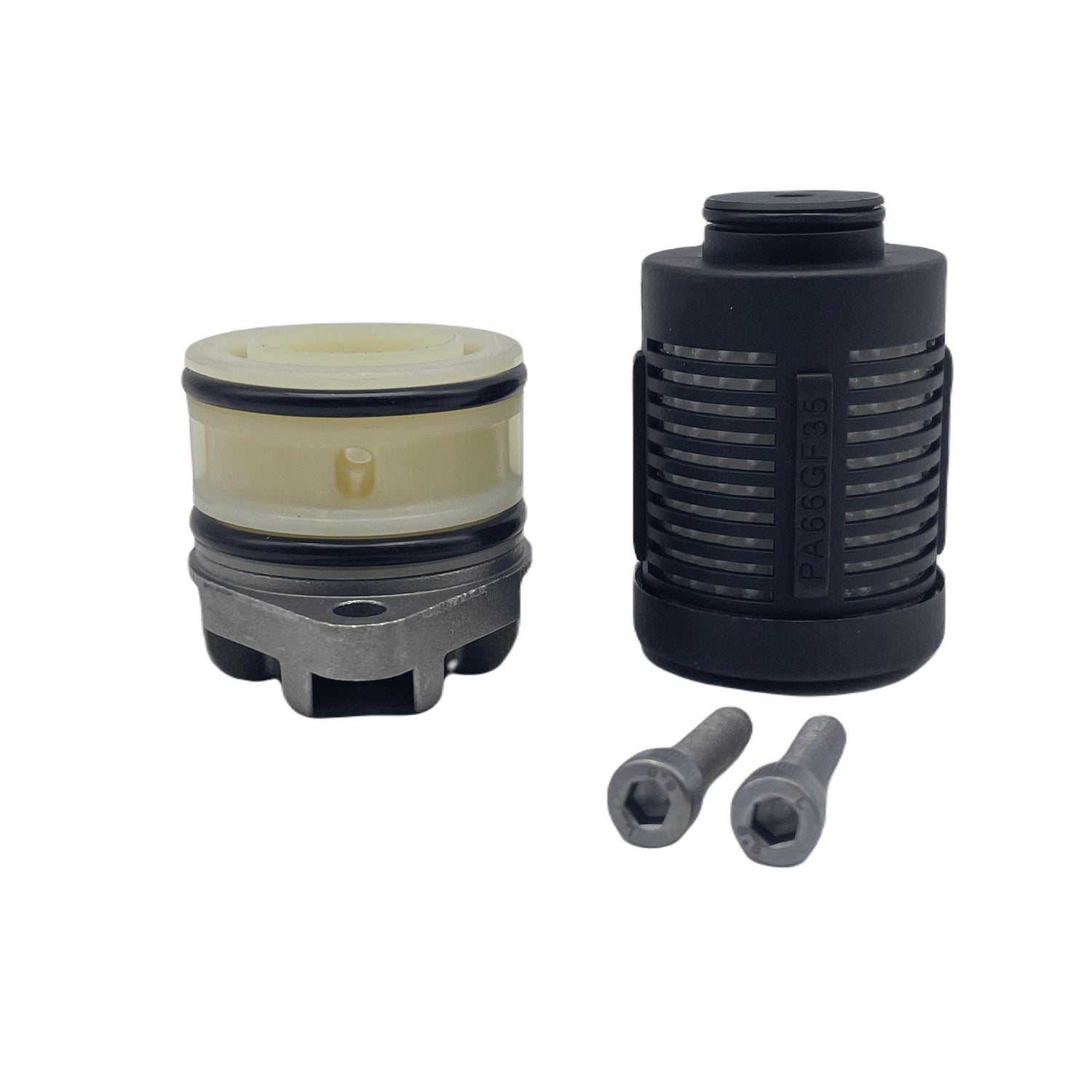

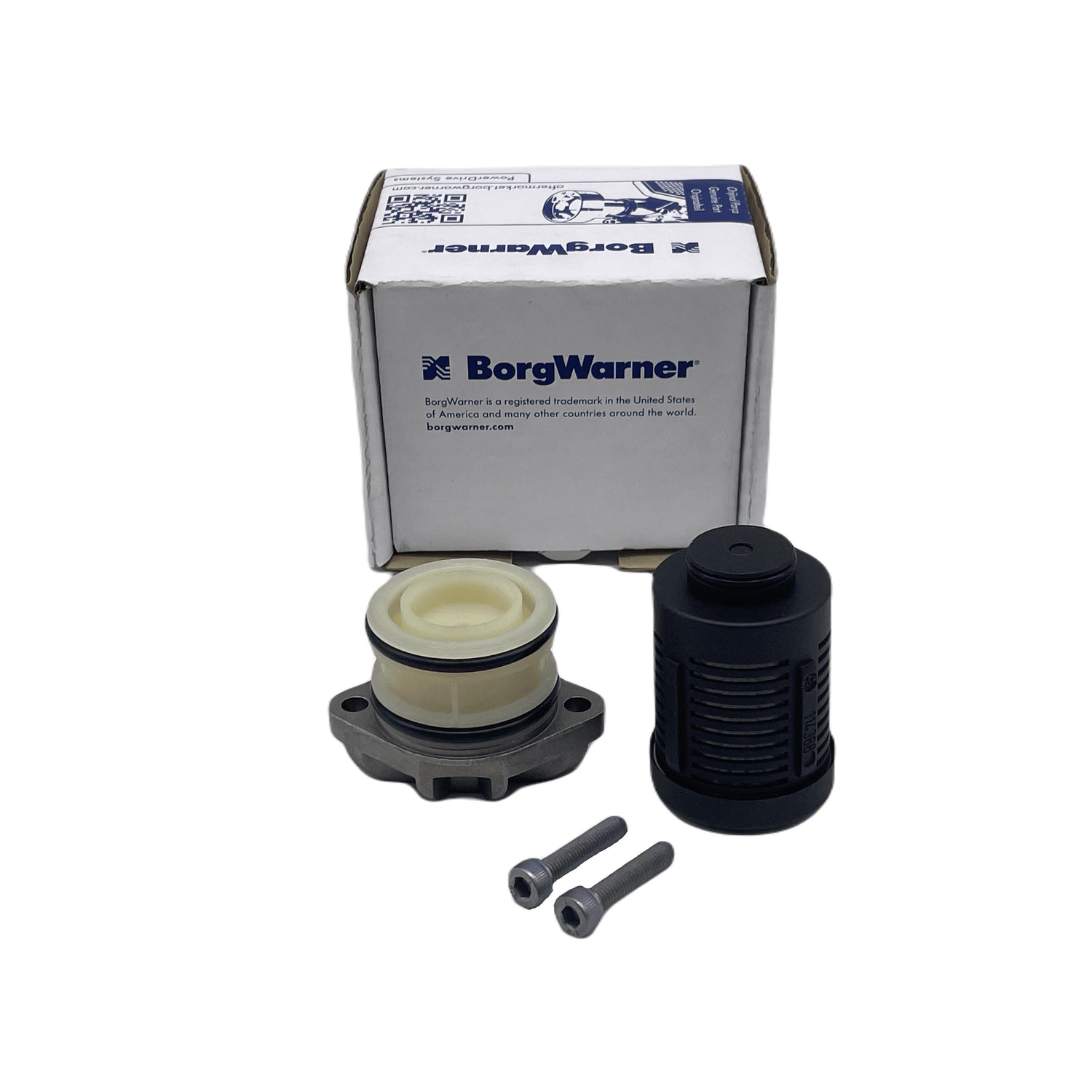

Kit Contents:

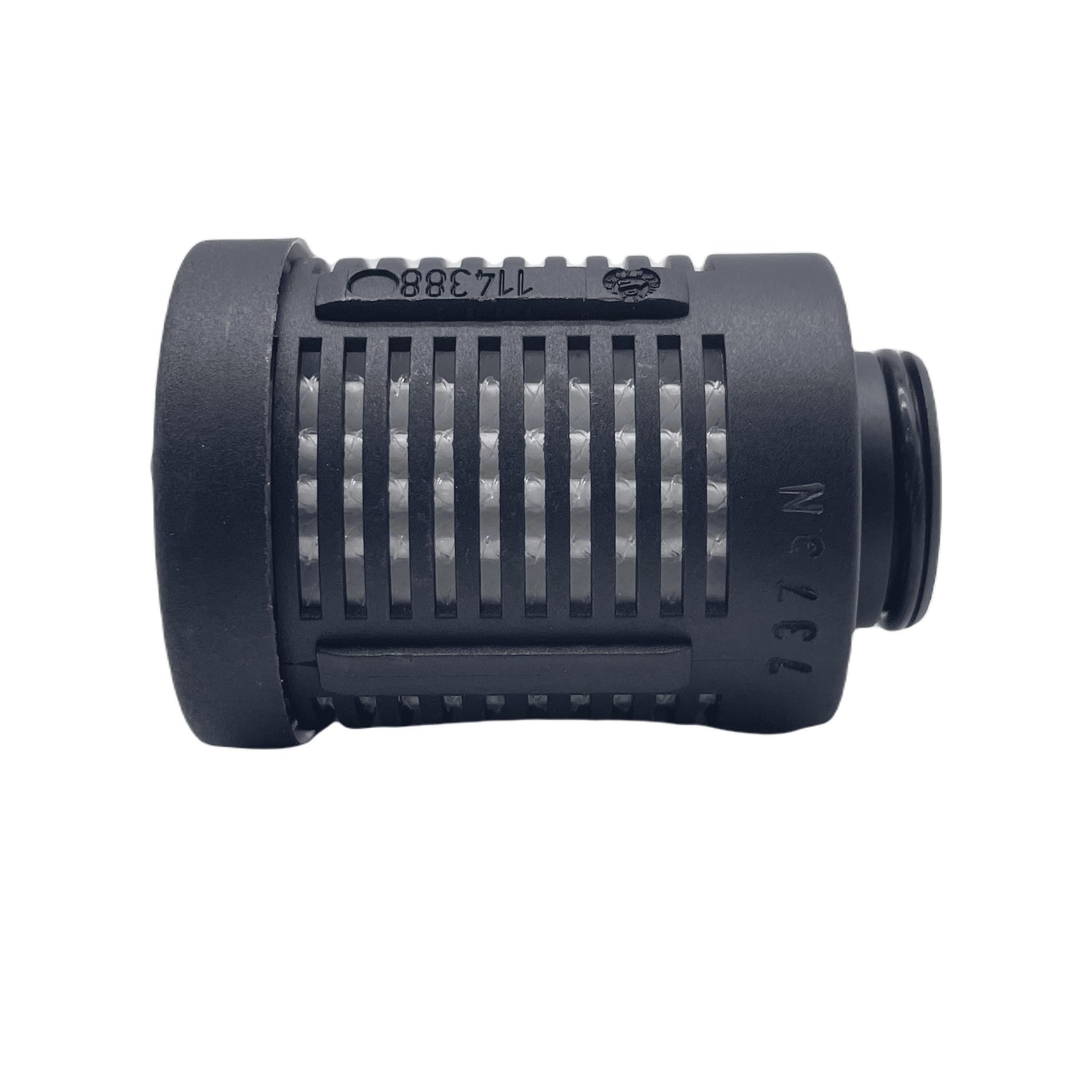

• Gen 4 Haldex Filter

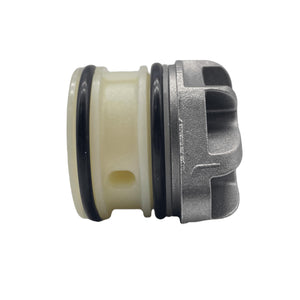

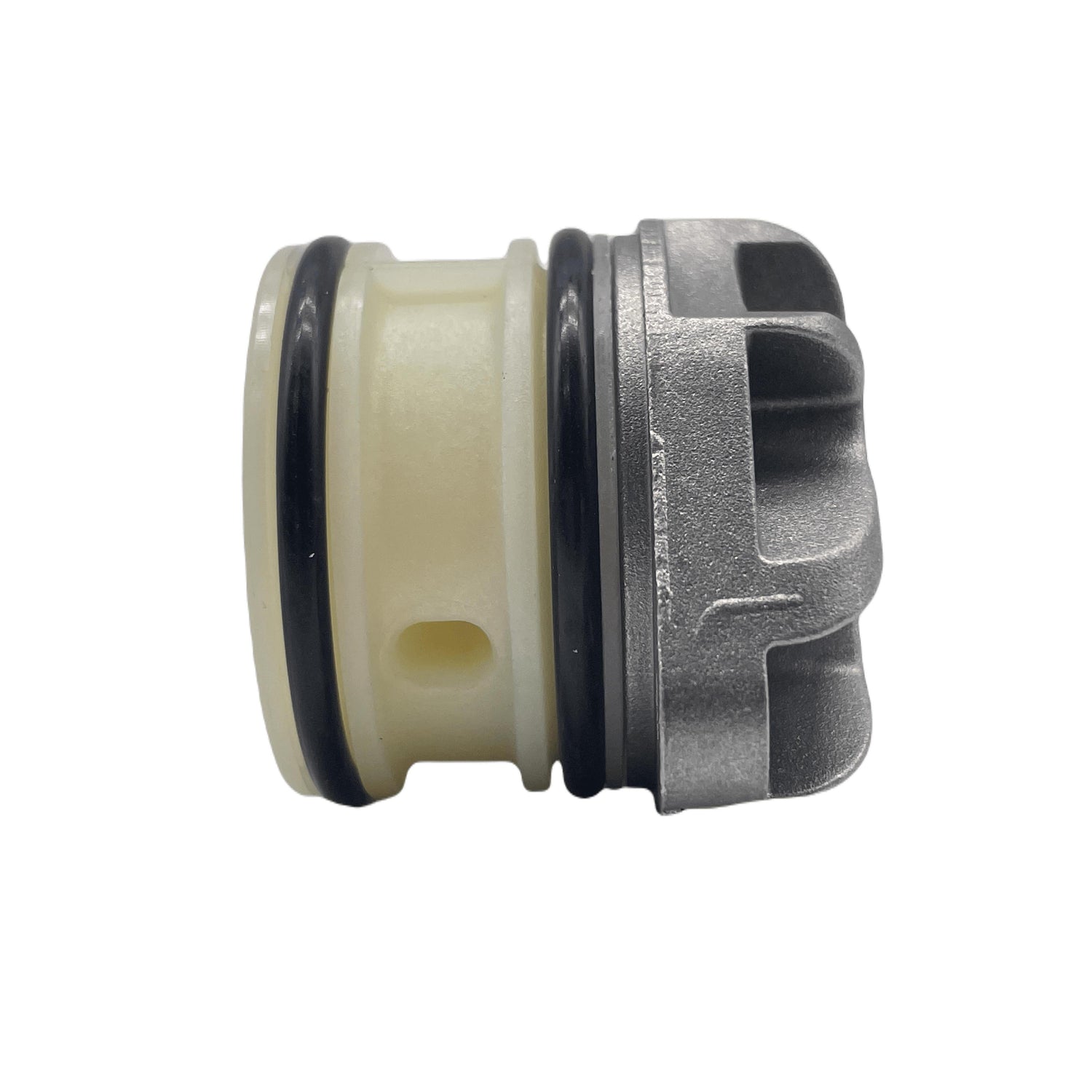

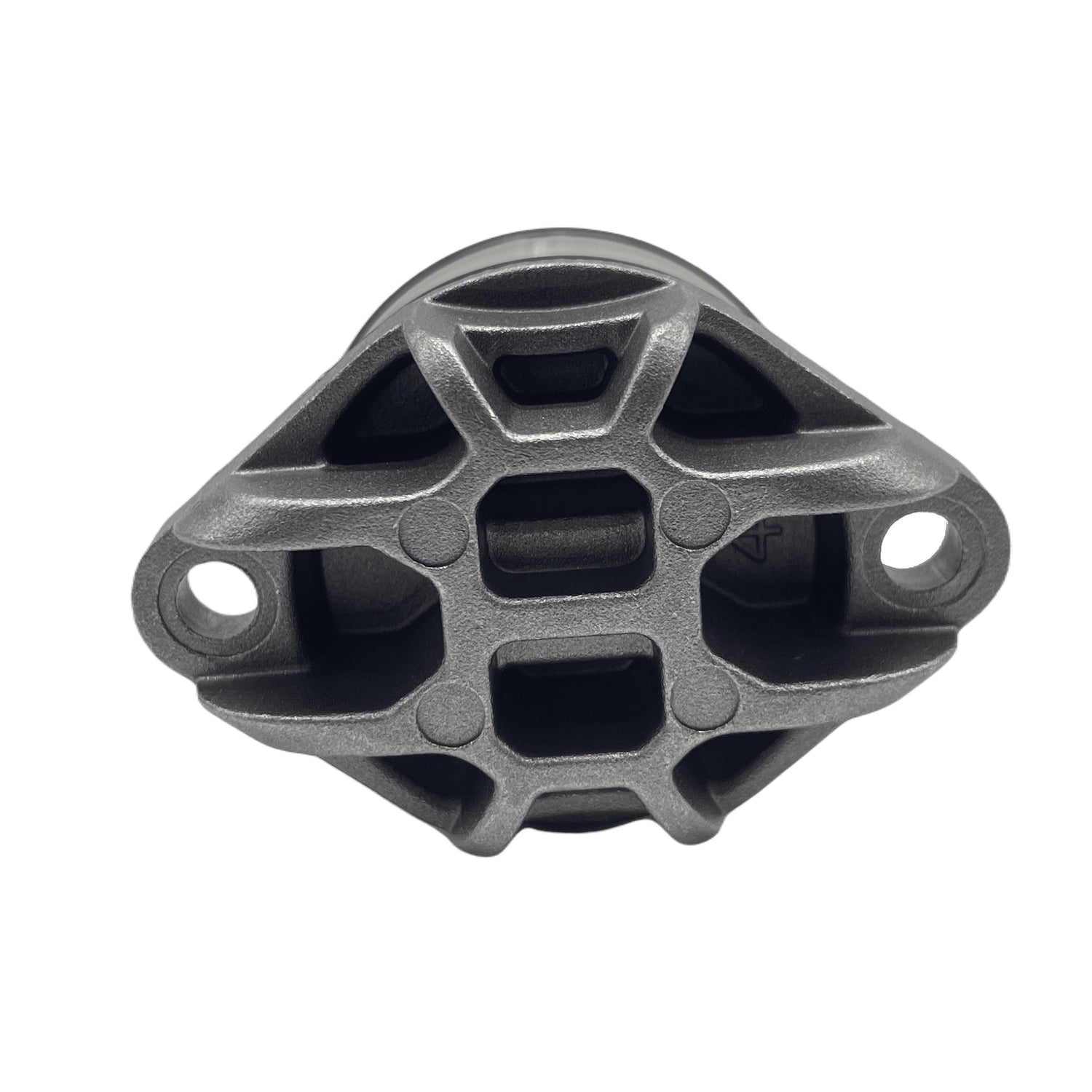

• Filter Cap

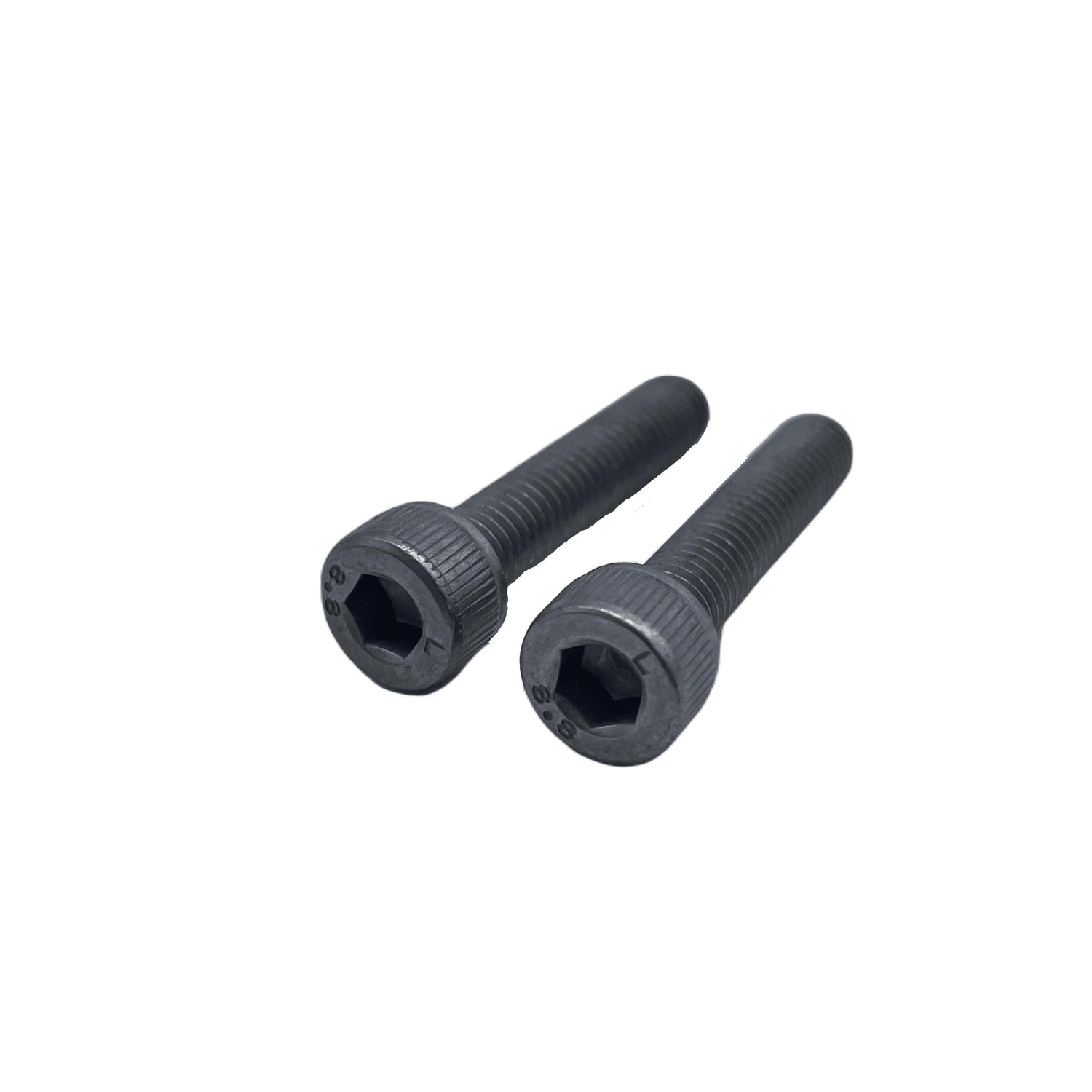

• Filter Bolts

Part Numbers:

• BorgWarner: DS2003085
• VW Group: 09N 525 554 A · 0AY 525 554 B · 0AY 525 554 D · 0BR 525 554 A · 0BS 525 554 B · 0BS 525 554 C · 0BY 525 554 A · 2K0 525 554 A

Vehicle Compatibility (Haldex Gen 4 AWD):

• Audi: Q3 Quattro, RS Q3 Quattro, TT Quattro, TTS Quattro, TTRS Quattro
• SEAT: Alhambra, Altea, Altea Freetrack, Altea XL
• Skoda: Octavia, Octavia Scout, Superb, Yeti
• Volkswagen: Caddy, Caddy Maxi, California, Caravelle, CC, Golf, Multivan, Passat, Passat Alltrack, Passat CC, Sharan, Tiguan, Touran, Transporter

Note: Due to OEM supplier crossovers on Haldex parts, you may receive items branded BorgWarner or S-Tec — both are new genuine parts.

How often should the Haldex filter be changed?

BorgWarner and most vehicle manufacturers recommend changing the Haldex oil and filter every 30,000–40,000 miles or every 2–3 years, whichever comes first. Higher-mileage or hard-use vehicles should be serviced more frequently.

What happens if you don't service the Haldex system?

Old oil loses its friction-modifier properties and becomes contaminated with wear particles. Over time this blocks the filter, starves the pump, and accelerates clutch pack wear — ultimately leading to loss of AWD function and very expensive repairs.

Is this kit compatible with Haldex Gen 3?

No. This kit is specifically for Haldex Generation 4. Gen 3 and Gen 5 systems use different filter designs. If you are unsure which generation your vehicle has, contact us with your registration number.

What oil should I use with this filter kit?

The Haldex Gen 4 system requires genuine Haldex or BorgWarner-approved AWD fluid. Eco Torque also stocks the correct Haldex AWD oil to complete your service.

Do I need to flush the Haldex system when changing the filter?

It is strongly recommended to drain and refill the Haldex unit with fresh oil every time the filter is changed. Fitting a new filter in old, contaminated oil provides limited benefit and shortens the filter's service life.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2330
