Audi R8 Gen 5 Haldex Pump AWD Coupling 0D4906271A - Genuine Haldex (S-TEC)

Audi R8 Gen 5 Haldex Pump — AWD Coupling 0D4906271A (S-TEC)

The Haldex pump generates the hydraulic pressure that engages the rear coupling on Gen 5 Haldex all-wheel-drive systems, feeding drive to the rear axle. On higher-mileage R8s — especially where routine Haldex servicing has lapsed — the pump's internals can wear or fail, cutting rear-wheel drive and reducing traction. Typical warning signs include fault codes P16671, P16670 and P16668, a blocked filter gauze, or complete pump failure; you may see some, but not necessarily all, of these depending on the extent of internal wear.

This listing is supplied as a S-TEC-boxed unit — genuine Haldex original-equipment specification — built to the same fit, form and function as the pump originally fitted at the factory.

This listing is the S-TEC-supplied unit. Also available as ET2327-BW (BorgWarner).

Parts Included

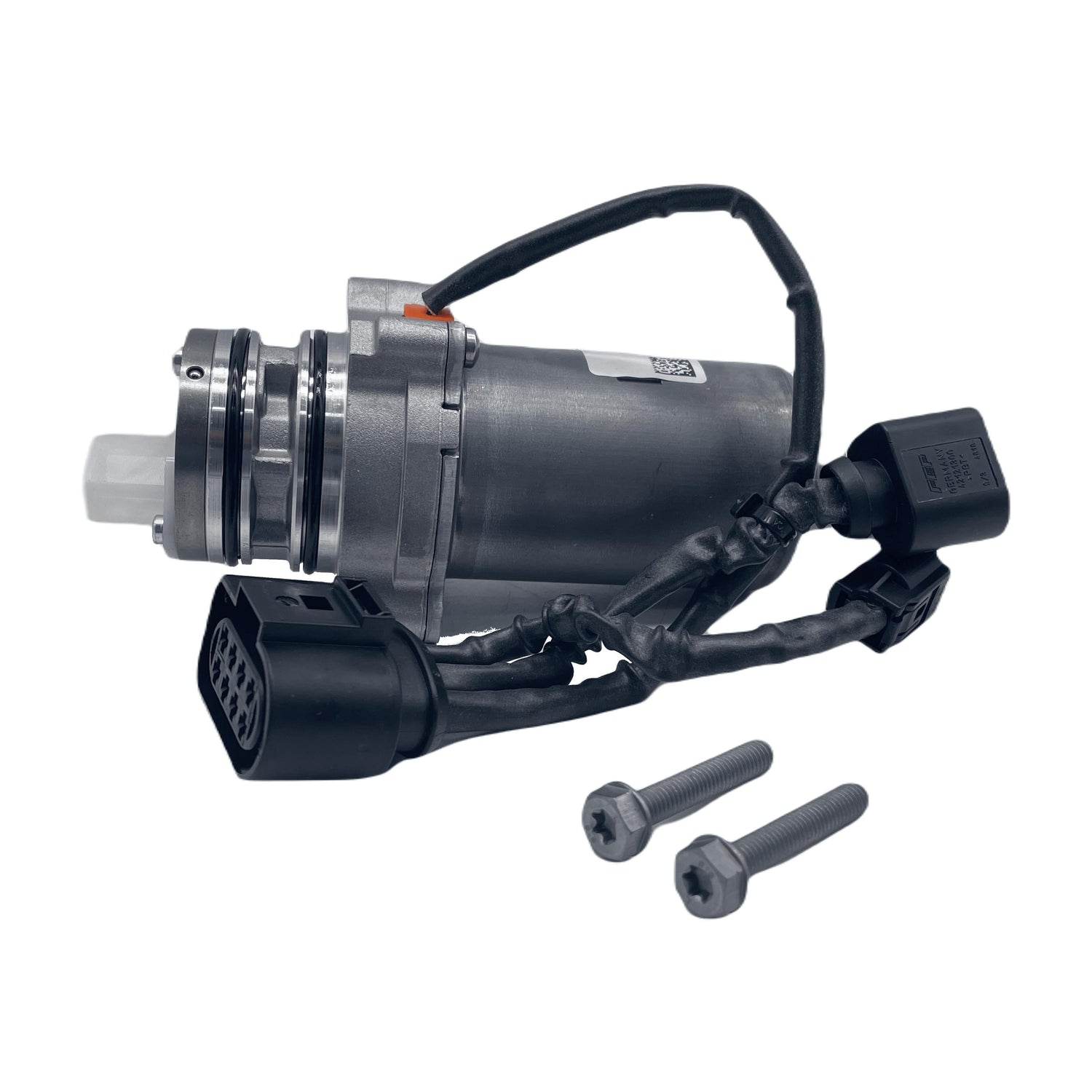

Rear differential Haldex pump, plus the two mounting screws needed for fitment.

Please note: a new pump must be programmed via the Haldex learn procedure once fitted — confirm your diagnostic equipment supports this feature before ordering, or the replacement pump will not operate correctly.

Part Numbers

DS2001261
2001261
0D4906271A
0D4 906 271 A

Vehicle Compatibility

Fits the following Audi R8 models (fitment location 28 on the AWD coupling diagram):

• R8 Quattro (4S3) — from 2015
• R8 Quattro (4SP) — from 2018
• R8 Spyder Quattro (4S9) — from 2016
• R8 Spyder Quattro (4SR) — from 2018

FAQ

Which system is this pump part of?

This is the Gen 5 Haldex pump that builds the hydraulic pressure for the AWD coupling on the Audi R8, engaging drive to the rear axle.

Which R8 models does it fit?

R8 Quattro (4S3, from 2015), R8 Quattro (4SP, from 2018), R8 Spyder Quattro (4S9, from 2016) and R8 Spyder Quattro (4SR, from 2018). If you're unsure, send us your UK registration number or VIN and we'll confirm fitment.

What's included, and does it need programming?

The listing includes the rear differential Haldex pump and the two mounting screws. Once fitted, the pump must be programmed via the Haldex learn procedure — check your diagnostic equipment supports this before ordering.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2327-ST
