Corteco Citroen/Peugeot Oil Seal Guide Tube 20029154B 24x39.5x57/57.5mm

Corteco Oil Seal Guide Tube 20029154B – Citroen & Peugeot Manual Gearboxes

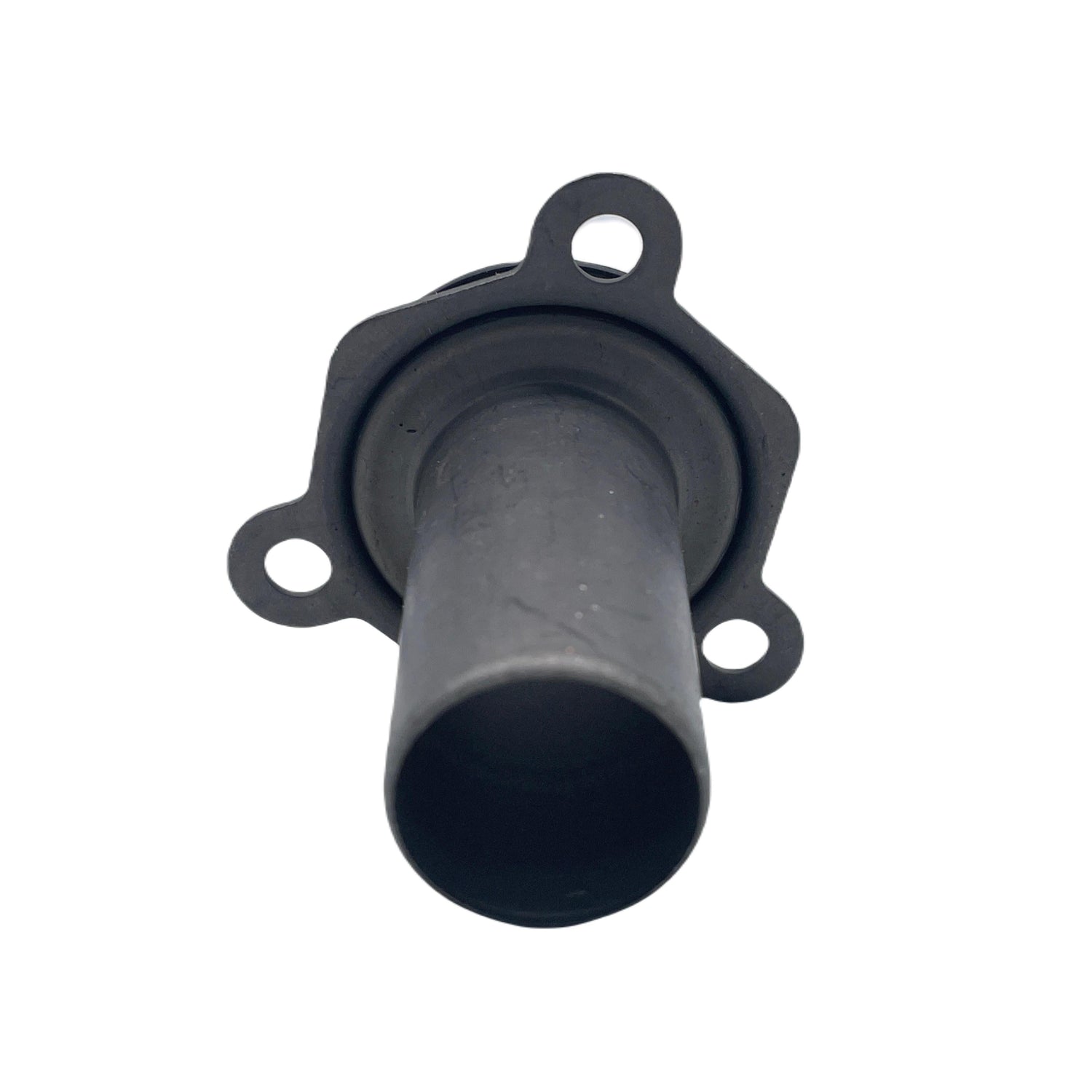

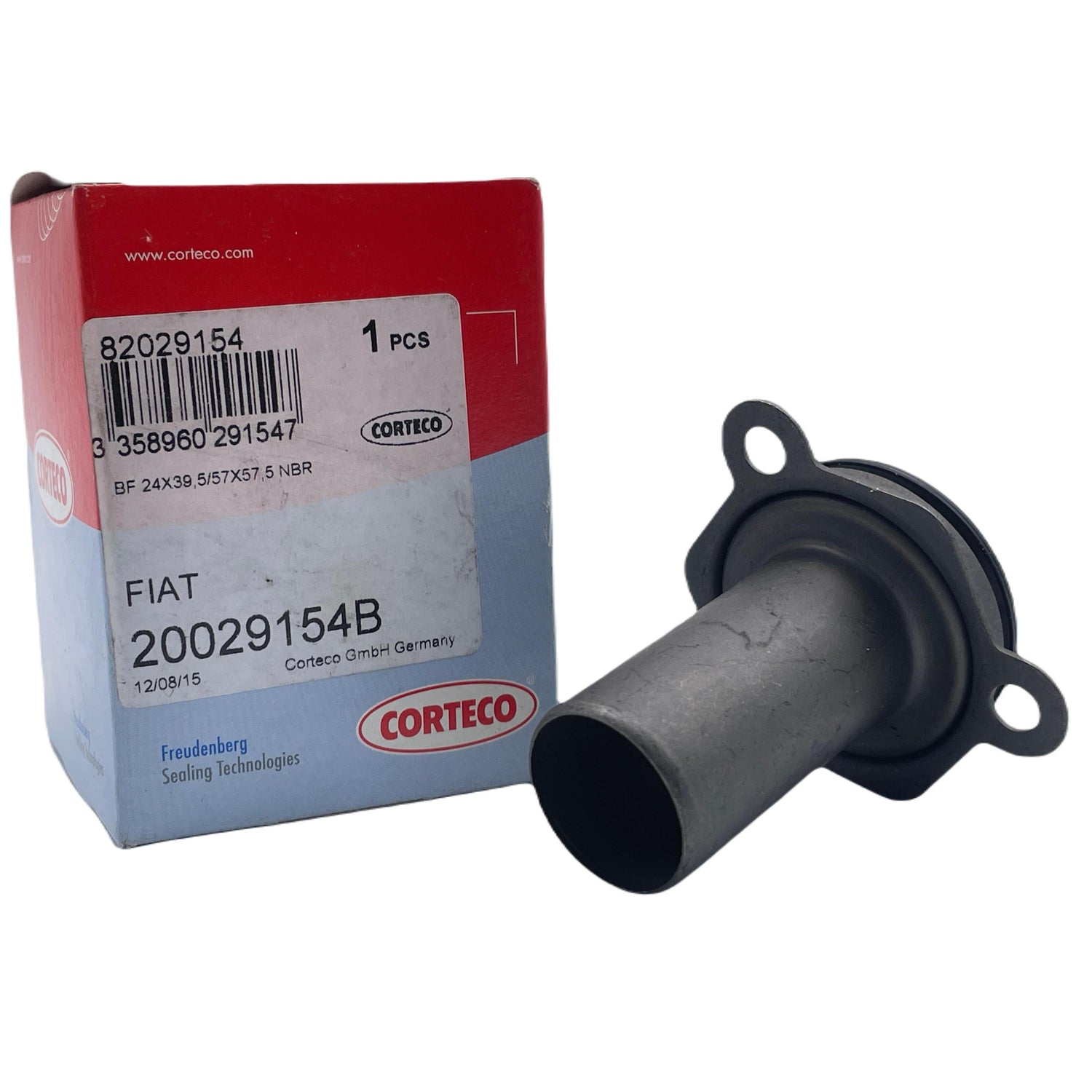

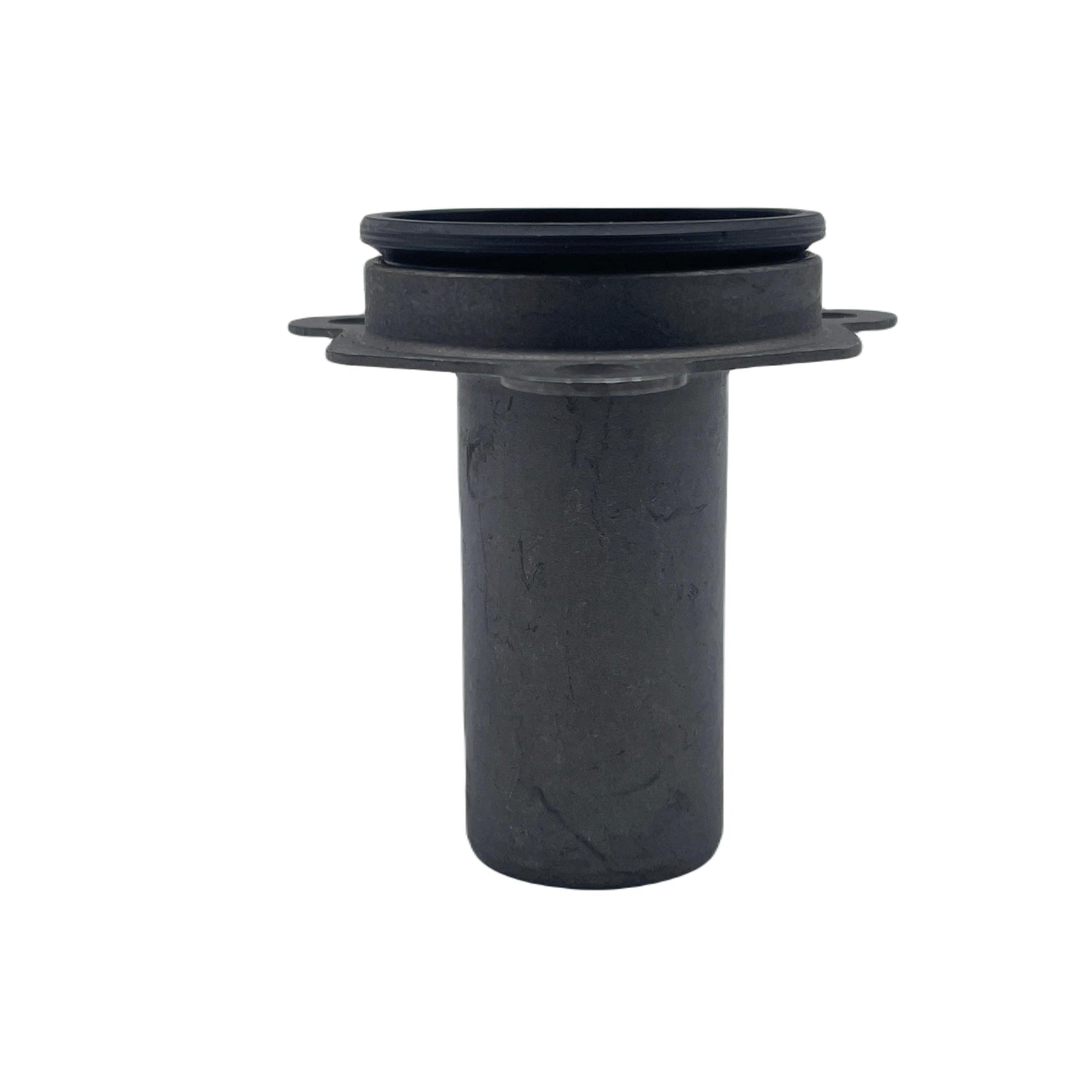

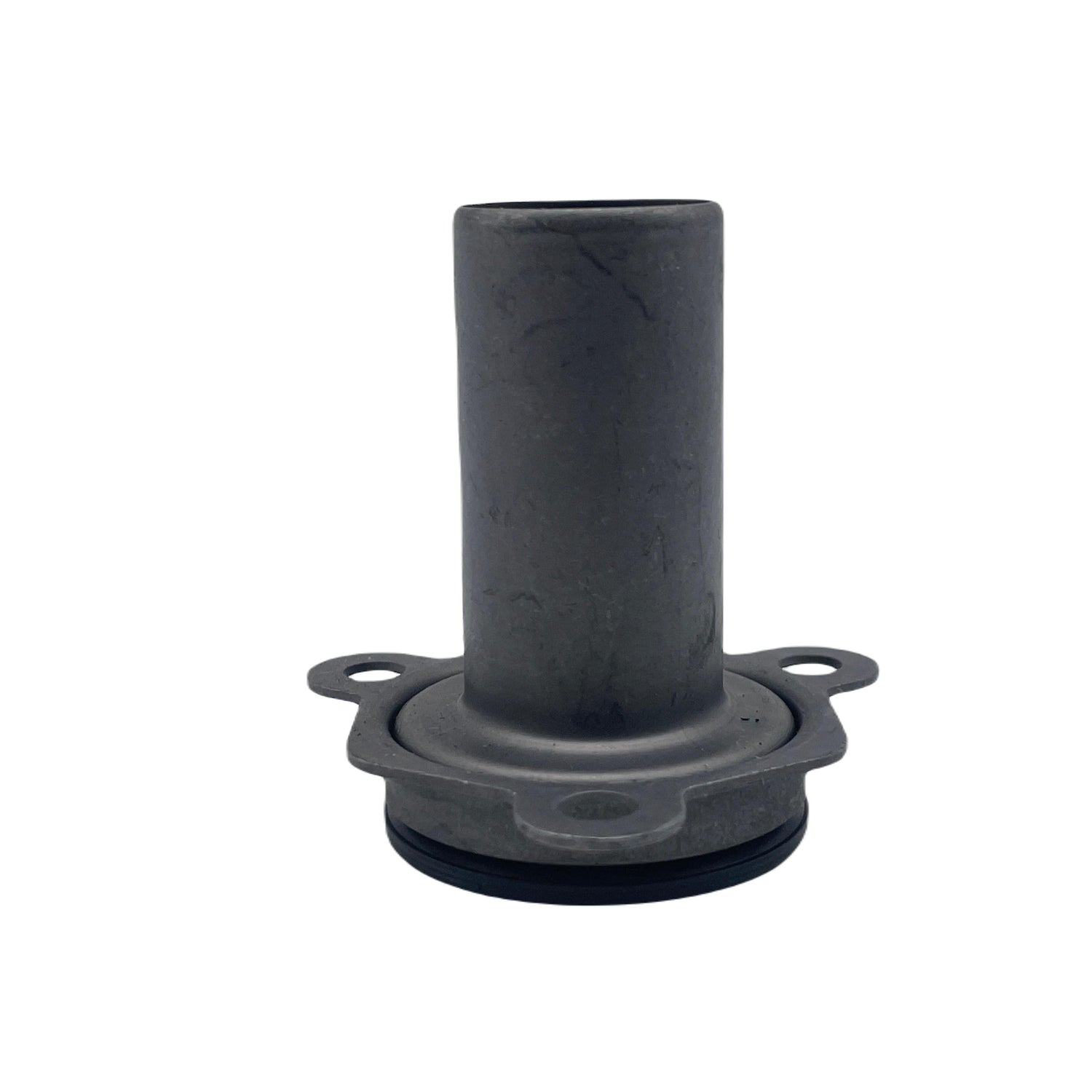

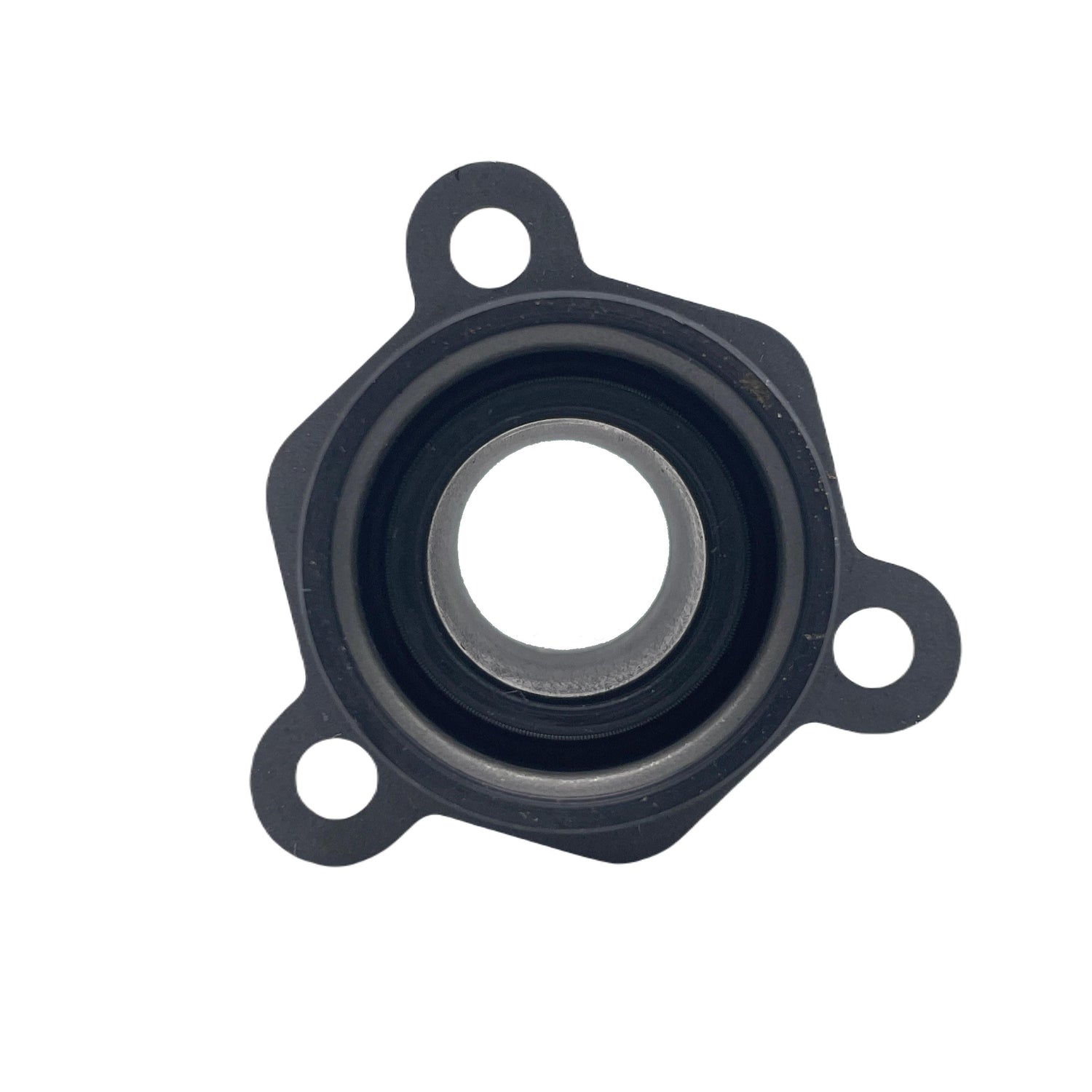

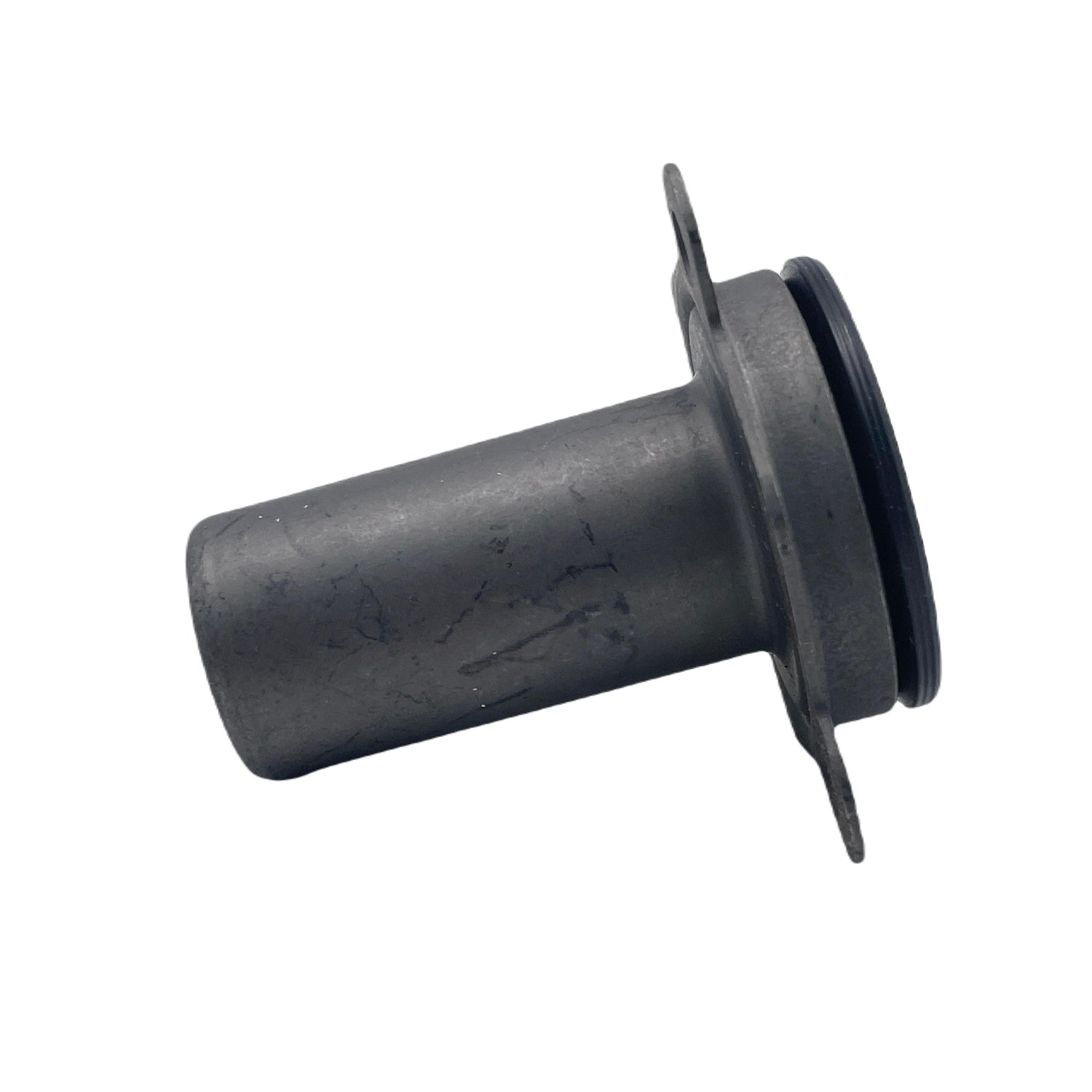

This is a Corteco oil seal guide tube (part number 20029154B) for Citroen and Peugeot manual gearboxes. The guide tube includes the shaft oil seal and is made from NBR (nitrile butadiene rubber) for durability and oil resistance. Corteco is an OEM-approved sealing solution supplier for the automotive industry.

Specifications:

• Inner diameter (d2): 24mm
• Outer diameter (d): 39.5mm
• Height: 57 / 57.5mm
• Material: NBR (nitrile butadiene rubber)
• Includes: shaft oil seal
• Corteco application: Guide Tube, clutch

What is an oil seal guide tube?

An oil seal guide tube is an installation aid and housing combined. It guides and holds the oil seal in place during installation in the gearbox, preventing the seal lip from being damaged during fitment.

Does this part include the oil seal?

Yes — the 20029154B is listed as ‘with shaft oil seal’ meaning the oil seal is included as part of the assembly.

What material is the seal made from?

The seal is made from NBR (nitrile butadiene rubber), which offers excellent resistance to petroleum-based oils and transmission fluids.

How do I confirm this part fits my Citroen or Peugeot?

Send us your UK registration number or VIN and we will confirm whether this is the correct part for your vehicle.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2225
