02K 5 Speed Gearbox Bearing and Seal Rebuild Kit VW SEAT 462020910

02K 5-Speed Transmission Bearing & Seal Rebuild Kit – 462020910

Fits VW Caddy, Polo, SEAT Inca & Cordoba (24mm Input Shaft)

This LuK gearbox rebuild kit includes OE-quality bearings and seals produced by Schaeffler Group under the LuK, INA, and FAG brands — the same parts used on Volkswagen's original production lines. Designed specifically for the VW 02K 5-speed manual transmission with a 24mm input shaft, this kit suits various models including the VW Caddy, Polo, and SEAT Inca / Cordoba.

Important Fitment Information

• Fits VW 02K transmission with 24mm input shaft diameter

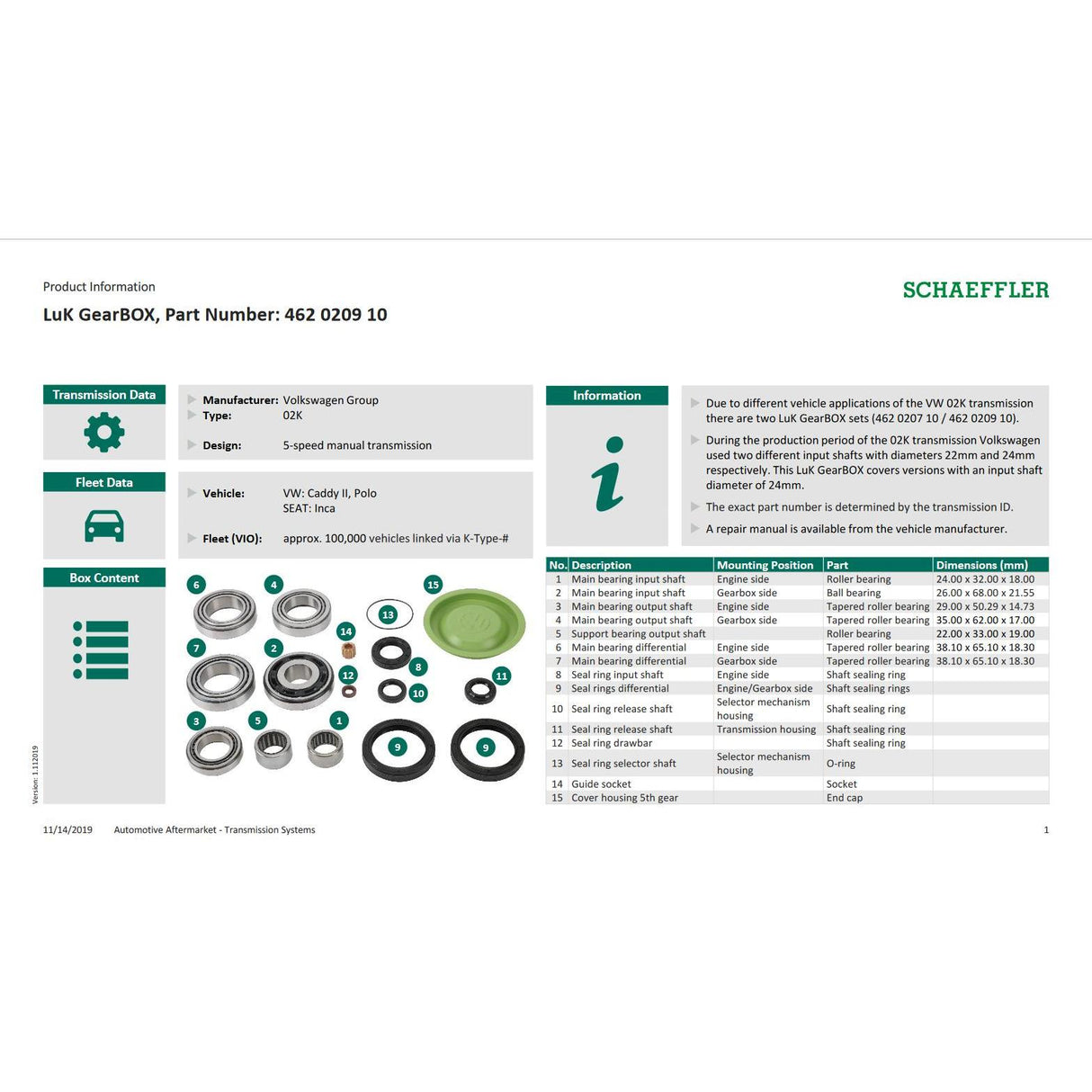

• Two LuK kits exist for 02K gearboxes: 462 0207 10 (22mm) and 462 0209 10 (24mm)
• This listing is for the 24mm input shaft version
• Exact fitment is determined by your transmission ID code

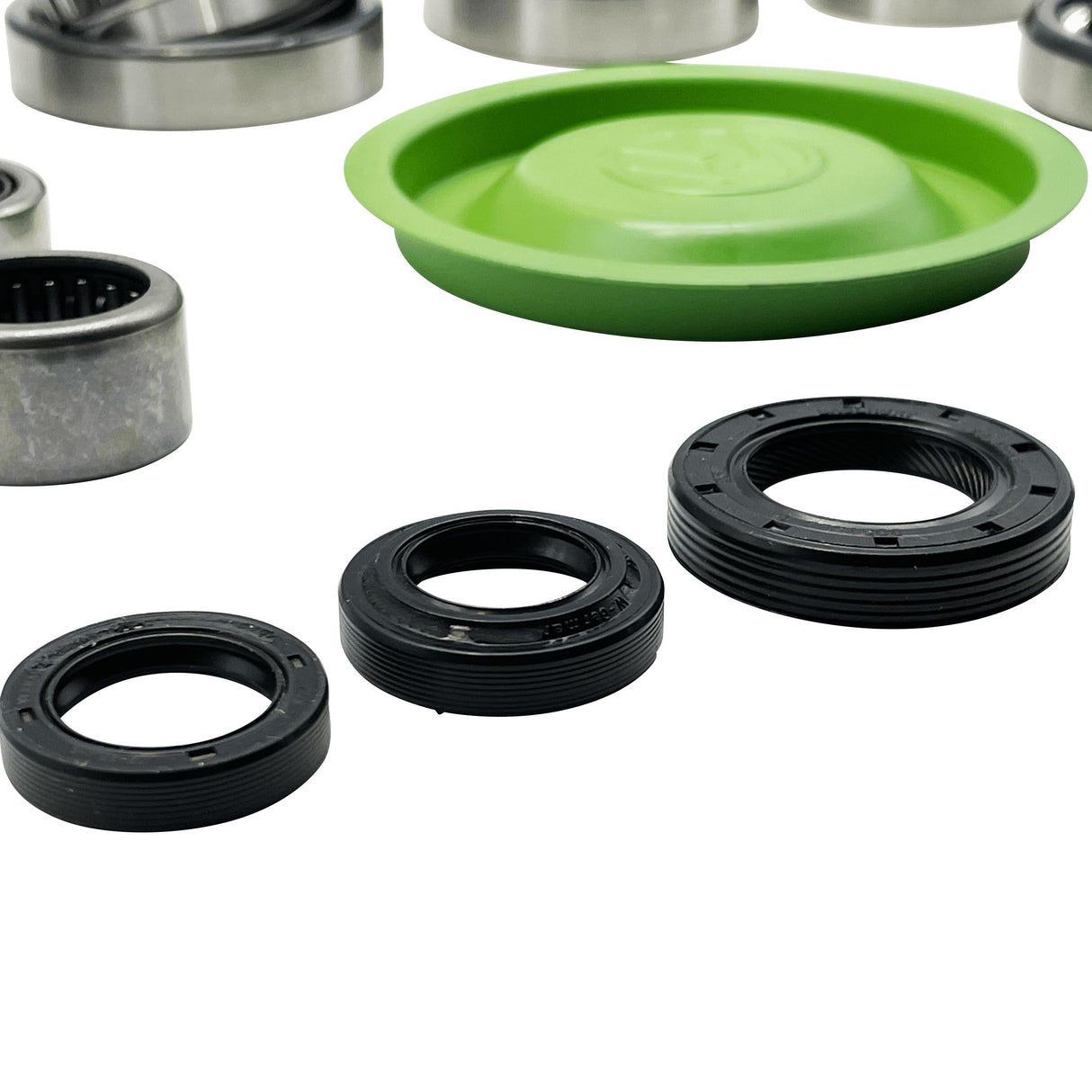

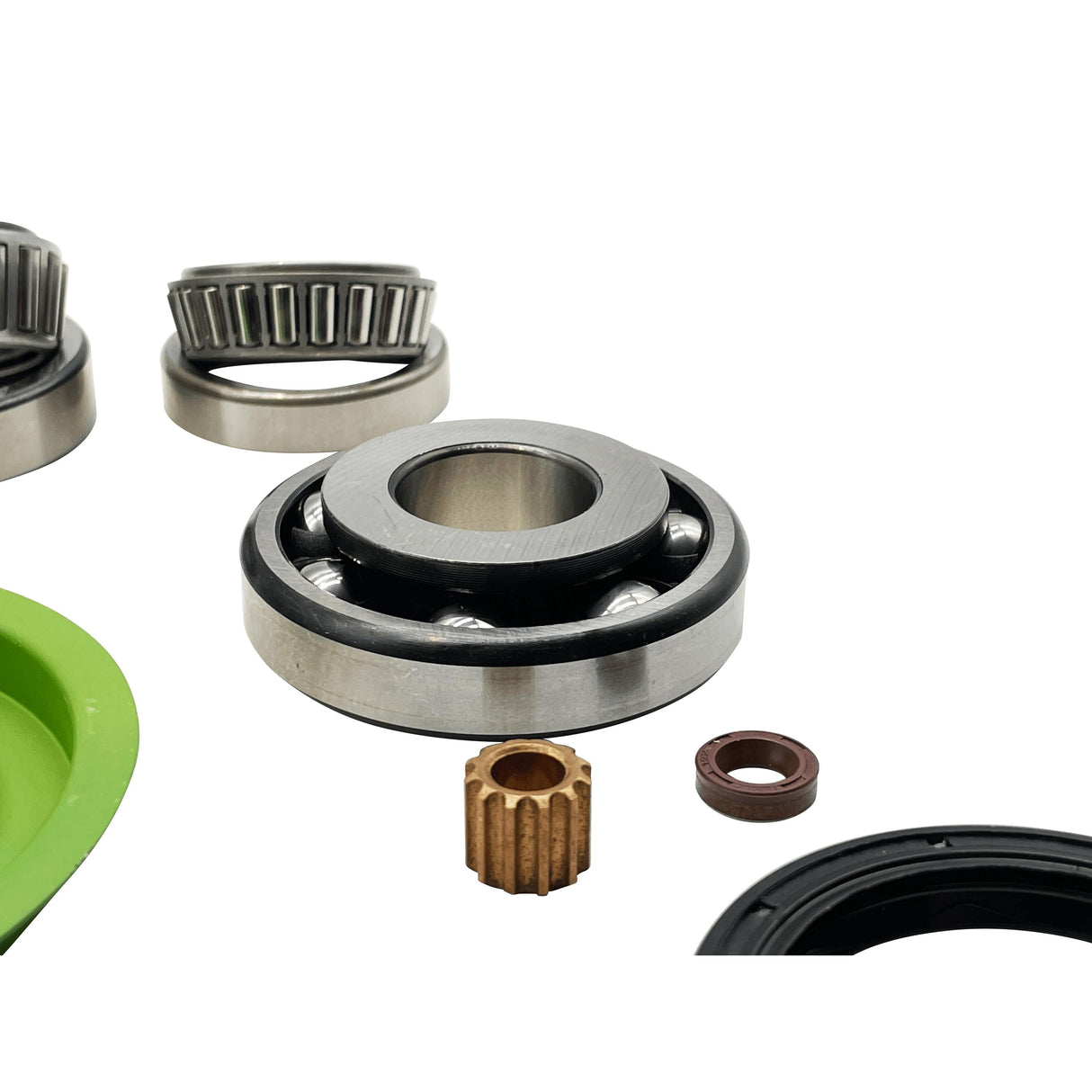

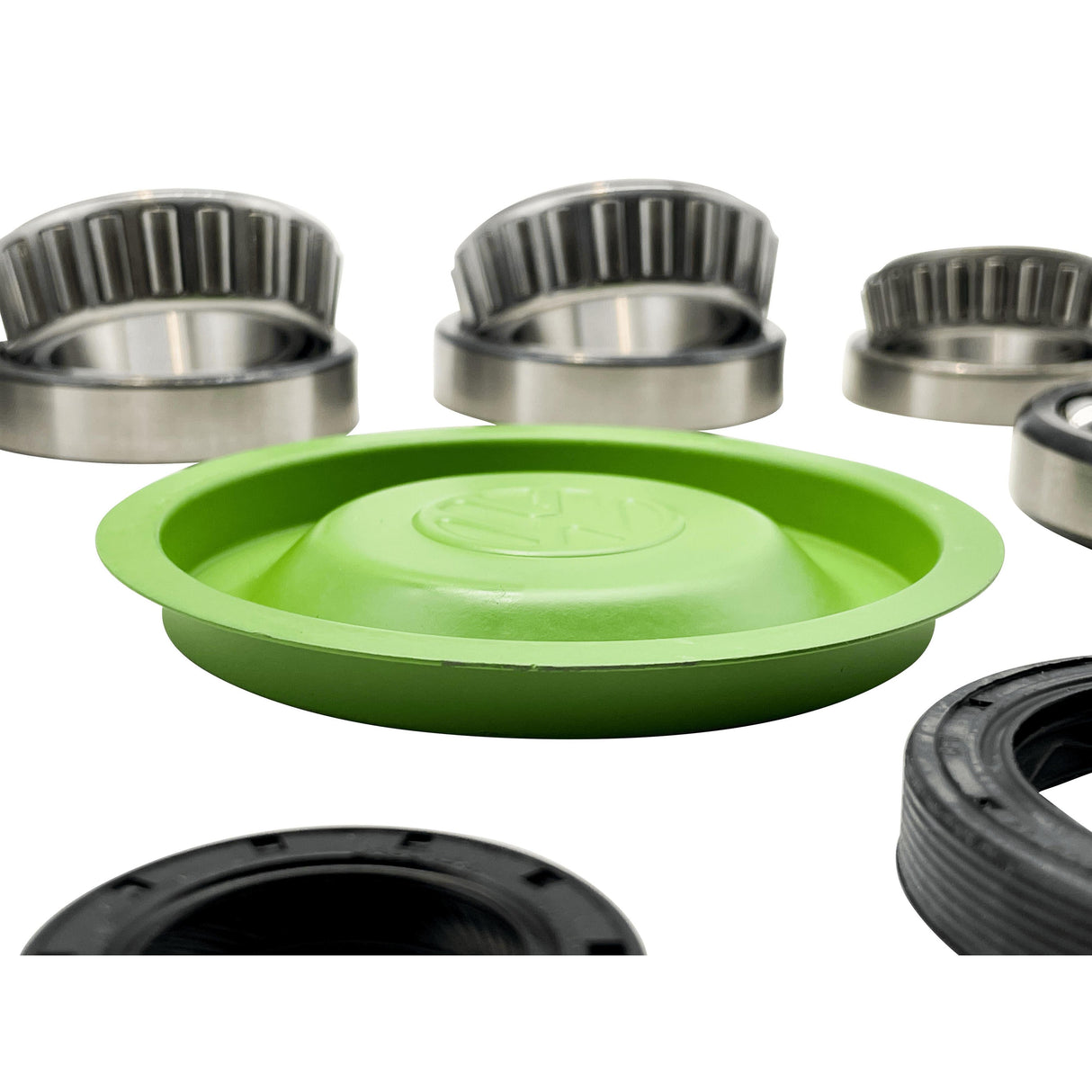

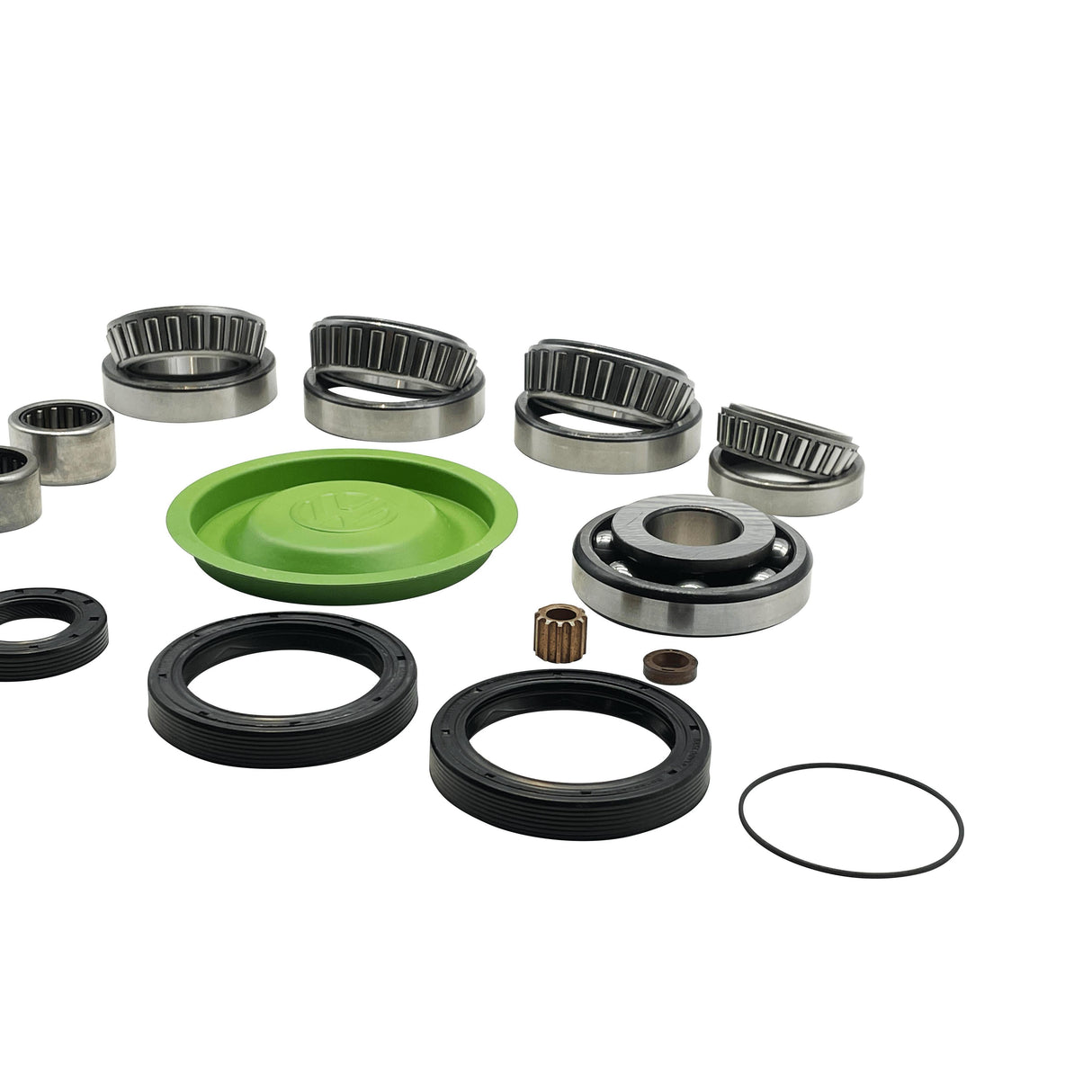

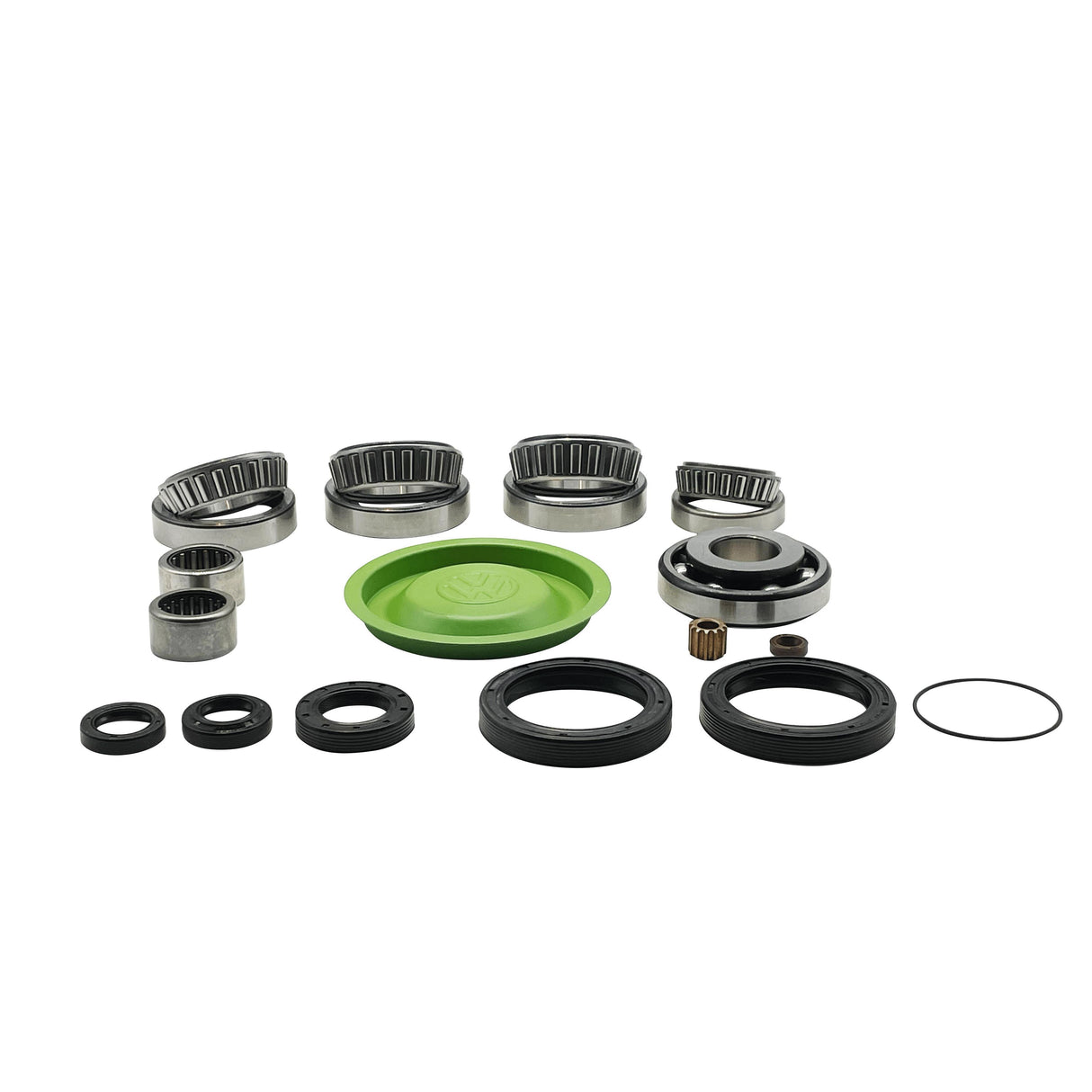

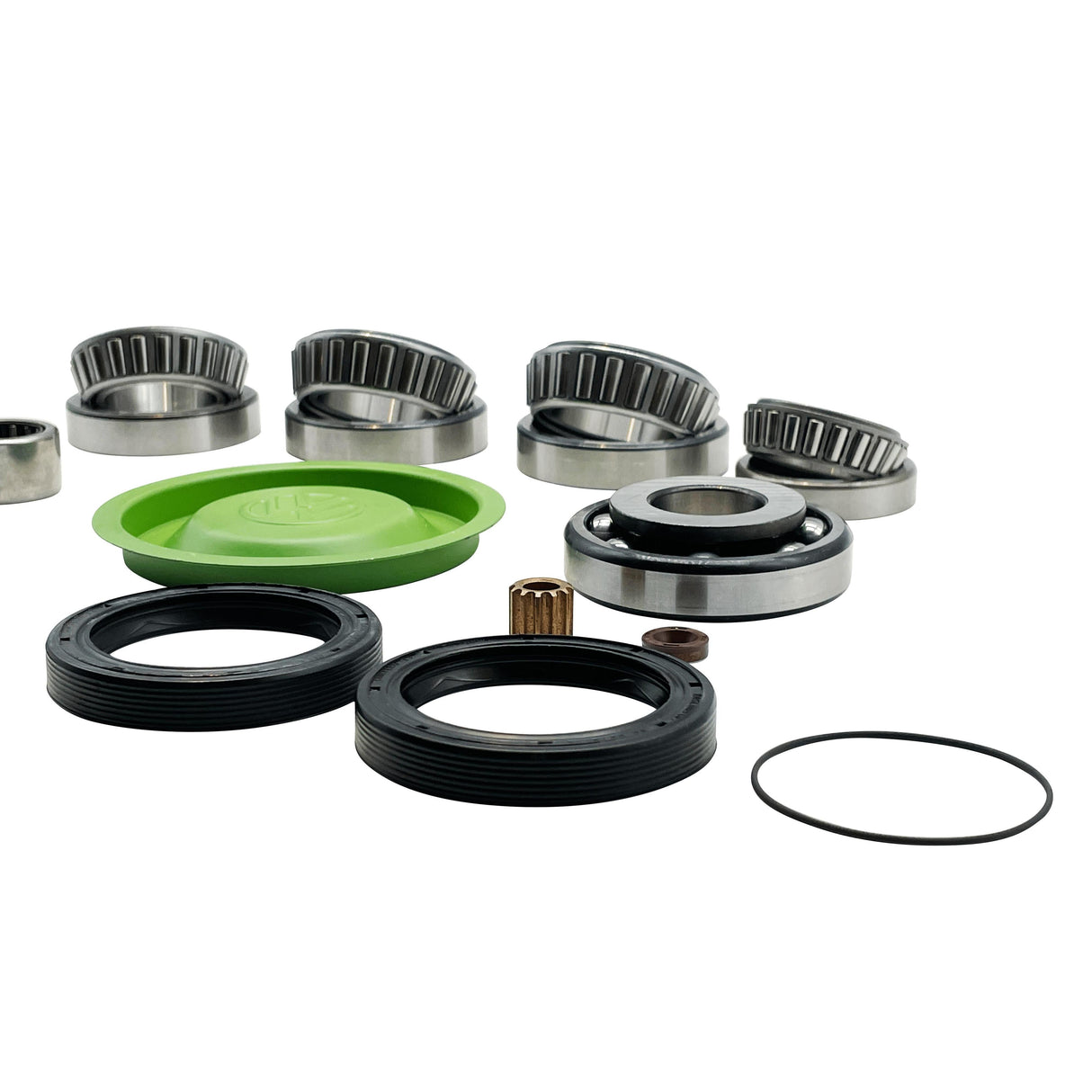

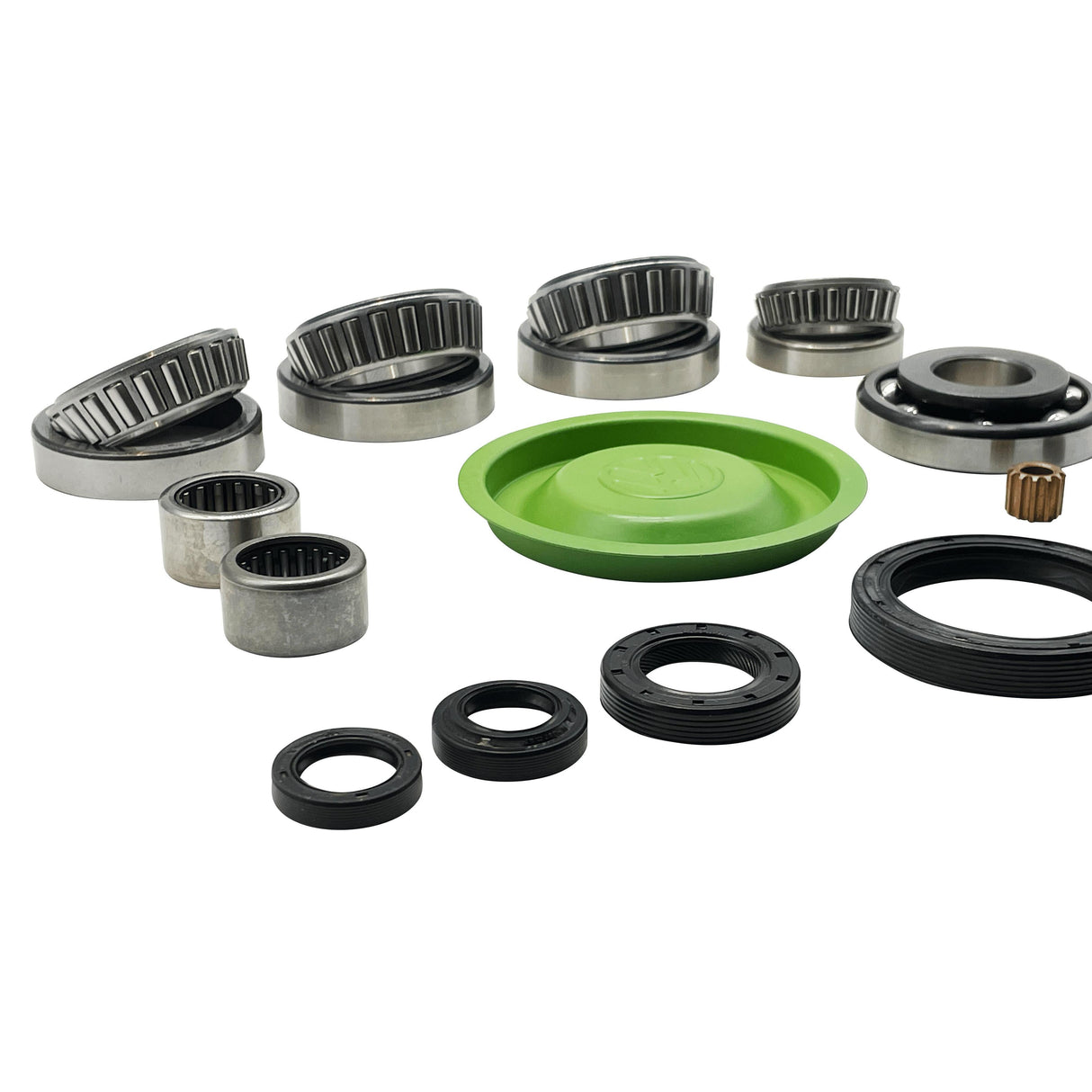

Included in This Overhaul Kit

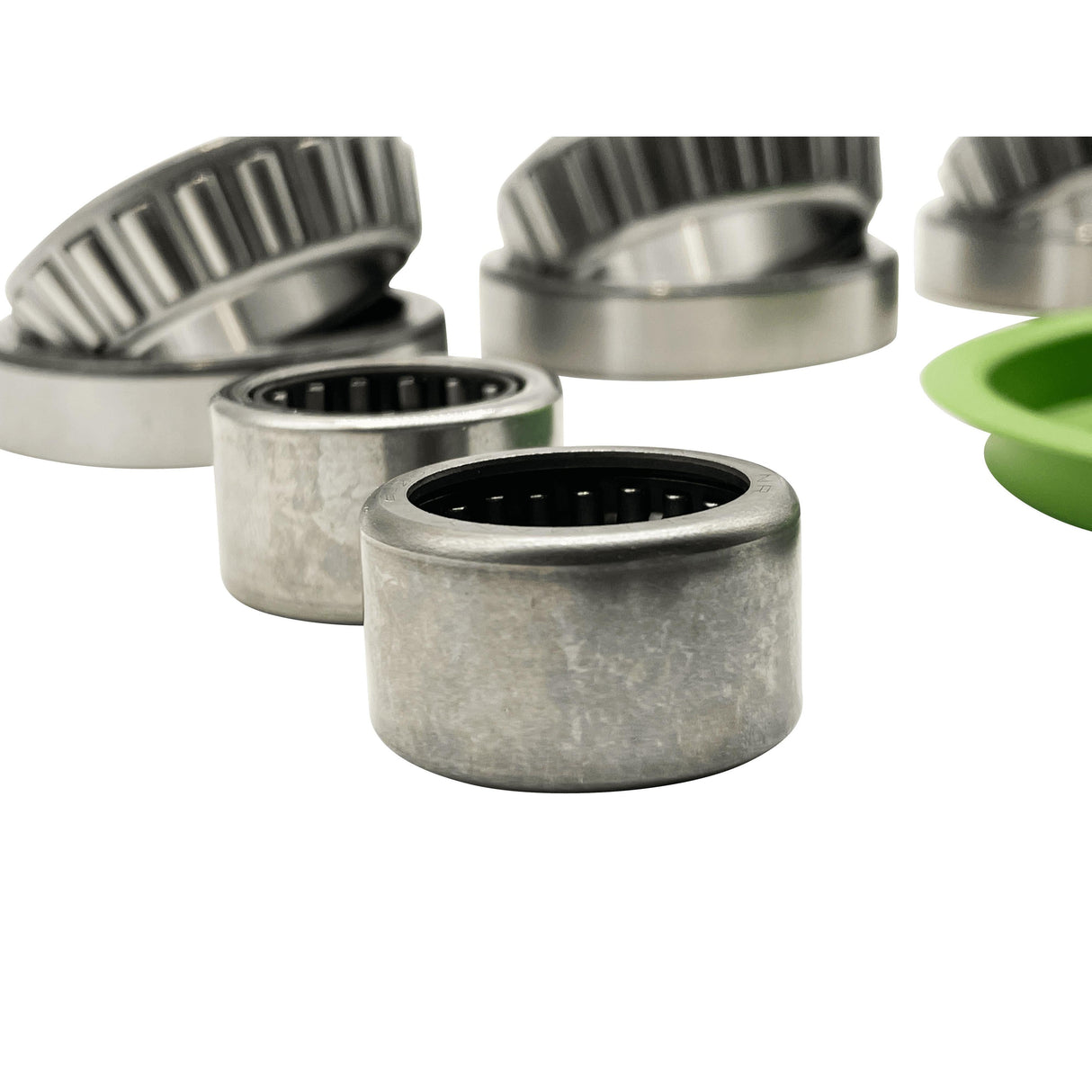

Main Shaft Bearings:

• Input Shaft Bearing – Engine Side: 24.00 x 32.00 x 18.00mm
• Input Shaft Bearing – Gearbox Side: 26.00 x 68.00 x 21.55mm

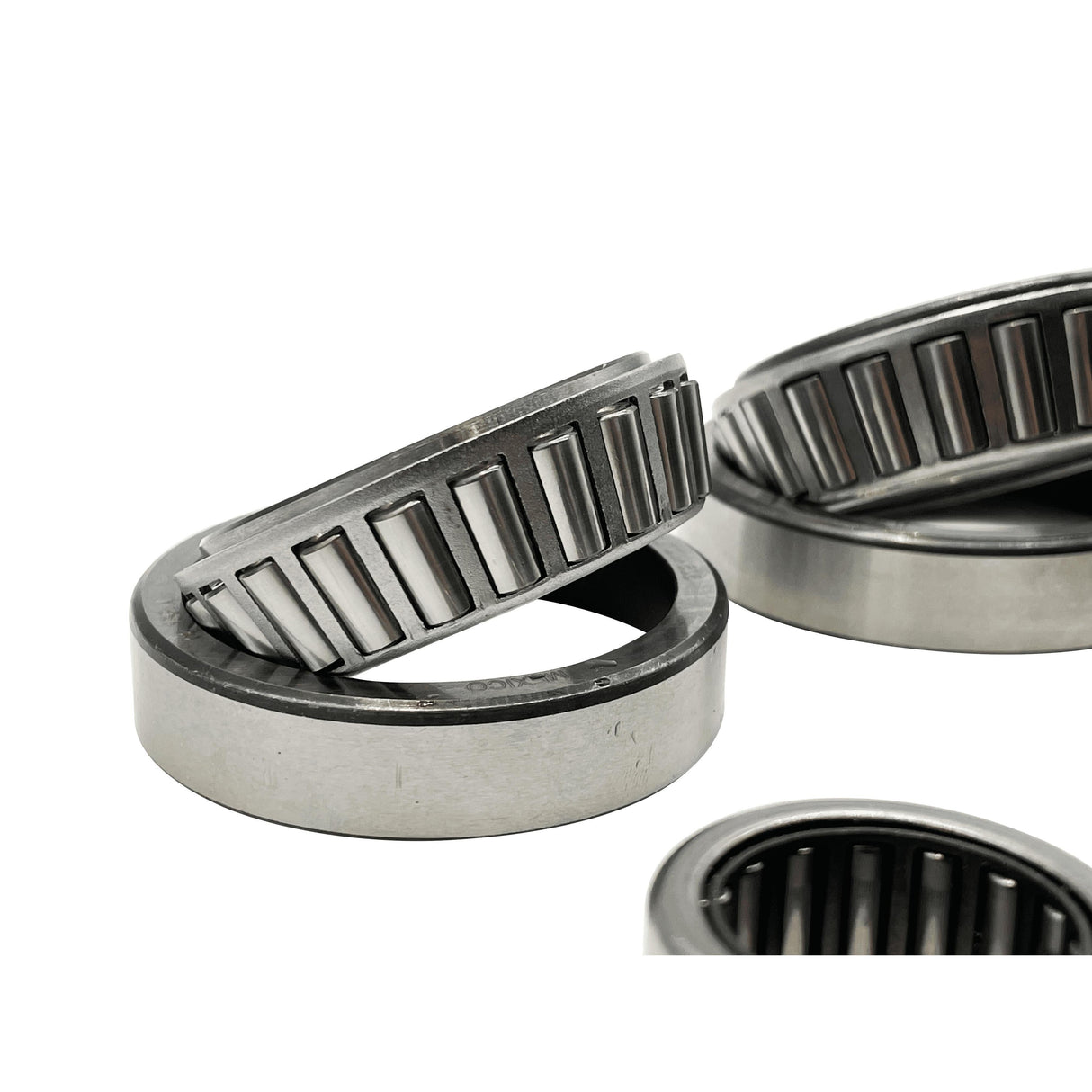

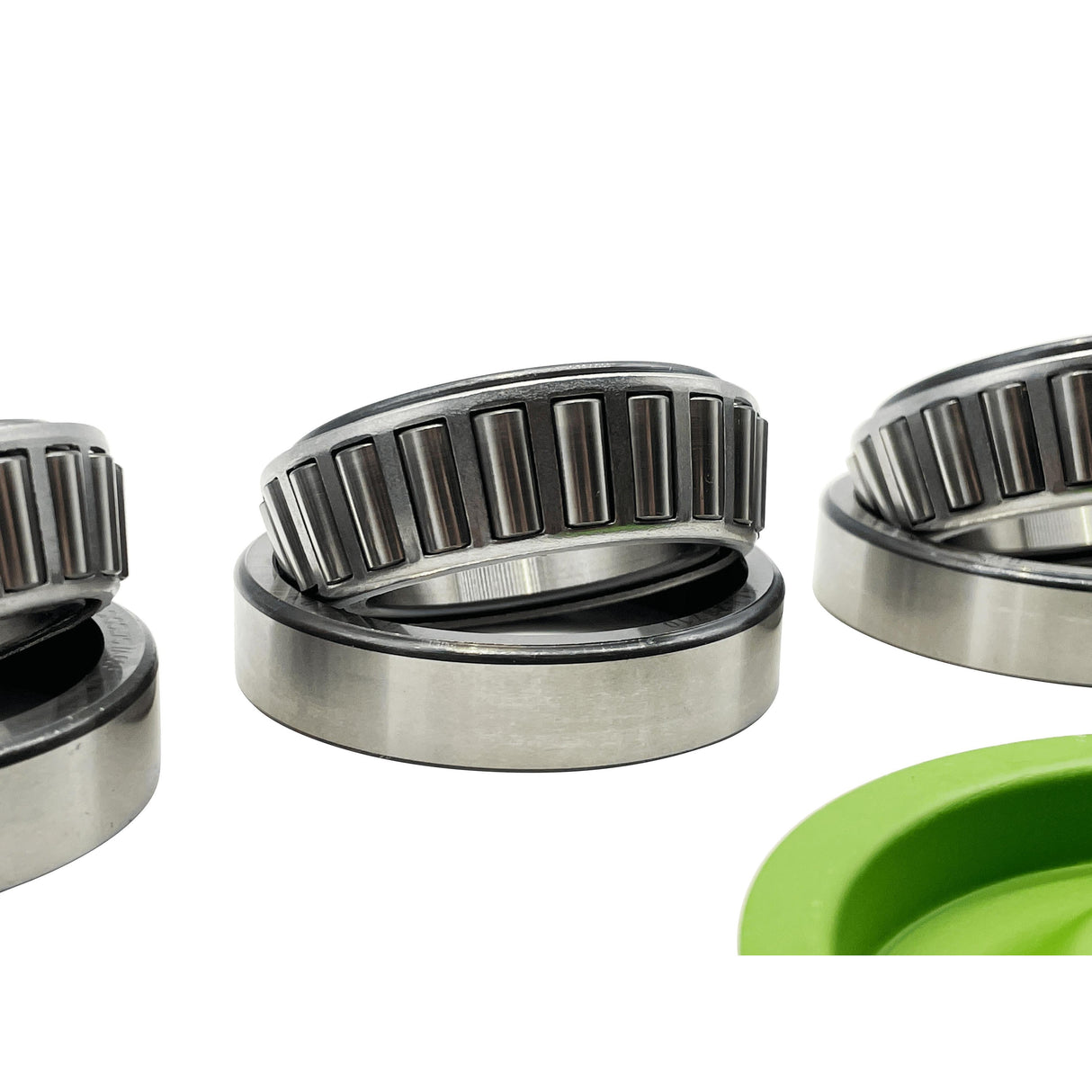

• Output Shaft Bearing – Engine Side (Tapered): 29.00 x 50.29 x 14.73mm
• Output Shaft Bearing – Gearbox Side (Tapered): 35.00 x 62.00 x 17.00mm
• Support Bearing – Output Shaft: 22.00 x 33.00 x 19.00mm

Differential Bearings:

• Engine Side (Tapered): 38.10 x 65.10 x 18.30mm
• Gearbox Side (Tapered): 38.10 x 65.10 x 18.30mm

Oil Seals & Hardware:

• Input Shaft Seal – Engine Side
• 2x Differential Shaft Seals – Engine & Gearbox Side
• Selector Mechanism Housing Seal
• Transmission Housing Seal – Release Shaft
• Drawbar Shaft Seal
• Selector Shaft O-Ring Seal
• Guide Socket
• 5th Gear Cover Housing – End Cap

Frequently Asked Questions

How do I know which 02K kit I need — 22mm or 24mm?

The 02K gearbox was produced in two input shaft variants. The kit you need depends on your gearbox code. Check the stamp on the gearbox casing or send us your UK registration plate or VIN and we will confirm the correct version.

What vehicles use the VW 02K gearbox?

The 02K is used in the VW Caddy, Polo, Lupo, and SEAT Inca / Cordoba — primarily smaller VAG group models with smaller-displacement engines.

Are the bearings in this kit OE quality?

Yes. All components are produced by Schaeffler Group (LuK, INA, FAG), the same manufacturer that supplied the original bearings to Volkswagen's production line.

Does this kit include all the seals I need for a full rebuild?

Yes. The kit includes input shaft seals, differential shaft seals, selector mechanism seals, and O-rings — everything needed to reseal the gearbox during a bearing replacement.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2046
