SNR Tapered Roller Bearing for M20 28x55x13.6/10mm

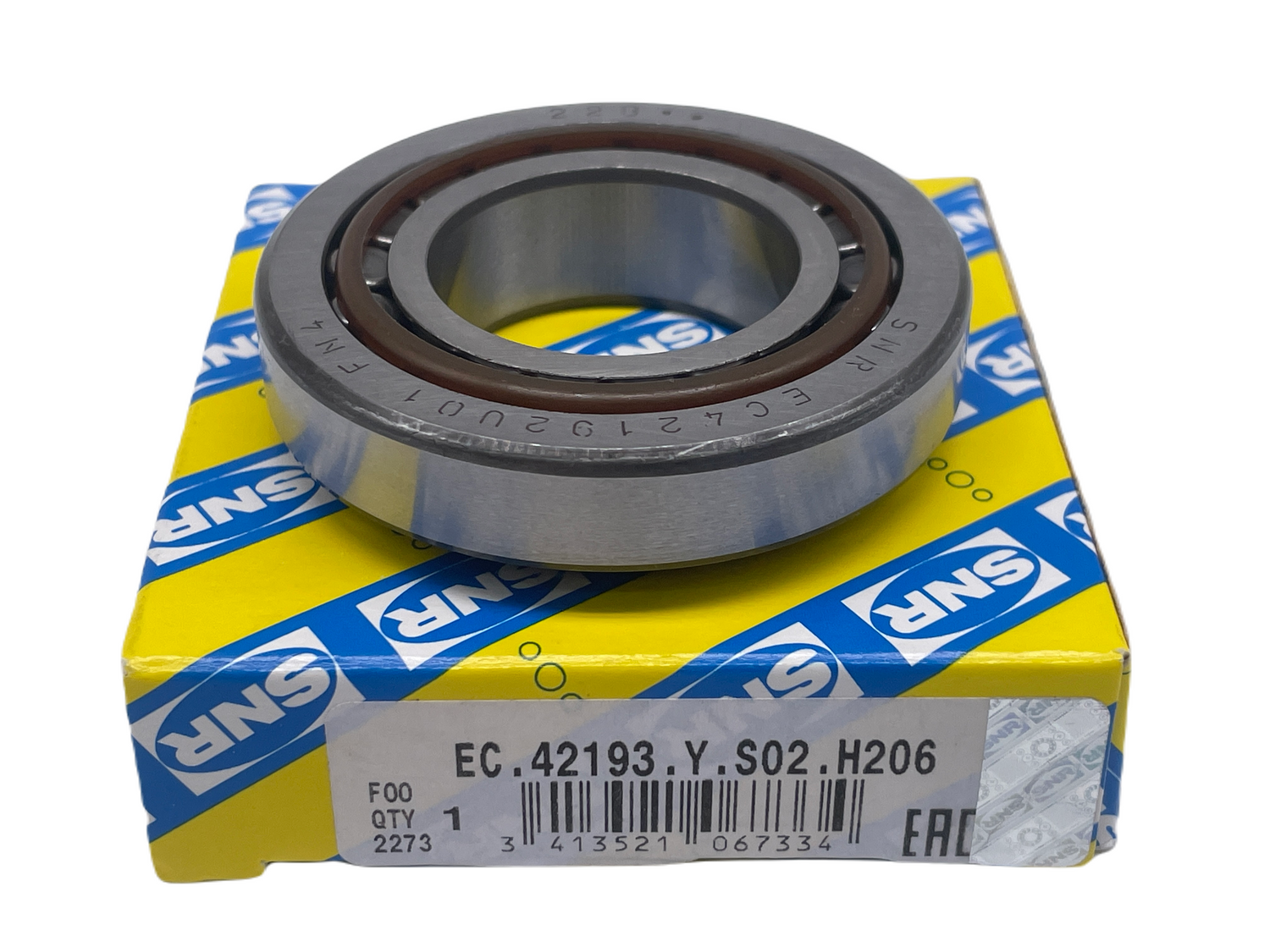

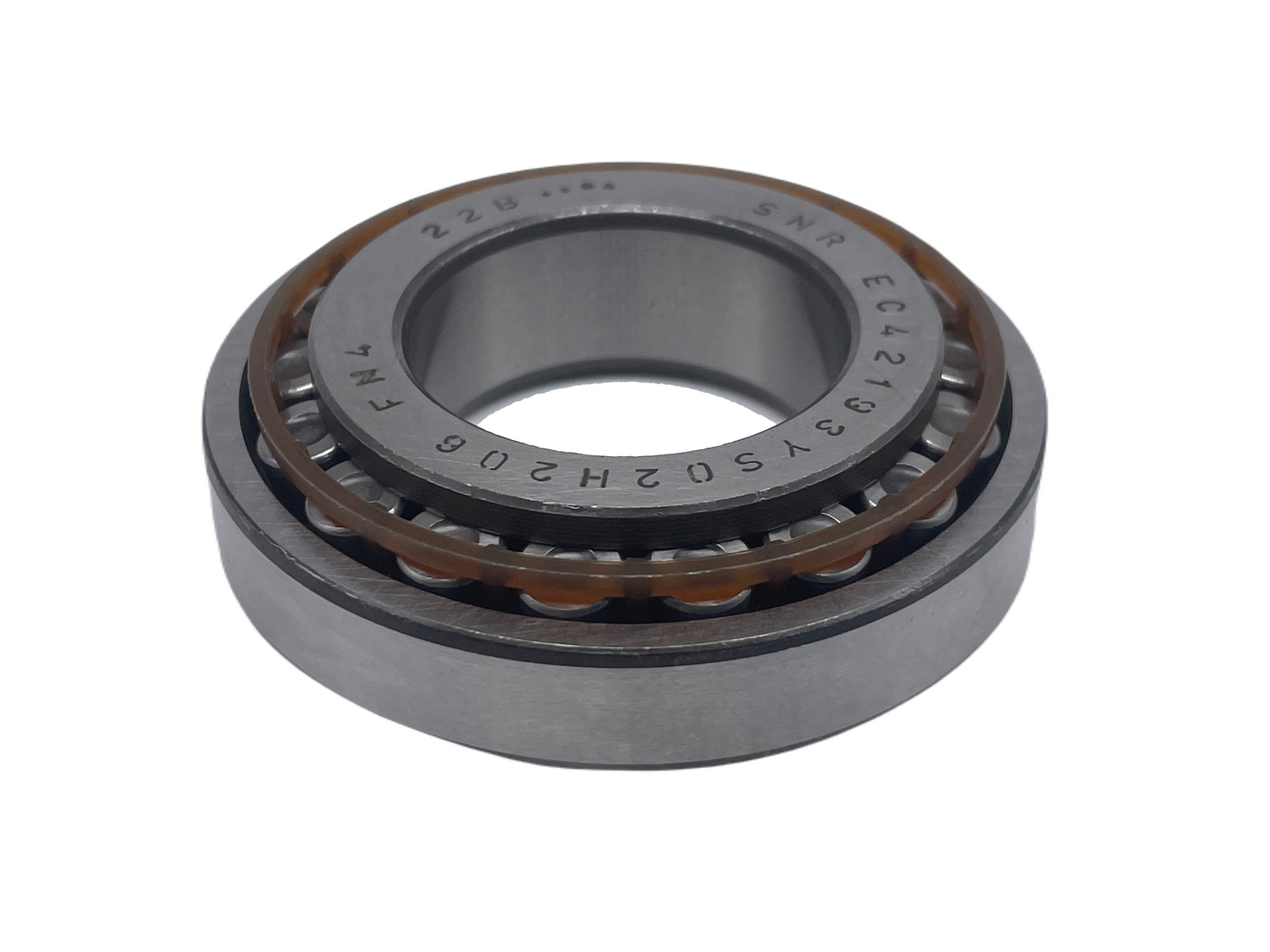

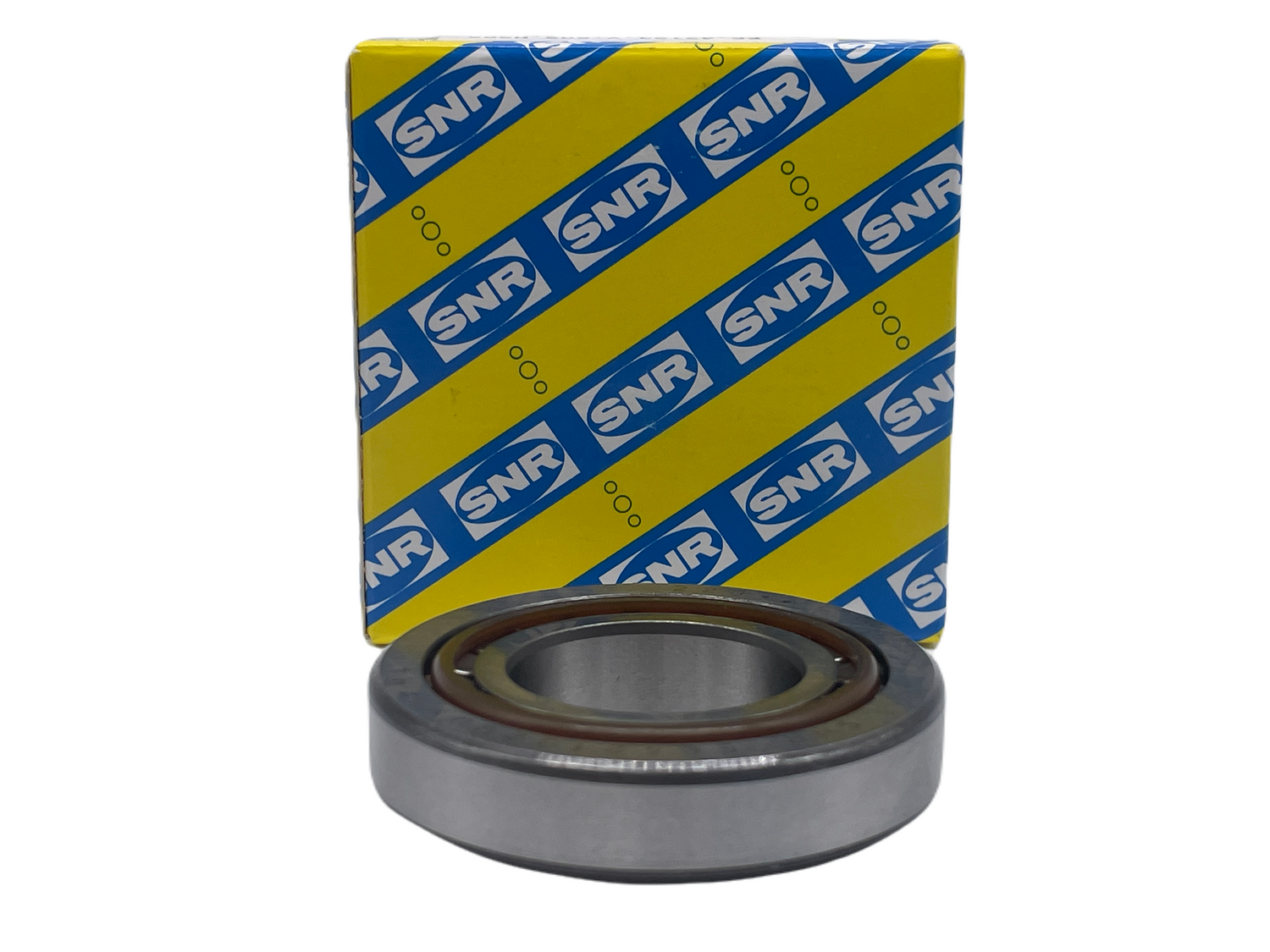

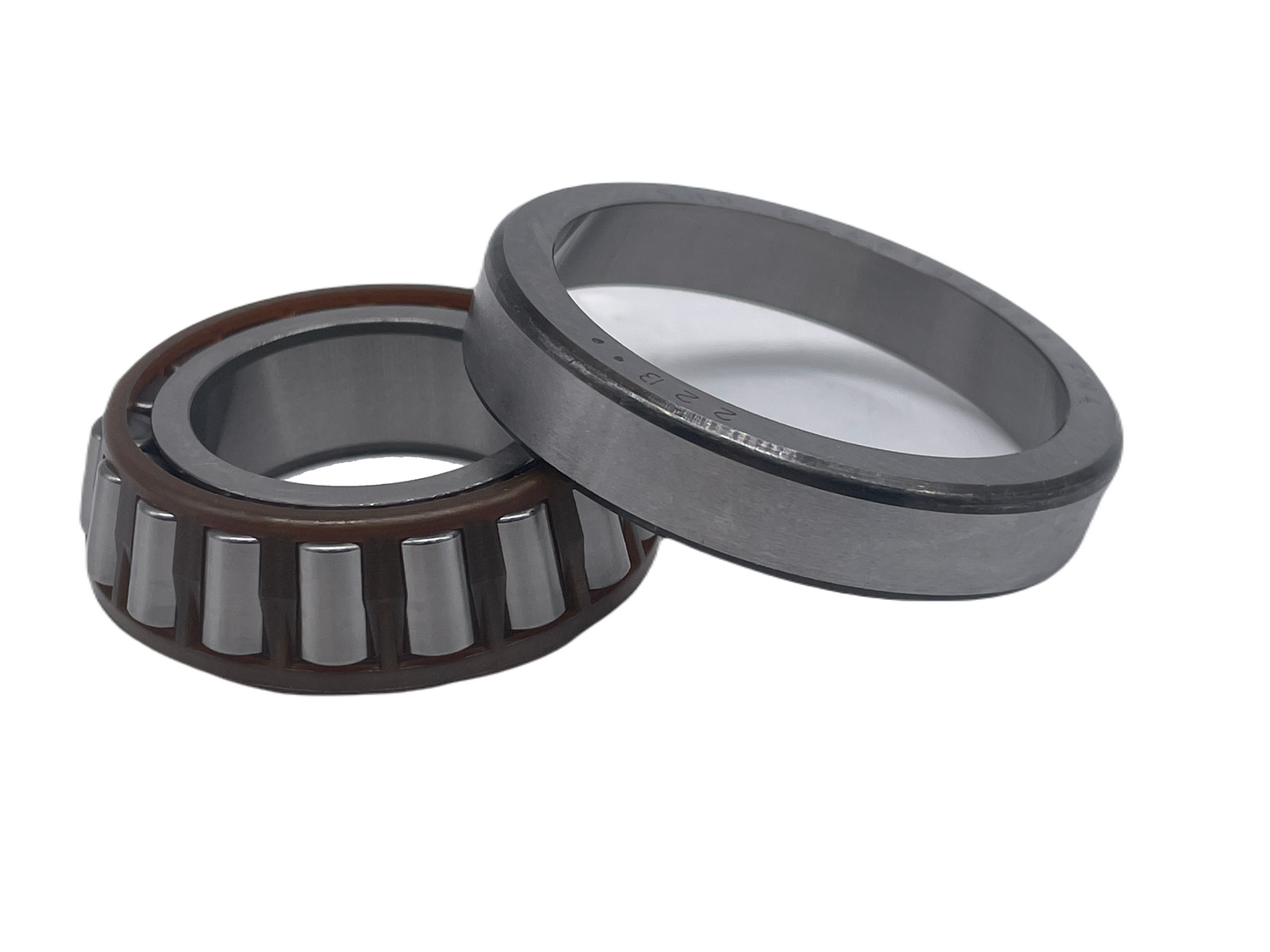

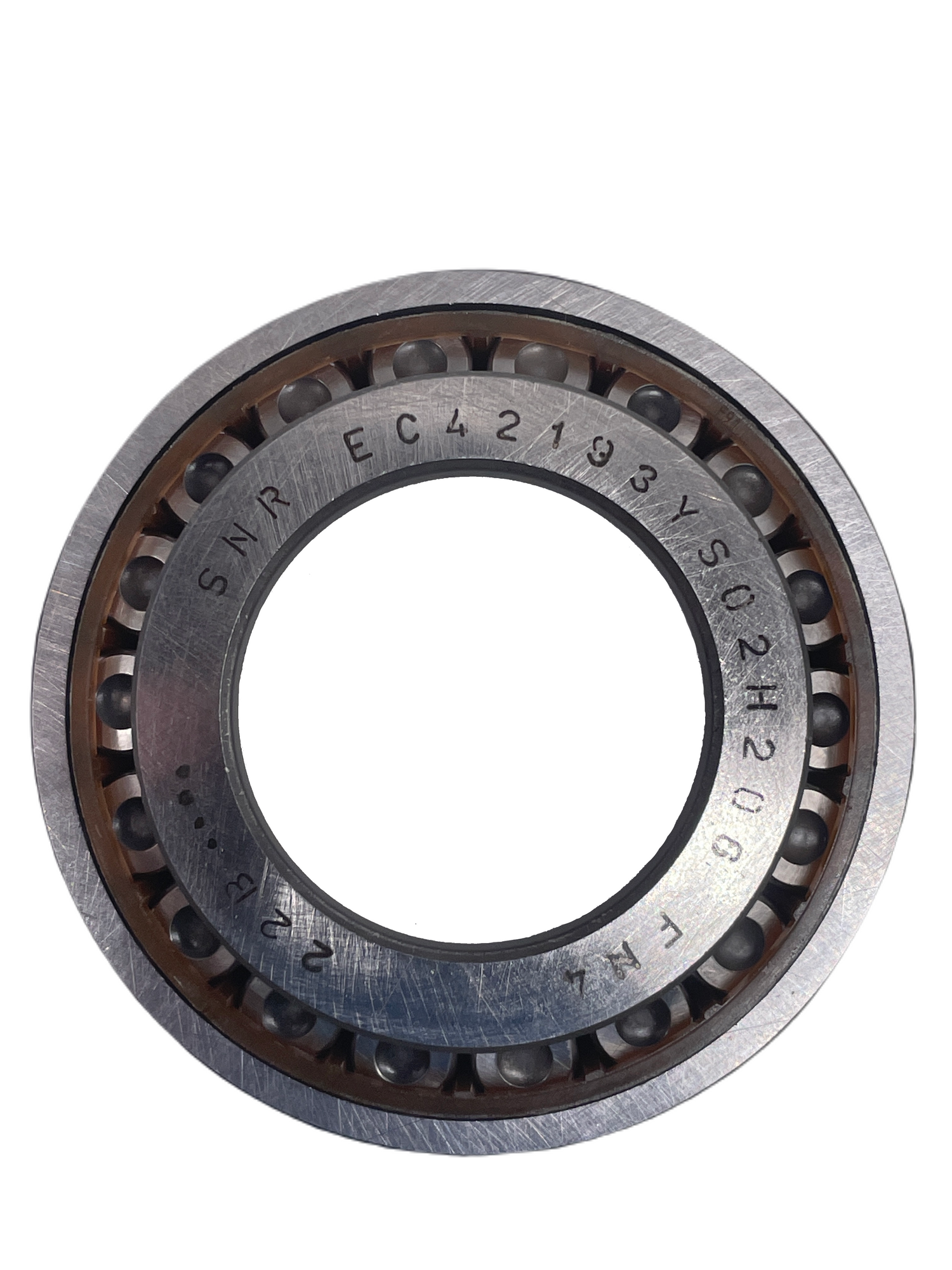

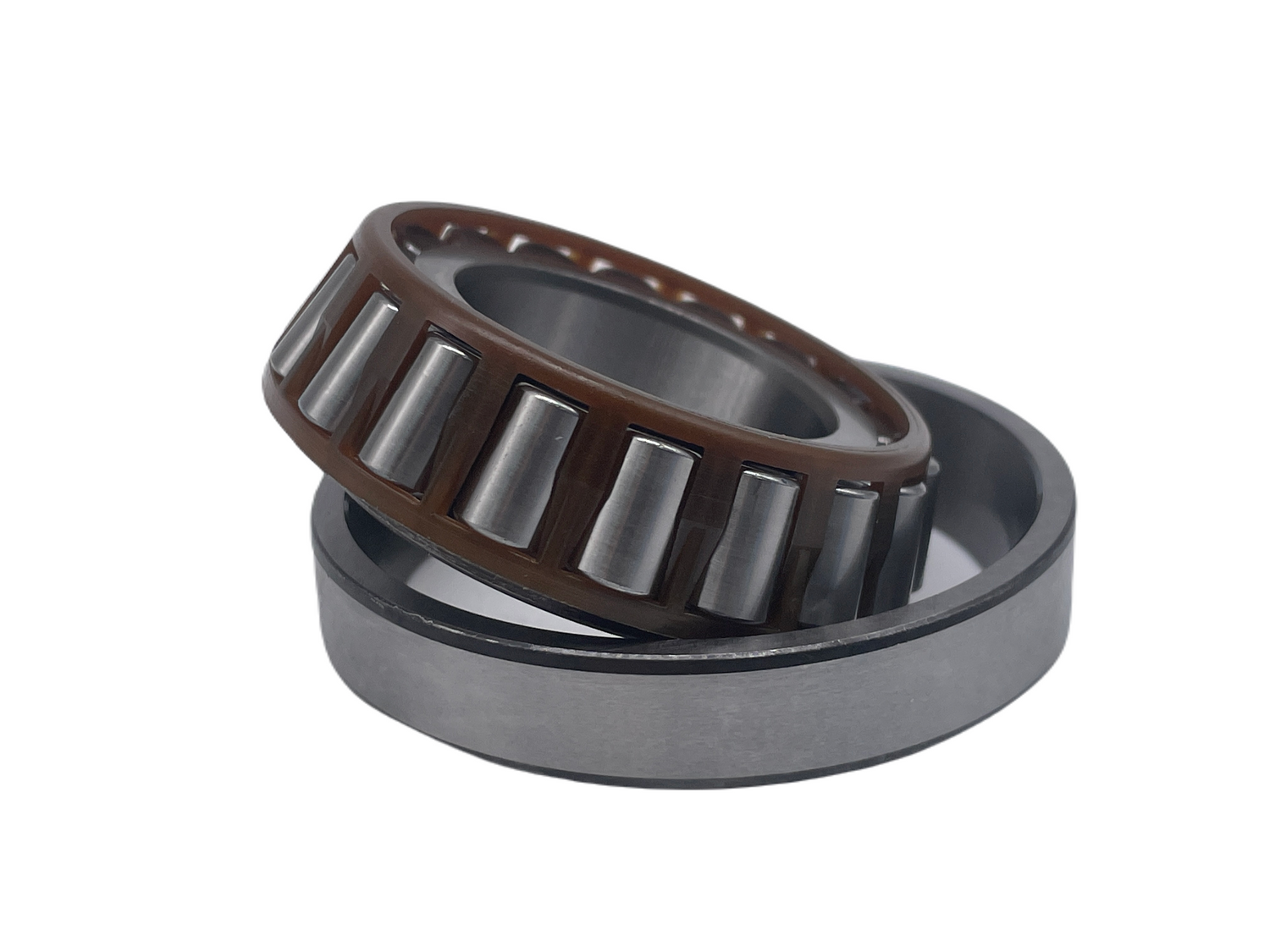

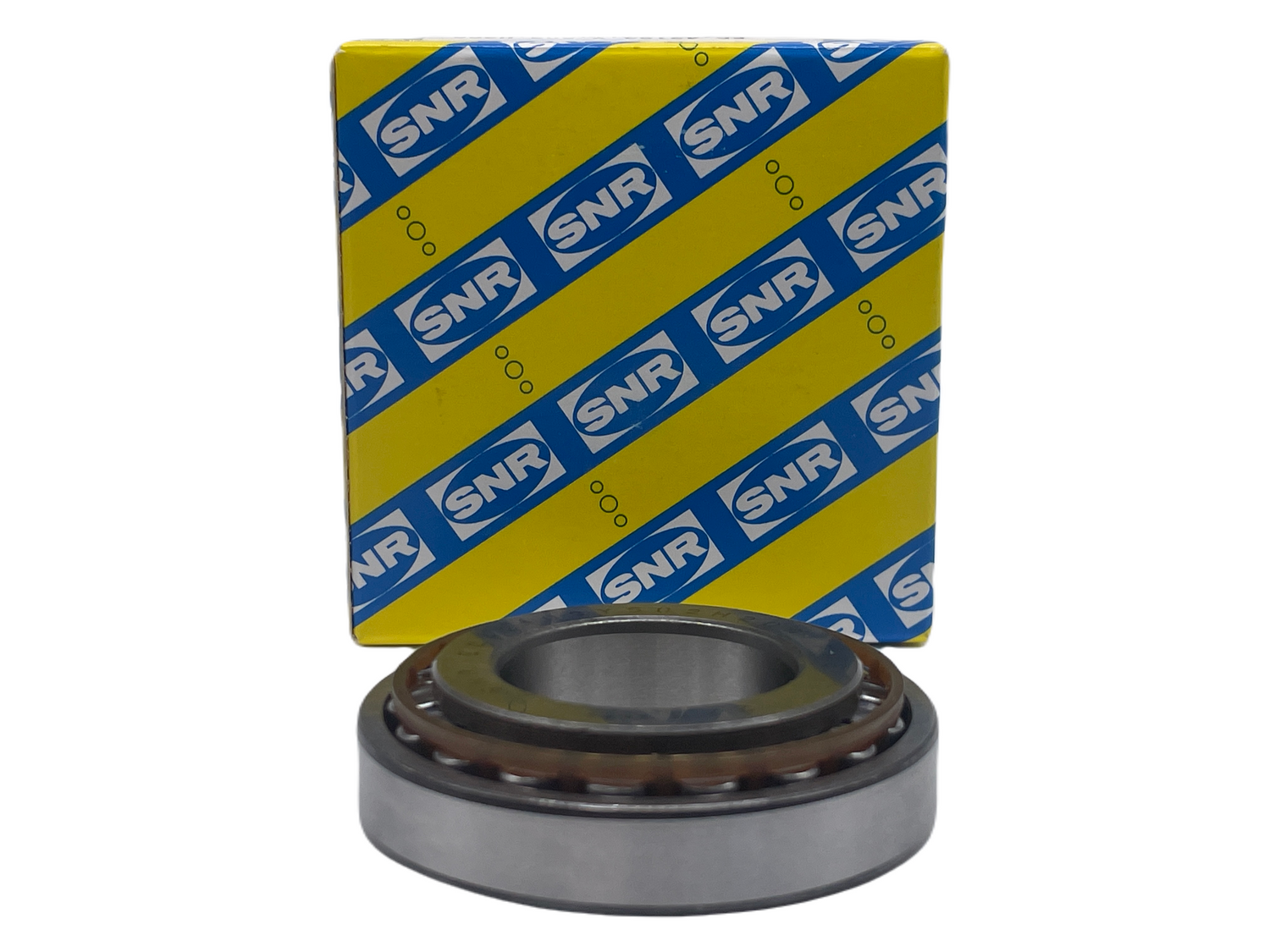

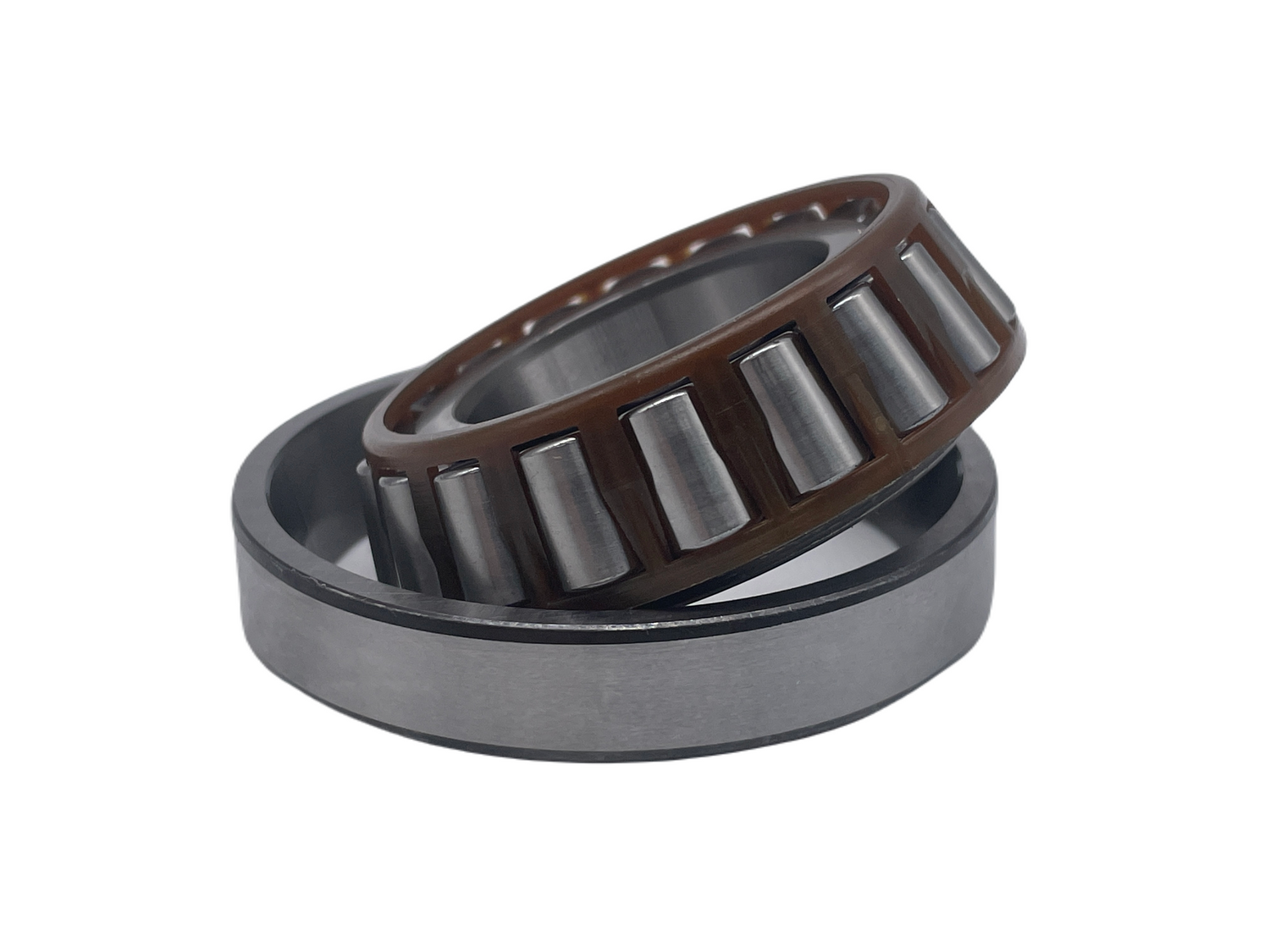

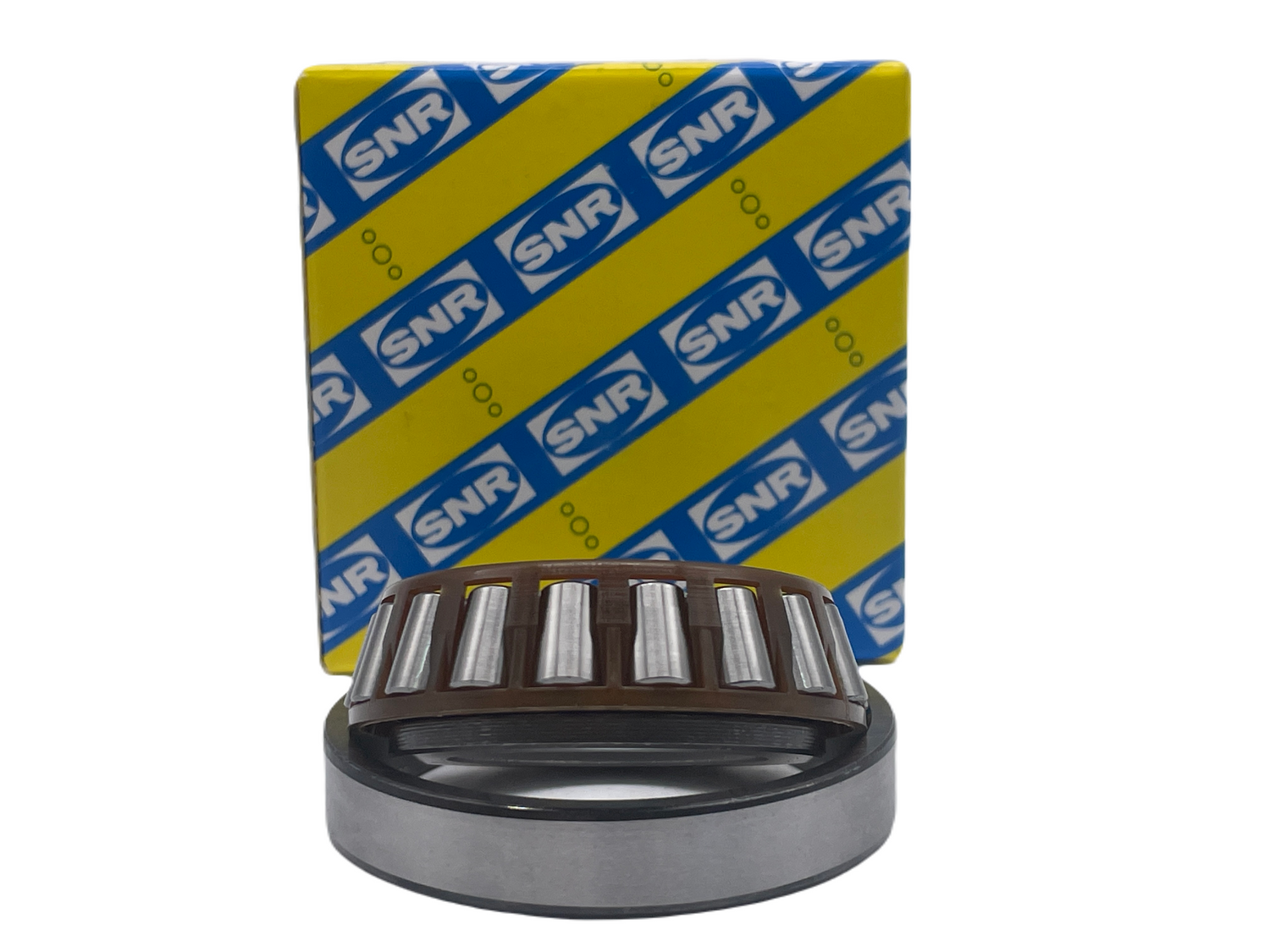

SNR Tapered Roller Bearing – EC.42193.Y.S02.H206 (28 x 55 x 13.6/10mm) – M20 Gearbox

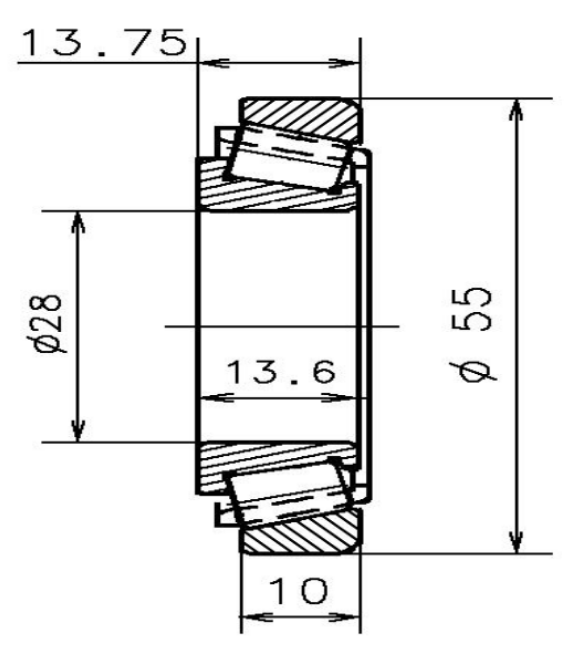

SNR tapered roller bearing EC.42193.Y.S02.H206 for the Opel/Vauxhall M20 manual gearbox. This bearing supports the gearbox shaft assembly and is a direct replacement for the OE specification. Dimensions: 28mm bore × 55mm OD × 13.6mm overall width / 10mm cup width.

Brand: SNR (NTN-SNR)

Part Number: EC.42193.Y.S02.H206 (also EC42193YS0206)

Fits gearbox: Opel / Vauxhall M20 manual gearbox

Inner diameter: 28mm

Outer diameter: 55mm

Width: 13.6mm overall / 10mm cup

Cross-references: NTN-SNR EC42193YS02H206 · Fiat 55181941 · Opel 55181941 · NP 797735 / NP 430273

What vehicles use the M20 gearbox?

The M20 is used in various Opel and Vauxhall front-wheel drive models including the Vectra, Astra, Zafira, and related Fiat/Alfa Romeo variants (C514 family). Confirm your gearbox type with your VIN or gearbox number.

Why replace gearbox shaft bearings?

Worn shaft bearings cause gear noise, whine under load, and can lead to shaft misalignment that accelerates wear on gears and synchros. Early replacement during a rebuild extends overall gearbox life.

What are the cross-reference part numbers for this bearing?

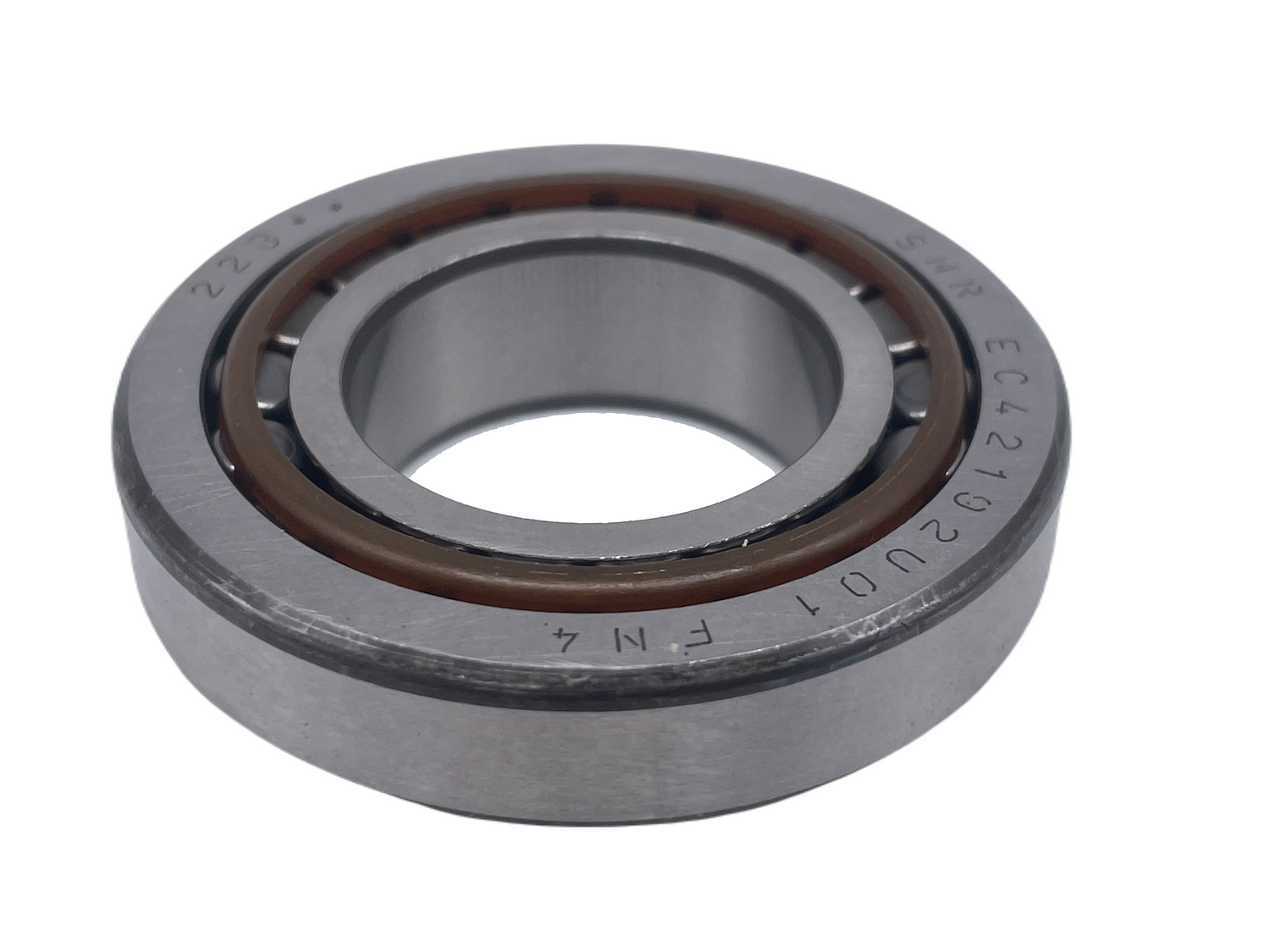

This bearing is also listed as: EC42193YS0206 / 42192U01 · NP 797735 / NP 430273 · EC 42193 S02 H206 · 55574104 · EC42193YS02H206 (NTN-SNR) · 55181941 (Fiat / Opel).

Is SNR the same as NTN?

SNR Roulements was acquired by NTN Corporation and now operates as NTN-SNR. The bearing specifications and quality remain consistent with the original SNR brand.

Do I need to replace both bearings on the shaft?

It is always good practice to replace shaft bearings in pairs during a full gearbox rebuild to ensure even load distribution and eliminate mismatched wear.
