SKU: ET1962

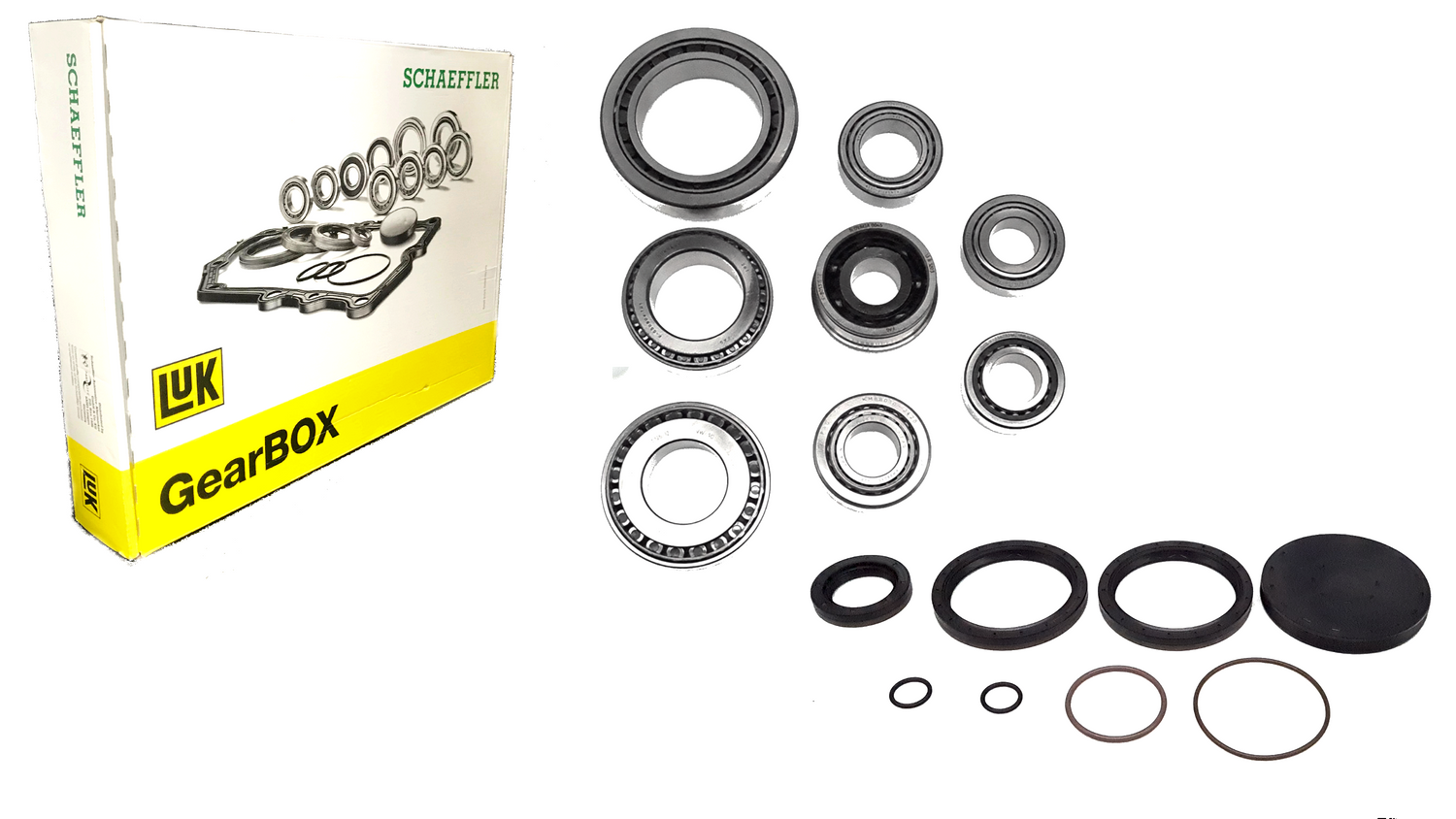

LuK VW Gearbox Bearing and Seal Kit 6 Speed Manual 0A5 462019910

£274.99 GBP
Tax included Shipping calculated at checkout.

Delivery and Shipping

UK Shipping

1-2 day delivery via express courier when ordered before 14:00pm*

International Shipping

3-5 Business Days*

For International orders

It is the responsibility of the buyer to pay any custom charges or excise duties. *Delivery times may vary depending on external factors and are to be used as an estimate only.

View our Shipping Policy

Description

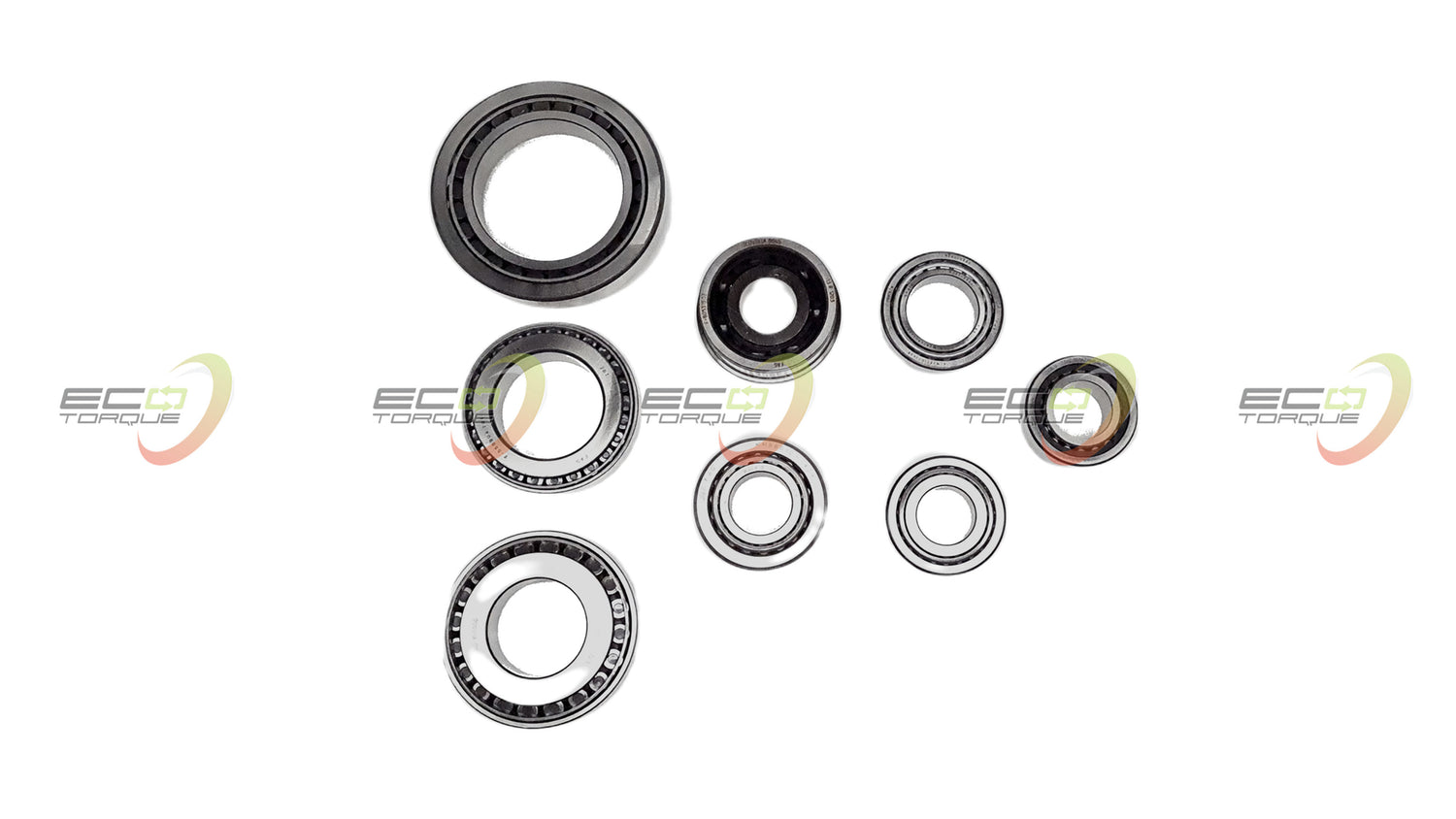

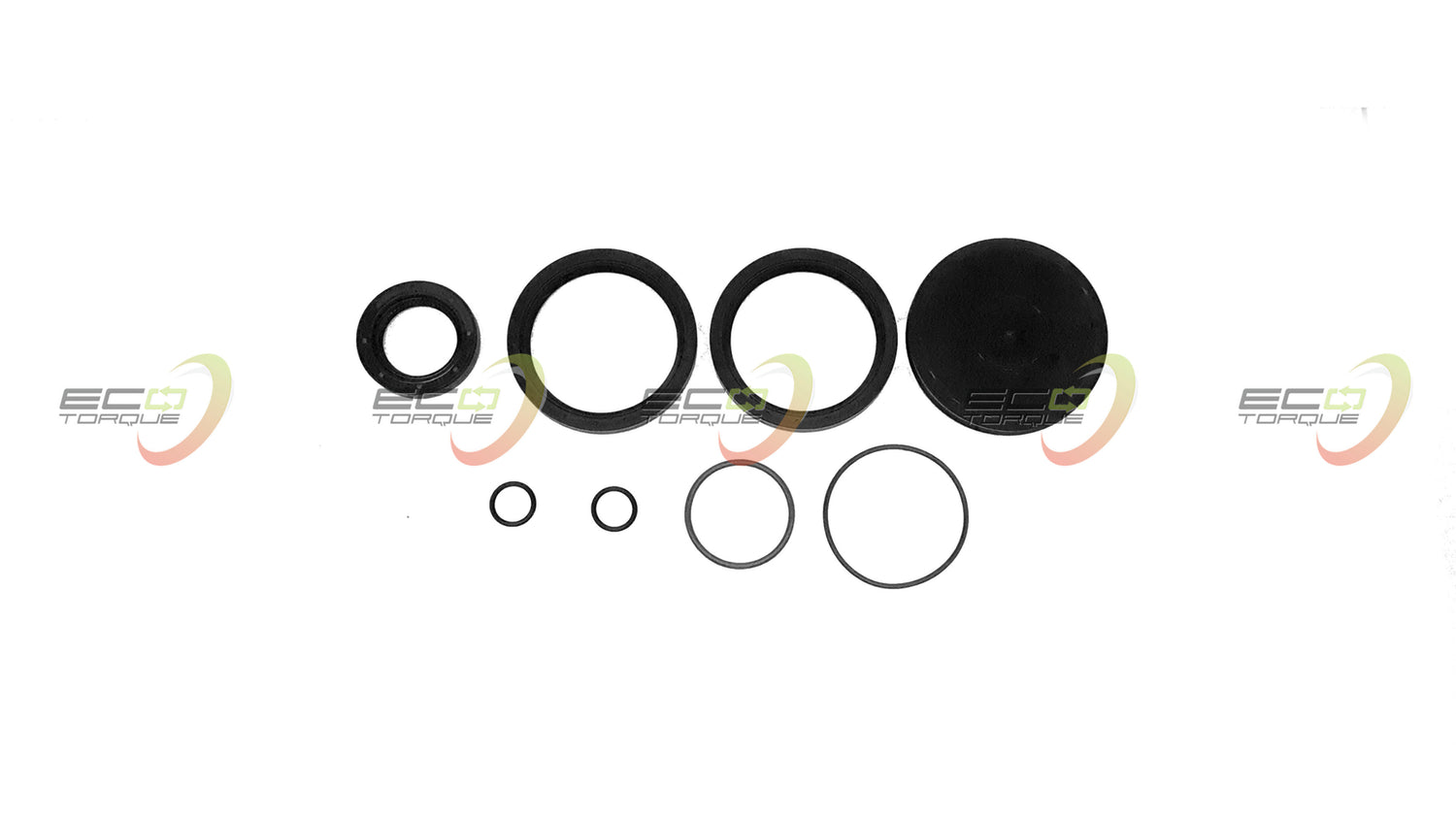

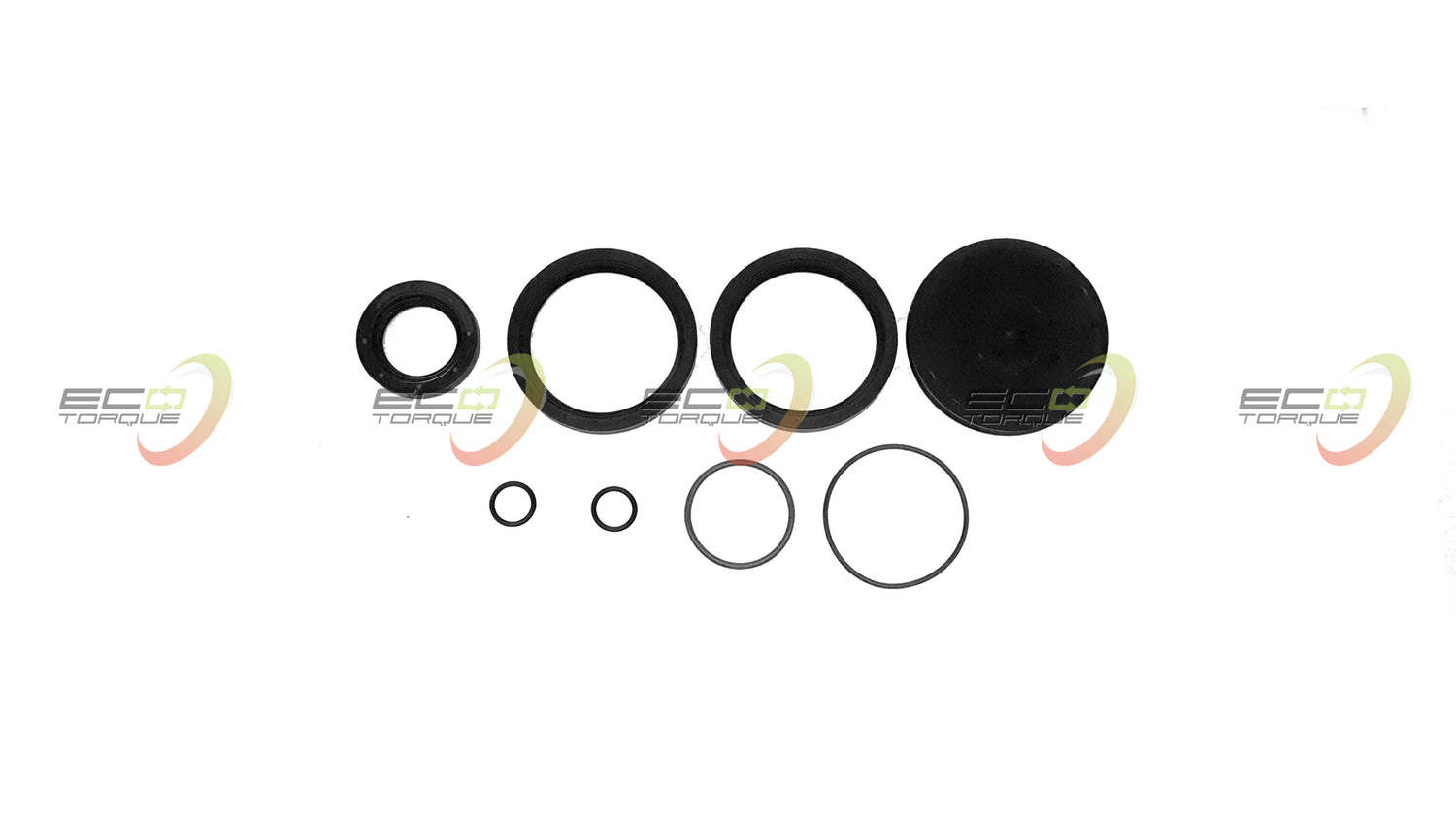

LuK VW Gearbox Bearing and Seal Kit 6 Speed Manual 0A5 462019910Due to different vehicle applications of the VW 0A5 transmission there are two LuK GearBOX sets (462 0199 10 and 462 0200 10). The exact part number is determined by the transmission ID.A repair manual is available from the vehicle manufacturer.No. Description Mounting Position Part Dimensions (mm)1 Main bearing input shaft Engine side Roller bearing 30.20 x 59.00 x 22.002 Main bearing input shaft Gearbox side Ball bearing 29.98 x 72.00 x 28.203 Main bearing output shaft 1 Engine side Tapered roller bearing 47.61 x 96.84 x 21.954 Main bearing output shaft 1 Gearbox side Tapered roller bearing 31.75 x 68.26 x 22.235 Main bearing output shaft 2 Engine side Tapered roller bearing 38.10 x 65.10 x 18.306 Main bearing output shaft 2 Gearbox side Tapered roller bearing 29.98 x 62.00 x 16.657 Main bearing differential Engine side Tapered roller bearing 55.00 x 90.00 x 23.008 Main bearing differential Gearbox side Tapered roller bearing 77.79 x 121.44 x 24.619 Seal ring input shaft Engine side Shaft sealing ring Engine/Gearbox10 Seal rings differential side Shaft sealing rings11 Seal transmission housing Gearbox side End cap12 Seal ring selector shaft O-ring13 Seal ring cover transmission housing O-ring14 Seal bearing journals O-ringsThis kit fits the following vehicles:VWMultivan2003-2009Petrol: 3.2Diesel: 2.5 TDITransporter Caravelle2003-2009Petrol: 3.2Diesel: 2.5 TDIOE Reference Numbers:003 519 185003 519 185 A003 519 185 B003 519 185 F003519185003519185A003519185B003519185F02D 311 206 B02D311206B02M 311 123 B02M 311 123 E02M311123B02M311123E02Z 311 20602Z3112060A5 311 220 B0A5 311 220 D0A5 311 235 B0A5 409 123 B0A5 409 321 B0A5311220B0A5311220D0A5311235B0A5409123B0A5409321BGearbox Codes;0A5- FNN, FNQ, FQA, FXV, FXW, FXX, GWB, GWC, HNC, HND, HNE, HNF, HRU, HRV, JFS, JFT, JFW, JFX, JKT, JKU, KCK, KCL, KCM, KCN, KCQ, KCR.If you are not sure on the compatibility of this part, then please send us your UK registration number or VIN Code and we will direct you to the right part.Reference Number: ET1962
