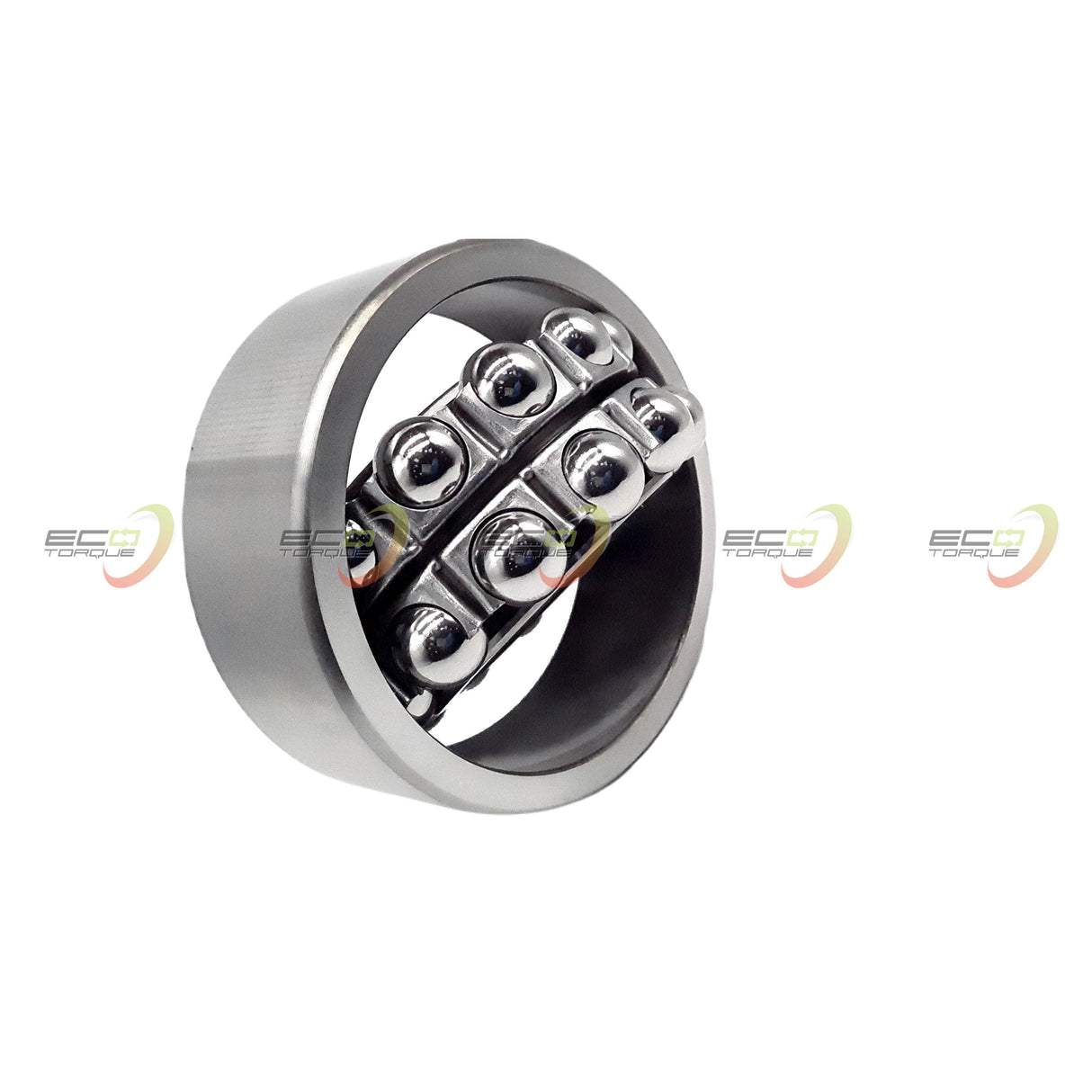

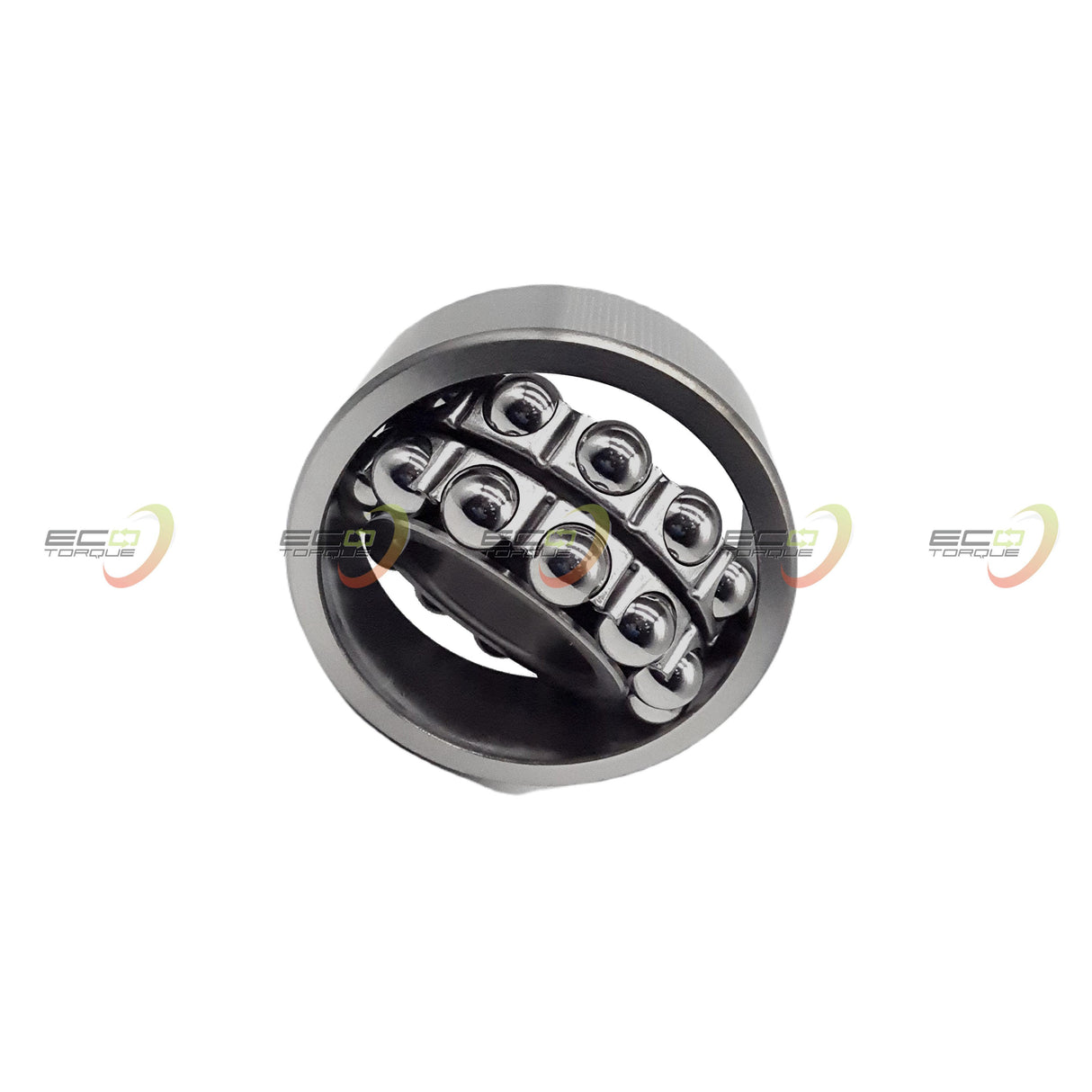

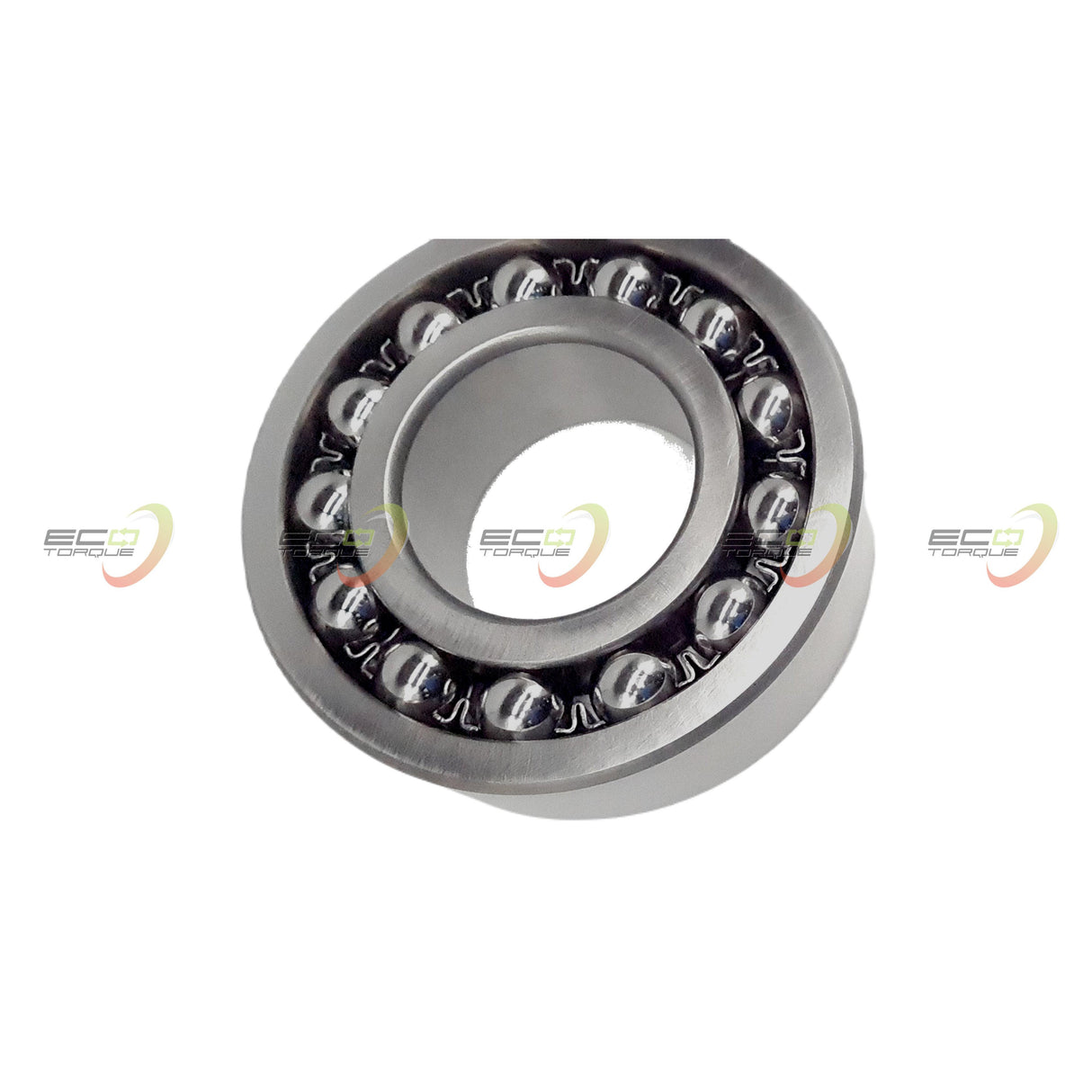

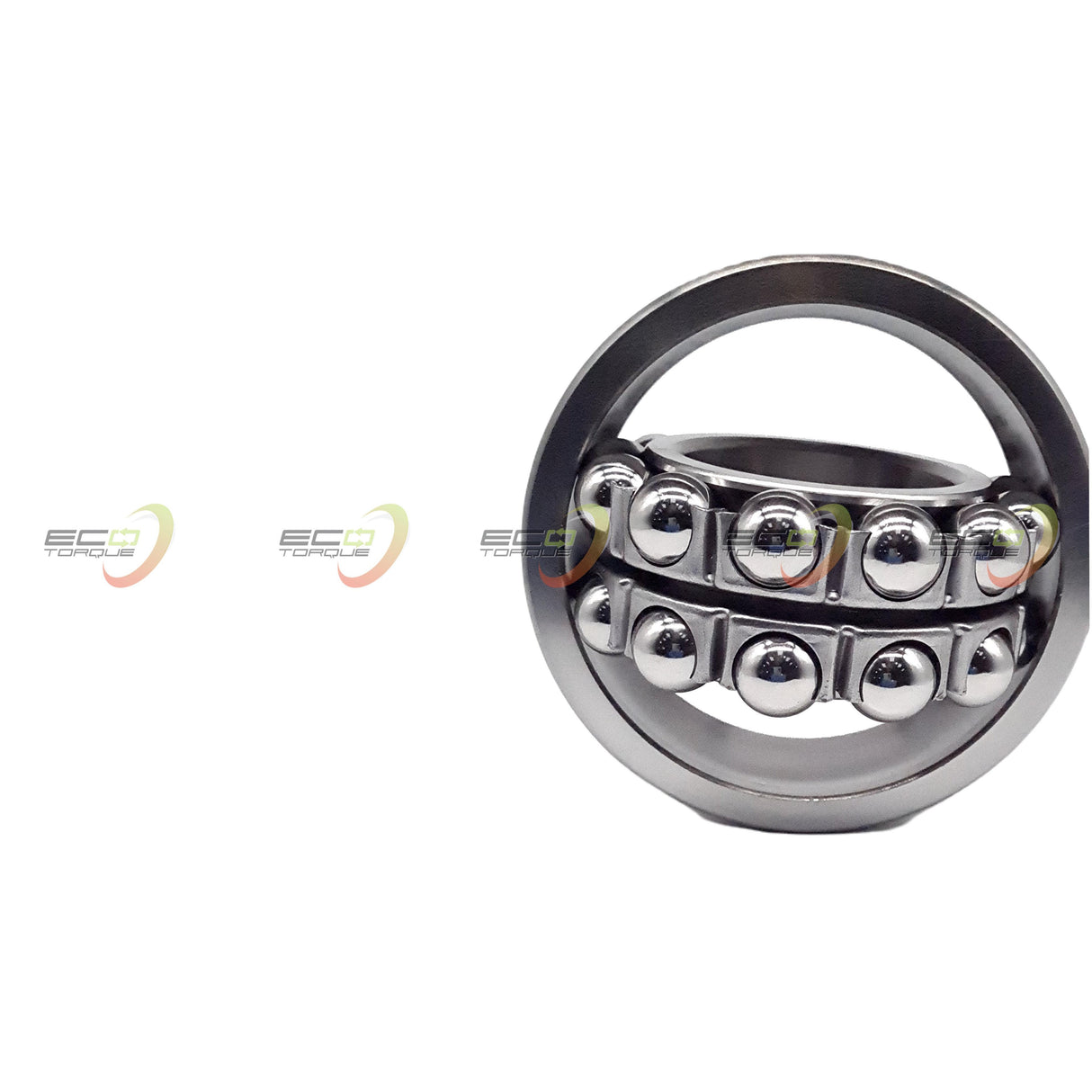

2315K Double Row Self Aligning Ball Bearing 75x160x55mm
2315K Double Row Self-Aligning Ball Bearing 75x160x55mm
A double row self-aligning ball bearing in the 2315K series, measuring 75mm bore × 160mm OD × 55mm width. Self-aligning bearings compensate for shaft deflection and misalignment, making them well suited to gearbox input and output shafts, industrial machinery, and agricultural equipment where angular errors occur. This bearing operates to the standard open design without seals, requiring proper lubrication during installation.
Specification:
Inner diameter: 75mm
Outer diameter: 160mm
Width: 55mm
Design: Double row self-aligning ball bearing
Series: 2315K (tapered bore)
What does K mean on a self-aligning bearing?
The K suffix indicates a tapered (1:12 taper) bore, designed for use with an adapter sleeve. This allows the bearing to be mounted directly on a plain shaft without a key or shoulder, which is particularly useful in agricultural and industrial applications where quick removal is needed.
Does the 2315K bearing need an adapter sleeve?
Yes, when mounting on a plain shaft. The K suffix means the bore is tapered at 1:12 to accept a standard adapter sleeve (e.g., H2315 sleeve). If mounting into a housing with a shaft that matches the taper, no sleeve is needed.
What is the difference between self-aligning and angular contact bearings?
Self-aligning bearings (like the 2315K) have a spherical raceway on the outer ring that allows the inner ring to tilt slightly, accommodating shaft flex and mounting misalignment. Angular contact bearings are designed for axial loads in one or both directions and do not self-align.
