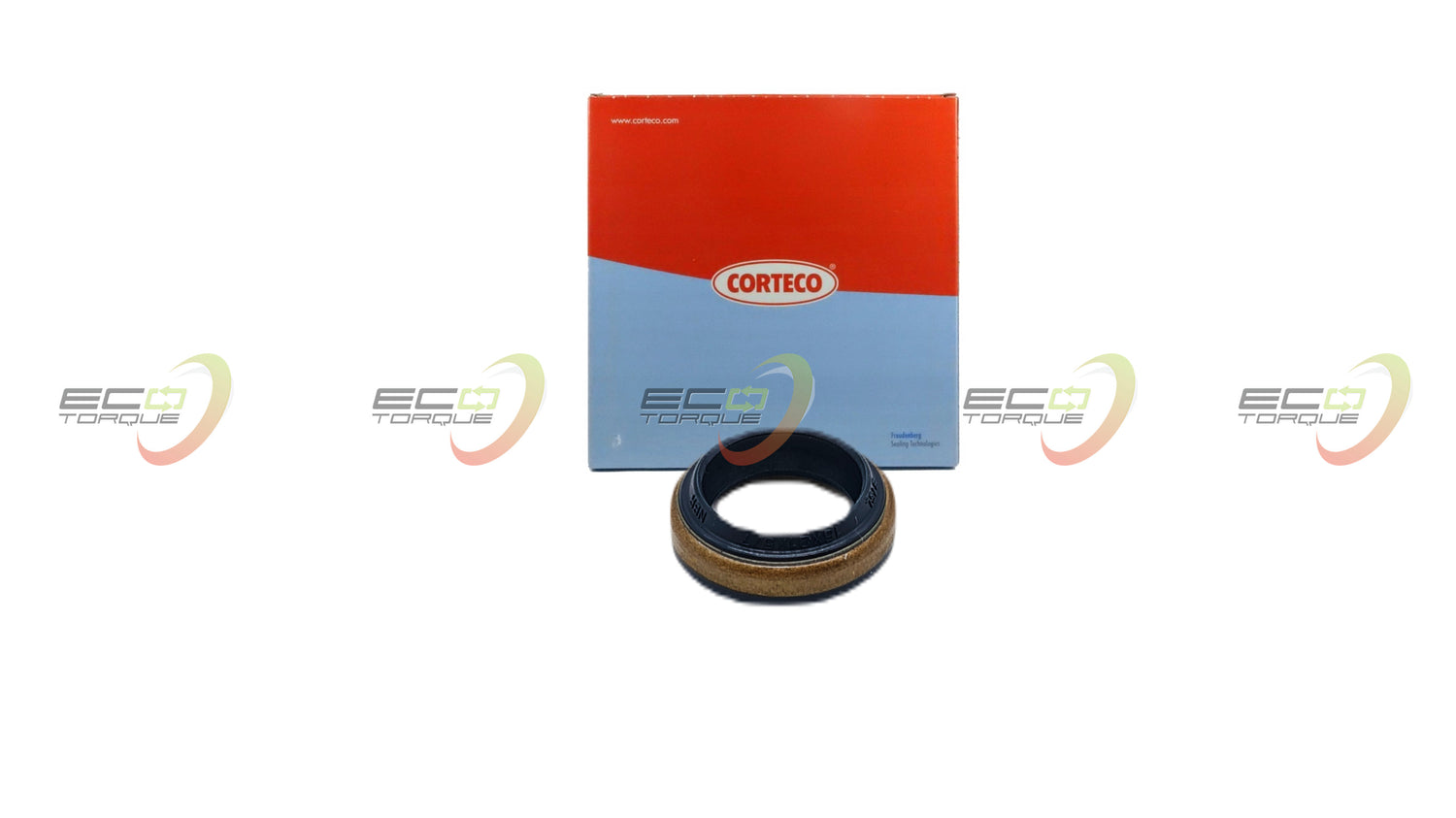

Corteco Shaft Seal for Manual Transmissions 01019151B 15x21x5mm

Corteco Manual Transmission Shaft Seal – 01019151B (15 x 21 x 5mm)

Corteco shaft seal for manual transmission applications, part number 01019151B. This rubber NBR shaft seal prevents oil leakage at the transmission shaft exit point. Dimensions: inner diameter 15mm, outer diameter 21mm, height 5mm / 7mm overall.

Brand: Corteco

Part Number: 01019151B

Inner diameter: 15mm

Outer diameter: 21mm

Height: 5mm (7mm overall)

Material: NBR (nitrile butadiene rubber)

OE Cross References: 23111204 · 22311 · TZB50008094 · 7705

Vehicle fitment: See compatibility list below or contact us with your registration.

What is a shaft seal used for?

A shaft seal prevents transmission oil from leaking past a rotating shaft where it exits the gearbox housing. They are common wear items and should be replaced whenever the driveshaft or gearbox is removed.

What material is this seal made from?

NBR (nitrile butadiene rubber) — the standard sealing material for most manual transmission applications. It offers good resistance to petroleum-based oils and operates effectively across typical gearbox temperature ranges.

How do I know when a shaft seal is leaking?

Oil residue or drips at the driveshaft entry into the gearbox are the primary sign. Low transmission oil level without an obvious source is another indicator.

Is this the correct seal for my vehicle?

Please contact us with your vehicle registration or VIN to confirm this seal fits your specific gearbox and driveshaft diameter.

Should I replace shaft seals in pairs?

Where the gearbox has two driveshaft exits (front-wheel drive), it is good practice to replace both seals simultaneously to avoid having to re-access the gearbox shortly after for the other side.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2482
