0AF Gearbox Rebuild Kit 5 Speed Manual 462021210 Seat Skoda VW

LuK 0AF 5 Speed Manual Transmission

Gearbox Rebuild Kit 462021210 Seat Skoda VW

Schaeffler LUK INA FAG Bearing kits are produced in Germany and contain the same bearings as fitted on the production line. This means the kits consist of OE quality parts, for a reliable rebuild.

Due to different vehicle applications of the VW 0AF transmission there are two LuK Gearbox sets (462 0055 10 / 462 0212 10).

These differ in the gearbox side bearings of the input and output shaft (double bearing with cast or sheet metal housing).

OE Part Numbers

02T 311 375 E - VW
0AJ 311 206 E - VW
02T 311 373 G - VW
02T 311 373 D - VW
085 311 431 C - VW
085 311 431 J - VW
02T 311 373 C - VW
02T 311 375 K - VW / SKODA / SEAT
02T 311 375 H - VW / SKODA / SEAT
02T311373J - VW / SEAT
02T 311 373 L - VW / SEAT

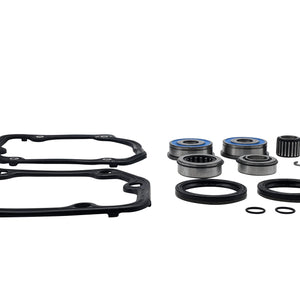

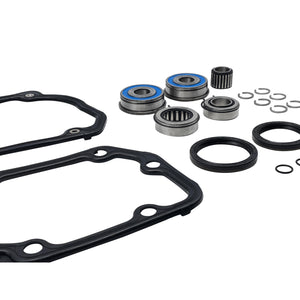

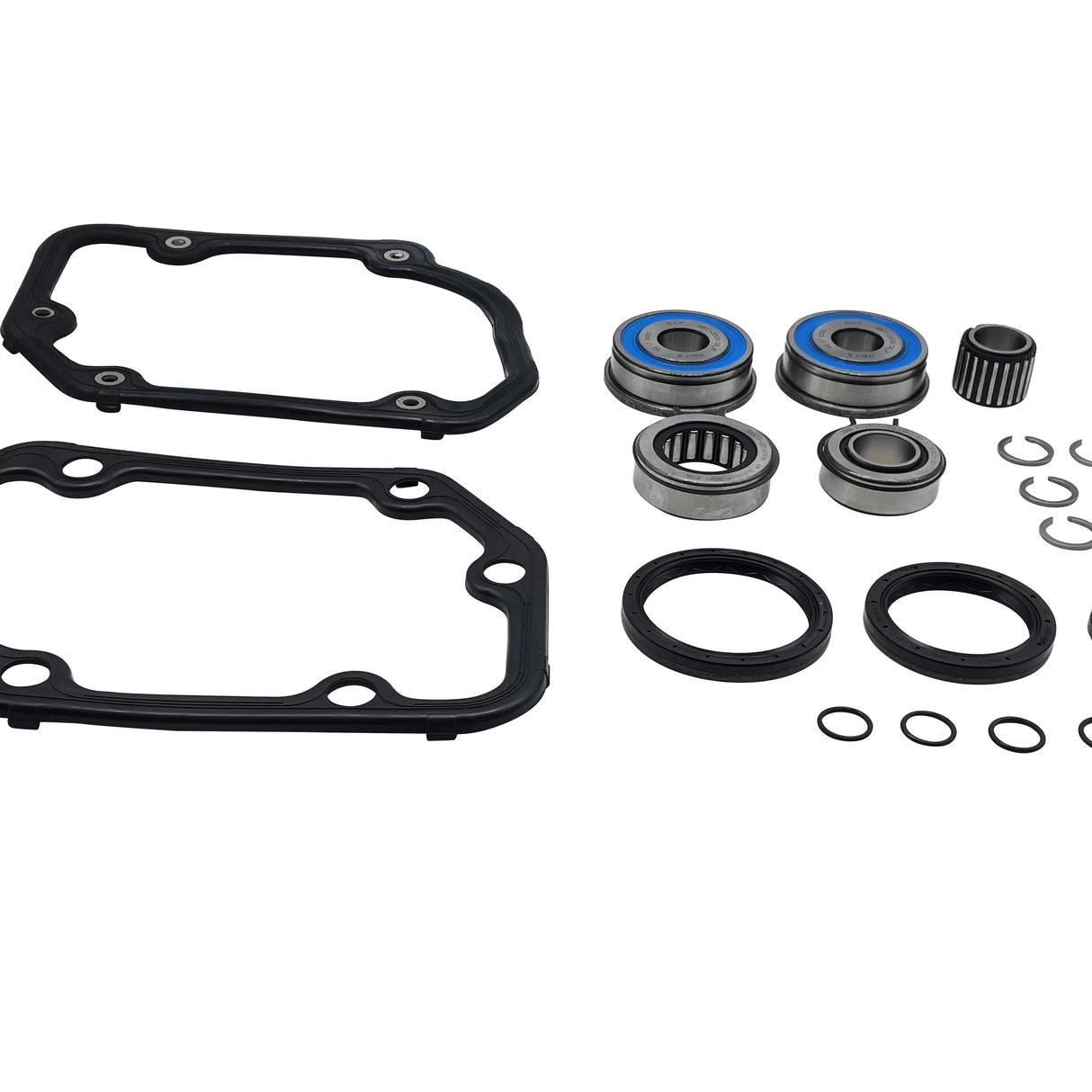

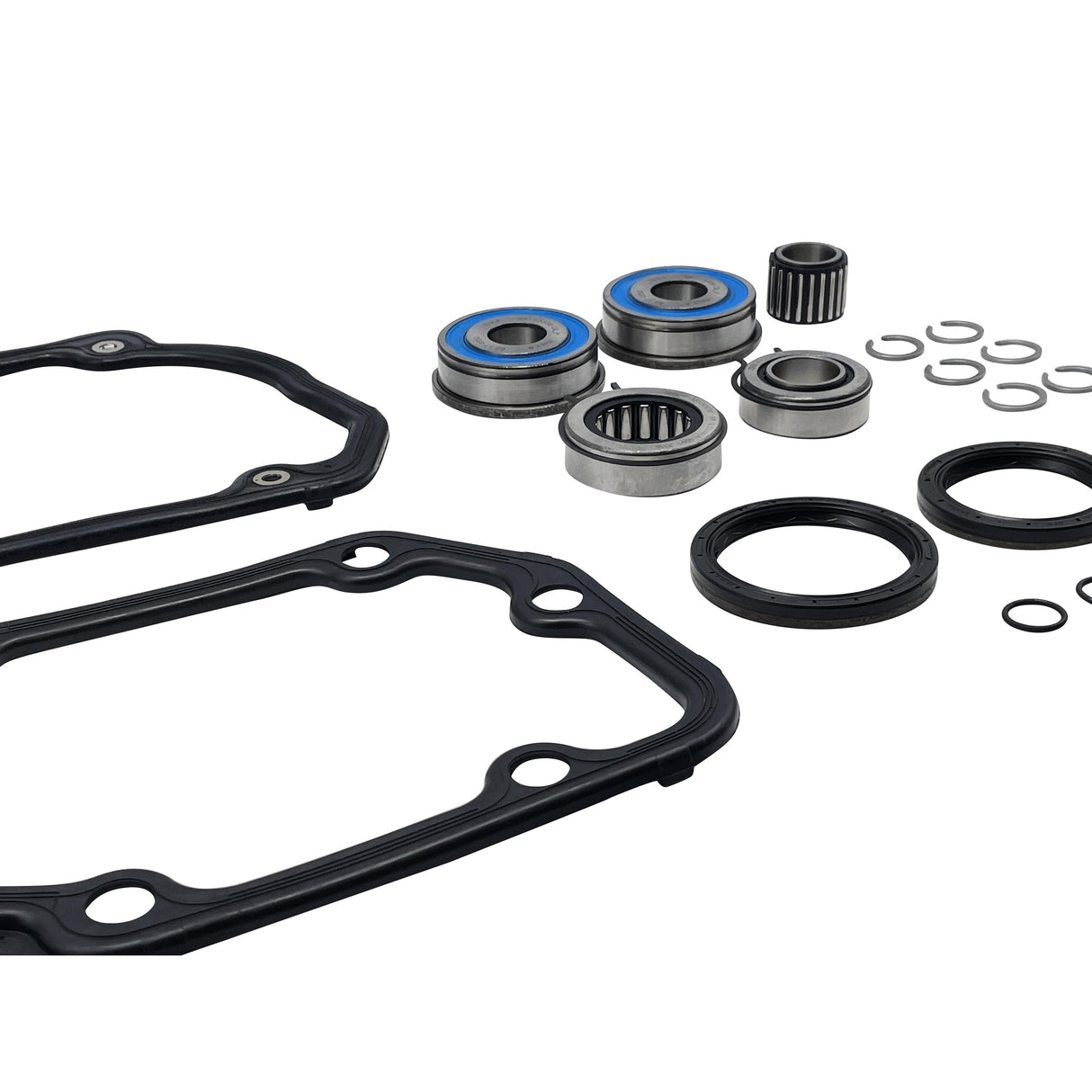

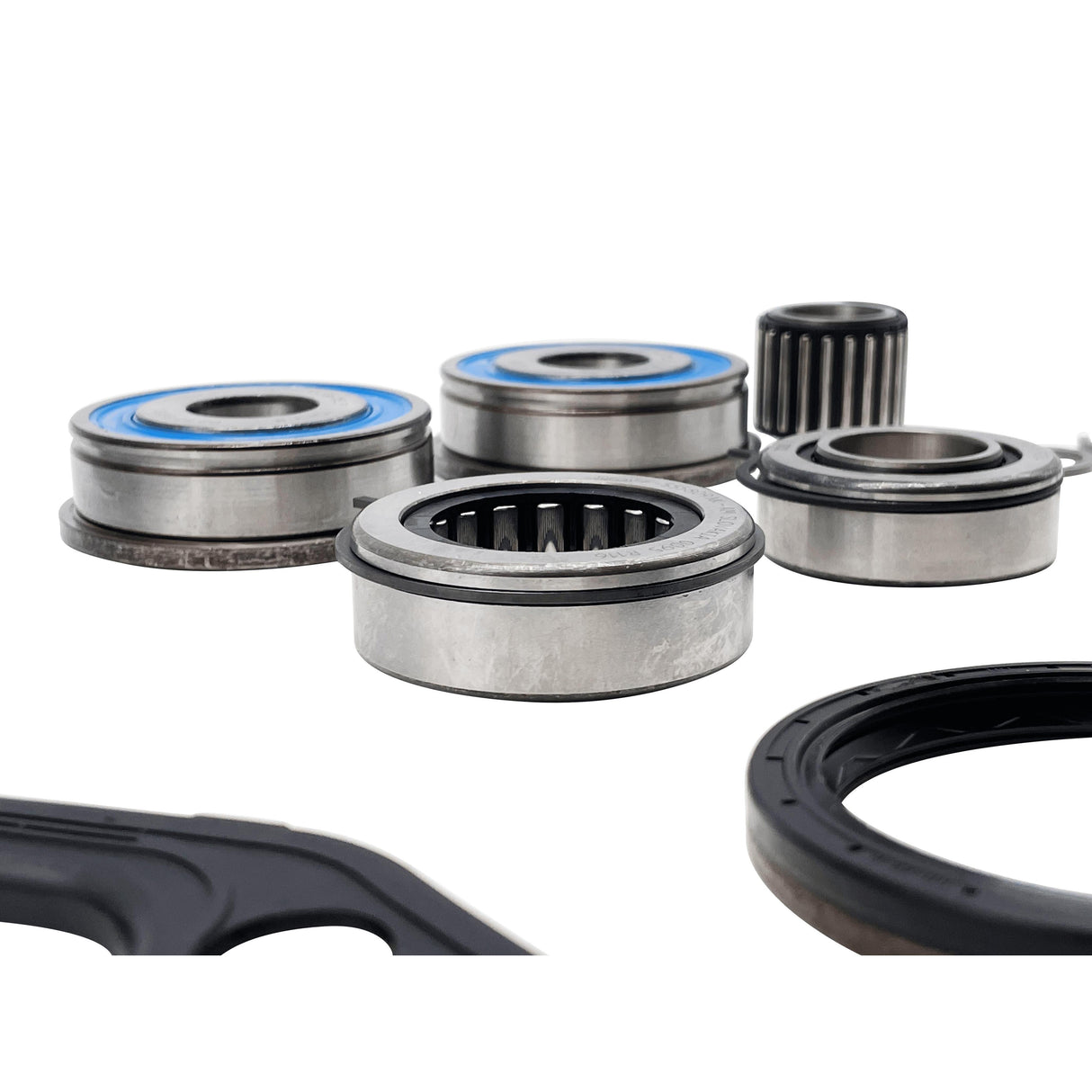

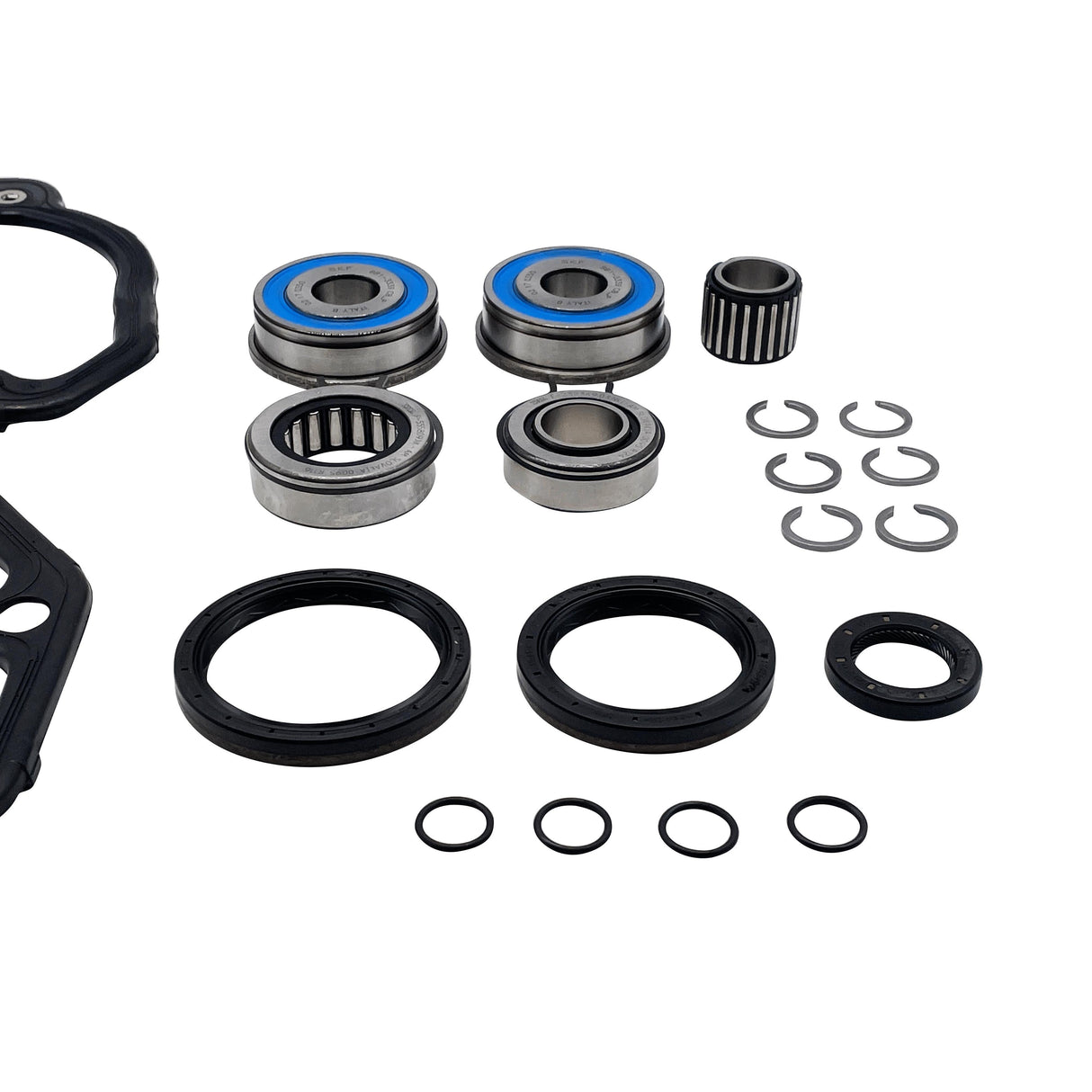

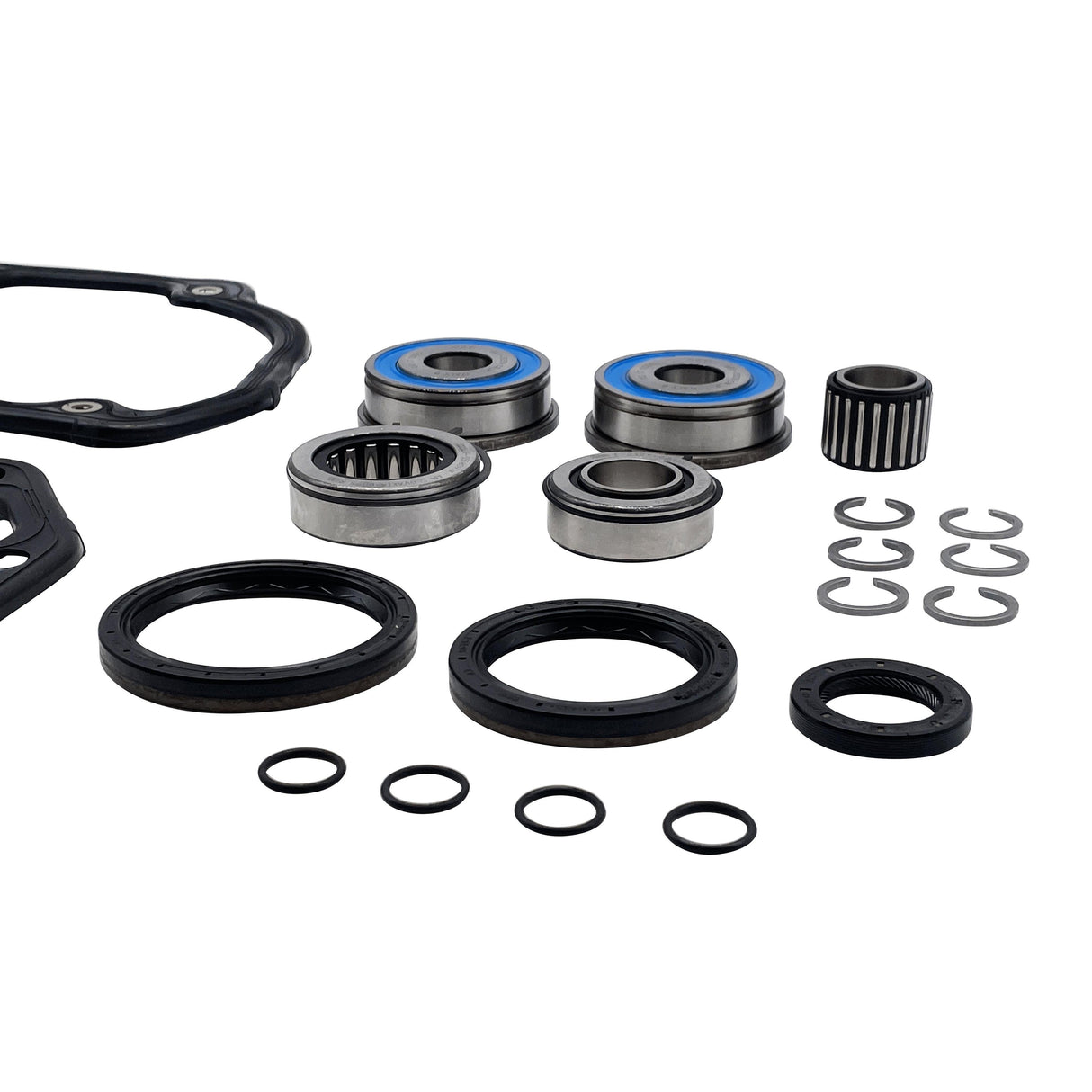

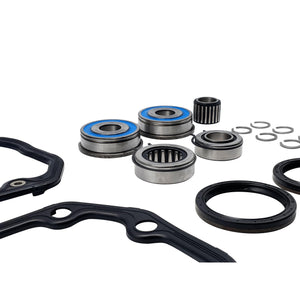

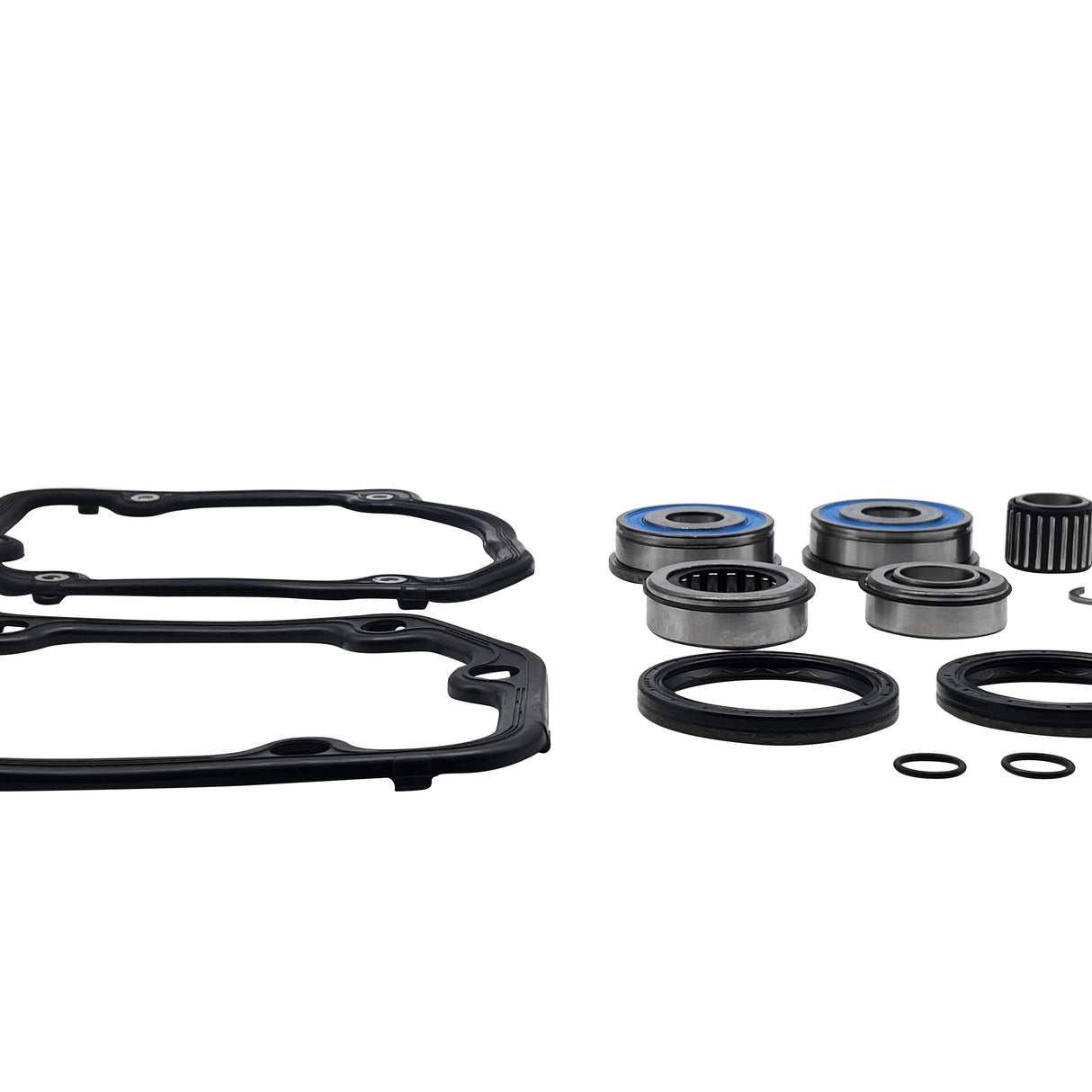

Included in this overhaul kit:

x1 Main bearing input shaft Engine side Roller bearing 24.10 x 47.00 x 17.70
x1 Main bearing input shaft Gearbox side Ball bearing 22.00 x 62.00 x 21.00
x1 Main bearing output shaft Engine side Roller bearing 32.00 x 55.00 x 18.00
x1 Main bearing output shaft Gearbox side Ball bearing 22.00 x 62.00 x 21.00
x1 Idler bearing and inner ring 5th gear Gearbox side Needle roller bearing 21.80 x 32.00 x 25.80
x1 Inner ring output shaft* Engine side Inner side 26.00 x 32.00 x 18.00
x1 Seal ring input shaft Engine side Shaft sealing ring
x1 Seal ring differential Engine side Shaft sealing ring
x1 Seal ring differential Gearbox side Shaft sealing ring
x2 Seal cover 5th gear* Flat gaskets
x4 Seal bearing journals O-rings
x2 Circlip 5th gear* Adjusting ring 17.70 x 2.00
x2 Circlip 5th gear* Adjusting ring 17.70 x 2.10
x2 Circlip 5th gear* Adjusting ring 17.70 x 2.20
x1 Circlip inner ring main bearing output shaft* Engine side Circlip

This kit contains the two ball bearings for the cast housing, an alternative instead of replacing the whole housing.

Vehicle Compatibility

SEAT
ALTEA (5P1), 03/04 -
ALTEA XL (5P5, 5P8), 10/06 -
IBIZA IV (6J5, 6P1), 03/08 - 12/17
IBIZA IV SPORTCOUPE (6J1, 6P5), 06/08 - 12/18
IBIZA IV ST (6J8, 6P8), 03/10 - 07/16
LEON SC (5F5), 01/13 -

SKODA
FABIA II (542), 12/06 - 12/14
FABIA II Combi (545), 10/07 - 12/14
OCTAVIA III (5E3, NL3, NR3), 11/12 -
OCTAVIA III Combi (5E5), 11/12 -
ROOMSTER (5J), 03/06 - 05/15

VOLKSWAGEN
GOLF SPORTSVAN (AM1, AN1), 02/14 -
GOLF VII (5G1, BQ1, BE1, BE2), 08/12 -
GOLF VII Variant (BA5, BV5), 04/13 -
JETTA IV (162, 163, AV3, AV2), 01/08 -
(FAW)BORA (152), 01/08 - 03/16
JETTA (BS2, BS4), 01/13 - 07/19
(SVW)CROSS LAVIDA (183, 185), 11/13 -
GRAN LAVIDA (183, 185), 07/13 -
GRAN SANTANA (BR1), 06/15 -
LAVIDA (181), 04/08 - 12/13
LAVIDA (182, 184), 08/12 -
SANTANA Saloon (BR2, BR4), 12/12 -

As gearbox rebuild and repair specialists, Eco Torque is proud to offer genuine gearbox parts as well as high quality aftermarket alternatives throughout its store.

Browse Eco Torque’s ever-evolving product range available to purchase online
at competitive prices.

If you cannot find the items you need or are unsure if the part is compatible with
your vehicle make and model, please send us your UK registration number or
 VIN Code and we will direct you to the right part.

Reference Number: ET1999
