MA Gearbox Rebuild Kit 5 Speed Manual 462015110 Citroen Peugeot Fiat

5 Speed Manual MA Gearbox Rebuild Kit

462015110 Citroen Peugeot Fiat

This gearbox rebuild kit contains genuine Schaeffler LUK INA FAG bearings and seals, manufactured in Germany. These are the same components used on the original assembly line, ensuring precise fit and long-term reliability. All parts included are OEM quality, making this a trusted solution for full gearbox servicing or restoration.

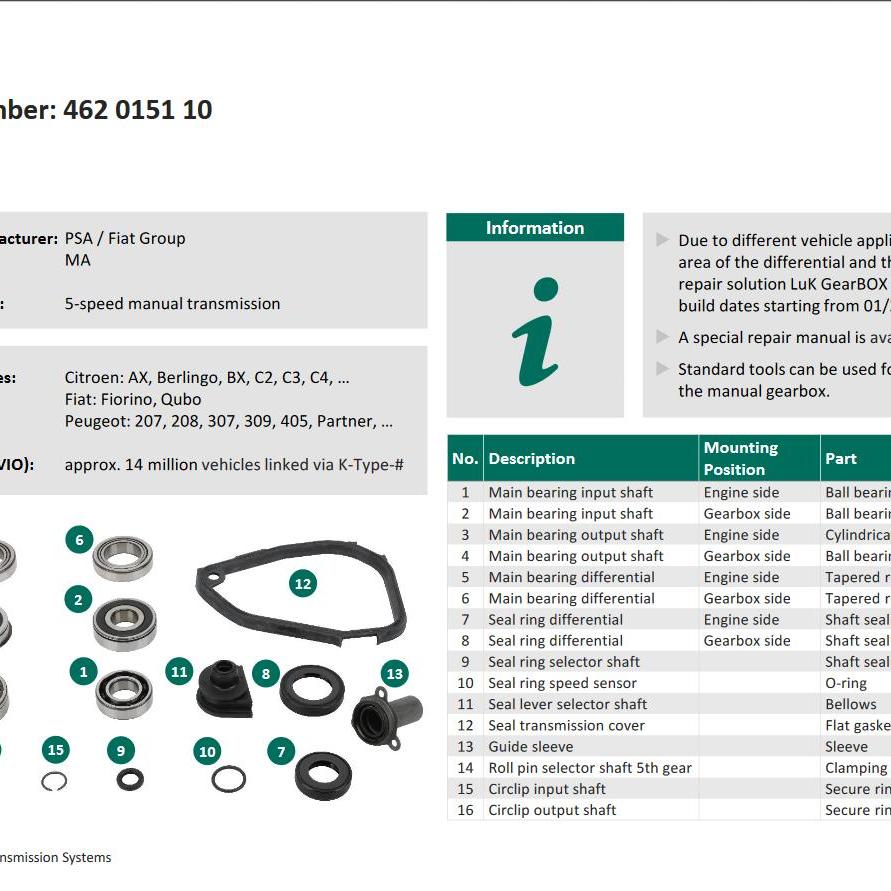

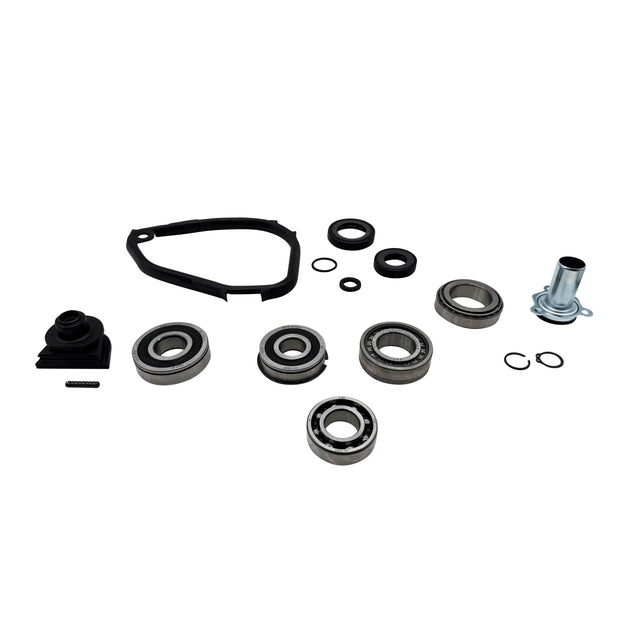

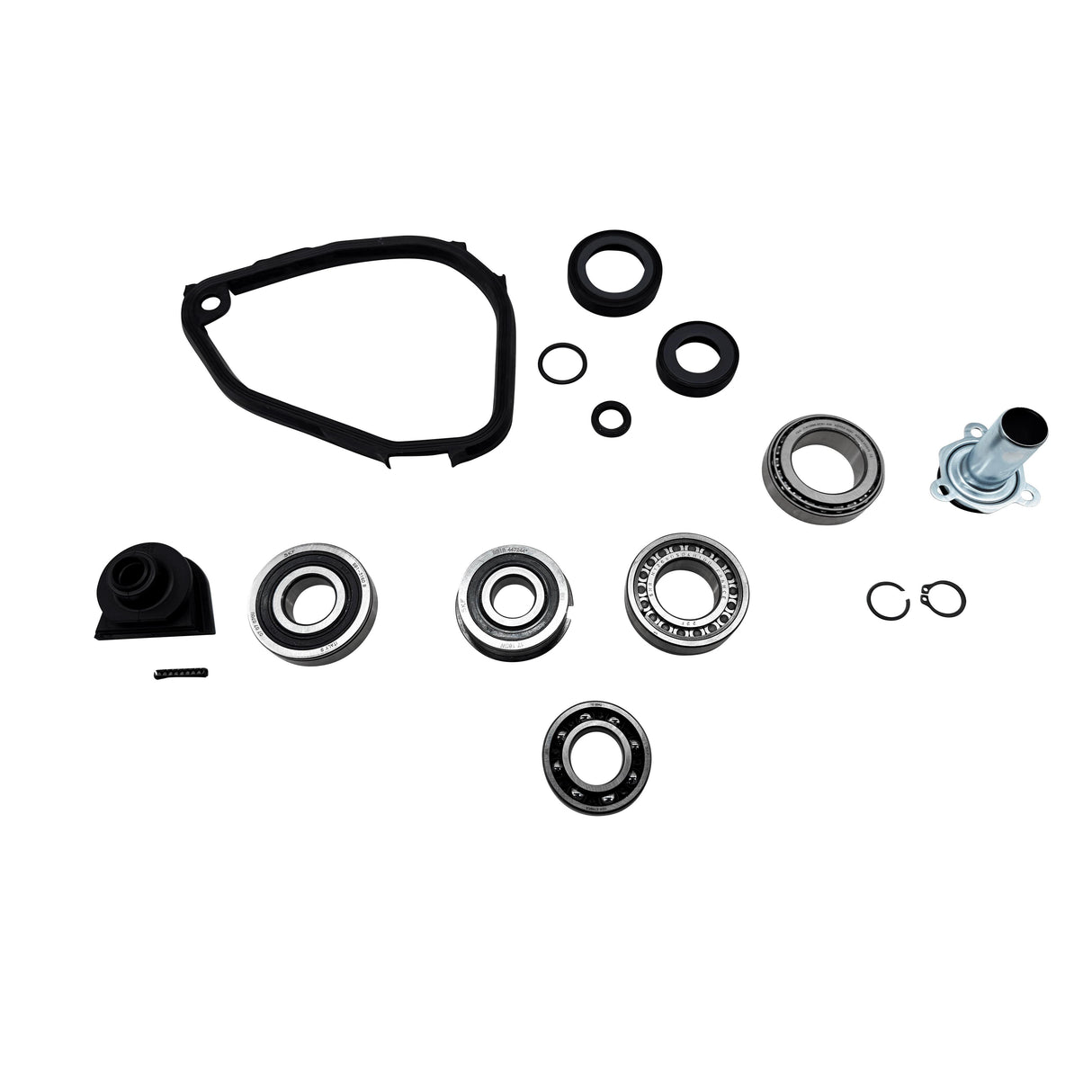

What’s Included in the Kit:

Input Shaft Bearings:

• x1 Main Bearing – Engine Side (Ball Bearing)
  Dimensions: 25.00 x 52.00 x 15.00mm
• x1 Main Bearing – Gearbox Side (Ball Bearing)
  Dimensions: 25.00 x 62.00 x 17.00mm

Output Shaft Bearings:

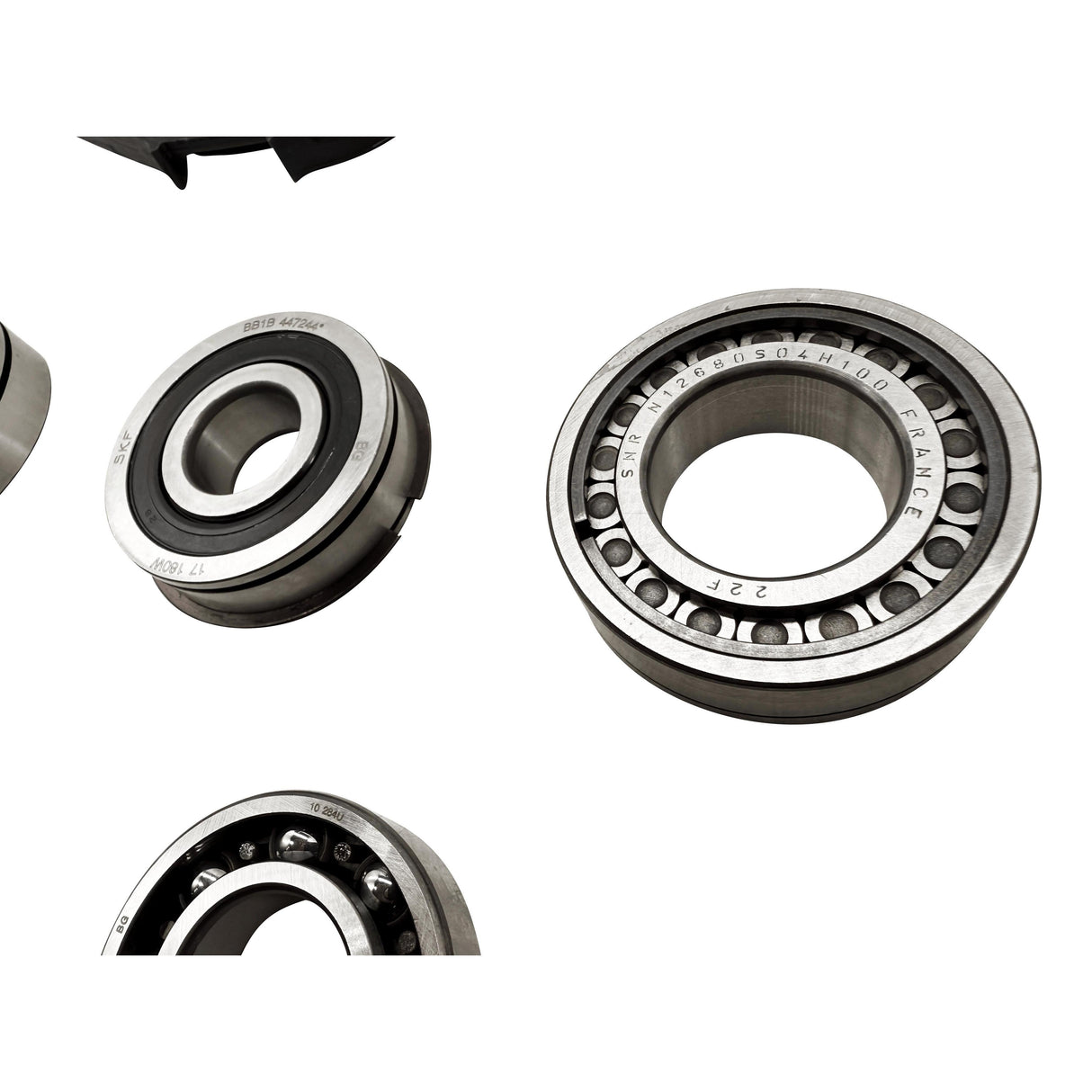

• x1 Main Bearing – Engine Side (Cylindrical Roller Bearing)
  Dimensions: 32.00 x 62.00 x 18.00mm
• x1 Main Bearing – Gearbox Side (Ball Bearing)
  Dimensions: 22.00 x 57.00 x 16.80mm

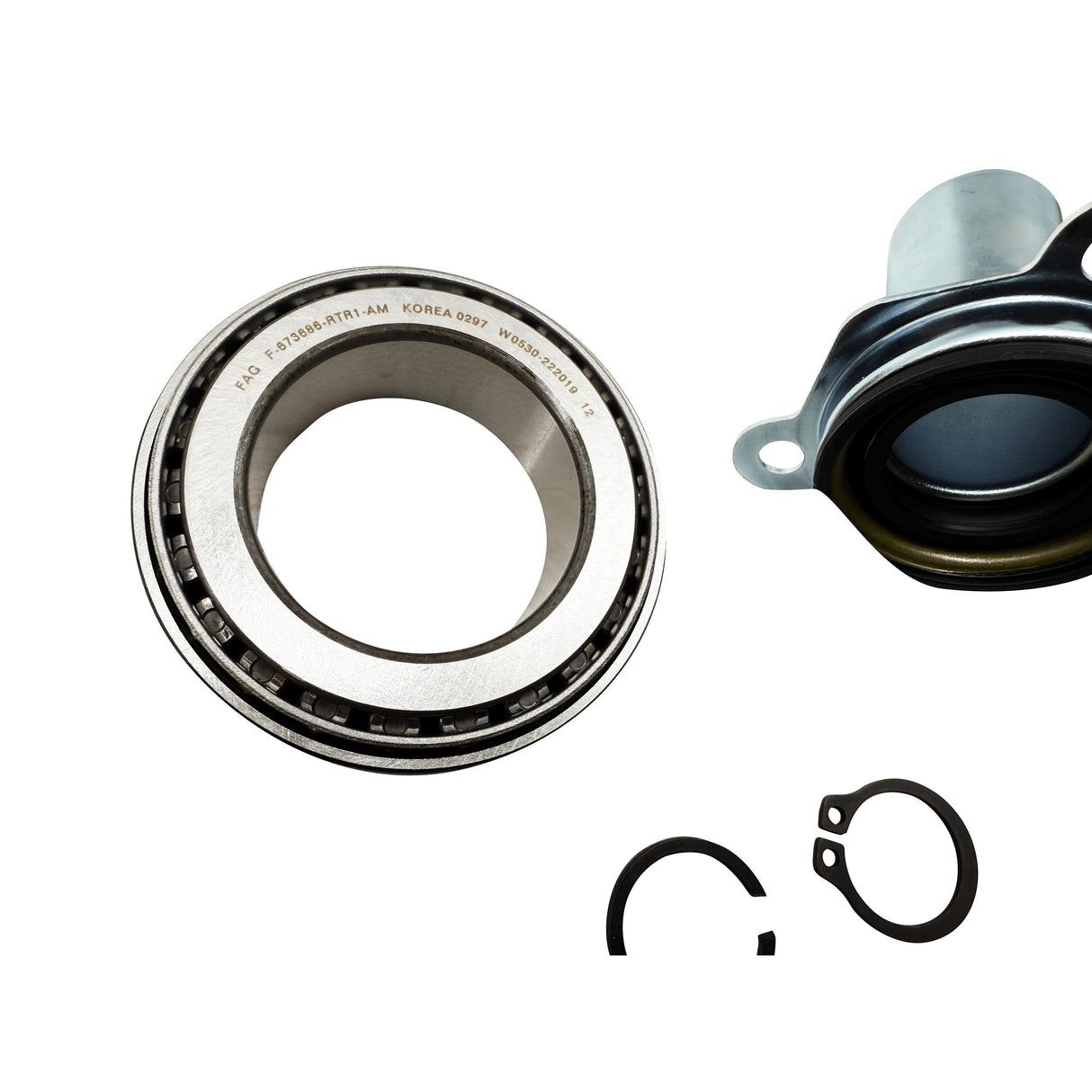

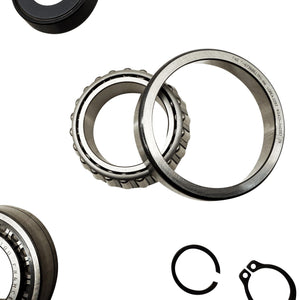

Differential Bearings:

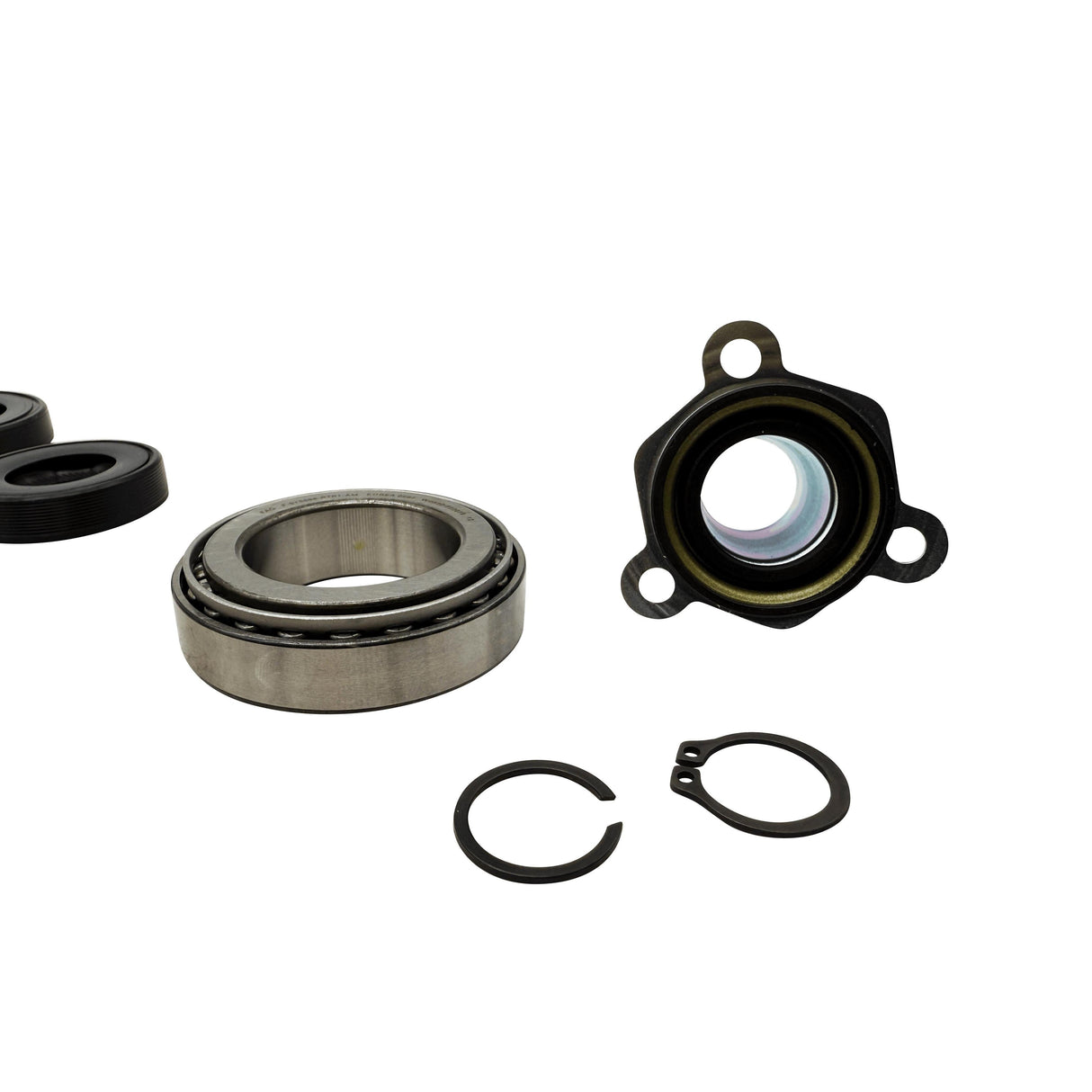

• x1 Differential Bearing – Engine Side (Tapered Roller Bearing)
  Dimensions: 38.00 x 63.00 x 17.00mm
• x1 Differential Bearing – Gearbox Side (Tapered Roller Bearing)
  Dimensions: 38.00 x 63.00 x 17.00mm

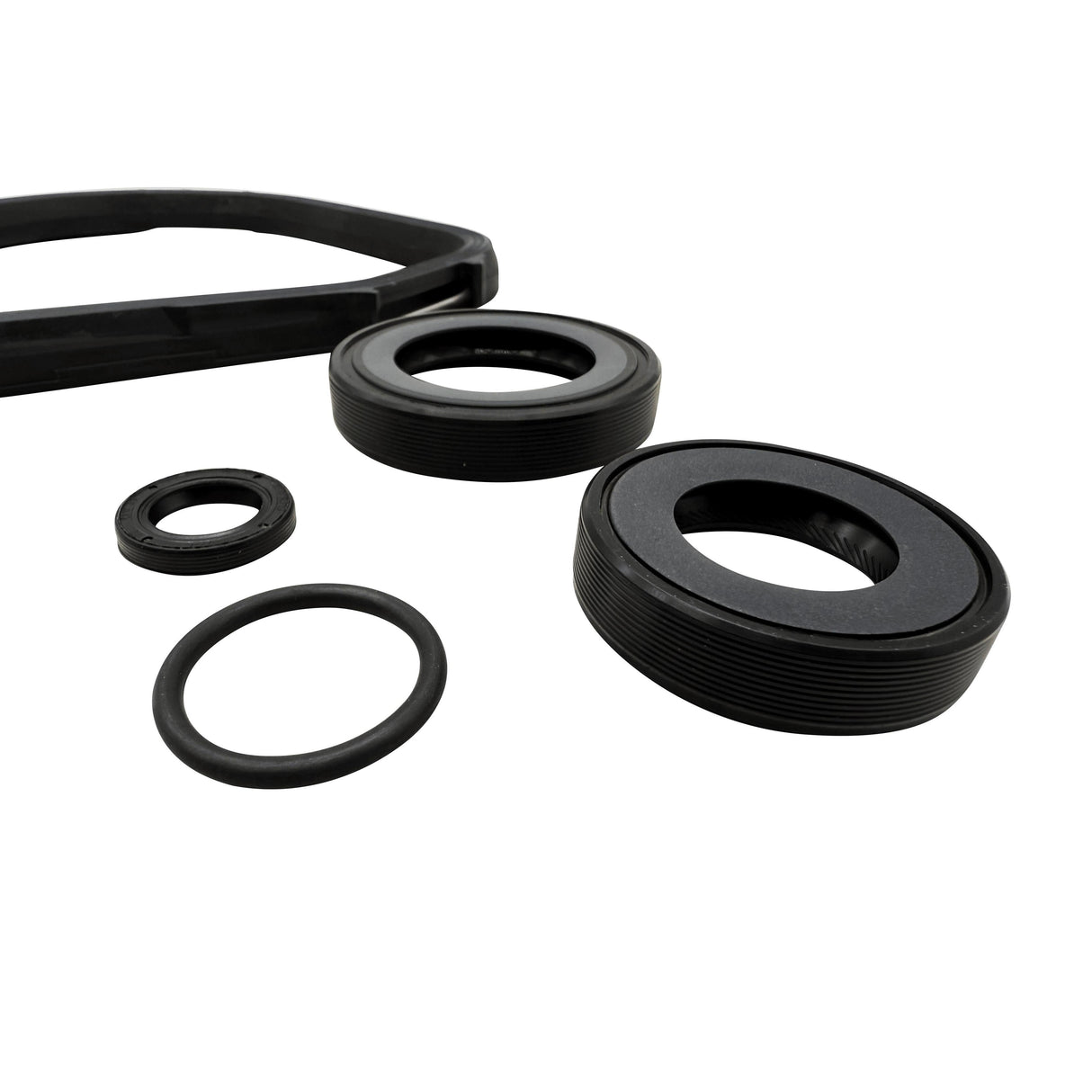

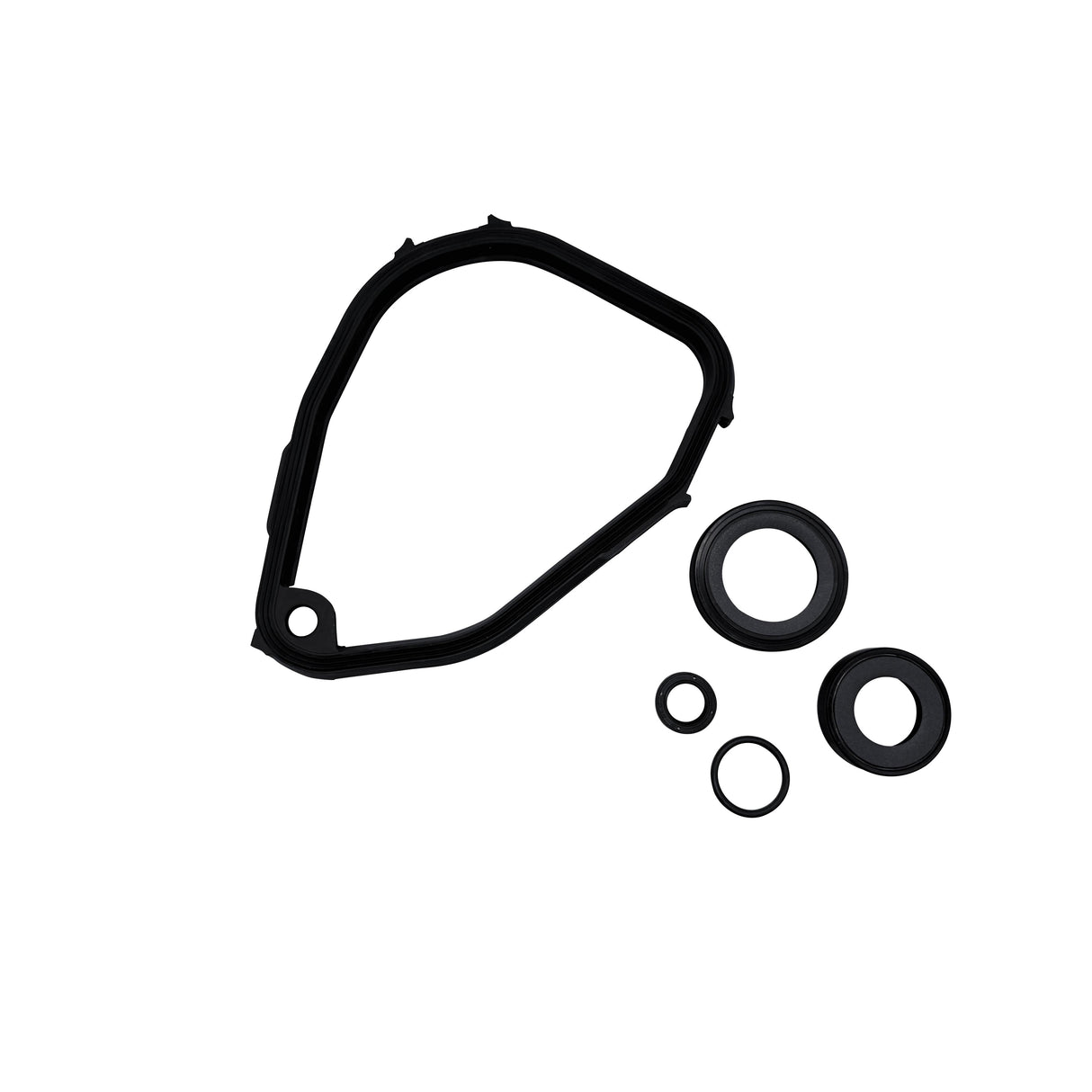

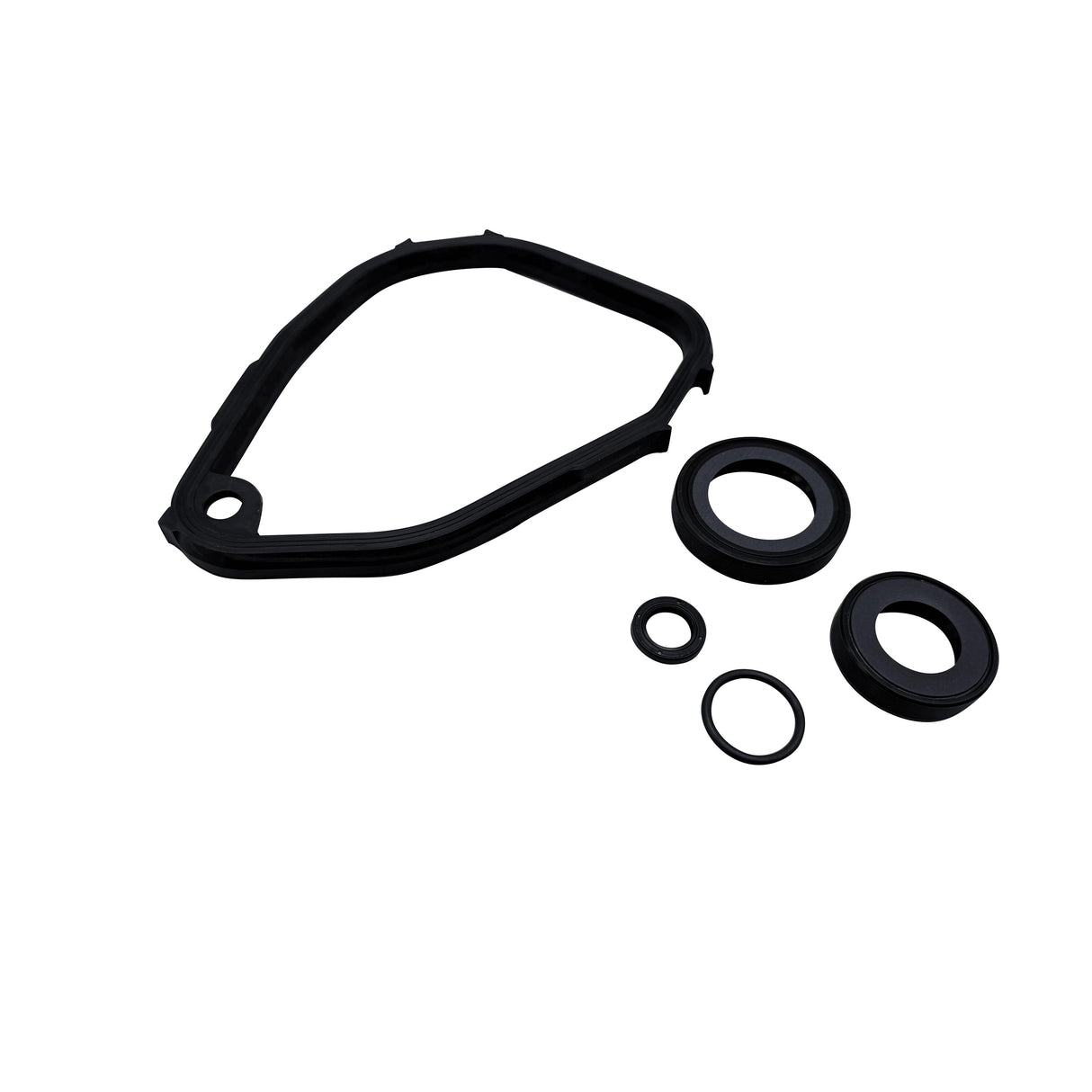

Seals & Hardware:

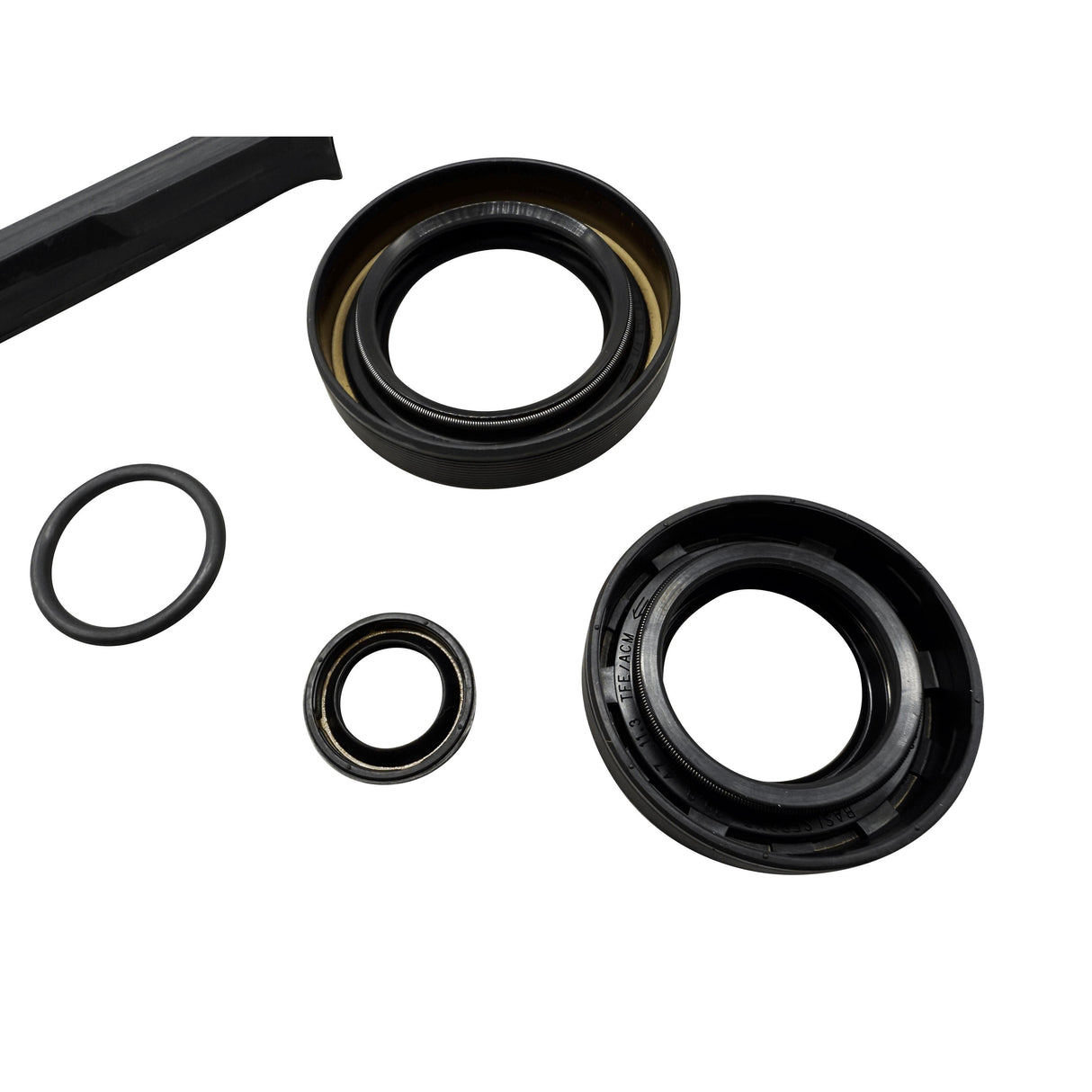

• x1 Differential Shaft Seal – Engine Side
• x1 Differential Shaft Seal – Gearbox Side
• x1 Selector Shaft Seal Ring
• x1 Speed Sensor O-ring Seal

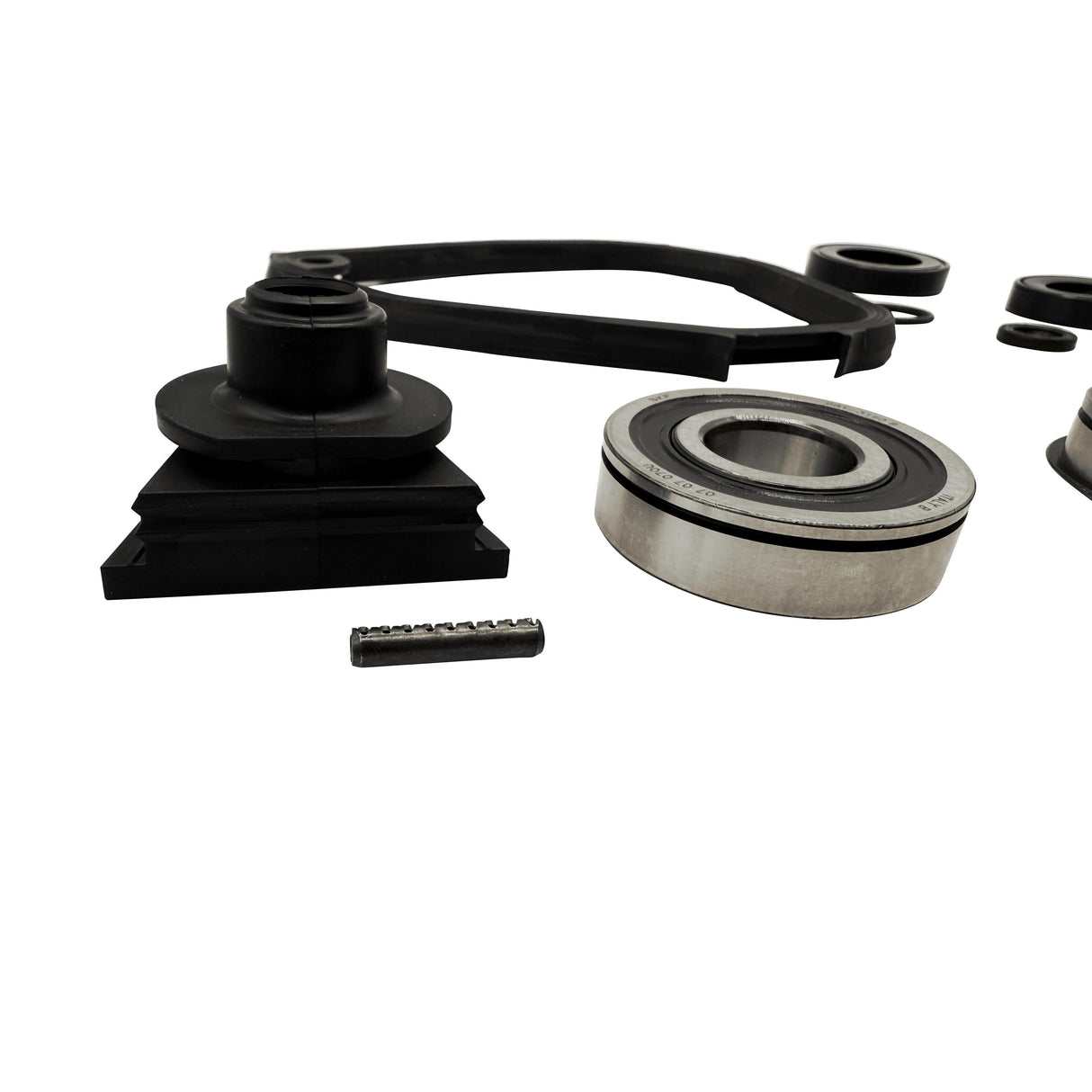

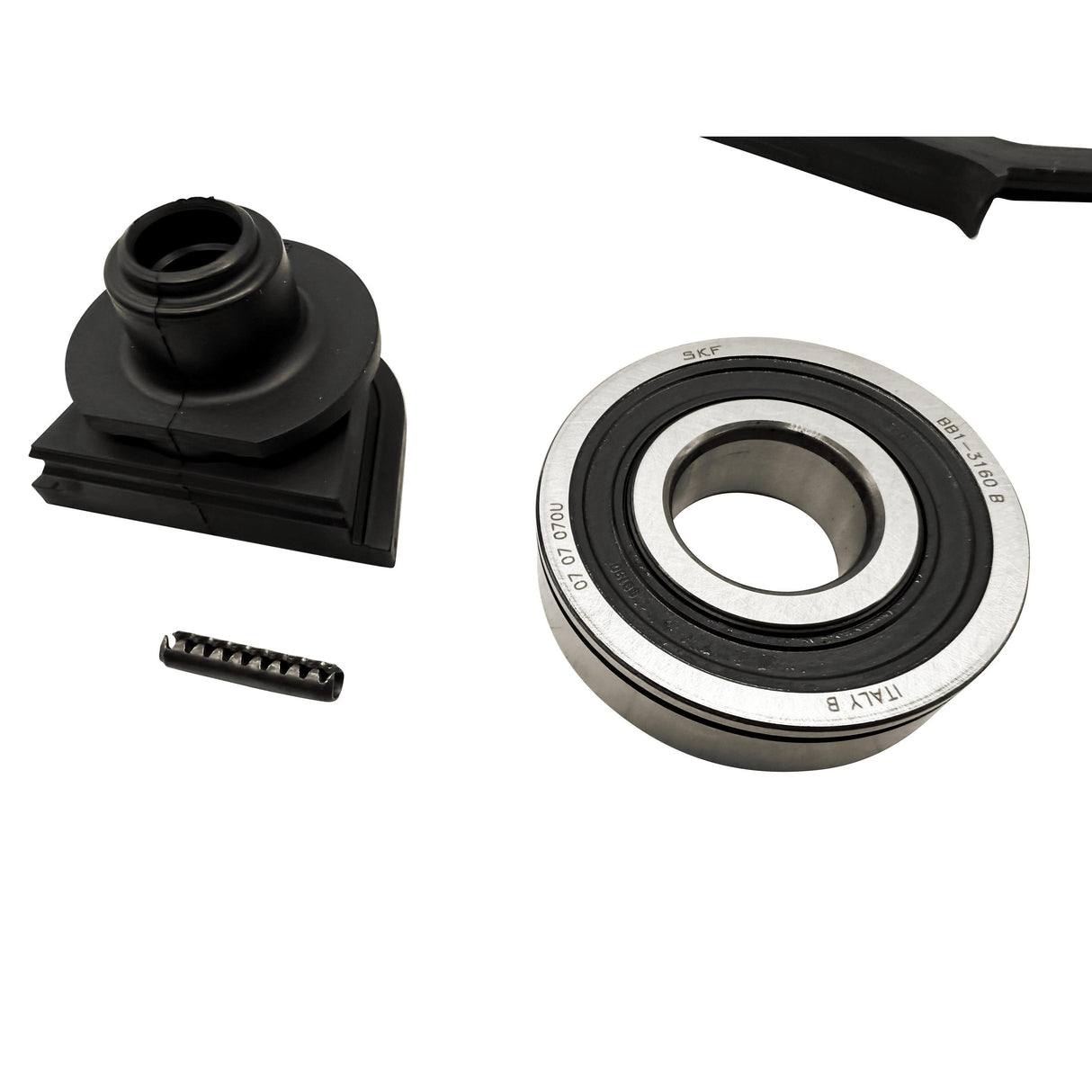

• x1 Selector Shaft Bellows Seal
• x1 Transmission Cover Flat Gasket
• x1 Guide Sleeve
• x1 Roll Pin – Selector Shaft (5th Gear Clamping Sleeve)
• x1 Circlip – Input Shaft
• x1 Circlip – Output Shaft

Why Choose This Kit:

• OE-matching quality from trusted German brands
• Covers all key bearings and seals for a full gearbox overhaul
• Ideal for DIY rebuilds or professional repair shops

Frequently Asked Questions

Which gearbox does this kit fit?

This kit is designed for the MA (5 Speed) manual gearbox, as fitted to Citroen, Peugeot and Fiat models. The gearbox code is stamped on the bellhousing — always confirm this before ordering.

What is included in this kit?

The kit includes input, output and differential bearings, differential shaft seals, a selector shaft seal ring, a speed sensor O-ring, a selector shaft bellows seal, a transmission cover gasket, a guide sleeve, a roll pin, and circlips for the input and output shafts.

Is this OEM quality?

Yes, this kit uses genuine LuK bearings and seals, manufactured in Germany to the same specification as those fitted during original assembly.

Do I need to drain the gearbox before fitting?

Yes — drain the gearbox before beginning any internal work. Follow the workshop manual for the correct drain and refill procedure.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering:

• Genuine gearbox parts
• High-quality aftermarket alternatives
• Competitive pricing

Explore our expanding product range online and find the perfect parts for your needs.

Need Help Finding the Right Part?

If you’re unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN code, and we’ll help you find the correct part.

Reference Number: ET1995
