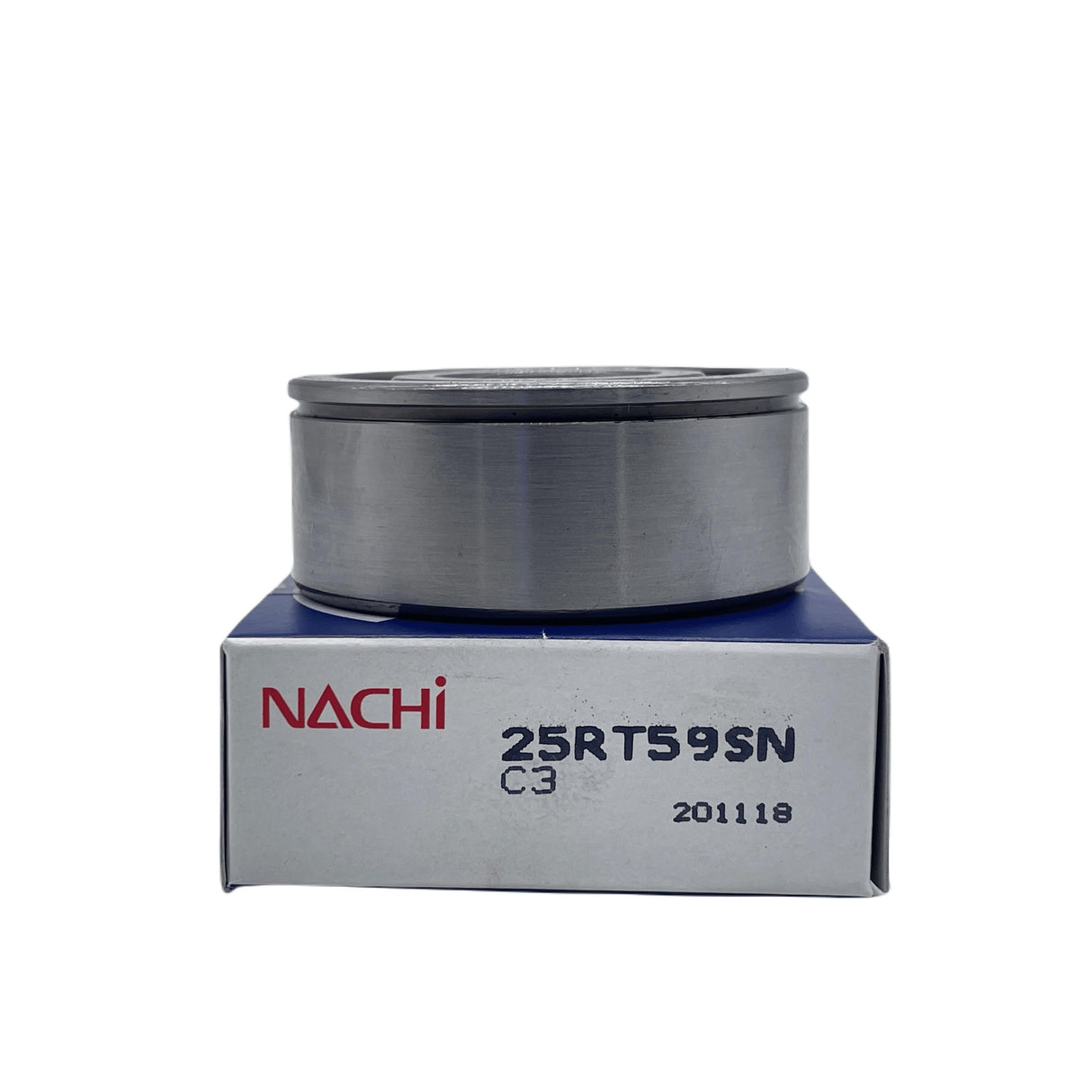

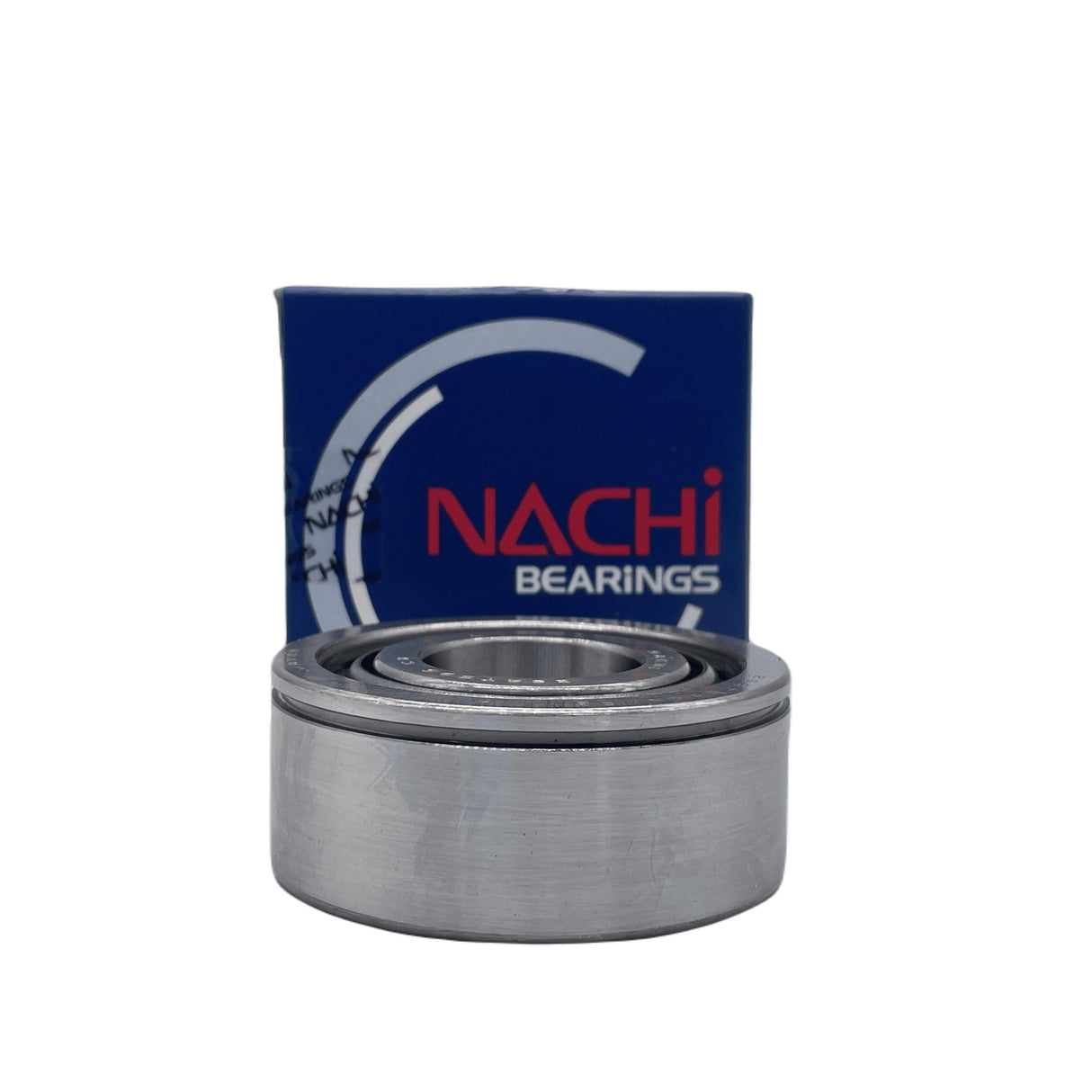

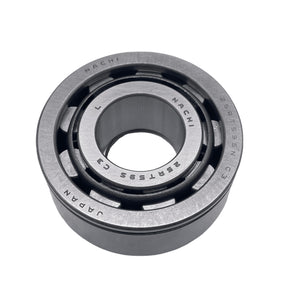

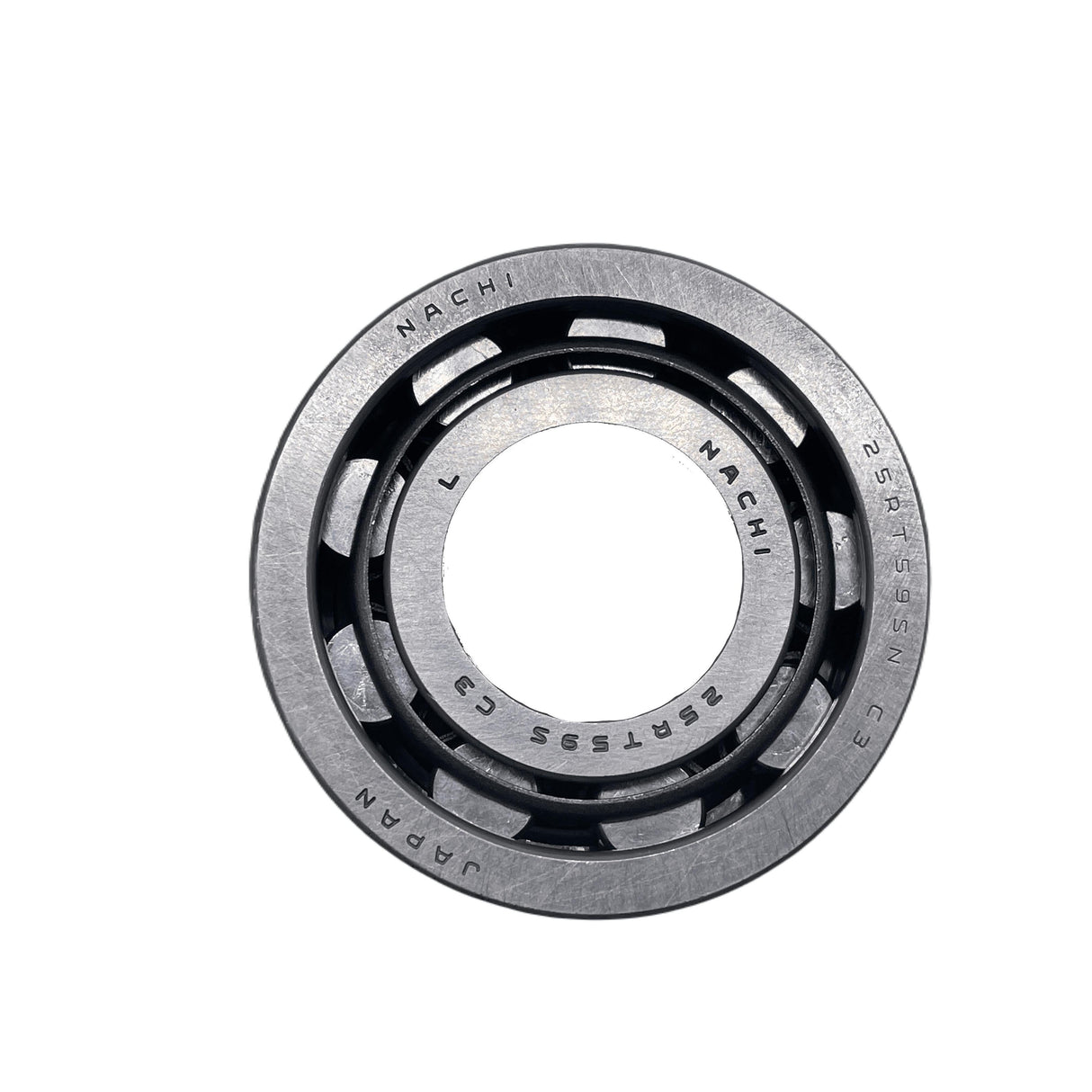

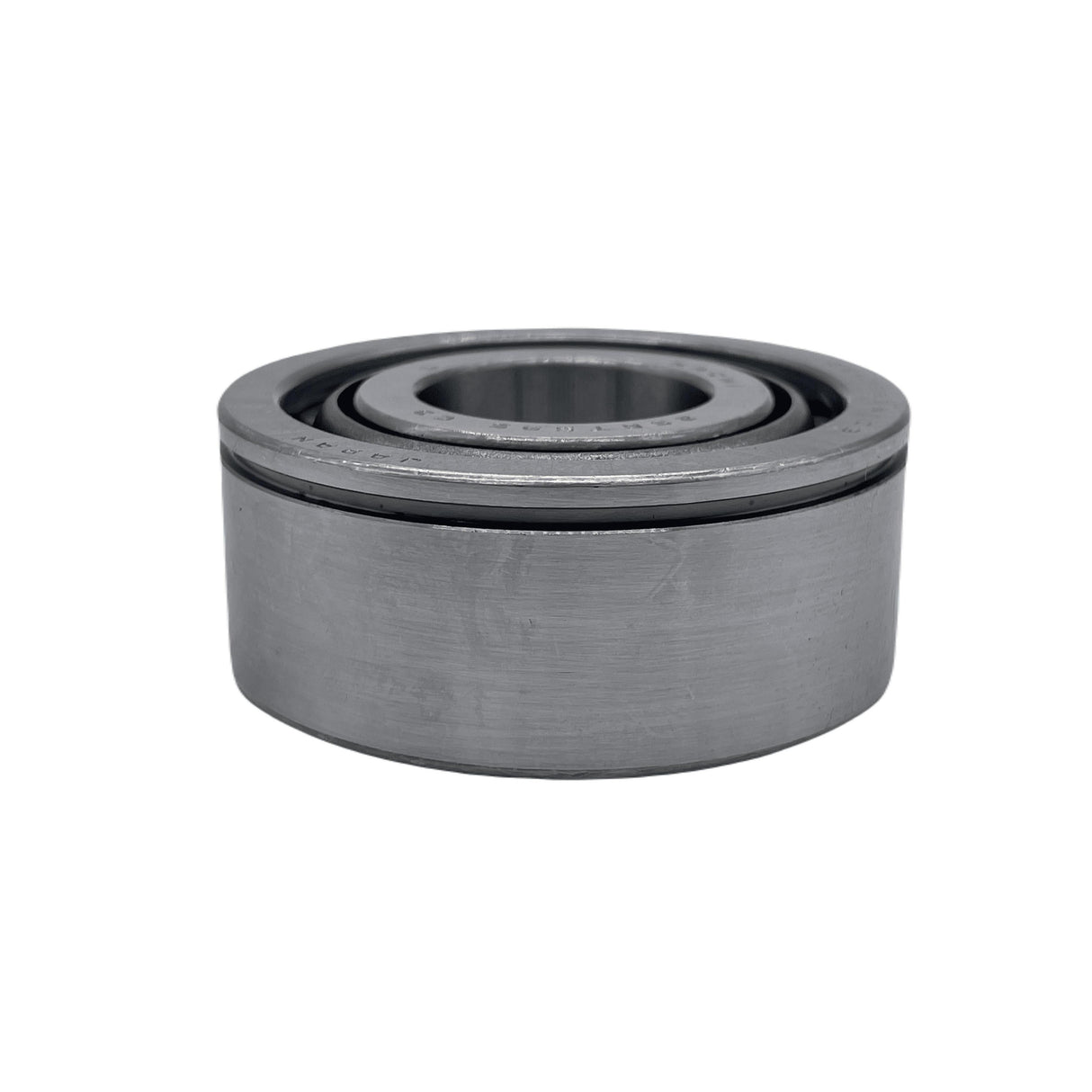

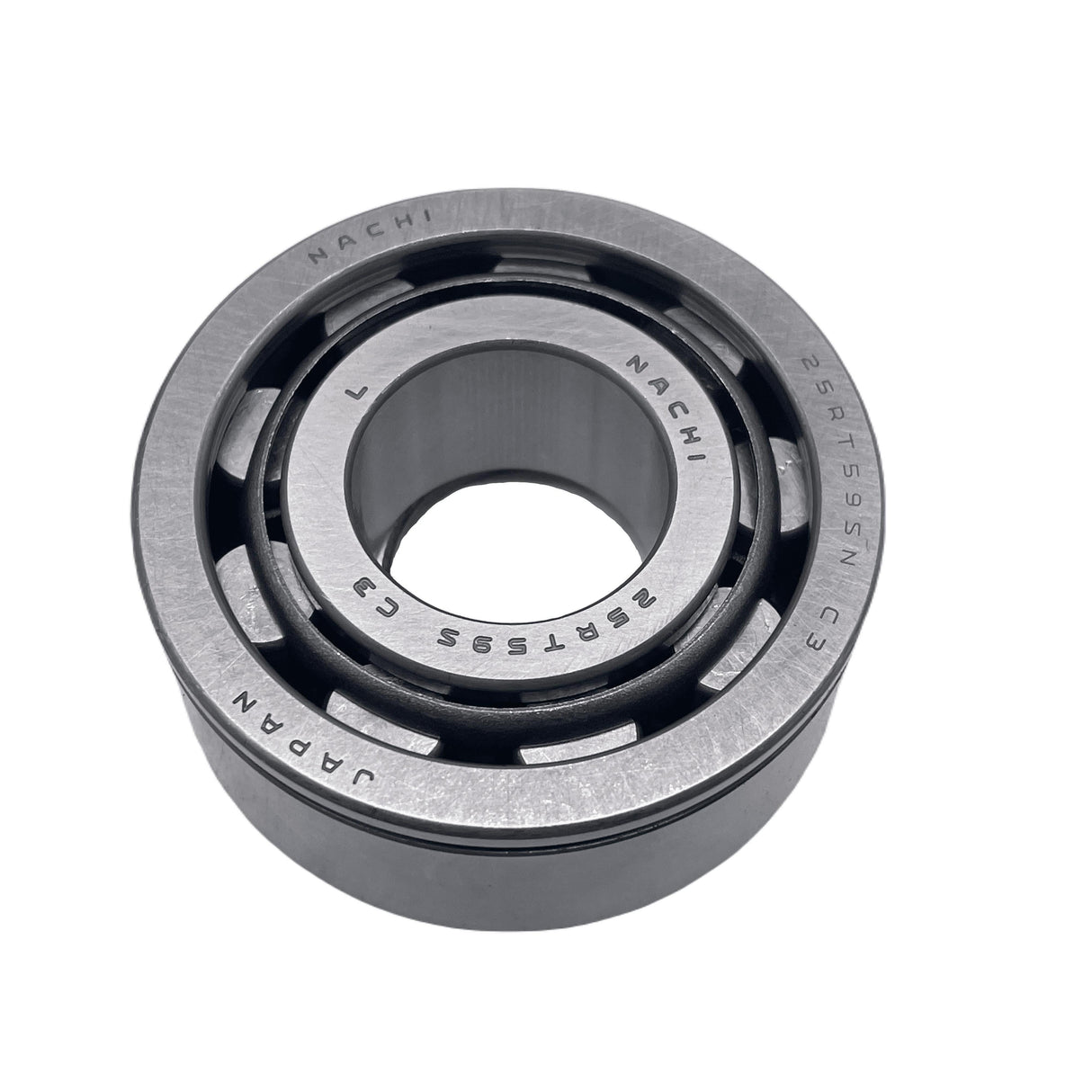

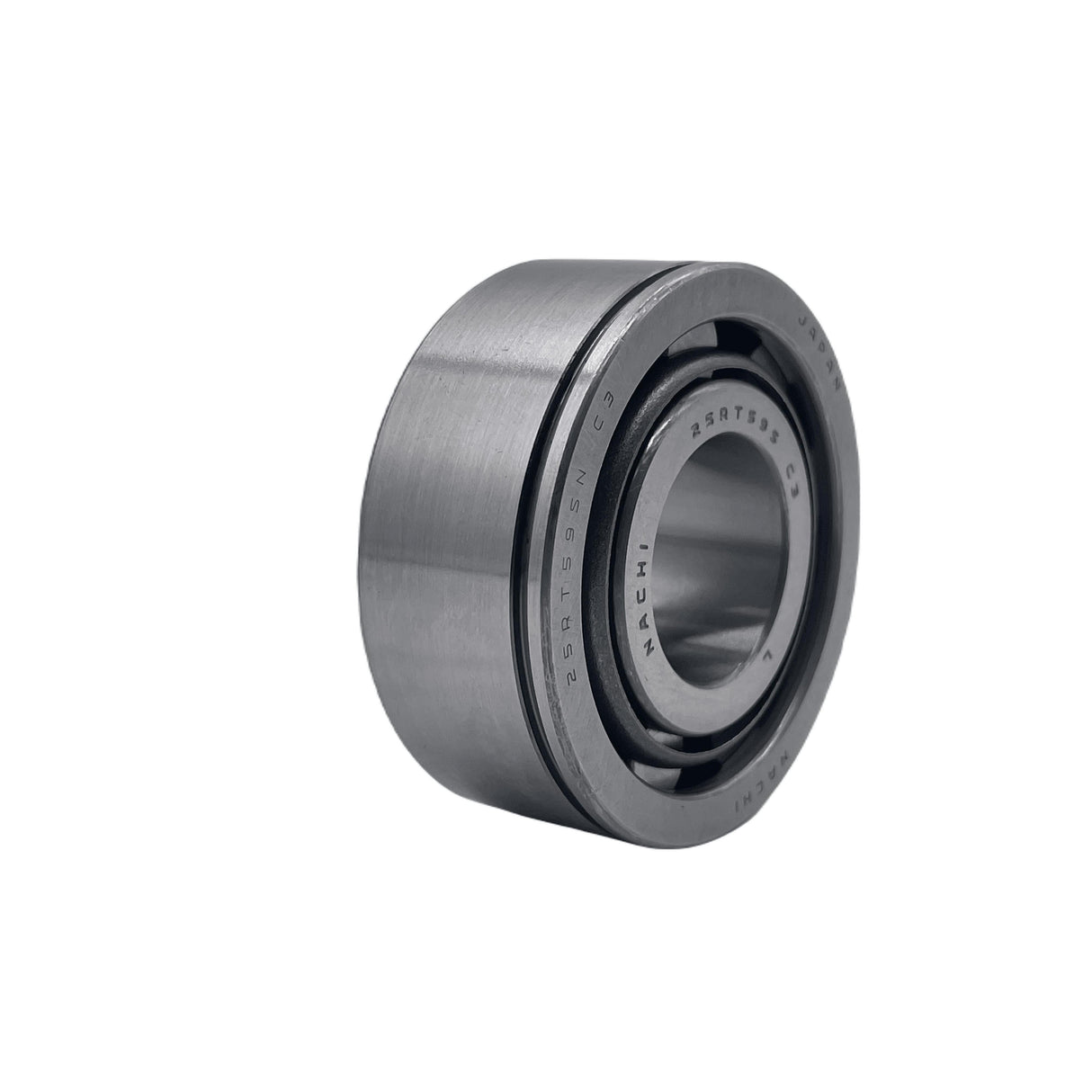

NACHI 25RT59SNC3 Cylindrical Roller Bearing 25x59x24mm

Nachi 25RT59SNC3 Cylindrical Roller Bearing – 25x59x24mm – Toyota Hiace & Dyna

The Nachi 25RT59SNC3 is a cylindrical roller bearing used as a counter-shaft bearing in Toyota Hiace and Dyna manual gearboxes. Manufactured by Nachi in Japan, it provides the high radial load capacity and precision required for transmission countershaft applications.

Dimensions: Bore: 25 mm | Outer Diameter: 59 mm | Width: 24 mm | Bore Type: Cylindrical | Seals: None | Cage: Steel (Standard)

Fits transmission: Toyota manual gearbox (counter-shaft bearing position)

Vehicle Compatibility:

• Toyota Hiace Minibus (H100, H200) — 1995 to 2012
• Toyota Hiace / Commuter Minibus (H200) — 2004 to 2019
• Toyota Hiace Van (H200) — 2004 to 2019
• Toyota Dyna Platform / Chassis (U400–U700, Y200–Y300) — 2001 onwards

Cross-reference part numbers: 25RT59SNC3 | 25 RT59 SNC3 | 025-11 NX C3 | MSN 2559 GEX | MSNB 5305 GTBV | O 25-11 NX C3 U32 | 90365-25018 | 90365-25019 | 90365-25026 | 025-11 | 025-11NX

What does the SNC3 suffix mean on this Nachi bearing?

SNC3 indicates a steel cage (S), no seal (N), cylindrical bore (C), and C3 internal clearance — a looser-than-standard fit that accommodates thermal expansion in a running transmission.

Is this a Nachi OEM bearing or aftermarket?

Nachi is a Japanese manufacturer and original equipment supplier. This bearing is the same specification as fitted by Toyota at the factory.

Which Toyota gearbox position does this bearing occupy?

It is the counter-shaft (layshaft) bearing in the Toyota manual gearbox fitted to Hiace and Dyna models. Consult your workshop manual for the precise location.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2116
