LuK Bearing and Seal Kit for BMW HAG 215L 462033010

LuK Bearing and Seal Kit for BMW HAG 215L Rear Differential – 462 0330 10

Complete LuK GearBOX bearing and seal repair set for the BMW HAG 215L rear axle differential. This kit (462 0330 10) includes the locking plate variant (component No. 9) and covers the updated specification for later HAG 215L units where the flanged shaft nut is secured by a locking plate rather than a self-locking nut.

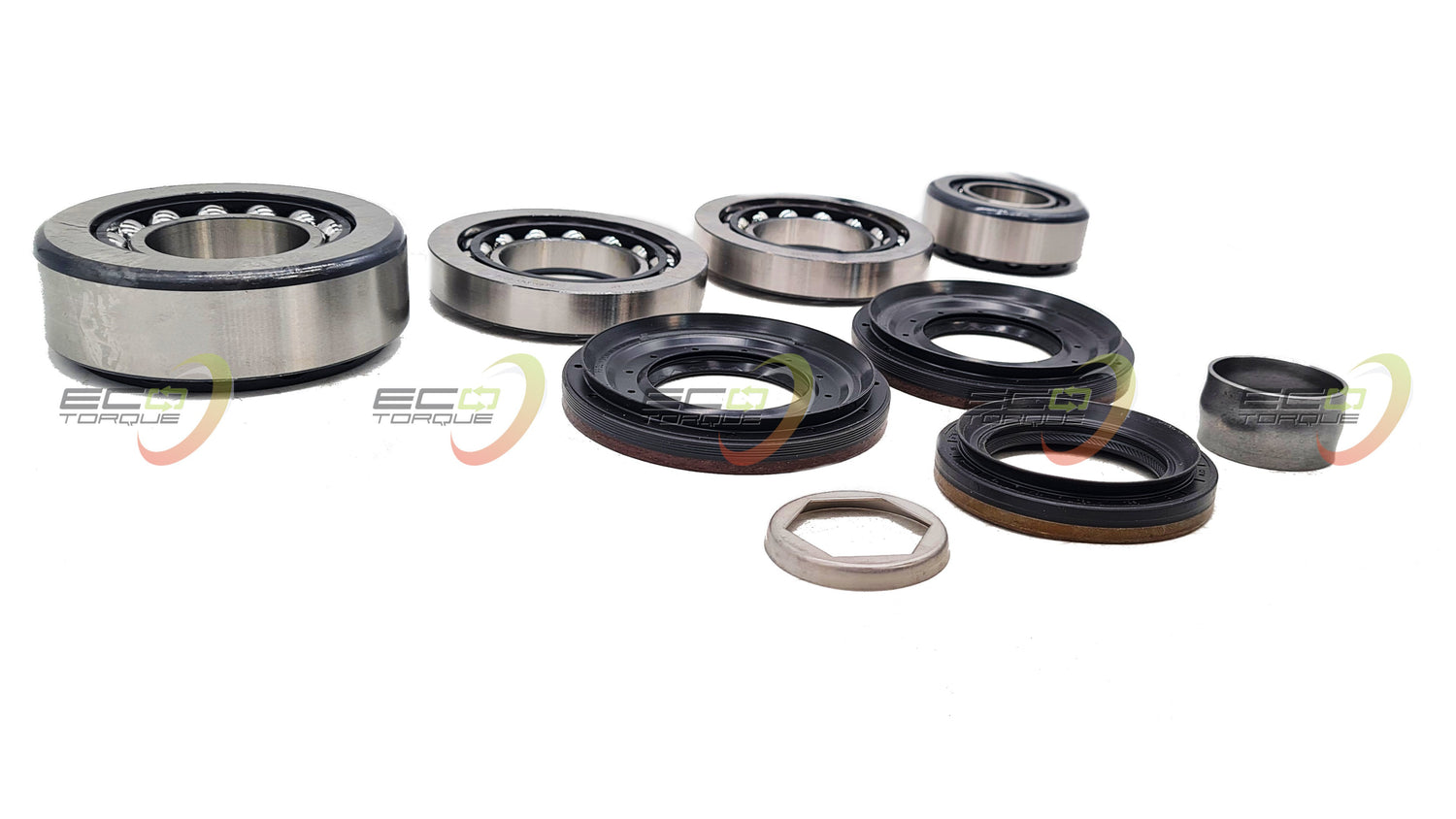

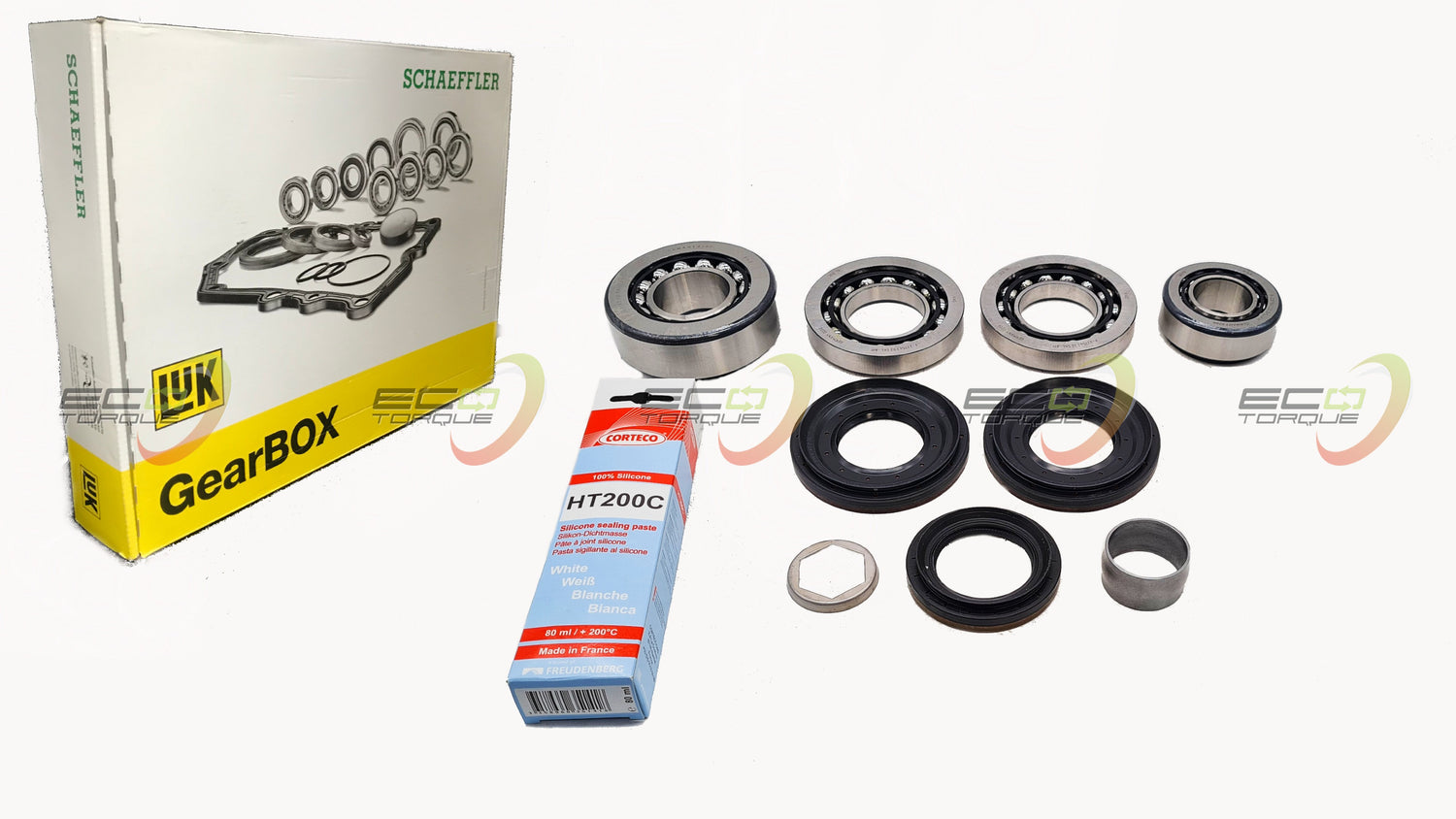

Kit Contents

• 1 – Pinion outer ball bearing (36.51 × 76.20 × 29.42 mm)
• 2 – Pinion inner ball bearing (44.45 × 102.00 × 37.55 mm)
• 3 – Differential right ball bearing (50.00 × 100.00 × 20.10 mm)
• 4 – Differential left ball bearing (50.00 × 100.00 × 20.10 mm)
• 5 – Pinion shaft sealing ring
• 6 – Differential right shaft sealing ring
• 7 – Differential left shaft sealing ring
• 8 – Crush sleeve
• 9 – Securing/locking plate
• 10 – Sealing paste

Compatible Differential

BMW HAG 215L rear axle differential

OE Cross References

7 577 224 · 7 577 225 · 7 577 226 (BMW)

Fits Vehicles (including but not limited to)

Specifications

EAN: 4014870522711
Composition: Metal, Plastic, Rubber

Which LuK set do I need – 462 0216 10 or 462 0330 10?

The HAG 215L was updated during production. The key difference is the flanged shaft nut fixation: if your differential uses a locking plate you need 462 0330 10 (this kit). If it uses a self-locking nut, you need 462 0216 10. Check the existing securing method before ordering.

Does this kit include everything needed for a differential overhaul?

Yes – all four bearings, all three sealing rings, crush sleeve, locking plate and sealing paste are included.

What models does the BMW HAG 215L differential fit?

The HAG 215L is commonly found in BMW 1 Series, 3 Series, 6 Series, X5, X6 and X7 models, though fitment depends on the specific engine and body variant. Send us your VIN to confirm.

Is this a genuine LuK part?

Yes. LuK (part of the Schaeffler Group) is an OEM supplier to BMW and this kit is genuine LuK.

What is the EAN for this kit?

The EAN code is 4014870522711.

Why Choose Eco Torque?

As specialists in gearbox rebuilds and repairs, Eco Torque takes pride in offering genuine gearbox parts, high-quality aftermarket alternatives and competitive pricing.

Need Help Finding the Right Part?

If you are unsure whether this part is compatible with your vehicle, send us your UK registration number or VIN and we will help you find the correct part.

Reference Number: ET2370
