A gearbox synchromesh is a crucial component in modern manual transmissions that allows for smoother gear changes by synchronising the speeds of the gears before engagement. This technology eliminates the need for double-clutching, making driving easier and reducing wear on the gearbox. But how does a synchromesh gearbox work, and how does it compare to non-synchronised transmissions? Let’s dive into the details.
Who Invented the
Synchromesh Gearbox?
The synchromesh gearbox was first developed by Earl Avery Thompson, an American engineer working for General Motors. He patented the technology in the late 1920s, with GM introducing it into their cars in the early 1930s. This invention revolutionised manual transmissions, making shifting gears smoother and more user-friendly.
How Does a Gearbox Synchromesh Work?
A synchro gearbox uses synchronisers, also known as gear synchros, to match the speed of the input and output gears before engagement. Here’s a step-by-step breakdown of how it works:
-
When the driver selects a gear, the selector fork pushes the synchro hub towards the selected gear.
-
Friction cones (synchro rings) inside the synchroniser create resistance, allowing the slower-moving gear to speed up or the faster-moving gear to slow down.
-
Once the speeds are matched, the locking teeth engage, and the gear is selected smoothly without grinding.
-
The driver releases the clutch, and power is transmitted through the new gear ratio.
Types of Synchromesh Designs
There are different types of synchro mesh designs used in manual transmissions, including:
Single Cone Synchromesh
- Uses a single friction ring to match gear speeds
- Common in small to mid-size vehicles
- Simple and cost-effective but less effective at high speeds

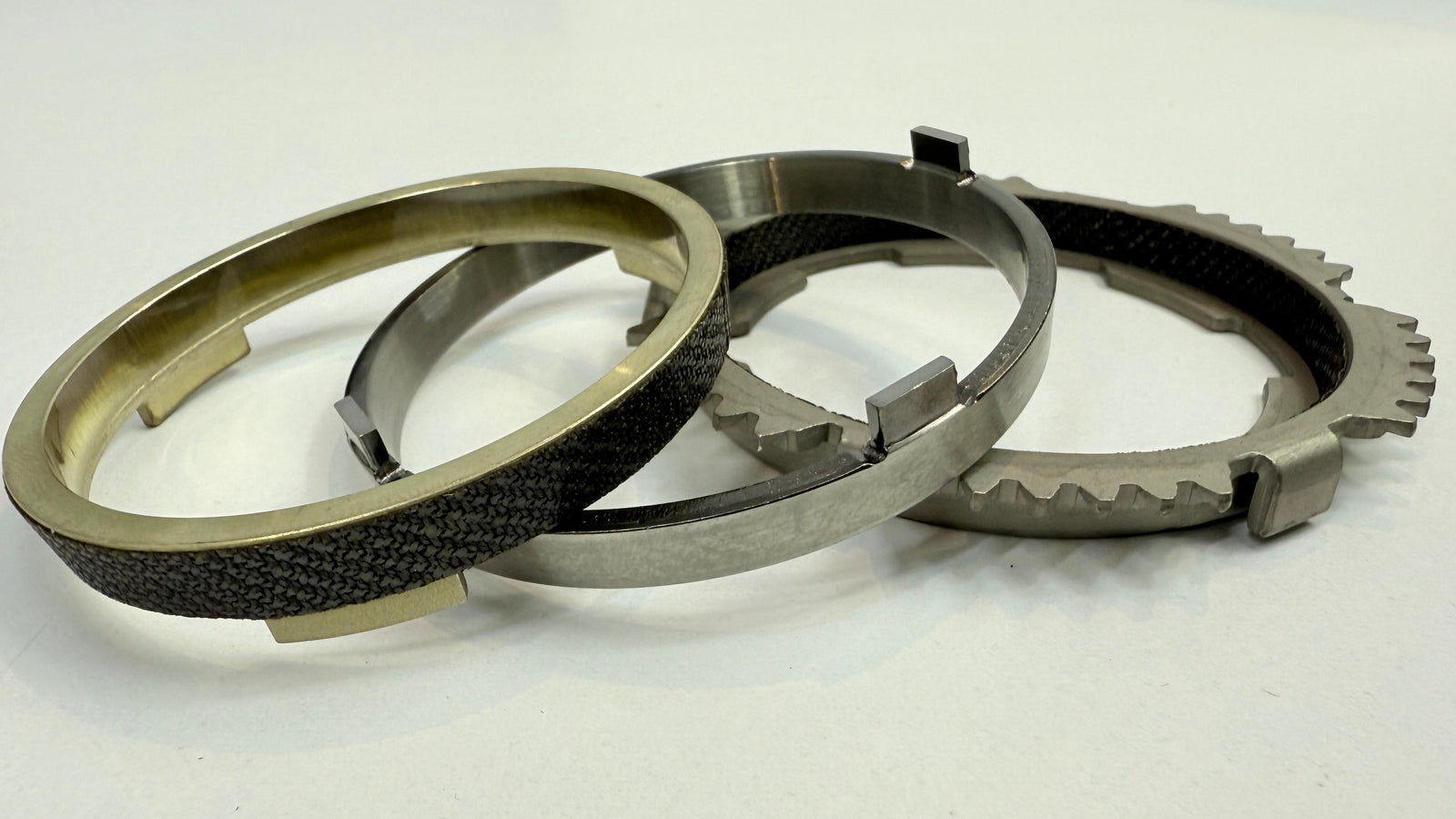

Multi Cone Synchromesh
- Uses multiple friction rings for increased friction and better synchronisation
- Found in high-performance and heavy-duty vehicles
- Provides quicker and smoother shifts
Borg-Warner Synchromesh
- One of the most widely used designs
- Features brass or molybdenum-coated synchro rings for better durability
Triple Cone Synchromesh
- Used in sports cars and high-speed applications
- Offers maximum synchronisation efficiency for seamless shifts
Benefits of a
Synchromesh Gearbox
A synchronised gearbox offers numerous advantages over non-synchronised gearboxes:
Advantages:
- Smoother Gear Changes: Prevents gear grinding and enables effortless shifts.
- Easier to Drive: No need for double-clutching, reducing driver fatigue.
- Reduced Gear Wear: Synchronisation minimises wear on gears and components.
- Better Performance: Faster shifting makes for improved driving dynamics.
Drawbacks of a
Synchromesh Gearbox
Despite its advantages, a gearbox synchromesh does have some drawbacks compared to non-synchronised transmissions:
Disadvantages:
- More Complex Design: Extra components make the transmission more expensive to manufacture and maintain.
- Wear and Tear: Synchroniser rings wear out over time, requiring replacement.
- Less Direct Power Transfer: In some applications, such as racing or heavy-duty trucks, non-synchronised transmissions provide a more direct and robust connection.
Synchromesh vs Non-Synchronised Gearboxes
Non-synchronised gearboxes, often found in older cars, motorcycles, and heavy-duty trucks, require double-clutching to manually match gear speeds. While they are more durable in extreme conditions, they demand higher driver skill levels and are less convenient for daily driving.
| Feature | Synchromesh Gearbox | Non-Synchronised Gearbox |
|---|---|---|
| Shifting Smoothness | Very smooth | Requires skill to avoid grinding |
| Driving Ease | Easy to drive | Requires double-clutching |
| Wear & Tear | Synchronisers wear out | More durable in heavy-duty use |
| Cost | Higher initial cost | Simpler and cheaper to manufacture |
Frequently Asked Questions
What is a gearbox synchromesh?
A synchromesh is a component in modern manual transmissions that allows smoother gear changes by synchronising the speeds of the gears before they engage. This removes the need for double-clutching, making the car easier to drive and reducing wear on the gearbox.
How does a synchromesh work?
When the driver selects a gear, the selector fork pushes the synchro hub towards the chosen gear, and friction cones (synchro rings) create resistance so the gear speeds are matched. Once the speeds match, the locking teeth engage and the gear is selected smoothly without grinding. The driver then releases the clutch and power is transmitted through the new ratio.
What are the different types of synchromesh design?
Common designs include single-cone synchromesh, used in small to mid-size vehicles and simple but less effective at high speeds, and multi-cone synchromesh, which uses several friction rings for high-performance and heavy-duty vehicles. The Borg-Warner design is one of the most widely used and features brass or molybdenum-coated rings for durability, while triple-cone synchromesh is used in sports cars for maximum synchronisation efficiency.
What are the drawbacks of a synchromesh gearbox?
The design is more complex, which makes the transmission more expensive to manufacture and maintain, and the synchroniser rings wear out over time and eventually need replacing. In some applications, such as racing or heavy-duty trucks, non-synchronised transmissions provide a more direct and robust connection.
What is the difference between a synchromesh and a non-synchronised gearbox?
A synchromesh gearbox shifts very smoothly and is easy to drive because it matches gear speeds automatically, whereas a non-synchronised gearbox requires double-clutching and more driver skill to avoid grinding. Non-synchronised units, found in older cars, motorcycles and heavy-duty trucks, are more durable in extreme conditions but less convenient for daily driving.
